Omegga Power Industry Private Limited Rani Jhansi Road, Delhi

To erect pole, line construction work, hoist devices, etc Heavy duty snatch blocks, steel sheave mounted on ball Bearing and painted frame. Technical Specification: Frame are made of MS and cover with paint Suitable for steel rope. The wheels are mounted on ball bearings. Sheave diameter(mm) 150 mm SWL- 5 Ton Weight- 14 Kg.

This tool is used for the free movement of drum of earth wire. It have the capacity to take the standard  earth wire drum diameter 1200mm  & 1000mm width. The turn table is fabricated out of MS channel and angle iron,Braking arrangement provided in the rotating platform and brake-band is to be used for the purpose. The brake arrangement is such that it can be set to a position instead of keeping it pressed. The rotating platform is fitted with tapper roller bearings and ball bearing for easy rotation.The rotating platform is further supported by four rollers to support easy movement as well as to avoid bending of the center shaft. Slotted MS with Screw rod is also provided for clamping the drum to Turn Table. Technical Specification: Made of Mild Steel With Breaking arrangement Weight Kg. 160

This tool is used for the free movement of drum of conductor earth wire. It have the capacity to take the standard wooden steel conductor earth wire drum 2000mm diameter & 1000mm width. The turn table is fabricated out of MS channel and angle iron,Braking arrangment provided in the rotating platform and brake-band is to be used for the purpose.

To Tighten wire cable and stranded wire etc. The turn buckle have eye type hooks at both ends made of steel. The screw rod have locking arrangement so that it will not come out after it is fully opened.

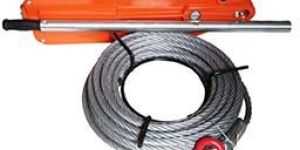

  The Cable Lifter/puller has a high strength Aluminum Alloy body; the internal grip axle is galvanized. Our hand hoist are equipped by safety pins that in case of overloading are sheared. Avoiding any traction movement but allowing Lowering and relaxing operation. The cable lifter /Puller HH Hand Hoist Line is a kind of highly efficient and versatile cable lifter and puller, which is capable of being widely applies in shipbuilding, power plants, transport, construction sited, mines, post and telecommunication for installing machines, lifting, lowering, spanning and securing loads.

Tensioner with engine aggregate for regulation (sagging). For 1 or 2 conductor up to Dia 45 mm and a Tension force Max. 16 Ton. In tensioning mode, automatic control of the machine via ATS (Automatic tensioning System) Pulling mode to regulate the conductor with a max. pull force of 16 Ton and to install the conductor into the machine. Integrated diesel hydraulic aggregate to control the ATS and active the pulling mode, the oil cooling system and the optional addition hydraulic system for drum stand. Robust machine constructed for highest reliability, easy operation and minimal maintenance Technical data in tensioning mode : Max. tension force : 16000 Kg. Continuously adjustable speed : 0-13Km/h minimal tension force : approx. 400 kg (with ATSTechnical data in regulating mode (pulling mode) : Max. pull force : 16000 kg Continuously adjustable speed: 0 - approx. 13 km/hEngine : Water-cooled diesel engine with 76.5 kW (102 HP) 24 V system with high capacity battery for a safe start also at cold temperatures.Weight and dimensions: Weight : approx. 7000 kg Length x width x height : approx. 5500 x 2400 x 2600 mm

Made of high tensile steel, Suitable to connect pilot and pull cables in order to avoid torsional strain It designed to get smoothly into the grooves of pulley blocks they are mounted on the thrust bearing.

Material : High Tensile Steel.

This Spacer Car is used for stringing works and repairing works for 2 bundle conductor having four arms with eight nylon wheels on ball bearing, with Stationery brake, frame made of tubular mild steel pipe.

Weight : 40 Kg

This Spacer Car is used for stringing works and repairing works for 2 bundle conductor having four arms with eight nylon wheels on ball bearing, with Stationery brake, frame made of tubular mild steel pipe.

Weight : 40 Kg

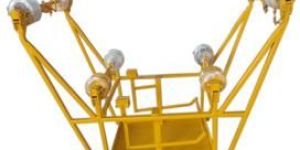

This Spacer car is used for stringing works and repairing works for Four bundle conductor having four arms with eight nylon wheels on ball bearing, with Stationery brake, frame made of tubular mild steel pipe.

Weight : 45 Kg

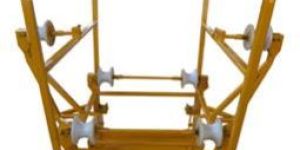

This Spacer car is used for stringing works and repairing works for Six bundle conductor having six arms with ten nylon wheels on ball bearing, with Stationery brake, frame made of tubular mild steel pipe.

Weight : 55 Kg

To erect pole, line construction work, hoist devices, etc Heavy duty snatch blocks, steel sheave mounted on ball Bearing and painted frame. Suitable for Steel wire rope. Technical Specification:   Heavy design for better protection of sheave Suitable for steel rope. The wheels are mounted on ball bearings. SWL for four Sheave Pulley - 10 Ton Weight for four Sheave Pulley - 23 Kg.   SWL for Six Sheave Pulley- 10 Ton Weight for Six Sheave Pulley - 28 Kg

To Erect Pole, line Construction work, Hoist Devices etc Heavy duty snatch blocks with opening side, steel sheave mounted on Roller bearings and painted frame.Technical Specification:    Frame are made of MS and cover with paint    Suitable for steel rope.    The wheels are mounted on ball bearings.    Sheave diameter(mm) 150 mm    SWL: 10 Ton    Weight: 11 Kg.

To Erect Pole, line Construction work, Hoist Devices etc Heavy duty snatch blocks with opening side, Steel sheave mounted on Ball Bearing and painted frame. Technical Specification: Frame are made of MS and cover with paint Suitable for steel rope. The wheels are mounted on ball bearings.

To Erect Pole, line Construction work, Hoist Devices etc Heavy duty snatch blocks with or without opening side steel sheave mounted on Roller bearings and painted frame. Technical Specification: Frame are made of MS and cover with paint Suitable for steel rope. The wheels are mounted on ball bearings.

To Erect Pole, line Construction work, Hoist Devices etc Heavy duty snatch blocks with or without opening side steel sheave mounted on Roller bearings and painted frame. Technical Specification: Frame are made of MS and cover with paint Suitable for steel rope. The wheels are mounted on ball bearings. Sheave diameter(mm) 150 mm SWL: 5 Ton Weight: 8 Kg.

To Erect Pole, line Construction work, Hoist Devices etc Heavy duty snatch blocks with or without opening side steel sheave mounted on Roller bearings and painted frame.  Technical Specification: Frame are made of MS and cover with paint Suitable for steel rope. The wheels are mounted on ball bearings.

To Erect Pole, line Construction work, Hoist Devices etc Heavy duty snatch blocks with steel sheave mounted on Roller bearings and painted frame. Technical Specification: Frame are made of MS and cover with paint Suitable for steel rope. The wheels are mounted on ball bearings.

  The head type temporary mesh sock joints are specifically designed to temporarily connect the aluminium, steel or copper conductor to the pulling rope. They consist of variable pitch steel wires, which effectively distribute the gripping effect on the conductor.

The head type temporary mesh sock joints are specifically designed to temporarily connect the aluminium, steel or copper conductor to the pulling rope. They consist of variable pitch steel wires, which effectively distribute the gripping effect on the conductor.

Single Conductor Wire is specifically designed to connect the Pulling Rope with a fibre optic cable. They are composed of several jointed rods and two drawback counterweights. Technical specification: Non Rotating Counterweight Device for Stringing O.P.G.W Cables Specify Designed to connect the Pulling Rope with a Fiber Optic Cable. They are composed of several jointed rods. Safe working Load : 5 Ton

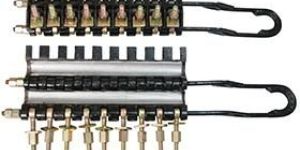

Tool for clamping the conductor during pulling and sagging operation. The clamp is suitable to grip specific ACSR conductor. The body of the clamp is fabricated from high tensile steel. The two halves are hinged to each other on one side and the other side High tensile bolts are provided along with the nuts. The clamps are provided with replaceable aluminium liner in order to avoid damage to conductor surface and are circular in shape so as to accommodate the conductor without causing any deformation to its shape. The Nuts provided to the eye bolts are of extra long size to facilitate better tightening along with extra thick Washer Technical Specification: Body: Made of Steel in two Parts. Sleeve: Alloy Aluminum Liners Provided to Grip Conductor. Hook and Eye Bolts made of Carbon Steel.

Weight : 16 Kg.

Tool for clamping the conductor during pulling and sagging operation. The clamp is suitable to grip specific ACSR conductor. The body of the clamp is fabricated from high tensile steel. The two halves are hinged to each other on one side and the other side High tensile bolts are provided along with the nuts. The clamps are provided with replaceable aluminium liner in order to avoid damage to conductor surface and are circular in shape so as to accommodate the conductor without causing any deformation to its shape. The Nuts provided to the eye bolts are of extra long size to facilitate better tightening along with extra thick Washer Technical Specification:

Self Moving Traction Machine is use to spread, replace old conductor block and to deliver guide rope connecting with exist gw by Self-driving between steel tower and steel tower when stringing works for Overhead conductors or OPGW working by supporting roller system.
