Optical Time Domain Reflectometers Dealers in Delhi

• Application: Industrial Use
• Feature: Accuracy, Robust Pcconnectivity
• Display Type: Digital Display
• Driven Type: Electric
• Dynamic Range: 37db
• Touch Screen: Touch Screen
• Power Source: AC power
• Auto Power Off: yes

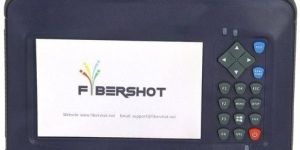

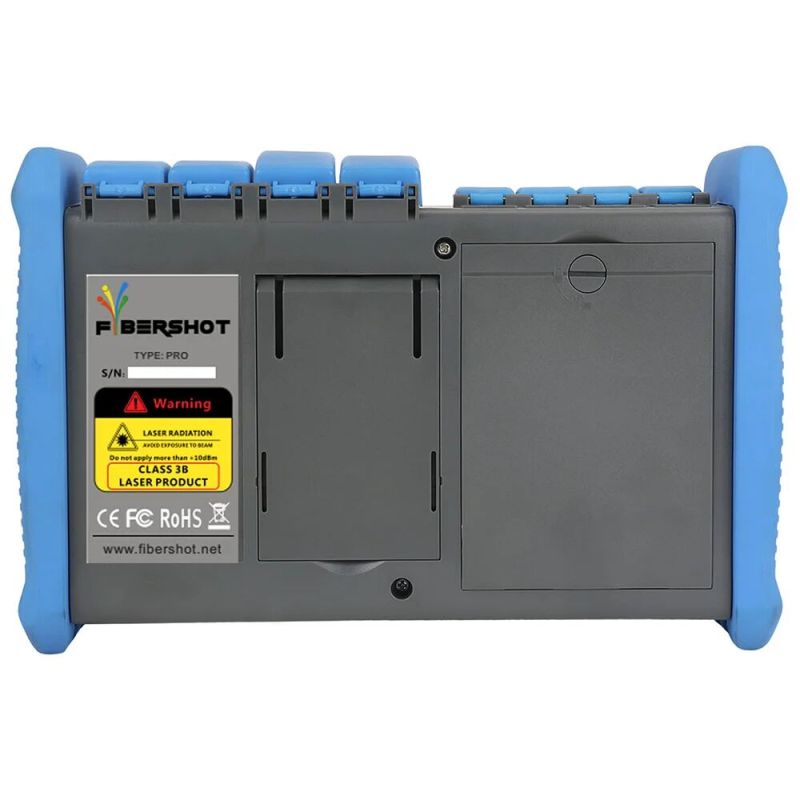

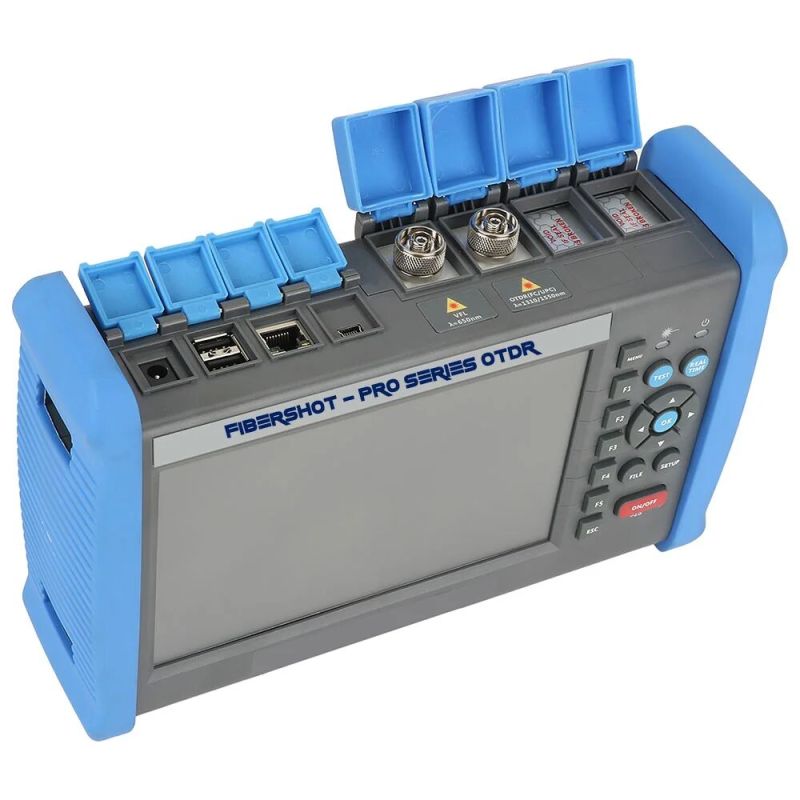

Fibershot Pro series Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countryside, the measurement of an optical network becomes short and disperse; Fibershot Pro Series OTDR is specially designed for that kind of application. It’s economic, having outstanding performance. Fibershot Pro Series is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes Fibershot Pro Series more smart and compact and multi-purpose. Whether you want to detect link layer in the construction and installation of optical network or precede efficient maintenance and troubleshooting, Fibershot Pro Series can be your best assistant.

• Model: T-OT600 SV20A/B SM OTDR
• Pulse width (ns): 5,20,40,80,160,320,640,1280,2560,5120,10240,20480
• Display: 6.5 inch TFT LCD touch screen
• Linearity (dB/dB): ±0.05 dB/ dB
• Distance uncertainty (m): ±(1 m + 5×10-5× distance + sampling interval)
• Distance scope (km): 0.3 to180
• Memory capacity of trace: SD Card (4G), > 10000 pieces
• Duration of measurement: Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable
• Optical interface: FC/UPC+SC/UPC
• Data interface: USB interface, SD card interface
• Power supply: Lithium battery; continuing working duration ≥ 8 hours
• Warranty period: 12 months
• SKU: 853

• Color: Black
• Dynamic Range: 32 Dbm
• Touch Screen: YES

• Brand Name: Fibershot
• Color: Blue
• Application: Industrial
• Model: D35
• Dynamic Range: 35DB
• Touch Screen: Yes

• Color: WHITE & BLUE

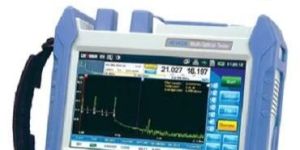

• Brand: Deviser
• Model Name/Number: AE3100A
• Usage/Application: Optical Fiber Testing
• Dynamic Range: 30/28
• Touch Screen: 7 INCH
• Auto Power Off: YES
• Power Source: DC

• Display Size: 5 inches
• Dyanamic Range: 32/30 dB
• Dimensions: 185x116x56 mm
• Weight: 660 gm

• Weight: 1.5kg(battery included)
• Dimension: 253x168x73.6mm
• Power Supply: 10V(dc), 100V(ac) to 240V(ac), 50
• Power Saving: Backlight off Disable/1 to 99minutes and Auto shutdown Disable/1 to 99minutes
• DataStorage: Internal memory 16GB (about 160,000 groups of curves)

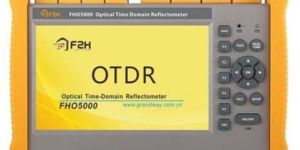

• Series: FHO5000 Series

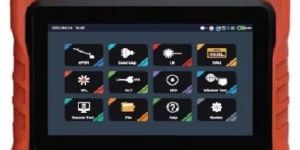

Standard Function OTDR,Event Map, OPM, VFL, Laser Source, Loss Test,RJ45 Sequence, Light Optional Function RJ45 Tracker 1. Two wavelength 1310/1550nm or single wavelength 1310/1550/1610/1625nm 2. Measurement distance: 80km 3. Capacitive touching screen, clear, sensitive touch and quick response, can operate by both key and touching screen. 4. Test record is saved as SOR format. 5. Standard function: OTDR, Event Map, Optical Power Meter , Optical Light Source, VFL, Optical Loss Test, RJ45 Sequence,Flash Light Optional function: RJ45 Tracker 6. Keyboard input, can edit and save file name and line number. 7. Support user upgrading. 8. With USB and TF card data interface, easy to export curve data. 9. Fast startup, only 2 seconds to test

• Wavelength: 1310/1550 nm
• Dynamic Range: 36/34 dB
• Display: 7 in (178 mm) outdoor-enhanced touchscreen, 800 x 480 TFT
• Interfaces: Two USB 2.0 ports, RJ-45 LAN 10/100 Mbit/s
• Storage: 2 GB internal memory (20 000 OTDR traces, typical)
• Power supply: Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum
• Event dead zone: 0.8 m
• Attenuation dead zone: 3.5 m
• Distance range: 0.1 to 260 km
• Pulse width: 5 ns to 20 micro s
• Loss threshold: 0.01 dB
• Loss resolution: 0.001 dB
• Sampling resolution: 0.04 to 5 m
• Reflectance accuracy: +/- 2 dB

• Weight: 1.5kg
• Temperature: Running temperature -10℃ to 50℃
• Technical Specifications1: Wavelength (nm)
• 1310/1550: Dynamic range (dB)2
• 38/36, 32/30: Pulse width (ns)
• 5,20,40,80,160,320,640,1280,2560,5120,10240,20480: Event blind zone (m)3
• 2m: Attenuation blind zone (m)3
• 9m: Linearity (dB/dB)
• ±0.05 dB/ dB: Loss threshold (dB)
• 0.05: Loss resolution ratio (dB)
• 0.01: Sampling resolution ratio (m)
• 0.125 to 8: Sampling point
• 32K: Distance uncertainty (m)
• ±(1 m + 5×10-5× distance + sampling interval): Distance scope (km)
• 0.3 to180: Typical real-time refreshing duration (s)
• 0.2: Memory capacity of trace
• SD Card (2G), > 10000 pieces: Duration of measurement
• Dimension (H×W×D): 150×235×66
• Memory temperature -40℃ to 70℃: Relative humidity
• 0% to 95% (non condensation): Power supply
• Lithium battery; continuing working duration ≥ 8 hours: Warranty period

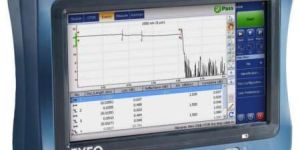

The MAX-710B is the first tablet-inspired OTDR that is handy, lightweight and rugged enough for any outside plant environment.With a 7-inch, outdoor-enhanced touchscreen, the most efficient handheld display in the industry, it delivers an unprecedented userexperience. Specifications : FTTx last-mile installation and troubleshooting. Short access network testing. FTTA-fi ber DAS installations. CATV/HFC network testing.  S

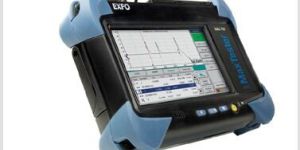

Our range of EXFO Optical Time-Domain Reflectometer (OTDR) Testing Equipment are known for its highly premium quality and unique range. Our products are widely accepted for its excellent quality and better performance. Our range is available at market most leading prices.Applications: Sturdy construction High performance Long performing life

JDSU Optical Time Domain Reflectometer, Cat6 Cable

Optical Time Domain Reflectometer, LIU 12 Port, Electrical Data Center
