Samteklab Kalkaji, Delhi

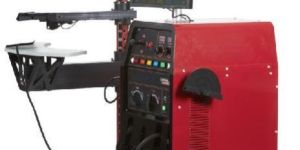

Welding Trainer Specification of Welding trainer With monitor screen and Video glasses having High Resolution LCD 640×480. Including thermo printer with printing paper Faults and defects can be reported through monitor screen and can be printed out. Electrical supply: 220 V, 50 Hz, 1 phase With welding helmet set including audio system 2-rolls of printing paper min. A manual welding simulation trainer (educational system) on butt and corner joints for MMAW (Manual Metal Arc Welding), SMAW, FCAW, GTAW TIG, MIG and MAG welding processes.The purpose is to familiarize trainee the basic skills before going to the real practice

Brand Name:-SAMTEKLAB Visual Refrigeration trainer:-• Basic principles of heat transfer.          • The vapour compression refrigeration cycle. SPECIFICATION:-• Function and application of different flow controls.          • Mounted in steel framework with stainless steel base and back panels incorporating a drip tray for            condensate.         • Air-cooled condensing unit with open type reciprocating compressor.         • Transparent evaporator, clearly showing change of state of refrigerant from liquid to vapour.         • Refrigerant flow control options to include -Automatic Expansion Valve, Thermostatic Expansion Valve (internally equalized) and Capillary with separate Filter Drier.         • Liquid/suction heat exchange.         • Liquid line filter drier and sight glass.         • Compound and pressure gauges.         • Suction and discharge service valves fitted[13] Liquid line hand wheel valve for easy manual pump down of system         • Electrical control box with indicator/warning lamps, contractor, overloads and residual current device for protection against earth leakage.         • Comprehensive manual to include theory and principles, instructors guide notes, student test papers and    sample answers, parts list and electrical wiring diagram.        • Audio-visual tape/slide programmer.

Samteklab is Manufacturer and Exporter for Civil Engineering Lab Equipment,Survey Equipments for useing the Survey of construction project Side.

Brand Name:-SAMTEKLAB Soldering Station:- Features:Adjustable temperature and a variety of available tips.Grounded tip for soldering static sensitive devices.Overheat protection with closed loop temperature control.Improved circuit design for greater temperature stability.Heat resistant soldering iron cord.Built-in tray with cleaning sponge.Specifications:

Country of Origin : 220 – 240 VAC/50 Hz

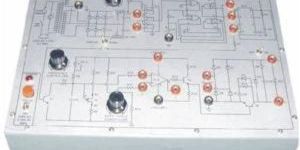

Brand Name:-SAMTEKLAB Inverter  trainerSingal Phase Inverter trinerSpecification Front panel in inclating material with Silkscreen printed Diagram Of the Different Circuit Block of the modules & elecrical Diagram of Each of circuit. Terminals for the Connections & measurements. Swicting frequency of the generator 20kHz & External Output Voltage sine 24vac/1A; Output Voltage of Frequency 50Hz DIM: 386X50 mm & Power supply +30DC/2A

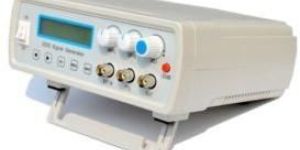

Samteklab are Manufacturer & Exporter for Electrical engineering lab Equipment to Export all in India.Features of Signal generator:- DDS technology provides the superior signal with Low distortion and High Stability. Borth RF output & Output Function. Variety of waveform:-Sine,pulse,triangle,Ramp,square. Specification:-

Brand Name:-SAMTEKLAB Refrigeration trainingData of Acquisition SystemSpecification This trainer introduces the student to the basics of refrigeration system used in refrigerator and air conditioning. Students learn about practical knowledge of vapor-compression refrigeration cycle operation. The trainer contains the basic components found in many refrigeration and air conditioning systems. These components have been mounted onto a special frame and are clearly laid out and identified for student examination. During operation, studies of pressure enthalpy (p-h) diagram concerning the thermodynamics cycle of refrigeration or air conditioning system can be made. A number of special controls meters and transparent view ports have been provided in order to setup and monitor a variety of experiments. Features: The trainer is built around a special work bench that incorporates a demonstration board onto which the components are mounted. The components are neatly laid out in a manner similar to the refrigeration circuit so as to be easy to understand. The refrigeration circuit is displayed on a colorful printed diagram. Refrigeration lines are color coded to indicate the state of the refrigerant. Control panel with instrumentation including Line Voltage, Ampere (Total Current) and Temperature display panel meters are provided as a standard to control the trainer and to facilitate measurements. The unit should be supplied with a experiment manual containing

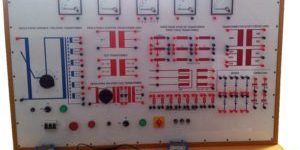

Brand Name:-SAMTEKLAB POWER DISTRIBUTION BOARDPower  Distribution Board Specifically designed to suit the needs ofElectrical  Laboratory Systems. Safety aspects are designed into thesystem with high quality components through out for safe guard andprotection to the operator.Modules: The unit allows wide flexibility to change the number of circuitbreakers and receptacles according the needs. The systems includes a range of 4 up to 12 receptacles, each with itsown circuit breaker, that allow the user to connect electrical equipment directly to the board. This on-board design should consolidate all the essential componentsinto an easy to understand and operate system. The design allows for extension boards to the bus bar if needed. The number of circuit breakers, receptacles, bus bars could be specially ordered for custom requirements. In addition. Specification of power Distribution trainer:-• 1 Molded Case Circuit Breaker 160/600 A• Overload and shunt trip coil• 1 Ammeter 100 A/5 A with selector switch• 1 Voltmeter 500 V with selector switch• 1 Earth Leakage Circuit Breaker (ELCB)• 1 Frequency meter• Power factor meter• 1 Maximum demand indicator• 2 Emergency stop button• 1 Kwh meter, 3 phase• 1 Kwh meter, 1 phase• 4 Circuit breaker, 32 A, three phase• 4 Circuit breaker, 6 A, single phase• 4 Output socket, 5 pin (3 phase)• 4 Output socket, 3 pin (single phase)• 1 Set protective fuse• 5 copper bus bar 0.25 inch x inch• 1 Set indicator lights• 1 Set current transformer• 1 Set input socket, plug and cable

Brand Name:-SAMTEKLAB PHASE ROTATION INDICATOR  Features:  Phase rotation indicator for 3 phase system  Indicates phase rotation Indicates phase presence Specifications:

Country of Origin : 40 to 700 V

SAMTEKLAB is the Petroleum Testing Equipment’s manufacturers ,Exporter and Suppliers for all Our India.P[petroleum testing equipment’s is the most Commonly used for Petroleum Industry. Its’s helps to testing the petroleum by Product or crude Oil,gas Petroleum testing in also used for various. other Petroleum testing equipment’s exist to all the aspects of petroleum testing equipment’s. Basically this machines are demanded Nationality & International Industry. Abel Flash Point,Red-Wood Vesco meter,tar Visco meter,Pen sky Marten Flash Point App,Ring&Bell app Thermometers for all instruments.

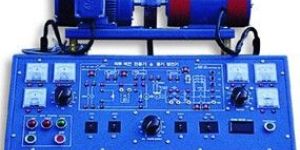

Brand Name:-SAMTEKLAB MOTOR-GENERATOR SYSTEM Motor and Generator/Alternator mounted into a special frame toaccommodate coupling and electrical connections. All wiring connectionsfrom machine windings are brought out to 4mm terminals. Connectionleads with banana plugs facilitate quick and easy connections betweenthe Motor-Generator System and other controls. A fault insertion formachine winding is available as an optional item for studenttroubleshooting exercises. Specifications: Excitation Control (%), Variable DC power supply (3 to 180VDC). Generator. DC Shunt Wound Generator,Alternators 1 Ph. Alternator with Cylindrical Rotor, Stator Wound Rotor exited, 300VAMotors DC Shunt Motor, 1 HP AC Three Phase Induction Motor, 1 HP Accessories: 1 Set of test leads. Base plate machine bed with anti vibration rubber feet (bench top type) and protective cover. Student experiment manual. Extras: 1-phase resistive load. Faults Insertion System for Motor/Generator winding.

Brand Name:-SAMTEKLAB Air conditioning trainer (HVAC). Air-conditioning Components and OperationThis module is based around a complete automotive air-conditioning system mounted in a steel frame.The unit features a dashboard electrical/vacuum control system and having a single-phase electric motor to drivethe a/c compressor.Following the computer-based instructional material that is supplied with the unit, the student is able to studyoperation of the a/c system.Special sight glasses are fitted to the high pressure and low-pressure line, these shall allow the student to see thetwo states of the refrigerant.It is possible to use the unit with an industrial standard recharging station allowing the student to service the entirea/c system. (Recharge station not supplied with the module) Topics covered includes: Topics covered must include.Air Conditioning Trainer Familiarization.Air Conditioning System Performance Testing.Introduction to Air Conditioning Servicing.Leak Testing an Air Conditioning System.Advanced Air Conditioning Servicing.Electrical Compressor Controls.Removing A/C Compressor Belts and Pump.Evacuate and charge A/C system.Diagnose A/C system conditions that cause the protection devices (pressure, thermal, and PCM) to interrupt.system operation; determine necessary action. It has also address: • Identifying an organization’s products and services.• Determining a customer’s individual needs.• Scheduling tasks to meet customer needs.• Developing communication skills for an international audience.• Cultural differences in the business world. It contains: • 1 x Ignition Systems module.• 1 x Customer Relations Module.• 1 x Remedial Mathematics Software Package.• 1 x Air-conditioning System Components – Complete Tool. Package, including: • AC Recharge Station.• General Wrench, Socket and Screwdriver Set.• Multimedia Workstation.• Pentium IV 1.6GHz Processor.• 10/100 LAN Adapter.• 20 GB HDD, 52x CD ROM drive, 128 MB RAM.• 8 MB ATI Rage Graphics, 17” Monitor.• Speakers, (2) Headphones w. Splitter.• Keyboard, Mouse

Brand Name:-SAMTEKLAB Samteklab are Manufacturer & Exporter of Electrical engineering equipment and Exports all our India.FUNCTION GENERATOR Features: Multi waveform: Sine, Triangle, Square, Ramp, Pulse and etc. DC Offset and Symmetry continuously adjustable. VCF input Full output protection Specifications:

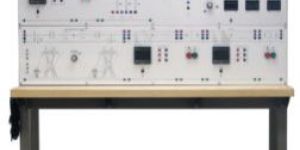

Brand Name:-SAMTEKLAB Electrical Trainer The System comprises Electrical Machines and Power Trainer.Dissectible Machines Trainer :Electrical Machines and Power:This Industrial Machines Installation is based on the concept of a complete system that covers the curriculum requirements to teach Electrical Power and Machines. It based around a series of industrial machines of nominally 250-300Watts rating, which have been purpose designed to display characteristics of industrial machines. The system also covers single and three phase transformers.The system should supplied complete with the necessary power supplies, loading and testing devices as well as PC virtual instrumentation for the metering of all the system values. This virtual instrumentation software compatible with the managed learning environment as specified in item 1.The system must provides with detailed laboratory notes detailing the curriculum, which covers experimental operation and practical training on DC machines, AC single phase and three phase machines, single and three phase transformers and a machines loading system.The system supplied with a dissectible machine to allow machine winding and construction to be considered.Supply Requirements: Nominal Voltage 230/50Hz.

Brand Name:-SAMTEKLAB Electrical Machine TrainerThe Electrical Machine Trainer is designed to provide the students with agood and strong foundation in electrical machine technology. The trainerconsists of modules and panels containing meters, variable resistors,resistive load, capacitive load, inductive load, motors. Educational Objectives: DC Machines Trainer Set Prime Mover & Torque Measurement. DC Motor Construction, DC Generator Construction. DC Shunt Motor Characteristic (starting, running, under load), DC Series Motor Characteristic (starting, running, under load). DC Compound Motor Characteristic (starting, running, under load). DC Separately-Excited Shunt Generator Characteristic (running, under load). DC Self-Excited Shunt Single Phase AC Machines Trainer Set. Prime Mover & Torque Measurement Split-Phase Induction Motor Characteristic (starting, running, under load). Capacitor-Start and Run Motor Characteristic (starting, running, under load). Universal Motor Characteristic (starting, running, under load). Three Phase AC Machines Trainer Set • Prime Mover & Torque Measurement• Wound-Rotor Induction Motor Characteristic (starting, running, under load).• Squirrel-Cage Induction Motor Characteristic (starting, running, under load).• Synchronous Motor Characteristic (starting, running, under load).• Three-Phase Alternator, Alternator Under Load, Alternator Synchronization, Alternator Power• The Three-Phase Induction Motor Starters

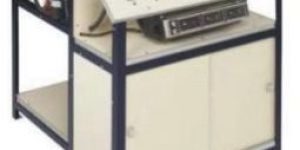

Brand Name:-SAMTEKLAB Electrical Cooling Fan Trainer •  Demonstration board for practical training and study of the Electrical Coolant Fan Systems•  Select vehicle components include miniature coolant fan motor and coolant fan relay, vehicle speed switch, A/C    request switch & coolant temperature switch, ALDL connector, wiring harness, power supply posts, and fuse block.•  Duplicates actual on-vehicle troubleshooting and service manual test procedures•  Operates from a 12-volt automotive battery•  Lean front panel w/ second surface graphics•  Compatible with Laboratory Management System•  Includes instructor’s theory support material,•  Includes theory power point presentation and theory support presentation.

Brand Name:-SAMTEKLAB Samteklab are the Manufacturer & Exporter for Electrical engineering lab equipment to Exports for all over India. Digital Voltmeter SPECIFICATION: Watts 0 – 1850. Kilowatt-Hours 0.001 – 9999. Amps 0.20 – 15.00 (+/-3%) ,Volts RMS 0 – 130.0, Power Factor0.000 – 1.00 (+/-5%) VARS20 – 1850 (+/-5%)*  Volt-Amps20 – 1850 (+/-5%)*, Peak Watts Yes, Elapsed Time Yes, Accuracy (except as noted) +/-1.5%, +/-2 least sig. digit. User Recalibration Yes. Logging Memory 8,121 ,Average Power Samples, 21-1850CI only. Sample Interval 1 min – 2 hours, 21-1850CI only. RS-232 specs9600 bps, 8N1, 21-1850CI only.

Brand Name:-SAMTEKLAB Digital breadboard The Digital Trainer is a modular course covering concepts, theory andapplications for digital electronics training. It should be designed startthe student with the basics of digital technology and goes ontoadvanced digital topics. All necessary equipment for digital trainerexperiments such as multiple output power supply Courseware:   The Digital Trainer includes with operation manuals and experimentmanuals which includes step-by-step chapters with theoretical informationand practical student experiments.Coveres the following Topics of Experiment:· Fundamental of AND, OR, INVERTER, NAND and NOR.· Basis of AND, OR, INVERTER, NAND and NOR with ICs.   · XOR logic with ICs.· Practical NAND and NOR gate circuits.· Active high and active low inputs and outputs.· Product of sums circuits.· Sum of products circuits.· Pulse distortion and propagation delay.· Schmitt trigger gates.· Parity circuit.· Fundamentals of diode and BJT logic.· Open collector TTL outputs.· Three state outputs.· D type latches.

Brand Name:-SAMTEKLAB Samteklab are Manufacturers & Exporter are Electrical Engineering Lab Equipment for Export all our India. Dc Power Supply Dc Power Supply Features:- Dual independent adjustable DC outputs. Constant voltage and constant current. Independent, Series and parallel variety output. Low ripple and noise. Four LED displays with 3 digits, selectable for two sets output voltage and current display simultaneously. Auto tracking output. Specifications:

Input Voltage : 110-127 VAC±10%, 220-240VAC ±10% switchable.

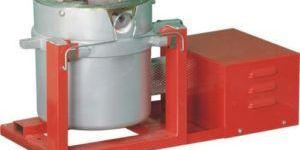

casting pit. The sand tray raises the crucible to a more convenient working height and means that only protective leggings are needed, rather than protective footwear. Fitted with a high performance burner and control system incorporating a fully automatic start, sequence which is initiated by the touch of a switch. The furnace offers fast melt times over a wide range of metals, from aluminium to,bronze, brass, copper, gold and silver. The burner has a piezo igniter and is fitted with flame failure protection. An alternative drum,improve the casting operation. If required the drum assembly can be detached and carried to the mould using the Combined Lifting and Pouring Tools which are available as optional extras.

Samteklab are offering a wide range of Consolidation Frame One Dimensional Consolidation, Consolidation Test Apparatus manufacturers, Consolidation Test Apparatus suppliersRigidly manufactured from aluminium alloy casting to provide a high degree of accuracy with any frame distorsion under load. The load bridge group is supported in high accuracy self-aligning seat balls.The beam provides three loading ratio: 9:1 10:1 11:1 and the beam assembly is fitted with an adjustable counterbalance weight.

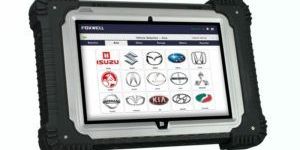

Brand Name:-SAMTEKLAB Car Scanner. • Access to power train, chassis, and body systems• Quick Test function test most vehicle systems• Fault codes (DTC’s), Data Stream and Service Reset• Actuations, Adaptations, and Control Module Coding• Supports Multi-language for an international marketplace• CAN-BUS with high/low speed• One OBD II connector for all CAN bus systems• High resolution VGA color TFT display• Windows CE Operating System• Demo Mode for many OEM’s• Self-check function• Data graphing

Brand Name:-SAMTEKLAB Cable tester Use of Cable tester Cable Tester capable of identifying Up-to 16 Lines. Supplied With transmitted,Recever and Batteries of 9v. Accuracy is Minimum1%. DC Voltage Check On line Between 5 & 16V.

Brand Name:-SAMTEKLAB EXTRUSION HYDRAULIC PRESS AUTOMOTIVE TECHNOLOGY TRAINERAutomotive Technology Trainer• Program demonstration trainer for the practical study of new model front wheel drive automobiles.• Fully functional, low mileage vehicle components• The trainer is complete w/ engine, transaxle, front brake system, steering, suspension, fuel injection, ignition,emission control, instrument panel, front and rear lighting, exhaust, and air conditioning systems.• Duplicates actual on-vehicle troubleshooting and service test manual procedures• Includes fault board and code/non-code diagnostics• Actual front end and interior of FWD vehicle mounted on metalframe w/ rolling casters.

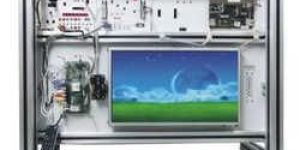

Brand Name:-SAMTEKLAB Colour tv trainer Specification of Co;our tv trainer:- Electronics tuner section,Video Board for 20″color TV. Sound Bord of Colour tv is 20″ Col our tv. Vertical Oscillator & Output Board for Colour Tv.20″ Vedio Amplifier Board for colour tv 20″ Horizontal Driver and Eht board for 20”colour Tv, Smps power supply board for 20” colour Tv ,colour decorder board for 20”colour Tv, picture tube,yoke speaker & cabinet ,etc
