Surface Plate Dealers in Delhi

Description A range of angle plates is made both in plain and slotted types, with slotted types further available in open end and webbed end types. Manufactured from close grain cast iron. All the working faces are ground to 90 degree and true to each other. Jobs can be clamped to angle plate with the help of clamps. Angle plates can also be bolted to machine table. Plain Angle PlatesThickness (in mm) 20, 22, 25, 28, 31, 33, 36Slotted Angle PlatesNote :- Available in open end as well as webbed endSizes Available :- Plain Angle Plates Size   Dimensions Thickness Length Width Height   31 100 100 100 20   32 125 100 100 22   33 125 125 125 25   34 150 125 125 25   35 150 150 150 28   36 200 150 150 28   37 200 200 200 31   38 250 200 200 33   39 250 250 250 33   40 300 250 250 36   41 300 300 300 36 Slotted Angle Plates Size   299 199 75 63 50   300 200 88 75 63   301 201 112 88 75   302 202 150 125 112   303 203 175 138 112   304 204 200 150 125   305 205 225 175 150   306 206 250 200 150   307 207 300 225 200

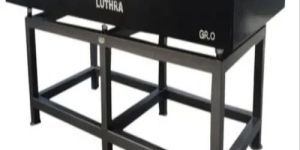

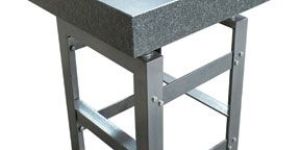

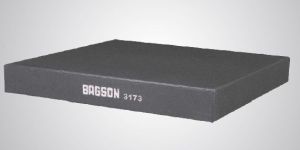

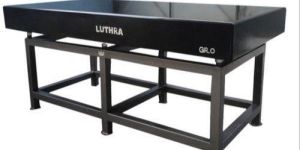

Granite Surface Plates meet IS.7327 - 1991 for flatness.Granite surface Plates are manufactured to precision standards using the highest quality granite.   ACCURACY Rigourous quality control inspection is carried out all stages. Final inspection is carried out by a high Precision Computerised Electronic Level.     ACCURACY UNDER LOAD Granite Surface Plates are capable of supporting a total normal load of 25 kgs. Per 0.1. Sq. mtr.   CERTIFICATE A certificate of accuracy is supplied with each plate as per IS: 7327 - 1991     TECHNICAL DATA Granite Surface Plates are manufactured in Four Grades. The typical applicaton of these four grades of plates are as under.   GRADE 00 is of laboratory grade. It is specified for precision measurement in gauge rooms and metrology laboratories. GRADE 0 is of inspection grade. It is specified for general work in quality control. GRADE 1 is of tool room grade. It is specified for production checking work through the shop. GRADE 2 is for use in shops for general inspection.     MATERIAL Granite Surface Plates are made from seiect granite with uniform distribution of light and dark constituents. In such granite the minerals are evenly distributed resulting in a homogenous appearance. The following are the representative properties of our granites.   FLATNESS TOLERANCE The flatness deviation of a local area of 250 mm X 250 mm of the working surface shall not exceed. 3.5 µm for plates of Grade 00 7 µm for plates of Grade 0 15 µm for plates of Grade 1 30 µm for plates of Grade 2   ADVANTAGES Granite has one of the lowest cu - efficients of expansion amongst known materials. Granite does not rust. It may chip, but will not develop a burr. It is easy to keep clean.

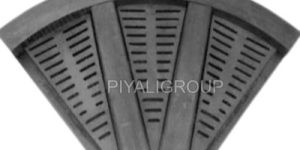

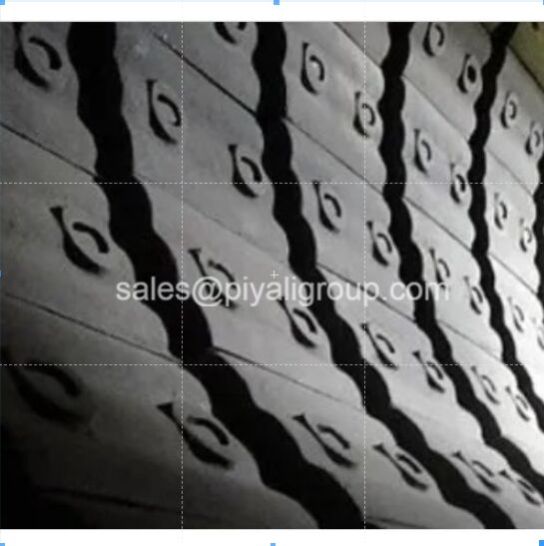

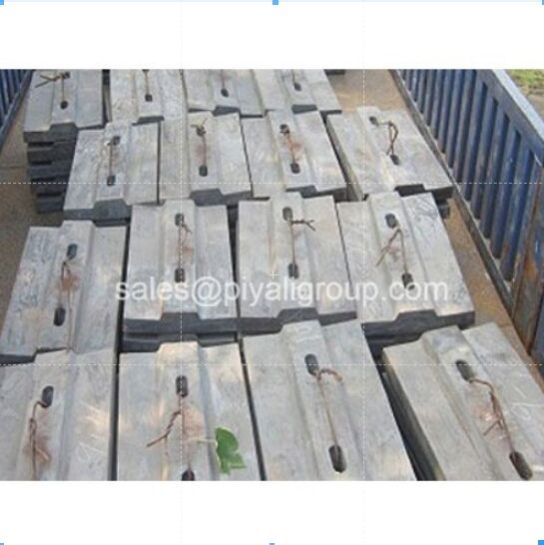

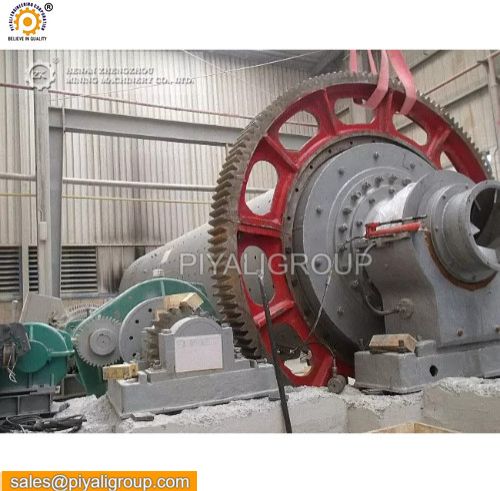

Shell liners impart adequate energy to the balls as to ensure efficient crushing and pulverizing of feed. Liners are designed to protect the mill from direct impact of balls. Each linesrs is designed according to the application.

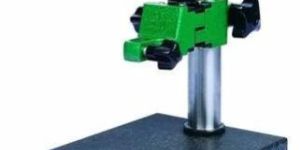

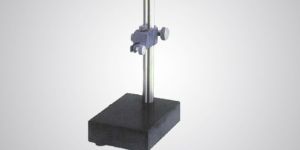

We are offering comparator stands made out of good quality of castings consists very stable base and an upright column with a dial mounting bracket with & without fine adjustments.

Product Details: We manufacture and supply a wide range of slotted angle plates, which are largely used in various industries for clamping and holding work in the vertical position.We offer the following standard sizes. L  x  B  x  H150x150x150mm250x150x175mm300x200x225mm600x400x450mm1000x700x500 mm*Non Standard Sizes can be manufactured as per user's   requirements*

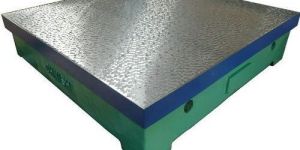

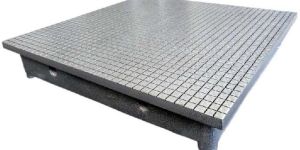

Made By : Luthra Made In : Indian Cast Iron Surface Plate (As per IS:2285-2003, Grade 0 &1) Made Generally as per IS:2285-2003, made from good quality close grained with high Density Alloyed Cast Iron Castings Conforming to Grade FG-220 of IS:210. Stress Relieved Hand scraped surface. Provided with Lifting Handles and Rexin Cover.

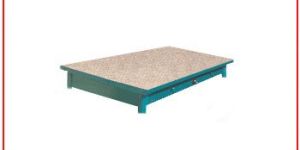

These plates are of close grained cast iron. They are amply ribbed to minimize deflection under load. The composition of the metal, the depth and cross-section of the ribs and the thickness of the plate are designed to conform to the deflection limits specified in IS 2285 -1963.Surface plates are manufactured to two tolerance standards. - Grade-I and Grade-II. Grade-I plates are more precise than Grade-II plates. The deviation in flatness for Grade-I and  Grade -II  plates for sizes upto and including 2000 x 1000 mm are as prescribed in IS 2285-1963.Grade-1 plates are artificially seasoned.They are hand scraped to achieve maximum local deviation from flatness of 5 microns over any length of 300 mm at any points on the working face , in plates of  630 X 400 mm and larger. Aspecial scraping technique is used to achieve a uniform distribution of load bearing points and oil pockets. An average of 15-20 load bearing points , after finish scraping , is standard. This finish scraping technique ensures that the area of the load bearing points increases  after the intial dulling of the high points. This guarantees a long working life, at the required accuracies. Grade-II plates are accurately machined to get the requisite flatness. Standard Accessories : Plates of sizes 1000 X 1000 mm and smaller, are provided with handles. A wooden cover is provided to protect the working face.   Optional Accessories : Fabricated mild steel stands, with three leveling screws, are offered for plates upto and including size 1600 X1000 mm. Cast Iron Column Floor Stands, each with a leveling screw and nut, are offered as per the scheme : A set of five, three for leveling and two for support for 2000 X 1000 mm plate. A set of seven, five for leveling and two for support for 3000 X 1000 mm plate.

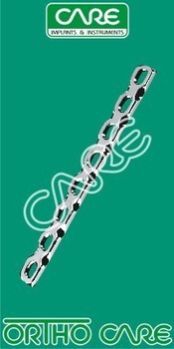

Condylar Plate 95° (With Dynamic Compression Holes). These plates are principally used for fractures in distal and proximal areas of femur, intertrochanteric valgisation osteotomy. It is designed to perform reconstructive osteotomies. These plates have an angle of 95° between blade and shaft. Fixation with 4.5 mm cortical screws and proximal two holes next to the blade are suitable for 6.5 mm cancellous screws. The Two Holes next to the Blade are round and accept 6.5mm Cancellous Bone Screws. The DCP Holes accepts 4.5mm Cortex Screws.

Description   A range of angle plates is made both in plain and slotted types, with slotted types further available in open end and webbed end types. Manufactured from close grain cast iron. All the working faces are ground to 90 degree and true to each other. Jobs can be clamped to angle plate with the help of clamps. Angle plates can also be bolted to machine table. Plain Angle Plates Thickness (in mm) 20, 22, 25, 28, 31, 33, 36 Slotted Angle Plates Note :- Available in open end as well as webbed end

utures Hardware presents a wide range of the Espags used in the systems of UPVC doors and windows. Single Plat Espag is the most important one. Internet assures the complete database of the Indian as well as Global manufacturers, suppliers and exporters of Espags. For the best and quality based Single Plat Espag, it is worth checking at Futures Hardware. Our products and contact details always remain among the list of the sellers with easy availability. You can select the best product with easily sending e-mails. Futures Hardware assures the easy and best availability of the Single Plate Espages in different ranges towards our customers. These plates are made with using the advanced technologies along with the superior quality raw materials. There are numerous types of Single Plate Espages and we assure of the best products available in the market in leading prices. These plates are used in the UPVC doors and windows as the best suitable raw materials. Futures Hardwares is an emerging name in the field of windows and doors materials manufacturers and suppliers. We facilitate the best products offerings to the customers with providing quality support services whenever they need. The immediate response to our customers is worth our goodwill.

SRG PU fitting with wear-resistant, tearing resistance, large volume of load supporting, oil resistance, pressure resistance and long life.

Angle Plates, Try Square, Precision Tools, Pot Magnets, Magnetic Vee Block

Blow Bar, Switch Gears, Industrial Rollers, Pulleys, Concave Mantl
