Tecknomate Equipment Paschim Vihar, Delhi

Tecknomate offers weld on lifting eyes in alloy steel for application on heavy machineries and structures, where lifting points for handling are to be provided. These are made from alloy steel and are available from 1 to 15 tons lifting capacites.

Tecknomate offers weld on eye for providing lifting points on the fabricated equipments, and these are available from 1000 to 15000 kgs. Capacity. These are made of alloy steel and have a safety factor of 4:1 for safer lifting. These are widely used on the machines and equipment as these are cost effective solution.

Tecknomate offers swivel hoist rings that include safety-engineered style, forged style. Other hoist rings include side load, flip-flop, mold-handler, speed base, round base, pivot plate hoist rings. Custom made hoist rings are also available to suit all of your lifting needs. Each hoist ring is 200% proof-load tested. Each hoist ring is individually packaged. Swivel hoist rings are designed for lifting at any angle because they can swivel 360° and pivot 180°. Therefore, the rated load remains the same, regardless of the angle of force. As a result, you increase safety and peace of mind. Hoist rings are available with a rated load ranging from 800 lbs. To 250,000 lbs. With a 5:1 design safety factor.

Number Of Flower : Swivel Hoist Rings

Material : Alloy Steel, Forged Steel

Application : Industrial

Condition : New

Capacity : 0-5 Tons, 5-10 Tons

Tecknomate offers steel eye bolts as per din 580, these are galvanised eye bolts in mm size threads. These are widely used in industries for lifting applications. These eye bolts are marked for the sizes and capacity.

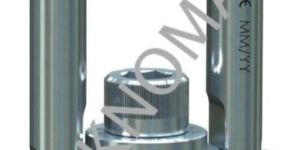

Tecknomate offers stainless steel swivel eye bolts (swivel hoist rings) in ss-304 as well as ss316, these can swivel 360 ° and pivot 180°, and are as per international standards. These are used widely in corrosive and humid environments. These are normally available from m8 to m36, and are also available in unc threads. These can be made as per customers requirements for bigger sizes.

Tecknomate offers stainless steel eye nuts (dimensions as per din 582 standard) for use in corrosive environment, these are widely used for lifting applications, and normally supplied in mm threads sizes, however unc threads are also available. These are standard in ss-304 grade however other grades are also available upon request.

Tecknomate offers stainless steel eye bolts (dimensions as per din 580) for lifting applications in corrosive environment, these are made from ss-304 grade stainless steel, however other grades are also available as per requirements.

Technomate offers safety engineered hoist rings in forged style. Custom made hoist rings are also available to suit all of your lifting needs. each hoist ring is 200% proof-load tested. Each hoist ring is individually packaged. Swivel hoist rings are designed for lifting at any angle because they can swivel 360° and pivot 180°. Therefore, the rated load remains the same, regardless of the angle of force. As a result, you increase safety and peace of mind. Hoist rings are available with a rated load ranging from 800 lbs. To 100,000 lbs. With a 5:1 design safety factor as per asme b30.22

We offer swivel lifting points to replace the conventional eye bolts, these can be used for lifting at any angle with creating any tension on the lifting member. These are available from m12 to m48, please ask us for detailed specification sheet. G80 lifting points include safety-engineered style, forged style. We offer different plating options also. Other hoist rings include side load, flip-flop, mold-handler, speed base, round base, pivot plate hoist rings. Custom made hoist rings are also available to suit all of your lifting needs. Each lifting point is 200% proof-load tested. Each lifting point is individually packaged. Lifting points are designed for lifting at any angle because they can swivel 360° and pivot 180°. Therefore, the rated load remains the same, regardless of the angle of force. As a result, you increase safety and peace of mind. Hoist rings are available with a rated load ranging from 600 kgs. To 15 tons with a 4:1 design safety factor.

Tecknomate offers galvanised eye nuts as per din 582 standards, these are widely used for lifting applications, and normally supplied in mm threads sizes, however unc threads are also available.

Tecknomate offers poweder coated eye nuts (dimensions as per din-582), for long trouble free life. It is normally available in mm sizes, however it can also be provided in unc thread sizes. These are forged from alloy carbon steel for better strength and can be provided with test certificates.

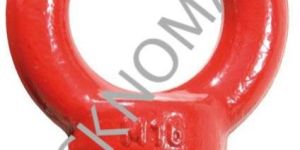

Tecknomate offers powder coated eye bolts (dimensions as per din-580) for lifting appliactaions, these are made from alloy carbon steel for better strength and trouble free operations. These are normally available in mm sizes, however unc thread sizes can also be provided.
