Trimac Products Private Limited Kirti Nagar, Delhi

All-in-one, easy-to-use wireless microphone system for professional vocal applications Dual-antenna UHF diversity receiver for increased reliability and signal consistency UHF band operation: 520 – 937.5MHz (regionally selected) Receiver includes a high-visibility back-lit LCD display: Displays RF frequency and channel, AF and RF signal levels and other critical functions Single-button scan feature for quickly identifying the optimal operating frequency Sync function automatically synchronizes transmitter and receiver frequency Squelch control for minimizing background noise during silent periods Front-panel rotary volume control Balanced XLR and unbalanced ¼-inch mic or line-level outputs

18″ FOLDED HORN AFTERBURNER™ BASS SYSTEM SUBWOOFER   Newly designed 18” woofer with Stroker™ technology for increased output and reduced distortion Improved power handling to 1600 w Radial cooling fins located outside the aluminum Stroker™ pole, increase cooling and improve the AB-36C’s efficiency Stroker™ pole is vented out the back of the back plate for improved voice coil cooling Aluminum cooling ring above voice coil gap for improved heat transfer from the voice coil, providing improved power handling and reduced compression Stroker™ technology adds a third plane of suspension eliminating cone rocking and allows increased excursion while maintaining a tight gap that provides higher sensitivity The six magnet sections and the tunnels located between them, provide cooling below the top plate Frequency Response: -3db 40 Hz – 310 Hz / -10db 33 Hz – 350 Hz Power Capacity: 800W RMS / 1600W Program / 3200W Peak Recommended Power: 1200 w – 1600 w @ 8 ohms Input Connectors:¼” Phono, Speakon Sensitivity (1w/1m): 108 dB Nominal Impedance: 8 ohms Maximum SPL: 140 dB Weight: 156.3 lbs / 70.9 kg, Dimensions: 36” x 24” x 36” 91.4 cm x 61 cm x 91.4 cm

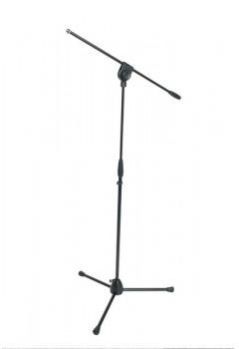

Professional microphone stand with boom, tripod die-cast aluminum base and nylon clutch-style height adjustment. Base dimension: Ø 700 mm Minimum height: 950 mm Maximum height: 1600 mm Weight: 3,3 kg Avaiable colors: Matt black – PRO100BK / Chrome – PRO100CR Boom length: 750 mm

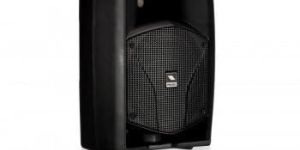

Bi-amplified 2-way loudspeaker system 10” long-excursion woofer with 2” voice coil 600 W total peak power amplifier hosted in a  fully sealed aluminum box 50 W continuous class AB amplifier for the high frequencies 250 W continuous class D amplifier for the low frequencies Switch Mode Power Supply (SMPS) Selectable MIC /LINE input with 2-band EQ Integrated active processor with dual CLIP LIMITER for maximum control and protection FRONT LED with ON or SIGNAL/CLIP selection SPL MAX 123 dB Frequency response 70 Hz – 20 kHz Lightweight polypropylene cabinet with extensive framing system Asymmetrical shape for the use also as a stage monitor 1 super-comfortable luggage-style top handle for effortless portability 4 x M10 flying points for fixed installation 10 kg TOTAL WEIGHT

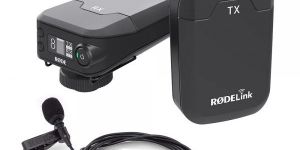

Digital Wireless System for Filmmakers’ RØDELink Filmmaker Kit Transmission type : 2.4GHz Fixed Frequency Agile System System dynamic range : 112dB Range (distance : Up To 100m Frequency range : 35Hz – 22kHz Maximum output level : 1v Rms (2.8v P-p) Max input signal level : 1v Rms (2.8v P-p) Max latency : 4ms Receiver (RX-CAM) Power source : 2 X AA Battery Or MicroUSB Antenna : Internal Input connection : 3.5mm TRS Locking Jack Socket – Dual Mono Input impedance : 300Ω Dimensions : 111mm X 65mm X 52mm Weight : 190gm Transmitter (TX-BELT) Power source : 2 X AA Battery Or MicroUSB Antenna : Internal Input connection : 3.5mm TRS Locking Jack Socket Input impedance : 10kΩ Dimensions : 111mm X 65mm X 40mm Weight : 190gm Lavalier Acoustic Principle : Pressure Gradient Active Electronics : JFET impedance converter Capsule : 0.10″ Address Type : End Frequency Range : 60Hz – 18kHz Output Impedance : 3000Ω Maximum SPL : 110dB SPL (@ 1kHz, 1% THD into 1KΩ load) Maximum Output Level : 189.0mV Sensitivity : -33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz Equivalent Noise Level (A-weighted : 25dB-A Weight : 1.00gm Dimensions : 12.00mmH x 4.50mmW x 4.50mmD

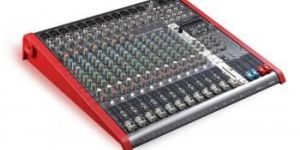

M1622USB (M-Series)   Compact 16-channel 4-bus mixer System type: Compact 16-channel 4-bus mixer Input Sensitivity: MONO INPUT CHANNEL – Mic Input: from 0 to -60 dB MONO INPUT CHANNEL – Line Input: from +20 to -40 dB STEREO INPUT CHANNEL – Mic Input: -0 / -40 dB STEREO INPUT CHANNEL – Line Input: +20 / -20 dB Input Impedance: MONO INPUT CHANNEL – Mic Input: 2 Kohm MONO INPUT CHANNEL – Line Input:10 Kohm STEREO INPUT CHANNEL – Mic Input: 2 Kohm STEREO INPUT CHANNEL – Line Input: 10 Kohm Mono Input channel equalization: HIGH (shelving): ±15 dB @ 12KHz MID (peaking): ±15 dB from 100 Hz to 8 kHz LOW (shelving): ±15 dB @ 80Hz Stereo Input Channel Equalization: HIGH (shelving): ±15 dB @ 12KHz HI-MID (peaking): ±15 dB @ 3KHz LO-MID (peaking): ±15 dB @ 500Hz LOW (shelving): ±15 dB @ 80Hz Effects: 256 (16 presets x 16 variations): HALL, ROOM, VOCAL and PLATE reverbs STEREO and MONO TAP DELAY REV + DELAY, REV + TAP DELAY, REV + CHORUS

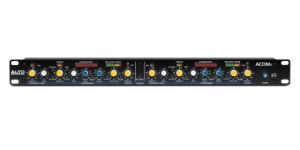

2-CHANNEL COMPRESSOR / LIMITER / GATE Two independent, full-featured compressor/limiters in one compact rack Use as two individual mono processors, or stereo-link to provide true stereo compression Auto-attack/-release switch automatically adjusts compression to source signal Full manual mode for tailored adjustment to any venue Minimized signal path with high-quality VCA: low noise, minimal distortion and optimal temperature stability Intelligent Knee for musical performance with soft and hard-knee envelopes Couple switch for a one-touch selection between two mono channels or stereo-linked operation Sidechain send and return for use in an external effects loop Switchable low-cut filter minimizes audio-program pumping triggered by kick drum Gain-reduction LEDs and switchable input/output-level LED meters for visual monitoring of critical values Bypass switches on both channels

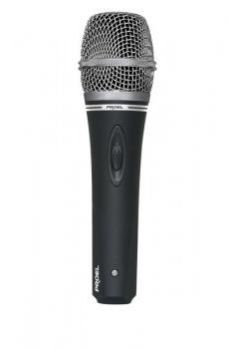

Dynamic microphone with on/off switch Transducer type: Moving Coil Dynamic Polar pattern: cardioid Frequency response: 50Hz-15 kHz Sensitivity: -53dBV ± 3 dB Maximum SPL for 0.5% THD: 135 S/N Ratio: 74dB Nominal Impedance:

As a distinguished enterprise, we are offering a very qualitative Microphone Mixer Amplifier, which is designed employing high grade inputs.

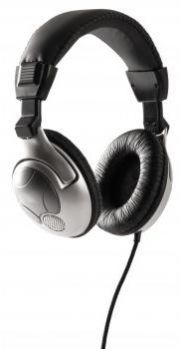

Compact closed-back dynamic headphones Lightweight and comfortable, HFC25 is a dynamic headphones with oval-shaped earpieces allowing for fatigue-free listening for extended lengths of time. A snug fit and smaller diameter creates sound isolation and ensures better dynamic range. It is fitted with a 2mt. single cable with 3.5mm mini-jack compatible with MP3 players.

Instrument cable – 2*6,3 mm mono plug Color: Black/White Connectors: Ø 6,3 mm mono plugs Overall jacket: Ø 7.0 mm Cotton covered flexible PVC 1° shield: High conductivity PVC 2° shield: dense spiral copper wire Available models and related lengths BRV100LU3BW – 3 m BRV100LU5BW – 5 m BRV100LU6BW – 6 m

2-CHANNEL 1000 WATT POWER AMPLIFIER 1000 Watts at 8 Ω bridged mono 2 x 500 Watts at 4 Ω; 2 x 250 Watts at 8 Ω Efficient Class D power Balanced combo input jacks Lightweight, two rack-space design Easy to read LED level and clip indicators Low pass filter Low-noise cooling fans Weight: 12.1 lb

Premium Keyboard and Pad Controller 25 expressive synth-action keys with aftertouch 16 great-feeling trigger pads respond to pressure and velocity Assignable controls offer front-panel programming 8 rotary encoder knobs plus 1 long-throw 70mm fader 3 banks of pad and knob assignments with color-coded illumination HyperControl automatically maps controllers to popular software Drum Pad Learn feature and Identify button allow you to work quickly Octave/Transpose buttons access the entire note range, in any key Assignable pitch bend and modulation performance wheels 128 memory locations for saving your custom settings Functional design provides backlit LCD plus under-keyboard cable routing Power Jack for external power supply (9V DC, 500 mA, 2.5mm positive tip – not included) Includes Ignite by AIR and Ableton Live Lite 20.3″ x 16.5″ x 4″, 514 mm x 419 mm x 102 mm, 8.2 lbs. 3.7 kg

DUAL DIGITAL MEDIA PLAYER Audio playback from USB memory devices (AAC, AIFF, MP3, WAV) MP3 CD File Search System CD-R/RW Disc Playback 2 Hot Starts/Stutter per drive 2 Seamless Loops per drive w/B Point Trim Power on Playback Pitch Control: CD: ±4 / 10 / 16 / 24 / 50 / 100.0% MP3: ±4 / 10 / 16% Platter Hold (Jog Bend): ±99% max Key Adjust Shock Proof Memory (Audio CD: 20 sec., MP3: 100 sec.) Instant Start
