Our company is acknowledged as one of the predominant Roll Forming Machine Manufacturers & Exporters from India. The rolling Cassettes are of latest design, using electronic controls, variable speed drives, precision measurements & hardened & ground rollers with computerized designed & machined shape profiles. Our Roll Forming Machines are designed run up to the speed of 25 meters / minute, depending upon the process of formation. Uses : Automatic Continuous Roll Forming of any shape of Sheet Metal Parts & Profiles
Applications :
Engineering
Construction
Automotive
SpecialitiesLockable tool tray,integrated coolant tank, filter and pump,manual load and unload etc.,Smooth operation, longer working life
Rolling Force Capacityup to 2,200 kgf 4,800 lbf
Cycle Time Capacity5 -20 seconds including load unload
Designed ForFast changeover,safe, clean working,ease of maintenance etc.

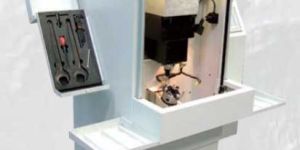

Our heavy duty semi automatic fillet rolling machine (fr-h1) is highly acclaimed for its specialties like smooth operation, longer working life and suitability for heavy-duty fillet rolling work. Along with that, our heavy duty semi automatic fillet rolling machine (fr-h1) is cost effective and precision engineered.
custom-designed for
precise, programmable rolling parameters with 100% in-process checkingfast changeoversafe, clean workingease of maintenanceimpressing your customers
capacity
rolling force : up to 2,200 kgf 4,800 lbfcycle time : 5 -20 seconds including load unload
features
free-standing machine designed to be at a comfortable height for a seated operatormanual load and unloadautomatic cycle initiated by operator via foot pedalpneumatic pivot to move head from loading position to rolling position.pneumatic cylinder producing up to 2,200 kgf rolling forceload cell to measure actual rolling force during each cycle and to check that it is within programmed limitsprogrammable control of rolling force, rpm & timedrive unit with inverter controlled spindle motorallen bradley or siemens plc control system with 6” touch-screen (hmi)safety light curtain to protect operator during cycleintegrated coolant tank, filter and pumplockable tool tray
