Air Slide Dealers

Ashoka one of the leading Process Equipment Air Slides Manufacturers, fir Slides (Fluid Slide) are used for pneumatic handling of fine, dry material like cement, ash, dusts and powder etc. Fluid slides are one the most economical mode of transport, which need very less maintenance. Air slides are basically aeration conveyors which carry fines through a current of low pressure air passed through a porous fabric that is tightly spread across the split face of the rectangular trough. Process Equipment Air Slides Manufacturers are designed with 2 chambers- upper & lower. The upper chamber is used to carry the material and the lower chamber is used to aerate the fabric. They consist of special synthetic fabric, high-pressure fan and manual butterfly valves for control of air. Open air slides are also manufacturers, designed and supplied as per process requirement.

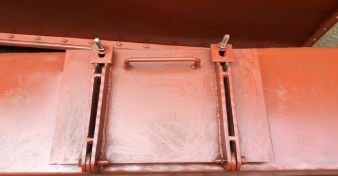

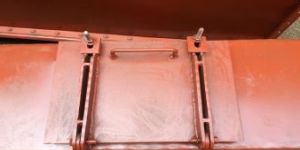

Motorised Pneumatic Manual Air Slide Gate is tailor made equipment installed in Air Slide in Cement. Available in range, Air Slide Size 200 MM to 600 MM.Selected on the basis of operating parameters like; Temp., Material Handled.

Are used for pneumatic transport of the material from one discharge point to another feeding point. Fluid slides are one of the most economical mode of transport, which need very less maintenance. These are designed with 2 chambers, upper & lover. Upperchamber is used to carry the material and lover chamber is used to aerate the fabric. Fluid slides consists of special synthetic fabric, high pressure fan and manual butterflyvalues for control of air.

IFF is involved in manufacturing and supply of best quality Airslide fabrics that are used for pneumatic conveying for free flowing powder and granulate bulk materials. Various textiles and yarns are used in Airslide fabrics. This enables us to offer the Customers different fabrics with feature like various thicknesses, air permeability, tensile strength & heat resistance.

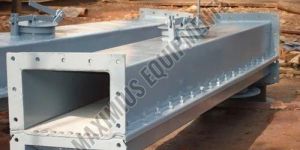

Our organization holds specialization in manufacturing and supplying a wide assortment of Air Slides. Manufactured using mild steel, these slides are a simple device, which have the structure like box. Throughout the length inside, the aeration cloth is fixed, which functions with the help of a suitable capacity fan. In addition to this, the slides offered by us are used to handle powdered material. For handling cement and grits, these Air slides are recommended in cement plants at mill discharge points. The Airslide is desinged to convey bulk powdered material in cement processing system. The airslide is Rectangular trough which consists of Top material chamber and bottom air chamber, both separated by a permaeable fabric. The compressed Air is injected to the bottom casing through blowers and the powdered material is feed in the top chamber. The compressed air passes through the permeable fabric and reaches the top chamber and making the material to fluidise and flow uniformly.

Air Slide (gravity conveyor) is synonymous with an innovative conveying technology - Leading the way with the highest capacity per unit-width in the industry. A full array of material flow control products – built to the rugged standards expected of Frigate – compliments our Air Slide conveyor product line. Whether transferring material from point-to-point in your plant or fluidizing your silos for load-out, Air Slide performs.

Aeration conveyors popularly known as air slide are capable of carrying pulverized raw material over long distance such as 100 mtrs away. These operate on the principal of fluidizing the base of raw materials layer by means of providing pressurized dry air through permeable synthetic cloth. These can carry materials on down side with a slope of 6-8owhen air @600 mm w.c. Is provided at the bottom offabric.air slides score over other forms of conveying in terms of easy mounting, low energy usage, zero routine maintenance etc. These are most suitable for cement plant, chemical plant, mineral processing industries etc.

Powdery products are transported in air slides in many industries. Until now it was not possible to continuously get information about the flow.with slidecontrol there is now a sensor available, which monitors the material flow in the slide without any contact.

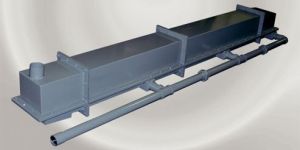

Air Slide without the use of moving parts, these gravity conveyor transport fine, dry bulk materials, with a minimum of abrasive wear on the conveyor. Dry materials flows down inclined conveyor, fluidized by low-pressure air entering beneath porous medium. The Air Slide conveyor is easily installed , with simple floor or overhead support which released valuable floor space for other used. Operation is dustless and noiseless with extremely low power consumption. Conveyor line needs no lubrication ,and is self-cleaning ,so there is almost no maintenance

Are used for pneumatic transport of the material from one discharge point to another feeding point. Fluid slides are one of the most economical mode of transport, which need very less maintenance. These are designed with 2 chambers, upper & lover. Upper chamber is used to carry the material and lover chamber is used to aerate the fabric. Fluid slides consists of special synthetic fabric, high pressure fan and manual butterflyvalues for control of air.

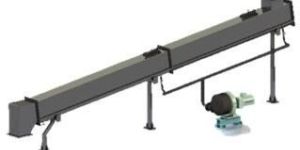

RAJDEEP's AIR SLIDE will quickly and efficiently convey all fluidisable materials such as cement, fly ash. The simple combination of air pressure and gravity allows powdered materials to flow like a fluid. Air slide are very efficient, quiet and no moving parts. AIR SLIDE are extremely cost effective and require very little maintenance The Air slide consists of a rectangular chamber separated by a permeable cloth. The chamber is inclined at a very slight angle (as low as 1.5 ). Pressured air is injected into the lower chamber which then permeates through the media and "fluidizes" the product. The product then behaves like a fluid and "flows" down the length of the chamber. The excess air is vented through a dust collector Salient Features: Totally Integrated Design with Bag filter & Air Blower or High pressure Centrifugal Fan. Avoid Dust Generation. High Efficiency System. Fluidization cloth to suit the particular application. Extremely quiet operation No maintenance, no moving parts Minimal wear from abrasion Special Design to serve the application. System can be integrated with common control panel. MOC: MS / SS304 / SS316 Size: Up To 500 TPH. Length is not a constraint. MOC: MS / SS 304 / SS 316 Applications: Cement Steel Non ferrous Powder Chemicals Handling.

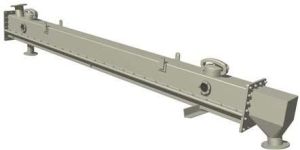

We are offering air slides is offered by us in the market. These air slides are equipped with multiple inlets and outlets options that use integrated segment valves. Our air slides are designed with precision and hence these offer unmatched performance. The air slides have a long service life and are extremely reliable. We offer the air slides for many industries and manufacture them keeping the various industry requirements in mind. Our air slides have an excellent design and superior finish and are used in distribution areas and warehouses. why our air slides? made using high quality materialslong lifeefficient excellent performancereliable operation applications : used to move powders and free-flowing products along a nearly horizontal planespecifically designed to transport alumina powder through hyper dense phase systemused on pneumatic conveyors.

Aeration conveyors popularly known as air slide are capable of carrying pulverized raw material over long distance such as 100 mtrs away. These operate on the principal of fluidizing the base of raw materials layer by means of providing pressurized dry air through permeable synthetic cloth. These can carry materials on down side with a slope of 6-8owhen air @600 mm w.c. is provided at the bottom offabric.Air slides score over other forms of conveying in terms of easy mounting, low energy usage, zero routine maintenance etc. These are most suitable for cement plant, chemical plant, mineral processing industries etc. We offer air slide for capacity as high as up to 800tph of dry powdery materials like coal dust,cement, bag filter dust, kiln dust etc. The sizes available are from lSOmm up to 840mm. We use high grade mild steel for construction a long with top quality air slide fa bricfor high efficiency. Generously sized top covers allow for effective venting of the air that filters through the material that is being conveyed and prevents the feed material from being entrained in the venting air. We can design and supply a complete air slide system. We pride in evaluating each application and supplying the most suitable air slide and equipment combination to the customer.

We provide the best quality in the form of Industrial Air Slide to our customers thanks to the earnest support and incessant effort of our adept professionals. Our excellent staff makes use of first rate tools and latest techniques. The raw material is purchased from dependable vendors who refuse to compromise with quality. It complies with the requirements of the customers. Besides, it is available at a nominal price to our customers.   Air Slide Design Enclosed type and well sealed (water proof), suitable for open air installation. Sight glasses and Inspection openings at upper channel at 4.5 m spacing one discharge spout with 10mm thickness toughened glass Discharge shout shall be equipped with a vent hood (also at intermediate location, if required) and a butterfly valve. Air-slide should be supplied with discharge chute upto 750mm length Suitably protected polyester fabric, by a perforated plate in the entire length. Height to width ratio of 1.5:1.   Details Air to cloth ratio : 2 (m3/min)/m2       Air Volume : 2.5 (m3/min)/m2       Air Pressure             Air slide width < 500 mm : 250 - 500 mmWG      Air slide width > 500 mm : 500 - 1,250 mmWG       Air intake : Every 6 m of air slide length       De-dusting air quantity 150% of the fan air quantity.    Air connection shall be provided for each chamber separately

These slides are a simple device, which have the structure like box. Throughout the length inside, the aeration cloth is fixed, which functions with the help of a suitable capacity fan. In addition to this, the slides offered by us are used to handle powdered material. For handling cement and grits, these Air slides are recommended in cement plants at mill discharge points.

Are used for pneumatic transport of the material from one discharge point to another feeding point. Fluid slides are one of the most economical mode of transport, which need very less maintenance. These are designed with 2 chambers, upper & lover. Upper chamber is used to carry the material and lover chamber is used to aerate the fabric. Fluid slides consists of special synthetic fabric, high pressure fan and manual butterflyvalues for control of air.

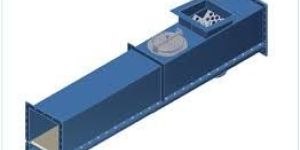

Airslide Manufacturing Standards   Heavy-gauge steel sections with bent flanges. Air slide are shipped in standard section lengths of 2.5 Mtr. Standard widths of fluidized area is 100 to 850mm. Bolted airtight flanges. There is no conveying length limitation to the Air slide based upon availability of headroom and proper slope. Airslide Operation   Air-activated Gravity Air slide Fluidization of material on the Air slide media. Fluidization reduces the angle of repose causing flow. Example: A material with a normal angle repose of 45° with fluidisation may flow like a liquid on a 5 ° to 6 ° slope.

Airslide fabrics are used in various industries for pneumatic conveying, discharge, homogenising and fluidising of powdered or granular materials. They are used on pneumatic conveyors, silos of every type, vehicle trucks and ail-wagons and also in ships.

Air Slide without the use of moving parts, these gravity conveyor transport fine, dry bulk materials, with a minimum of abrasive wear on the conveyor.   Dry materials flows down inclined conveyor, fluidized by low-pressure air entering beneath porous medium.   The Air Slide conveyor is easily installed , with simple floor or overhead support which released valuable floor space for other used. Operation is dustless and noiseless with extremely low power consumption. Conveyor line needs no lubrication ,and is self-cleaning ,so there is almost no maintenance.

From Rudrapur(India), India, we delight our valuable patrons by providing quality-centralized products. As we are supported by wide distribution network and fastest transportation facilities, we deliver the orders on time.

This is also one of the strong hands of IFF, We are manufacturing and supplying for various thicknesses of air slide fabrics, as per the application. Our airslides are made of Multifilament, Polyester, canvas, with better texture and higher strength. The latest looms in this enable us to make it suitable and maintaining the desired parameters for durability. Our air slide is performing well in all applications of transfer of material with/without temperature. These fabrics are produced with the necessary finish and dimension so that could be performed in a better way.

We bring forth a robust range of Air Slides (Fluid Slide) used for handling fine, dry materials like cement, ash, dusts and powder in every production industry. These Air Slides provide a convenient and controlled method of conveying different items. The Air Slides work by passing low pressure air through a porous air slide fabric. These aeration conveyors quickly and efficiently convey materials from silos or storage compartments into the processing system.
