Rajdeep Engineering Systems Pune Pvt Ltd Hadapsar, Pune, Maharashtra

These works on the principle of reducing the pipeline cross sectional area in the region where the material is fed from the supply hopper. There are no moving parts in this feeding device which has certain advantage with regards to wear problems. No Air leakage in opposition of material feed. A consequence of the reduction in flow area is increase in the entraining air velocity & corresponding decrease in the pressure in the region These feeders are usually incorporated in systems that are required to convey free flowing materials at low flow rates. Venturi Eductor mainly comprises of Eductor Body Nozzle Diffuser   Salient Features of Venturi Eductor Conveying Solids with No Moving Parts. Small , occupy less space & cheaper No Maintenance No Blow-Back Minimum Product Degradation Venturi Eductors are used to feed bulk solids such as powders, powdered spices, pellets, flakes, rubber crumb, Styrene Butadiene Rubber and particulates having low bulk density, into Lean phase conveying systems Eductors are attractive to install below other solids processing equipment because, by creating suction at the product inlet, they enable dust-free material conveying systems. These are commonly installed beneath: Feed Hoppers, Bins, Silos, and bag unloading stations. Bag houses/Dust Collectors Screens/Classifier Outlets Mixers, Grinders, and Mills

Vacuum conveying system Materials of construction are selected to suit the application (MS SS304 SS316), Screw Conveyors are usually designed to suit specific applications as per Customer Requirement.

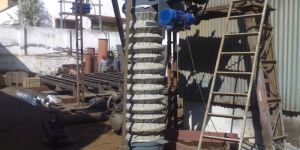

Rajdeep's Telescopic Chute is designed for loading bulk material on trucks, containers, trains, ships, inside storages. The Equipment is composed of inner cones or cylinders that contain the flow of material and an outer flexible bellow which limits the spread of dusts. Telescopic Chute greatly helps in containing dust thereby helping the environment to remain clean and dust free. To further improve the dust control feature, Rajdeep also manufactures Telescopic Chute having integrated connection with Dedusting system or bag filters.

Size : Standard

Number Of Flower : Telescopic

Material : Aluminum, Mild Steel

Certification : ISI Certified

Application : Industrial Use

Feature : Easy To Operate, Rust Proof

Finishing : Polished

Total Carbohydrate : 1 Year

Sugar handling system it is temporarily stored. Cyclone separators are use for cyclonic action to separate dust particles from the gas stream. In a typical cyclone, the dust gas stream enters at an angle and is spun rapidly.

Slide conveyor a very slight angle (as low as 1.5 ). Pressured air is injected into the lower chamber which then permeates through the media and "fluidizes" the product. The product then behaves like a fluid and "flows" down the length of the chamber. The excess air is vented through a dust collector

RAJDEEP has specialized in the design, manufacture and installation of Screw Conveyors.  Salient Features: Rajdeep's Screw Conveyors are usually designed to suit specific applications as per Customer Requirement. Materials of construction are selected to suit the application (MS / SS304 / SS316) Screw Conveyors are used as feed / controlling equipments. Rajdeep's Design & manufacture screw conveyor of size 80 NB to 600 NB of Up to 30 Mtr. length Rajdeep Design & manufacture screw conveyor of "O 'type OR ' U' type. Applications: Powder Chemicals Conveying Steel Industry - Ash Handling, ESP Dust Conveying. Distillery / Brewery - Flour Handling, Grain Handling, Malt Handling Paint & Pigment Handling Food Industry Cement Power Plants - Ash Handling

RAJDEEP influential in providing our clients with custom designed Pug Mill or Ash Conditioner. In order to provide the clients with quality products, RAJDEEP manufacture this using high-grade material.RAJDEEP's Ash Conditioner is used in many industries primarily for 'pollution control, mixing of water with powdered material' applications. The Ash Conditioners are made of abrasion-resistant bolt-on paddles which insure maximum wear life. The Ash conditioner is fabricated in Carbon steel, SS304 with a rigid base frame with a removable cover plate that provides easy access to internal section. It also houses anti-friction roller bearing support shafts and split type bearing that has dust seals. RAJDEEP's Ash Conditioners are highly useful in Steel Plants, Ferro alloys, thermal power plants and sponge iron industry, as they return the recovered dust to the process in a closed circuit. The conditioner effectively blends dust recovered from such equipment as bag Filters, ash silos and bag houses thus allowing transport without the particulate  matter escaping into the air. SALIENT FEATURES: Rigid construction Optimal mix of water with solid. Unique nozzle arrangement for proper water distribution Avoids dusting during dust conditioning and discharge. MOC: MS, SS304.   APPLICATIONS AREAS: Steel and Non Ferrous - Beneath bag filter, Dust Storage silo's Mineral Processing Chemicals Distillery / Brewery Food Industry

Powder transfer system There are no moving parts in this feeding device which has certain advantage with regards to wear problems. No Air leakage in opposition of material feed.

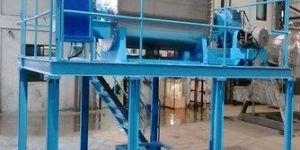

RAJDEEP offers Ribbon 'U' Blender/ Cone Mixer to facilitate mixing of solids with solids with high efficiency. Mixers are generally used for mixing & homogenizing of powders, pastes & slurries . Addition of liquids into dry solids, granulation or agglomeration of powders by the addition of a binder liquid , crystallisation cooling or heating Salient features: Gentle action on the product through low power consumption Fast mixing times with a high degree of mixing accuracy Minimum heat generation Self emptying with zero product retention Volume ranges from 1-5 m3 MOC-MS/SS304/SS316 Application: Powder/ Chemical handling Petrochemical Pharmaceutical Paint & pigment handling Food industry

RAJDEEP manufactures lump breakers for dry powder de-agglomeration, reducing scrap product, or compacted, lumpy, and hard friable materials from Feed Hoppers, silos, bags or bulk sacks. RAJDEEP's Rotary Lump Breaker is a heavy duty mill that is simple to maintain, and trouble free. It is designed for cost-effective, rapid, in-line de-agglomerating of dry powders, or situations where high speed and high horsepower are not required. It is available in a variety of materials such as carbon steel, SS304 and SS316 stainless steel and in sanitary finish. Salient features: Simple construction Easy to maintain and trouble free. Low investment and functioning costs MOC: MS, SS304, SS304 L, SS316, SS316L. Applications Areas: Fertilizer Paint & Pigment Handling Mineral Processing Chemicals Cement Petrochemicals Pharmaceutical Distillery / Brewery Food Industry

Rajdeep offer the best solution for storing & handling of Grain. The flat-bottom silos are with large diameter & capacity which is popular with its easy installation & low cost. Complete System consists of Galvanised Corrugated Silo as a container with equipments such as Bucket elevator, Chain conveyor, and Precleaning system. Associated System: Chain Conveyor Bucket Elevator Pneumatic conveying System Grain Precleaning System   Grain Silo comprises of: Standardized material Side walls Roof Efficient aeration system with centrifugal fan Sweep Augar Level sensors Stiffener Manhole, Ladder on silo   Storage Capacity: Conical bottom: from 100 MT to 700 MT Flat Bottom: from 750 MT to 5000 MT   Main Featrures of Flat Bottom Silo Simple Structure Large capacity Widely used for grain storage.    Easy installation & low cost. Various ways of loading & unloading. Possibility of capacity expansion Easily maintained.

Cyclone separators separate dust from gas streams using a combination of forces, such as centrifugal, gravitational, and inertial. These forces move the dust to an area where the forces exerted by the gas stream are minimal. The separated dust is moved by gravity into a hopper, where it is temporarily stored. Cyclone separators are use for cyclonic action to separate dust particles from the gas stream. In a typical cyclone, the dust gas stream enters at an angle and is spun rapidly. The centrifugal force created by the circular flow throws the dust particles toward the wall of the cyclone. After striking the wall, these particles fall into a hopper located underneath. Cyclone separators create a dual vortex to separate coarse from fine dust. The main vortex spirals downward and carries most of the coarser dust particles. The inner vortex created near the bottom of the cyclone, spirals upward and carries finer dust particles. Advantages of Cyclone Separator: Simple construction Have no moving parts Can be used as pre cleaners to remove coarse particulates and reduce load on more efficient dust collectors Can be designed to remove a specific size range of particles Constant pressure drop MOC: MS, SS304, SS304 L, SS316, SS316L.   Limitations of Cyclone Separator: Have low collection efficiency for irrespirable particulates Suffer decreased efficiency if gas viscosity or gas density increases Are susceptible to erosion Have drastically reduced efficiency due to reduction in airflow rate Cannot process sticky dust   Applications Areas: Fertilizer Cement Paint & Pigment Handling Mineral Processing Chemicals   Petrochemicals Pharmaceutical Distillery / Brewery Food Industry

RAJDEEP manufactures & supply a wide range of Centrifugal Fans as a product for Industrial Material Handling Systems, ID Fan for Dust Collection Systems. Our product range includes Induced Draft Fans and Forced Draft Fans to meet the specific requirements of the applications. Customers are easily available with wide range of the High Pressure Centrifugal Fans as per the specifications confirming to the international standards at RAJDEEP. Induced Draft Fans (ID Fans) Forced Draft Fans To serve the operational requirements, RAJDEEP developed special high efficiency fans with backward curve impeller. These fans are made available to the clients at cost-effective prices. RAJDEEP's Centrifugal Fans are available in carbon steel, SS 304 / SS304L / SS316 / SS316L in industrial or sanitary finishes. RAJDEEP also manufactures Axial Fans.   SALIENT FEATURES: High efficiency robust design Impeller with backward curve & backward inclined & radial blades Sturdy and heavy duty construction for reliable vibration free/long lasting performance. Capacities from 1000 m3/hr to 3,00,000 m3 /hr and pressure up to 120 mbar High fan efficiency and relatively low noise levels Blade shape is conducive to material buildup Drive arrangements: Electric motor is the power source of fans. For larger units, the motor is coupled directly to the fan or indirectly by a belt drive, unlike packaged fans Performance tested as per relevant IS standards in the factory “performance test rig” Available in spark-proof construction. VIV dampers for changing airflows with-out much varying pressure. Flow control can be done by inlet dampers   Applications: Dust extraction fans. Pneumatic conveying fans. Material Handling Fans. Silo venting Fans. Ventilation Fans. Cooling /Hot Air application fans. Dryer ID/FD fans.

Rajdeep’s Bin activator provides positive, trouble free, continuous discharge from storage. The operation is silent , needs no attention & consumes little power Bin activator consists of a specially profiled discharge head with baffle above and in line with the discharge opening. It is hung from support ring by means of hangers. Bellow type sealing sleeves on upper and lower ensure that there is no spillage of material. One or two electric vibrators fitted to the unit generate vibration makes the material flow normally through the discharge opening of Bin Activator It can be rapidly installed by bolting / welding to silo of any shape round or square It is simple, rugged, and reliable & maintenance free device. Bin activators are available in various sizes from 600 mm to 3600 mm diameter   MOC: Carbon steel SS-304 SS-316 Flexible Sleeve: Food Quality white neoprene, Viton with canvas, Nylon, fibre glass reinforcement External & internal surface can be painted by two coats of rd oxide followed by synthetic enamel paint. Bin Activators are used in various industrial applications to facilitate discharging of powdery or granular materials from silos or hoppers. Applications: Bin Activator can handle all difficult products like:- Soya Flour , All grain flour Whey powder , Milk powder Sodium Bicarbonate Soda Ash Lime Talcum Powder Gypsum Fly ash   Industries we serve : Food & Pharma Agri & agrochemicals Soaps & detergents Steel & foundry Cement & allied Distillery & brewery And many more

Baggage handling system has been captured by a dry dust collection system, it must be separated, collected, and disposed of. The dust collector separates dust particles from the airstream and discharges cleaned air either into the atmosphere or back into the workplace.

RAJDEEP has involved in providing our clients with a wind range of Air pollution control system to maintain the clean & green environment.Our Proven Capabilities in Air Pollution Control System: Successful installation of Dust Extraction System - 100 m3/hr to 300000 m3/hr gas volume. Successful installation of Bag Filter for high temperature application. Bag House for flue gas cleaning. Dust Collectors After dust-filled air has been captured by a dry dust collection system, it must be separated, collected, and disposed of. The dust collector separates dust particles from the airstream and discharges cleaned air either into the atmosphere or back into the workplace. Necessity for Dust Collectors Cleaning dust from the air is necessary to- Reduce employee exposure to dust Comply with health and air emission standards Reduce nuisance and dust exposure to neighbors Recover valuable products from the air

RAJDEEP'S bag dump stations (also known as manual dumping stations) collect dust generated when dumping powder and bulk solids from bags, boxes, drums, and other containers, and return the material to the hopper. The system absolutely eliminates material waste, also protecting workers from dusting during material charging and preventing plant contamination. RAJDEEP's bag dump station have feature of a high-velocity vacuum fan that draws airborne dust away from the operator through two or four cartridge filters that are sized according to the application.   OPERATION: To operate RAJDEEP's bag dump station, the hopper lid is opened, the vacuum fan is activated, and material is dumped through the hopper screen. Airborne dust in the vicinity of the hopper opening is drawn into the dust collector, protecting workers, preventing plant contamination, and reducing material waste.   Applications: Powder Chemicals Handling. Steel Petrochemicals Pharmaceutical Distillery / Brewery - Unloading of Grains Paint & Pigment Handling Food Industry Cement SALIENT FEATURES: Totally Integrated Design with Dust Collection & Exhauster for powder and bulk solids charging / Empting. Avoid Dust Generation High Efficiency Filtration System. MOC: MS / SS 304 / SS 316 / SS316L with Industrial or Sanitary Finish. Special Design to serve the application. Compact, self contained unit consisting of fan, filter elements, start/stop controls and holding hopper. Integrates easily with pneumatic conveying lines, screw conveyors, Mixer Charging, reactor feeding and virtually any process equipment. Online Pulse jet cleaning to maintain filter media effectiveness Front access to filter elements for easy changing Depend on charging Capacity various MODELS are available. UP TO 20 TPH.

RAJDEEP's AIR SLIDE will quickly and efficiently convey all fluidisable materials such as cement, fly ash. The simple combination of air pressure and gravity allows powdered materials to flow like a fluid. Air slide are very efficient, quiet and no moving parts. AIR SLIDE are extremely cost effective and require very little maintenance The Air slide consists of a rectangular chamber separated by a permeable cloth. The chamber is inclined at a very slight angle (as low as 1.5 ). Pressured air is injected into the lower chamber which then permeates through the media and "fluidizes" the product. The product then behaves like a fluid and "flows" down the length of the chamber. The excess air is vented through a dust collector Salient Features: Totally Integrated Design with Bag filter & Air Blower or High pressure Centrifugal Fan. Avoid Dust Generation. High Efficiency System. Fluidization cloth to suit the particular application. Extremely quiet operation No maintenance, no moving parts Minimal wear from abrasion Special Design to serve the application. System can be integrated with common control panel. MOC: MS / SS304 / SS316 Size: Up To 500 TPH. Length is not a constraint. MOC: MS / SS 304 / SS 316 Applications: Cement Steel Non ferrous Powder Chemicals Handling.
