API Gate Valve Dealers

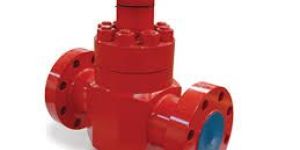

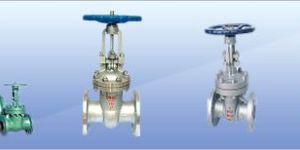

Api Gate Valve Flanged Ends, Butt Weld Ends : 15 (12") to 900 (36"), Pressure Rating : Class 150, Design Std.: API 600, API 6D, ASME B16.34, Face to Face (For Flanged End, Butt Weld End): ASME B16.10, B16.25, Testing Std. API 598API6D, B16.34 Body & Bonnet WCB, WC6, LCB, CF8, CF8M, CF3M, CN7M wedge 410, 304, 316, 316L, CA15, CF8, CF8M, CN7M Stem 410, 304, 316, AL20 Seat 410, 304, 316, CF8, CF8M, CF3M, CN7M End Connection Flanged, Butt Weld End.

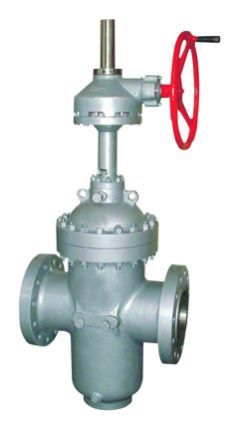

STARTEK Valves have been designed to meet the requirements of API-6D ISO 14313 /ASME B16.34 Face to Face and End to End dimensions conform to ASME B16.10 /ISO 5752/ BS 2080/ DIN End flange dimensions conform to ASME B16.5/1S0 7005-1 /API 6051BS 3293/DIN Butt weld end dimensions conform to ASME B16.25 Slab type gate to avoid jamming associated with wedge gate Pressure energized floating seat rings with PTFE inserts Weather proof operating system Through conduit piggable passage Easy maintenance with valve in-line Anti-frictional Ball bearings are provided in higher sizes and classes Outside screw and yoke construction All the valves provided with backseat arrangement Bi-directional shut-off Deep stuffing box Body ports are streamlined, permitting unobstructed flow, reduces turbulence, results in lower pressure drop and lower erosion The Body to Bonnet joint is flat M ISO PN 20 / ASME 150# valves, a male and female joint is used in PN 501300# & PN 110/600# and ring joint is used in higher classes Specially designed die formed graphite packing, controlled clearance between stem, Option For low temperature and cryogenic services (cold box and non-cold box applications) extended bonnet as per BS 6364 available Locking arrangement Gear, Electrical, Hydraulic or Pneumatic actuator available     Materials Part Name Material Option Body   ASTMA 216 WCB /A217 WC6 IA217 WC9 /A217 C5 /A217 C12 /A351 CFA /A351 CF8M /A 351 CF3 / A351 CF3M /A352 / LCB Bonnet   ASTMA 216 WCB /A217 WC6IA 217 WC9 /A217 C5 /A217 C121A 351 CF8 /A351 CF8M /A 351 CF3 /A 351 CF3M /A 352 LCB Gate   ASTMA 216 WCB /A217 WC6 /A 217 WC9 /A217 C5 /A217 C121A351 CFA /A351 CF8MIA 351 CF3 /A 351 CF3M /A 352 LCB/ A 217 CA15 Yoke   ASTMA 216 WCB /A217 WC6IA 217 WC9 /A217 C5 /A217 C12/ A351 CF8 /A351 CF8 M /A351 CF3 /A 351 CF3M /A 352 LCB Stem   ASTM A 276 410 /A 276 304 /A 276 304L / A 276 316L Seat Rings'   ASTMA 216 WCB /A217 WC6 /A 217 WC9 /A217 C5 /A217 C12 /A 351 CF8 /A351 CF8MIA 351 CF3 /A 351 CF3M /A352 LCB /A217 CA15 Seat Insert   PTFE / VITON '0' Ring   VITON Back Seat Bushing   ASTM A 276 410 /A 276 304 /A 276 304L / A 276 316L Spring 304, 316 Gland Nut   ASTM A 276 4101 A 276 304 /A 276 304L / A 276 316L Stem Nut   ASTM A 439 Gr.D2/Al. Bronze Lock Nut   Carbon Steel l SS 304 Gland Packing   Chevron Ring / Graphoil / PTFE Bonnet Gasket   SS 3041Graphoil Gland Eye - Bolt & Nut   Carbon Steel / Stainless Steel Cross Bolts & Nuts   Carbon Steel / Stainless Steel Hand Wheel   Carbon Steel / M.1 / S. Stem Enclosure   Carbon Steel Hand Wheel Nut   Carbon Steel Stem Indicator   Carbon Steel Drain Plug   Stainless Steel Anti-friction Bearing   Standard Grease Nipple   Stainless Steel Grub Screw   Carbon Steel Studs/Bolts   ASTMA 193 B7 /A 193 B7M /A 193 BBM 1A320 L7 Nut   ASTMA 1942H /A194 8 /A194 8M /A 1944 / 7

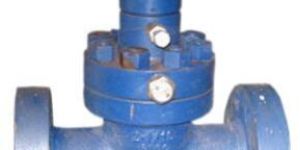

Shreeraj Industries manufactures a range of API 6A Gate Valves. The rugged design ensures reliable and trouble free service. The valves are of full bore design with an expanding gate feature to provide positive shut off on both upstream and downstream seats.Shut-off is achieved by a parallel wedging action of the two gate segments which mechanically brings the gate and seat into metal to metal sealing contact. The seats have non-metallic inserts, which serves as wiper to keep the gate faces free from solids. The sealing is not affected by pressure variations or vibrations.Shut-off is achieved by a parallel wedging action of the two gate segments which mechanically brings the gate and seat into metal to metal sealing contact. The seats have non-metallic inserts, which serves as wiper to keep the gate faces free from solids. The sealing is not affected by pressure variations or vibrations.

Goma Engineering Pvt. Ltd. offers a full range of API 6A valves for drilling and production operations. All our valves casting and forging construction are as per customer and standard requirement. Gate Valves are designed and manufactured in accordance with API 6A Ed.20. Metal – to – Metal backseat capability for body pressure containment in stem packing leak cases. The ‘FC’ type Gate Valves are industry recognized and field proven valves which provide best in class reliability. The design enables a bi-directional sealing and the non-rising stem makes it ideally suited for drilling Manifolds, Christmas trees and severe service. It is designed in a manner that the internal components are easily replaceable. A routine checkup helps safeguard against corrosion & increases the shelf life.

The company is a well-known Manufacturer, Exporter and Supplier of API 6A Gate Valves in Ahmedabad (India). The API 6A Gate Valves, offered by the company, are widely used for fittings in the pipelines with high temperatures and pressure. The company offers the best quality API 6A Gate Valves with equipment like spools, change over flanges, hammer union and swivel joints. Attributes Of API 6A Gate Valves : Resistant to corrosion Dimensionally accurate High tensile strength Highly reliable

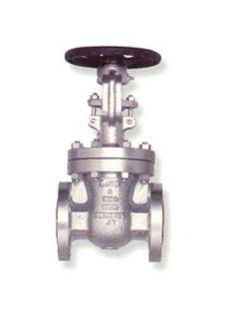

Gate Valves are Outside Screw, Rising Stem, Bolted Bonnet Construction, threads are away from the line fluid and easy to lubricate. We make Gate Valve body ports are streamlined, permitting unobstructed flow, reduces turbulence, results in lower pressure drop and lower erosion. J.D Gate Valves bonnet castings are of one piece design, where the yoke is integral with bonnet up to 6 Size. The body bonnet joint for all class of Gate Valve is in Circular Round Shape. In Gate Valve from 150# Rating body & bonnet joint have male-female type joint with a gasket.

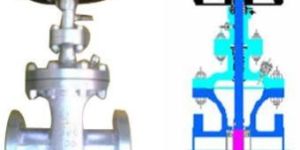

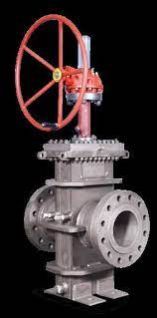

Design Features : Design and Manufacturing : API 6D Inspection and Testing : API 6D Inspection and Testing : API 6D End Flanges dimension : ASME B 16.5 BW end Dimension : ASME B 16.25 Face to Face & End to End Dimension : API 6D ASME B 16.10 Design : SLAB Type, Through conduit passage – Piggable Anti-friction ball thrust bearing in yoke sleeve Drain & Vent Connection, Lifting Lugs & Support Legs, Double block & bleed, fire safe design.

BODY | BONNET ASTM A 216 Gr. WCB | WC1 | WC6 | WC9 | LCB ASTM A 351 Gr. CF8 | CF8M | CF3 | CF3M TRIMS 13 Cr. | 18 Cr. Ni MFG STD API 6D INSP & TEST STD API 6D CLASS 150# | 300# | 400# | 600# | 900# | 1500# | 2500# ENDS FLANGED TO ASME B 16.5 RF | RTJ BUTTWELD TO ASME B 16.25 OPERATION MANUAL | GEAR | ELECTRICAL ACTUATED FIRE SAFE API 6FA SIZE RANGE 2" TO 24"

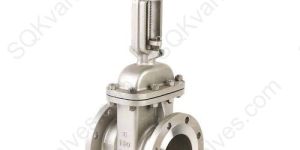

Cast carbon Steel Gate Valve, O.S & Y Type, Rising Spindle, Bolted Bonnet, Hand Wheel Operated, Flanged End to ANSI 150, Body, Bonnet as per ASTM A 216 Gr. WCB, 13% Cr. Steel Working Parts, AISI 410 Spindle, Highstensile Studs & Nuts, Spiral Wound S.S. 304 Graphoil Filled Gasket, Graphoil Gland Packing, Valves as per API 600 & Tested to API 598

We are offering wide range of Gate valves manufacturers in India.Gate Valves are largely designed to start or stop a flow when a straight line flow of fluid and minimum flow restriction are needed. In service, these gate valves are pretty much kept either fully open, or fully closed. Gate valves are primarily made up to start or stop a flow when a straight line flow of fluid and minimum flow restriction is needed. In service, these Gate valves manufacturers in India are pretty much kept either fully open, or fully closed. When turned open, the disc of the gate is completely removed allowing materials to pass. This gives the gate valve good shut-off property and allows it a bidirectional movement. They cannot be quickly blocked or unblocked. The Gate Valves shakes when it is blocked.

API Gate Valve, Gate Valves, Plug Valves, Check Valve

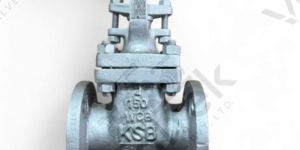

KSB Make Gate Valve Flanged Wcb Body Class 150 To 600

API Gate Valve, API Ball Valve, API Globe Valve, API Pumping Unit

API Gate Valve, Alloy Steel Tubes, Tungsten Rod & Bar, SS Kitchen Cabine

API Gate Valve, Non Slam Check Valves, Plate Flange

API Gate Valve, Industrial Valves, Y Strainers, Check Valves, Sluice Valv

API Gate Valve, Swing Check Valves, Din Globe Valv

API Gate Valve, Oval Flange, Kidney Flange Sea

Gate Valves - API 600 / Bs1414, Forged Ring, Oil Field Equipment
