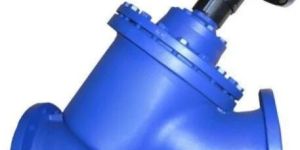

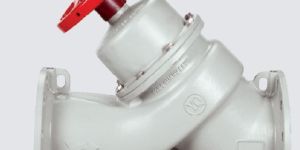

The hydronic balance is a significant requirement for the efficient operation of a hydronic heating or cooling installation. In an unbalanced system under or over provision of hot water to individual radiators or circuits can occur. Apart from the correct selection of radiator valves, regulation of individual circuits is also necessary and in some cases, such as in DIN 18 380, VOB part C, required by national standards.     This requirement is met with V5032A Kombi-2-plus doubleregulating balancing valves The V5032A Kombi-2-plus is a variable orifice double-regulating balancing valve for the return with additional functions shutoff, draining and filling. Together with a V5012 Kombi-DP diaphragm unit the V5032A Kombi-2-Plus can be upgrated to an automatic balancing valve - even after the system has been taken into commission and under system pressureg.   Special Features : Quick and easy measuring with SafeConTM measuring connections Dimensions DN15 to DN40 can be retrofitted with a Kombi-Diaphragm Unit High accuracy of pre-setting because of individual adjustment Robust valve body made of corrosion resistant red bronze Availabe in sizes up to DN80 Visible pre-setting dial with concealed pre-setting wheel Maintenance free spindle with double O-ring sealings PTFE-seat sealing

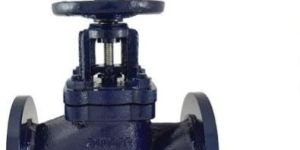

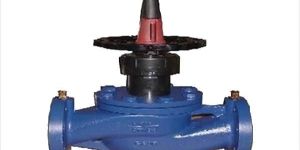

Advance Large Size Balancing Valves, a first in the world design by Advance, is a unique Manual Balancing solution for the present trend of large size HVAC and district cooling plants, optimizing space, and integrating all features into a single valve. The valve is designed using state of the art CFD tools validated on in-house flow test bed.ADVANCE Flow Computation Software and System Balancing Software that work with the Hand held digital Manometer are available on request. Advance also provides On-site Water Balancing Services to achieve maximum energy saving right from commissioning The salient features include :- Available in size up to 1000mm (40”). * (Size above 1000 mm available on request.) Precise Double Regulation and Flow Measurement within 2.5D or less Valve Rating PN16 and PN20. *( Pressure PN25 or above available on request.) Positive Shutoff High Performance Butterfly Valve EPDM Seal Stainless Steel construction for critical components Zero Backlash Gear Box with 1 degree accuracy of setting Tamper Proof Locking

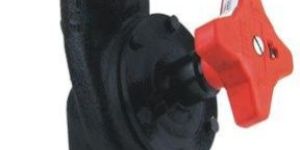

We are offering balancing valves, jupiter controls valves believes in making things simple for our customers by providing a complete spectrum of valve metallurgy and services in our products through cutting edge engineering capabilities. Our balancing valves provide a full complement of size ranges, pressure ratings, operating temperatures, and fluid characteristics; including related services such as on-site commissioing for optimum performance. The salient features include :- precise double regulation tamper-proof setting, with handwheel or lockshield low flow-noise emission with or without drain cocks with or without pressure test cocks positive shut-off can eliminate separate flow measuring device. Flanged in cast iron construction 3" upto 12" ptfe sealing upto 3" and epdm for cast iron construction. Economy in installation & operation

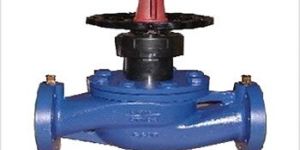

General:   The Balancing Valves is designed for double regulating, control and shut off valve with built-in pressure drop measuring facility.We have a wide range from 15mm to 300mm. It is divided in two parts, 15mm to 40mm and 50mm to 300mm as below, For 15mm to 40mm,   Application:   The hydronic balance is a significant requirement for the efficient operation of a hydronic heating or cooling installation.  In  an unbalanced   system   under   or   over provision of hot water to individual radiators or circuits can occur. Apart from the correct selection of radiator valves, regulation of individual circuits is also necessary and in some cases, such as in DIN 18 380, VOB part C, required by national standards.The Valve is a variable orifice double-regulating balancing valve for the return with additional functions shutoff, draining and filling.It can be upgraded to an automatic balancing valve - even after the system has been taken into commission and under system pressure.   Features:   Quick and easy measuring with SafeConTM measuring connections Dimensions DN15 to DN40 can be retrofitted with a Kombi-Diaphragm Unit High accuracy of pre-setting because of individual adjustment Robust valve body made of corrosion resistant red bronze Available in sizes up to DN80 Visible pre-setting dial with concealed pre-setting wheel Maintenance free spindle with double O-ring sealing’s PTFE-seat sealing   Specifications:   Sizes DN50…DN300 Nominal pressure PN16 Medium Temperature -10 ~ +110 Maximum Body Material IS:210, FG 220 CI Stem Material ASTM A276,GR SS 410 Disc Material Stainless steel Disc Hand Wheel Cast Iron Leakage Rate No visible leakage Medium Type Water Flange standard IS1538 Shell Test pressure 24bar Seal Test pressure 17bar

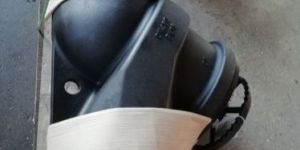

AlP-series static balancing valve is static hydro-working valve, having good flow characteristics, enabling proper flow allotment,and making quantitative flow, therefore effectively dealing with the indoor temperature about unevenly heating and cooling problem existing in heat supply (air-conditioning) system. As the static balancing valve having equipped with indicator, open locking device, and small pressure valve for flow measuring, it is only installed proper specifications of static balancing valves in each branch and users’ pipeline entries. Upon locking after once-for-all adjustment with special instrument, the total amount of water in the system could be controlled within a proper range so as to overcome the improper phenomenon of “large flow but smalldifference in temperature” The static balancing valve becomes an ideal product used in heating system with highest medium temperature up to 100 C.The balancing valve’ s working ways include hydraulic automatic control and manual control but without extra conditions. The working temperature is normal one, with EN 1.6MPa or 2.5MPa, and the circumstance shall be clean and good.Application: lt is widely used in pipelines of central air conditioning system, water supply and drainage, fire protection, petroleum, and chemical and engineering,as well as industry and mining enterprises, etc., especially used in pump house of the central air-conditioning system Technology Feature Y type straight structure, low flow resistance, enlarging flow capacity. Equipped with Internal lift stem without leaving operation room in advance. Digital display hand wheel makes operation easy, swift and reliable. Multiple sealing structure applied to stem Anti-cavitation shield added, affectively protect valve from cavitation impact, and reducing noise and vibration. Hygienic and corrosion resistant, stem, limit rod, gland nut,and regulating screw are made of stainless steel or copper. The whole valve complies with sanitary standard, applying to potable water piping, hygienic, safe and reliable. Locking setprovides after adjusted balancing valve with reliable and safe lock. Compiled Standards Product design and production is in accordance with GB1T28636. Flange connection complies with BS4504, DIN 1092 and GB/T 17241.6 Face-to-face dimension complies with EN 558-1. GB1T12221 Inspection and acceptance comply with GB/T 28636, GB/Ti 3927.

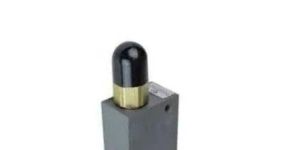

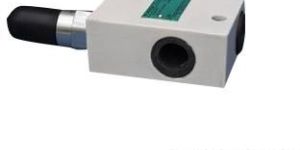

We are offering counter balance modular valves. Features this sequence modular valves(mhp-0*_*) is used for actuator sequential operation,as well as for circuit pressure holding. with wide adjustment range 6 ~ 250 bar,hydraulic circuit and also serves as a safety valve. [!–vmcatalog{div}–] [!–vmcatalog{div class=”clear-fix”}–] [!–vmcatalog{div id=”product-tabs”}–] rating mhb* mhp* ordering code [!–vmcatalog{div id=”tab-1″}–] [!–vmcatalog{div style=”margin-top:40px;”}–

• Seat Type• Free Flow from B to A• Leakproof closure from A to B upto determined pressure

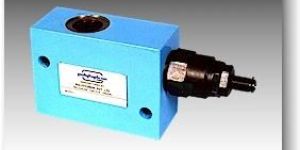

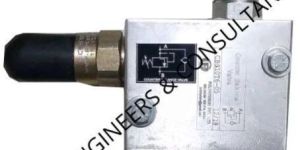

We are one of the top leading industries engaged in supplying a qualitative range of Counter Balance Valves. The finest quality raw material sourced from the trusted and reliable vendors of the industry, these products are non-corrosive, and long lasting. Features: Non-corrosive Sturdy construction High Efficiency Specifications: Type: Threaded Flow Capacity : 30 LPM/115 LPM Pressure Range: 0 to 315 Bar
