Compression Testing Machine Dealers

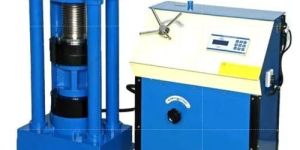

CTM – Channel type, Digital + Analogue, Electrically / hand operated, double plunger pump, single pressure gauge.i) 1500 KN capacityii) 2000 KN capacityiii) 2000 KN – Plate model, Digital (Aimil type)

■  Load indication either by analogue type indicator or by DRO through transducer. Linear transducer may be provided for deflection indication. ■  Spring Testing Machine both for load deflection & scrag testing. ■  Fatigue Testing Machine.

The machine is designed to carry out compression tests on materials like concrete, cement as well as finished products like tiles, bricks, blocks and other relevant materials. The machine can be used for quality control departments, civil test laboratories, engineering colleges And are adeally suitable for on-site testing for quality control and/or laboratories.   We Upgrade all types of imported testing machines like INTRON, ZWICK, TIRA, HONSFIELD,UNITED and Indian like FIE, FSA, STAR etc, with following advantages :-• Machine becomes computerized with digital load indication in kg / N / Mpa with real time graph on PC • Avoids tedious evaluation of proof stress. Gives 0.1 - 1% proof stress values & stress / stress graph• Plot of Load vs % elongation for elastic materials for rubber / plastic using our Long Travel Ext’meter• Highly accurate. No manual Intervention. Totally error free working.• Mechanical working ( with dial ) of machine remains unchanged and can still be used.Why MCS make Universal Testing Machines? :-• Up to date knowledge of all the latest Indian & International testing standards and ability to implement in the machines / software supported by  strong in-house R&D setup.• Future proof indigenously designed hardware/software, sensors, extensometer, control panel• State of the art manufacturing facilities supported by excellent after sales support• Installed our systems / packages in more than 40 NABL accredited Laboratories in India. We supply testing machines for testing of materials like steel, cement, copper & ACSR conductors, cables, polymers, rubber, insulators, ceramic, glass, plywood, fastners, wire / nylon ropes. We look forward to have an opportunity to serve your company in near future.Technical Specification :-Automatic Compression Testing Machine ( ACTM )Computer-controlled using EIA-485 communication standard. Online plotting of runs being taken by the ACTM Advanced data acquisition, analysis and report generation ACTM software tool with run database management.Digital Display Unit ( DPU )Dynamic display of pace-rate on a LED bar-graph for monitoring the quality of control. On-board memory for storing up to 250 runs. Auto-shutdown when the sample breaks or the maximum load is achieved. Independent LVDT attachment.Micro-Controlled CTM ( μCTM )Intelligent DSP-based Pace Rate Controller. Digital PID feed back control with high torque stepper motor as an actuator. Fully configurable feedback control parameters. Automatic Load Hold and Resume facility. Facility for user-defined pace rate in kN / mm.User InterfaceFront panel LCD for status & menu displays. 4-digit indicator for load (kN) & strain (mm) display selectively. LED Bar graph for pace rate quality monitoring. 8-button front panel keypad.Hardware FeaturesAccurate pace rate control through DSP-based feedback.Data integrity & validation facility for calibration data. Precision pressure & strain sensing using 16-bit ADCs. Rugged military-grade back panel connectors suited for demanding on-site conditions. EIA-485 to EIA-232 converter module.Data AcquisitionOnline run data acquisition & plotting. Advanced Graphical User Interface. Multiple logins & selective access control.CTM models comparison chart. Analysis and Report Generation

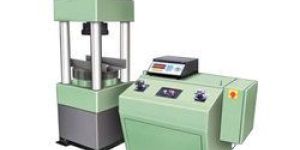

Compression Testing Machine - 4 Pillars Nut Type Model, complete with Single Pressure Gauge & Self Made Motor, 440 ‘V’ Load Frames: Available in 50 Tons, 100 Tons, 150 Tons, 200 Tons, 300 Tons, 500 Tons. Available: Hand Operated & Electric cum Hand Operated in Welded & Nut Type Model

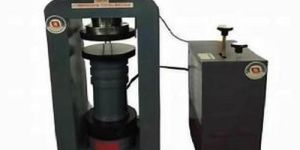

Specification:-A compression testing machine consist of a load frame with suitable platens and a pumping unit with pressure gauge either hand operated or electrically-cum hand operated.We have a range of compression testing machine capacity from 10 tonnes to 200 tones in different models.

We are Offering Compression Testing Machine (All Models). Our Series Compression Testing machine are the finest of there type obtainable. The rugged construction & extreme simplicity make it possible for even non-technical personnel to operate them with ease and complete dependability. UNIQUE Compression Testing Machine conform to the requirements international Standards like BS ASTM & Indian Standard IS: 516. Some salient Features: High Stability Self Aligning Platen Suitable for Testing Cubes and Cylinders of various sizes Brick can also be tested Digital having function of peak hold facility, memory status, automatic cut-off of maximum Load, Automatic calibration, Alarm generated when the sample breaks down, Sensor fitted for higher accuracy made in Germany. Compression Testing Machines Classified: Analogue models. Digital Models Digital models with pace rate indicators. Micro Controller based models with automatic pace rate controllers. Fully Automatic models. Sizes: available with us: 50kN, 100kN, 500kN, 1000kN, 2000kN, 3000kN & 5000kN Capacities 'Detail Specifications on request
