Cutting Nozzle Dealers

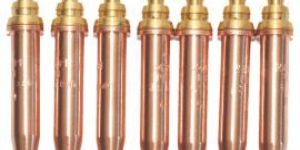

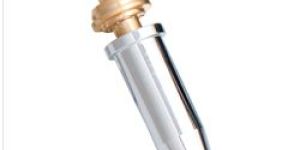

Used with gas cutter. Available separately for cutting with oxy - acetylene gas ('A' type) and with oxy - fuel gas ('B' type). 'ARCON' cutting nozzles are famous for its precise cutting which leads to saving of gas, material as well as time.

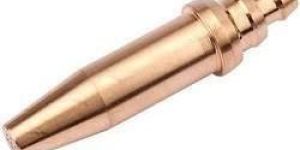

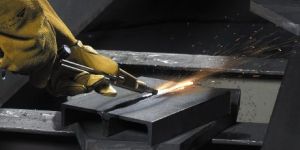

For combination torch systems For hand cutting torches Cutting range to 19 5/8 inch (500 mm) ADVANTAGES: High cutting quality and optimum cutting output because of careful material selection High operating reliability through ideal matching of torches and nozzles Long lifetimes thanks to surface protection Guaranteed quality assurance through individual testing SCOPE OF SUPPLY: Ring/Slot cutting nozzles Block cutting nozzles Gas mixing cutting nozzles Accessories

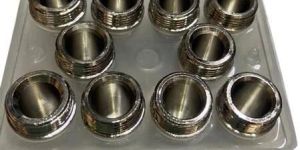

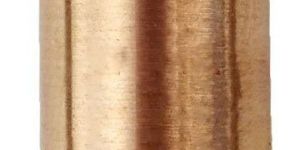

The orifice in a torch cutting nozzle is designed to constrict the arc to a specific diameter without the arc touching the nozzle. The plasma gas provides a thin boundary layer of cool gas between the arc and the nozzle. If the current level is to high or gas flow is to less the arc may contact the cutting nozzle causing a double arc which will damage the nozzle by increasing its diameter disproportionately. Thus proper constriction will not be achieved resulting in a poorly focused arc and a bad cut finish. If a nozzle is gouged on the inside or outside or if the hole is worn out of round it should be replaced--otherwise it may be reusable. When the nozzles wear out cut quality deteriorates . Gouges on the inside indicate that too high current or inadequate air flow was used. Touching the job , piercing or cutting too fast can damage the nozzle from the outside .

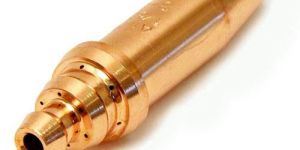

MS 932 FLEXIBLE AND SAFE   The MS 932 is very versatile. It can be used with all fuel gases and is very safe to operate. The torch design prevents flashbacks even when piercing heavy, thick materials. KEY FEATURES Only the cutting nozzles are changed when going from one material size to another. Throttle valves controlling the flow of gas and oxygen can be replaced individually. Oxygen consumption is lower, which reduces the cost of utilities. This is achieved without any loss of cut quality or cutting speed. The arrangement of the nozzle holes and preheat slots make cleaning easy with MG nozzle cleaners. Each nozzle is individually tested for assured quality. No need for tools to change nozzles. This reduces the cost of stocking many nozzle sizes. Risk of misaligning the torch when changing nozzles is thus eliminated. Drastically reduces set-up times. Can be used with the OL-200 oxyfuel lifters. MS 932 SYSTEM MS 932 Torch including throttle valves and check valves Nozzles for all fuel gases Supply hoses- NFPA rated Regulation equipment Torch holder- mounts to all cutting machine

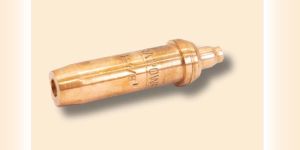

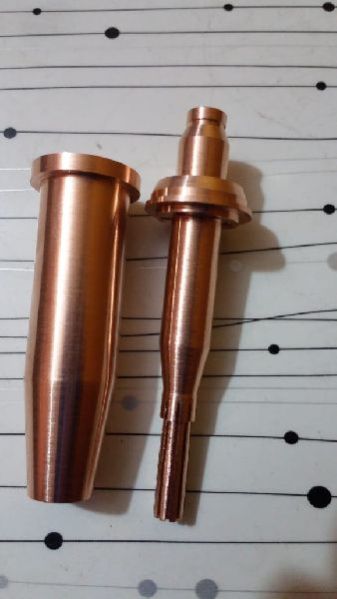

Solid Telurium Copper Swaged Cutting Nozzle for Head Mixing and Pre – Mixing System for Acetylene Mixing principal, Oxy/Acetylene gases Preheat cones are close together to promote better economy of gases Preheat holes are available 6,8&9 depends upon the thickness of metal to be cut Cutting capacity 1/8” to 12” thick 09 sizes of central hole available for cutting different thickness of metal 45 degree 02 seat cone Can be used for hand cutting or Machine cutting Two Piece Nozzle for Natural Gas / Propane Mixing principal, Oxy/Natural gas or Propane Preheat slots are designed for preheat cones are close together to promote faster cutting and also economy of gases 02 seat, 45 degree cone 09 sizes of central holes are available. Cutting capacity 1/8” to 12” thick Can be used for hand cutting and Machine cutting Pre-heat slots are available 12,15&20 slots according to thickness of metal to be cut Do not use Acetylene Two Piece Nozzle for Natural Gas / Propane 03-seat cone 30 degree Turbulence effect provided at Gas mixing chamber which help to achieve proper heat output Mixing principal at nozzle Preheat slots are designed for preheat cones are close together to promote faster cutting and also economy of gases. 09 sizes of central holes are available Cutting capacity 1/8” to 12” thick Can be used for Hand cutting and Machine cutting Pre-heat slots are available 12,15&20 slots according to thickness of metals to be cut Do not use Acetylene. Solid Telurium Copper Swaged Cutting Nozzle Mixing principal at Nozzle Preheat cones are close together to promote better economy of gases Preheat holes are available 6,8&9 depends upon the thickness of metal to be cut Cutting capacity 1/8” to 12” thick 09 sizes of central hole available for cutting different thickness of metal 30 degree 03 seat cone Can be used for hand cutting or Machine cutting

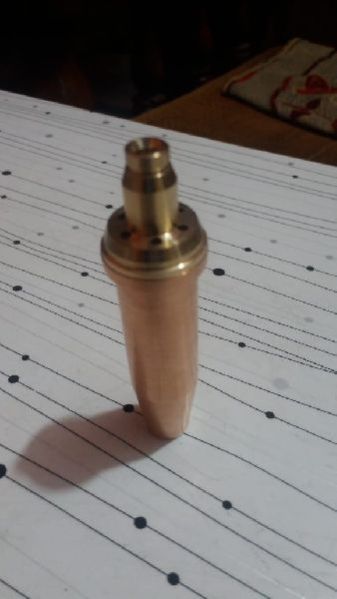

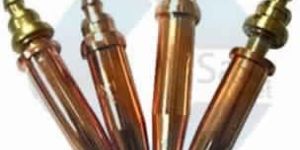

NM Type Nozzle: Much Safer Virtually No Backfire due to mixing of gases on the 3 seat nozzle only. making chanced a backfire flashback very remote. Nozzle are two peices use for LPG. Nozzle are single peices use for acetylene.

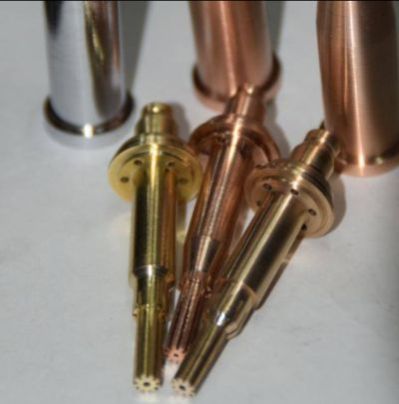

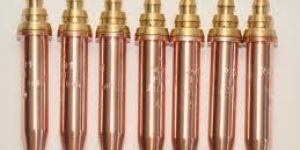

Brand: Weldstrong The nozzle is the “Business End of Gs Cutting :Using low quality or damaged nozzles can be compared to cutting clot with blunt scissors. Magnificent, expensive cutting machines cannot perform if poor quality cutting nozzles are used. We strive continually to improve nozzle design to increase efficiency,to lengthen working life,to affect gas cost saving and increase  cutting speed.   Features:   Gas: LPG acetylene Material: copper Body: Forged B
