Deep Hole Drilling Machine Dealers

Our Deep Hole Boring Machine is a precision tool designed for creating deep holes with accuracy and efficiency. Featuring advanced technology, high performance, and versatile applications for various industries.

Column-type Planer-type Gantry-type Machines Vertical Horizontal Spindle Machines Single Multi-Spindle High Precision Rigid Construction for Resulting in Good Surface Finish

Innovative Idea for Deep Drilling Gun Drilling M/c. : ø 3mm to ø 20mm depth upto 300mm to 2000mm STS Drilling M/c. : ø 15mm to ø 75mm Direct Direct Drilling depth upto 3000mm Counter Boring ø 55mm to ø 150mm All models available as per customer requirement.

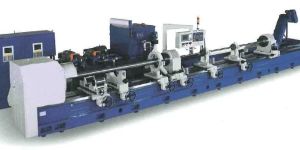

T2150/1-10m deep hole boring machine with funuc CNC system, with triangle rail (“V”),  width of rail:800mm with ring center rest the oil box is on the ground (can get 200L/min, 400L/min,600L/min,800L/min flow by rotate tune) drilling hole diameter range: 50-120mm boring hole diameter range: 50-500mm max depth of deep hole: 10m center height: 625mm ring center rest diameter range: 60-300mm roller center rest supporting range: 300-650mm main motor: N=30kw main shaft speed:  3.15～315r/min , grade 12 drilling box revolution speed: 60—1000r/min   grade12 drilling box motor: N=30kw drilling box main shaft front bore-hole 140 carrier feeding speed：5～1000mm/min （stepless） carrier moving speed：2m/min feeding motor: N=7.5kw carrier fast motor：N=5.5kW cooling pump motor: N=7.5kw X4 (set) cooling system pressure: 2.5Mpa cooling system flow capacity: 200、400、600、800L/min machine size: 29.5mX3800mmX1900mm machine weight : about 35ton max load weight: 10ton knife accessories: by user cutting oi and lubrication oil: by user processing precison: drilling : hole diameter precison:I T9-11, surface roughness: Ra6.3-Ra12.5 streight line degree of processing hole:

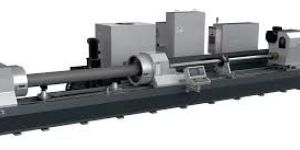

We are providing a various types of products such as Deep Hole Boring Machine CNC Deep Hole Boring Machine specification:  Max. Solid drilling diameter 200 mm  Max. Trepanning diameter 350 mm  Max. Counter boring diameter 350 mm  Max. Boring depth 12000 mm  Swing over bed 1400 mm  Mx. Wt. Job 15 MT

Multiple-spindle drilling machines are used for mass production. These machines are great time savers where many pieces of jobs having many holes are to be drilled. Multi-spindle head machines are used in mechanical industry in order to increase the productivity of machining systems. The multiple- spindle drilling machine is a production type of machine. It is used to drill several holes in a work piece simultaneously, in a single setting. This machine has many spindles driven by a single motor and all the spindles are fed in to the work piece simultaneously. These machines may be either horizontal or vertical type. The drill heads consists of several spindles mounted on angular contact ball bearings and driven by a set of gears. For spindles wherein the center distance are very close needle roller thrust bearings are used. The drive to the spindle is by AC spindle CNC motor or by AC induction motor. The speed of the spindles driven by induction motor is varied by using variable frequency drive. The drill head is interchangeable.

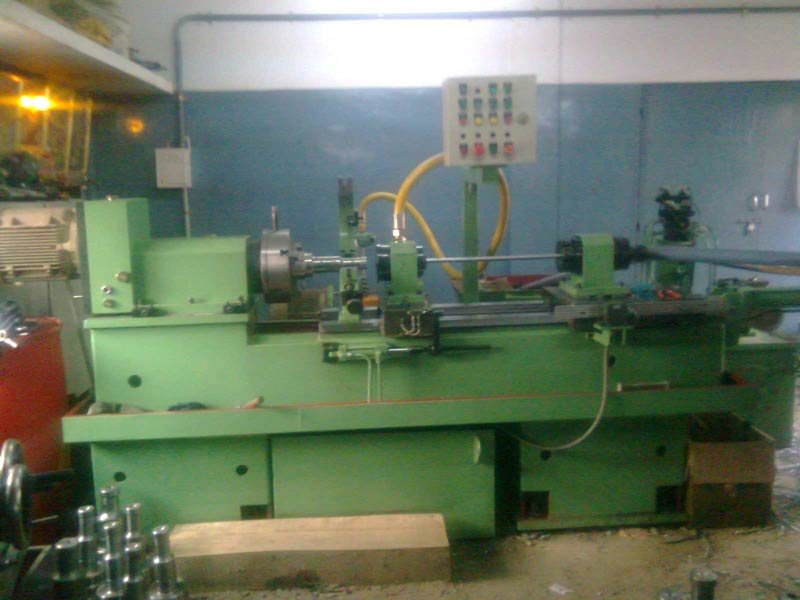

Clients can avail a quality range of Twin Spindle Deep Hole Drilling Machine from us. These Twin Spindle Deep Hole Drilling Machines are belt driven, and have hardened and ground guide ways with turcite-B lining. Our range of Twin Spindle Deep Hole Drilling Machines is suitable for various drilling cycles. Fully automatic NC version of these Twin Spindle Deep Hole Drilling Machines with flexible wood packing cycle is also available.   Specifications Centre Height : 100mm to 250mm Max Drilling Length : 1000mm Drill Diameter : 8mm to 50mm Hardened & ground guide ways with turcite-B lining

Accurate Machines Tools is also specialized in the field of SPECIAL PURPOSE MACHINES with expertise in Deep Hole Drilling Machines, Hydraulic Turning Machines, Cam Shaft Grinding requirement to achieve high production and accuracies.Our special purpose machines are supplied with user friendly Operating Control Panels for easy operations as well as programming. All the electrical and electronic components and devices are standard quality make.NOTE: All the mentioned specification and details are for the featured machines. We can design the machine as per your jobs and requirements.

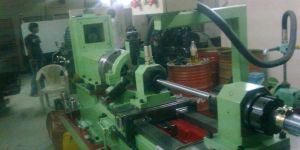

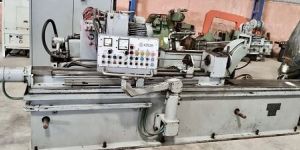

Clients can avail a broad assortment of Deep Hole Drilling Machine that is used extensively in automobile industries for drilling in auto parts. These Deep Hole Drilling Machines are manufactured using the finest grades of stainless steel alloys and iron components. These are designed for seamless performance in challenging conditions and are robust in construction. Also, these machines are well known for their dimensional accuracy and durability.

Max. Solid drilling diameter 200 mm Max. Trepanning diameter 350 mm Max. Counter boring diameter 350 mm Max. Boring depth 12000 mm Swing over bed 1400 mm Mx. Wt. Job 15 MT
