We are offering horizontal boring drilling machine. Horizontal boring machine offered by us is manufactured under the brand name “; having beneficial qualities of precise and efficient performance, these offer a high degree of economy. Special attachments like threading attachment, taper boring attachment, and milling attachment have been introduced in our horizontal boring machine, making it ideal to perform multiple functions. our highly precision horizontal boring machine, is a reliable machine which fits in your budget in spite of its high quality.

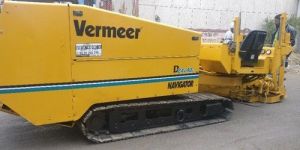

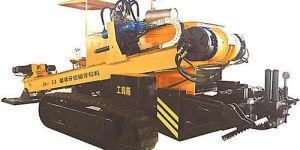

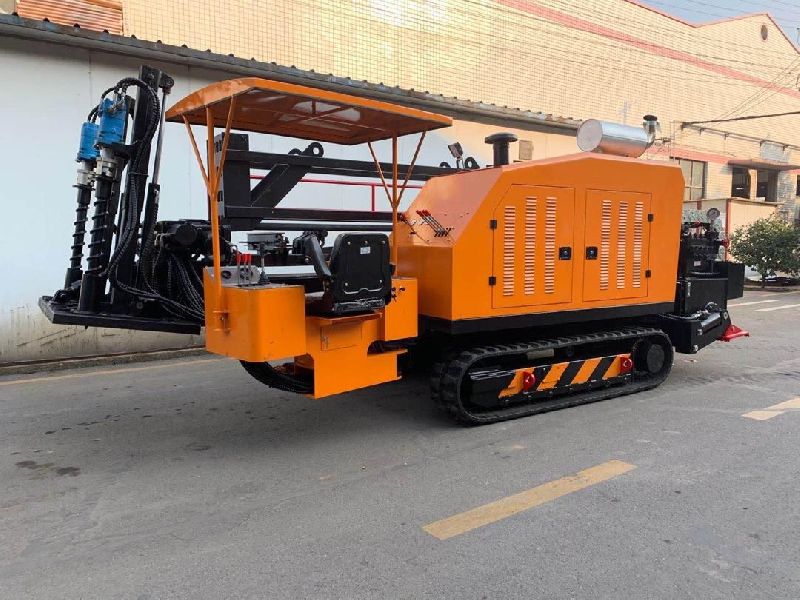

Horizontal Directional Drilling Machine The Horizontal Directional Drilling of Schwing Stetter comes with two different models i.e. HDD-XZ320D and HDD-XZ200 each with large and small sizes. These drilling machines are superior in performance and are economic while comparing the other equipment used. They account for the best steerable trenchless method in installing various underground cables, pipes like oil and water lines etc. with minimal impact on the surrounding areas. They are environmentally safe, provide less traffic disruption and consume low completion time for installation. Schwing Stetter manufacture and supplies this equipment at a very low capital compared to other costlier methods used in drilling. They fabricate the machine with best innovative features that focus on reducing the manual workload with secure operational measures. Whether it is performance preference or operational characteristics Schwing Stetter stands as the best choice always. HDD-XZ320D / HDD-XZ200 The HDD XZ320D / HDD-XZ200 come with two size range and have the performance characteristics based on the configurations and they are listed as follows, 1.Performance Characteristics of Small HDD drilling Clamp and carriage use double floating patented technology can greatly protect the drill pipe thread, increasing the service life of the drill pipe. High-speed sliding systems, variable motor helps to achieve high and low carriage sliding change, increasing the ability to adapt the drilling rig working conditions. This improves the efficiency of the drilling rig construction. Support the diverse needs of customers, the machine comes with Cummins A engine and has options of automatic or semi-automatic drill pipe handling device, automatic anchoring system, cab, air conditioning, cold start, freezing mud, mud washing and throttling. 2.Performance Characteristics of Large HDD machine Dual engines are used. Numerical meter displays the working torque, push or pull force in working conditions. Adjusting the entry angle is easier as the Drill frame side is by the cylinder. Multi-speed control is easier to use in any geological conditions. Hydraulic pilot control, load sensing control helps to save energy and operate flexibly. Electronic sensor has the rapid reaction and can show overload immediately. It surpasses the delay in the traditional hydraulic meter’s indication showing accurate information. It also solves the dependency on the operator to calculate the torque and force by the equipment switch directive. 3.Optional Features of directional drilling Automatic rod loader Automatic loading and unloading of drill rods saves the manpower and improve drilling efficiency. Semi automatic gripper Automatic loading and unloading of drill rods saves the manpower and improve drilling efficiency. Automatic anchoring Automatic loading and unloading of drill rods saves the manpower and improve drilling efficiency. Specifications HDD - XZ320D Overall dimensions of horizontal drilling Length - 6.5 m Width - 2.25 m Height - 2.45 m Weight - 10000 Kg Engine China III Make -Dongfeng Cummins Model -6BTAA5.9-C205 Power - 153 kW Rated power - 2200 rpm Fluid capacities Engine oil - 14 L Fuel tank - 250 Liters Hydraulic tank-260 Liters Drilling fluid system Max flow -320 lpm Max pressure - 80 bar HDD - XZ200 Overall dimensions of directional boring Length - 5.9 m Width - 2.02 m Height - 2.1 m Weight - 8500 Kg Engine Make -Dongfeng Cummins Model -6BT5.9-C150 Power - 110 Kw Rated power - 2300 rpm Aspiration - Without turbocharger Fluid capacities Engine oil - 14 L Fuel tank - 250 Liters Hydraulic tank-260 Liters Drilling fluid system Max flow -250 lpm Max pressure - 80 bar

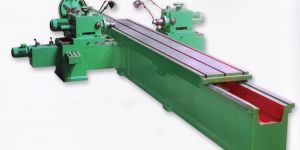

Rajindra all geared Horizontal Boring, Drilling & Facing Machine is a typical machine tool for soughing and finishing operation within the range of Boring, Drilling, Facing & Milling. It is capable of the widest application and is recommended for almost all classes of work. The machine is real achievement, for its leads directly to improve accessibility and simplified maintenance and makes it easy to produce a quality machine tools matched to the needs of the factory for which it is intended. The various mechanisms are enclosed and all the external surfaces are smooth and easily cleaned. The massive construction is a guarantee to withstand fully all the working stresses. The design of the Boring Machine is a guarantee of stiffness, accuracy and large output.

Application This machine is mainly used in processing Valve, Pump body, Auto parts, Construction machinery parts etc.It can work for many procedures,for example, End face hole , Median orifice, Bore-hole and Sphere.It worked with Huadian PLC Controller, It can realize automation, high precision, multi variety and mass production. Main features 1,This machine worked with Huadian PLC Controller, it can work for many procedures,for example, End face hole , Median orifice, Bore-hole and Sphere. It’s  CNC Controller has good compatibility, powerful function and easy operation. 2,The Feed  Sliding table guideway use high quality gray cast iron,trough rough casting, tempering and aging treatment by three times. Fully eliminate the residual internal stress, The surface of the guide way adopts super audio quenching and the hardness is up to HRC55. Through high precision guide way grinding processing, to ensure the accuracy, rigidity, stability. 3,The transmission part adopts precision ball screw and interpolation to eliminate the gap,to ensure the machine drive steady.4,The power head is equipped with three – stage manual speed change with powerful motor,achieve low speed but high torque, can withstand heavy cutting load, improve processing efficiency. 5,The working equipment adopts Hydraulic pressure-automatic clamping, to improve efficiency and reduce labor intensity. 6,The machine adopts Centralized lubrication, to ensure that the full lubrication of each moving parts then improve the service life of machine tools.Primary structure Our machine is mainly composed of body, power head,CNC feed sliding table,working  equipment,and equipped with an independent electric cabinet, a hydraulic station, a centralized lubricating device, a cooling automatic chip remove device, and a high protection device. 1,Body The Body adopts integrated casting body with high quality, trough manual tempering and aging treatment by three times. The surface of the guide way is treated by super audio quenching, the structure is reasonable,to ensure rigidity, precision and the stability of the machine. 2,The power head The body of power head is adopt excellent casting,spindle use material 20GrMnTAi,with forging, tempering, carburizing and quenching, high precision grinding out and in. The bearing adopts NN30 series high precision double row cylindrical roller bearing to ensure the rigidity and precision of the spindle.

This machine is designed as a floor type horizontal milling, drilling and boring machine. A column moves on a bed fitted with linear motion guide ways and on the faces of the column a Ram head moves vertically constituting  X and Y axis. As the machines are built modular various X, Y, Z combinations can be offered to suit specific requirement of the customer. This machine can be offered with various accessories like right angle milling head, facing and boring head, universal milling head etc..

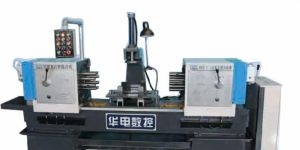

We are specialized in manufacturing Hydraulic Horizontal Drilling Machine. These drilling machines are based NC & CNC technology. Standard Features Direct 20 mm to 60 mm drill without any pre-drill of any size. Extended spindle for easy replacement of belt. Pulley and motor attachment outside of the head stock. Fabricated heavy duty tail stock duly chrome plated and fitted with turcite material for easy and smooth movement of drill. Hydraulic cylinder size 63 x 45 x 300 mm stroke. Coolant tank will be provided with coolant pump & accessories. Hydraulic power pack with stand for easy operation. Electric control penal with required switchgears and push buttons.Precise flow control valve with micro setting of feed. Two station manifold for advanced hydraulic circuit. Sensor & limit switch for automatic length setting with budger. Fast approach up to the job and then drilling through feed control valve as per material to be drilled. Tool life 20 times better than any conventional method. Smooth & uniform chip formation. Also available in cnc model.

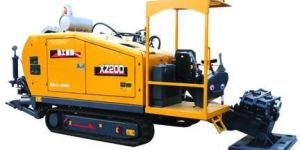

The Horizontal Directional Drilling of Schwing Stetter comes with two different models i.e. HDD-XZ320D and HDD-XZ200 each with large and small sizes. These drilling machines are superior in performance and are economic while comparing the other equipment used. They account for the best steerable trenchless method in installing various underground cables, pipes like oil and water lines etc. with minimal impact on the surrounding areas. They are environmentally safe, provide less traffic disruption and consume low completion time for installation. Schwing Stetter manufacture and supplies this equipment at a very low capital compared to other costlier methods used in drilling. They fabricate the machine with best innovative features that focus on reducing the manual workload with secure operational measures. Whether it is performance preference or operational characteristics Schwing Stetter stands as the best choice always.

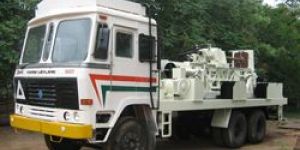

TECHNICAL SPECIFICATIONS CAPACITY : : 450mm dia holes upto 50 mtrs by DTH method in steps. MOUNTING : Skid - Carry on Truck TOP HEAD Driving System : Hydraulic Motor & Gear Box Max. Torque 450 kg.mtr Max. RPM : 0 to 80 RPM FEED SYSTEM Driving System : Hydraulic Cylinder with Chain Combination Max. Thrust force : 19000 kgs HYDRAULIC LEVELLING JACKS Number of Cylinders : 4 Nos. Max. Capacity of each Cylinder 19635 kgs. Cylinder Specification 125 dia x 70 dia x NCLM610 WELDING GENERATOR Capacity of Welding Gen. Set 400 Amps WATER PUMP Capacity 50 LPM @ 400 PSI HYDRAULIC OIL COOLER Heat dissipation capacity 50,000 K.cal hr Max. Flow 400 LPM DECK ENGINE Make CumminsEquivalent Capacity 260 HP @ 2600 RPM

The Column, bed and saddle are rigid structures made of high-strengh casting. well ribbed box-form and duly reinforced, full power to be used. All the guidways of the column, bed and saddle are hand scrapped to maintain high accuracy and ensure a long trouble-free life. Spindle : The boring spindle, made of special steel with a super-finished surface, is guided in a sturdy milling spindle in two long bronze bushes. the milling spindle rotates in two high - precision timken taper roller bearings, Automatics axial travel of boring spindle is a standard feature. Rotary Table : The table has both rotary feed and rapid circuler movment as standard features. it can be clamped in any anguler position as graduction of degrees are there.
