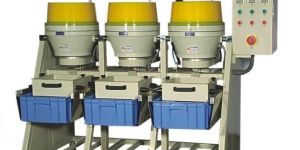

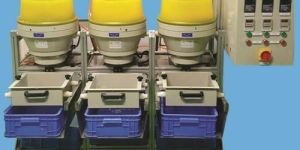

Disc Finishing Machine Dealers

• Speed: 180 RPM
• Country of Origin: Made in India
• Power: 2 HP
• Warranty: 1 Year
• Material: Cast Iron
• Automation Grade: Automatic
• Frequency: 50 Hz
• Volume of Disc: 50 Cubic Meter
• Machine Capacity: 200 L

• Country of Origin: Made in India
• Power: 1.5 HP
• Volume of Disc: 18 Kg
• Processing Volume: 9 Kg
• Rotating Speed: 400 RPM Max
• Thickness Of Work Piece: 0.5 mm
• Batch System: Triple Batch System
• Automation Grade: Fully-automatic
• Usage/Application: Industrial
• Model Name/Number: FTD 18
• Brand: Fin Tech

Disc finishing machine our disc finishing machine are widely used for deburring, grinding and finish polishing of the jewelry, glass, watch and its micro parts, clock, electronic components, knitting needle and precision hardware. It replaces the low efficiency traditional slow hand process, and able to deliver fine and smooth surface, high mirror polish and automatic production. Salient features: grinding barrel and rotating disc are made of dupont polyurethane(pu). The gap adopts the durable ceramicalloy ring structure. The gap is adjusted by means of helix device. Automatic radiate heat fuction. Programmable automized direction -reverse and forward automatic cycle water device.

• Country of Origin: India
• Type: Disc Finishing Machine
• Certification: CE Certified
• Application: Grinding, Polishing
• Weight: 200-300kg
• Color: Light White
• Voltage: 220V
• Condition: New
• Automatic Grade: Automatic
• Power: 1-3kw
• Driven Type: Electric
• Warranty: 1year
• Brand Name: APX
• Capacity: 500 gm
• After-Sales Service Provided: yes
• Effect: mirror

Disc finisher is another machine which has a high speed rotating disc mechanism, offering high energy action. This provides performance level up to 10 to 30 times higher than conventional vibratory machines. Gala offers standard as well as completely automated & integrated solutions for disc finishing. This system includes auto components weighing, loading, unloading & online washing & drying. Complete automation of disc finishing is possible. Parts can be loaded with automatic loading system. After completion of process the machine is tilted to unload media & compounds onto the separation system (screening). Media is loaded in the machine with inbuilt loading system. Automatic chemical dosing system can be provided. PLC based control panel enables complete automation of the process. Features : Compact in size but aggressive and highly versatile. Possibility of built-in separation mechanism. Trouble-free clearance control mechanism. Rotating disc with fins ensures high finishing efficiency without slippage of abrasive media. Easy to be automated and low running cost. Advantages : High speed finishing. Tilted working bowl for easy loading & unloading. Possibility of in-process inspection of parts. Very efficient targeted material erosion. Process time is lower than conventional Vibratory Finishing Machines. Applications : Deburring Rounding Smoothing Polishing Degreasing Deoiling Brightening

We offer Disc Finishing Machines manufactured using high grade raw material. These machines are also known as Roll Flow Finishing Machines. Known for their features like resistance to corrosion and reliable operation, these machines are popular in the market due to the industry leading prices we offer them at. The operation of these machines is as under:   As the bottom disc rotates with peripheral speed, the mass within the container is accelerated outward When the media and workpieces contact the stationery sidewalls of the container, the sidewalls act as a brake and the load starts to decelerate as it is forced upward by the mass behind it The media and workpiece rise to the top of the load, flow toward the centre of the container and then downward towards the disc

• Floor Spacing (mm) L x W x H: 600 x 700 x 1170, 680 x 850 x 1425, 880 x 780 x 1440
• Voltage (V): 220, 415
• Motor (Kw): 0.37, 0.75, 2.2
• Volume (Liters): 10, 20, 40

Disc finishing machines are also high ‘G’ force machines which work faster due to the centrifugal force generated by a rotating disc. Process times are significantly lower than Vibratory Finishing Machines but somewhat more than Centrifugal Finishing Machines. The advantages of Disc Finishing over Centrifugal Finishing are the greater ease of loading and unloading and the possibility of In-process inspection of parts. They are usually suitable for small components

• Model: DF10 , DF40 ,DF20
• Motor (Kw): 0.37 , 0.75 , 2.2
• Voltage (V): 220 ,220, 415

Disc finishing machines are also high �G� force machines which work faster due to the centrifugal force generated by a rotating disc. Process times are significantly lower than Vibratory Finishing Machines but somewhat more than Centrifugal Finishing Machines. The advantages of Disc Finishing over Centrifugal Finishing are the greater ease of loading and unloading and the possibility of In-process inspection of parts. They are usually suitable for small components

We offer Disc Finishing Machines. Disc Finishing Machines delivers faster processing speed, Lower Noise, and Economical Operating Cost in Compact, Efficient Machine Design. This is 15 time faster than convention mass finishing system. Disc Finishing Machines is not only used for deburring and disc grinding but also be referred to as replication jewellery, cosmetic and light weight parts etc. Polishing and finishing involves creating a smooth and shiny surface by rubbing it or using a chemical action, leaving a surface with a significant secular’s reflection. We help jewellery manufactures achieve a polished finish on their prized jewellery through the following methods.

• Blue: white

We are offering Centrifugal Disc Finishing Machine. Ideal for deburring of micro mechanical parts and for achieving a mirror finish. Salient features gap setting with rotation of the tumbler for a 0.035 mm setting. Maximum velocity of rotation 450 rpm which is the highest in the industry. Complete polyurethane tumbler long lasting steel ring instead of the conventional ceramic. Feather touch keyboard for fast data entry. Lcd-panel lcd display for better visualization. Memory capacity for 25 processing programs. Date & time display. It shows the barrel no. And also highlights the barrel which is in the process. Displays required processing time for each barrel along with running tim. Through menu, the processing time, forward rotation time, reverse rotation time & slow end time can be set as per requirement. With slow end time the machine runs at slow speed in last processing time period, to achieve fine polishing. The container usage time can also be displayed. Memory capacity for 25 processing programs. Prominently displays the barrel number and the barrel in process. Displays processing time and running time.

Disc Finishing Machine Mass Finishing Process, in which a rotating base plate sets workpieces and granulate in motion in a toroidal stream. The very intense finishing effect up to 20 times more efficient than conventional vibrators. Disc finishing machines are also high gravitational forced machines which work faster. It creates high centrifugal force which is generated due to a rotating disc.

The High Energy Centrifugal Disc Finishing Machine delivers faster processing speed, Lower Noise, and Economical Operating Cost in Compact, Efficient Machine Design. Centrifugal Disc Finishing action improving Surface Finishing and Reducing Cost and Improving Overall Productivity.   This is 15 time faster than convention mass finishing system. Basically used for, imitation jewellery and cosmetic and light weight parts etc.
