Dissolution Test Apparatus Dealers

DISSOLUTION RATE TEST EQUIPMENT : P-D3 Dissolution Rate Test Equipment : This equipment is used to determine dissolution rate of tablets and complies with US-Pharmacopoeia-XVII standard with water constantly moving and holding temp. constant at 37°C ± 0. 5°C throughout the test. A 1000 ml capacity cylindrical vessel with flanges near the top is provided to accept 4 parts cover. Motor speed is controlled by a speed controller within a range of 25 to 150 RPM.A stainless steel basket is provided to hold samples. The machine works on 220V AC 50Hz single phase. A. Single testB. Double testC. Combined unit for 3 tests. Additional Information: Item Code: P-D3 Pay Mode Terms: T/T (Bank Transfer) Delivery Time: As Per Requirement

Microprocessor Dissolution Test Apparatus is a solid state instrument designed for the determination of active drug ingredinet in any pharmaceutical formulation tablet or capsule as per IP and USP specifications. This apparatus evaluates adequate bio-availability and provides necessary information to formulate in the development of therapeutically optimum dosage forms. The instrument is designed and manufatured for pharmaceutical industries. It is used in quality control and R & D to determine compliance with the dissolution requirement of the Tablet and Capsule as per USPIP standards.

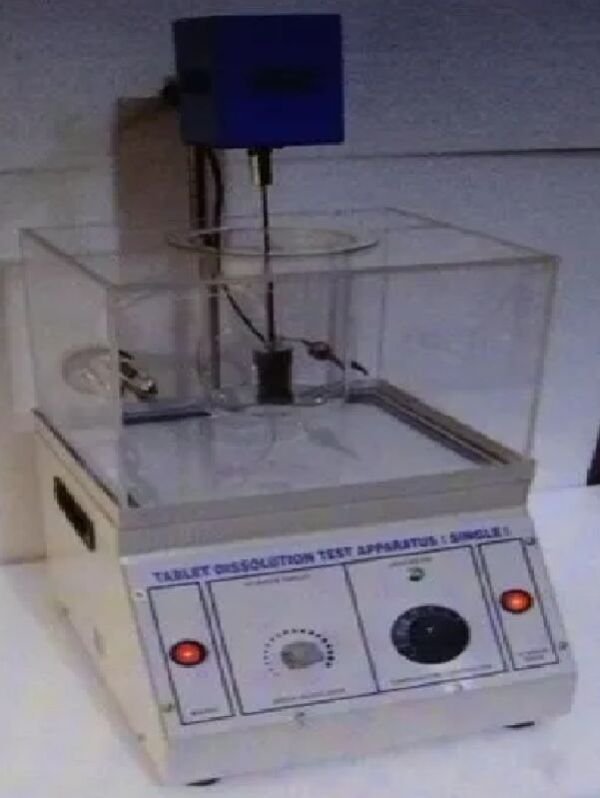

Dissolution rate test equipment consists of a water bath made of perspex sheet with transparent at top, fitted with a thermostatic control, maintains the temperature of water 37 deg. C. Covered vessel 1000 ml made of corning glass. Provided with variable speed motor. Cylindrical basket and shaft with blades of stainless steel. Only distilled water be filled in the water bath.Digital RPM display for above, at extra cost.

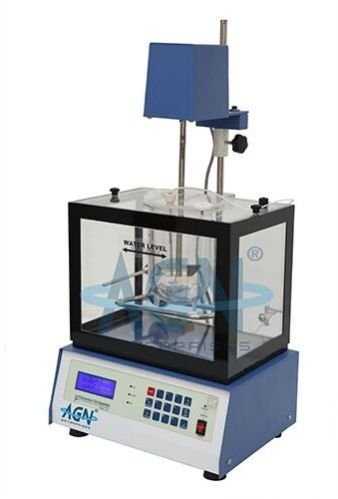

We are offering microprocessor based dissolution test apparatus. Microprocessor dissolution test apparatus is a solid state instrument designed for the determination of active drug ingredient in any pharmaceutical formulation, tablet or capsule as per ip and usp specifications. This apparatus evaluates adequate bio-availability and provides necessary information to formulate in the development of therapeutically optimum dosage forms. The instrument is designed and manufactured for pharmaceutical industries. It is used in quality control and r & d to determine compliance with the dissolution requirement of the tablet and capsule as per uspip standards. System is equipped with 4 line alphanumeric lcd display with backlit and 19 soft touch membrane type keys that provides a convenient interface for entering the data. Independent stirrer and platform keys on the front panel allow the user to easily startstop stirrer movement or displacement of platform in the required direction at any time. the instrument has the storage facility for 200 samples. The samples being analyzed are automatically stored in the memory in different batch and sample numbers. The system has three programming modes i.e. Routine, sustain and control mode. It has the facility for setting up 20 different test methods using routine and sustain modes which are retained in the memory even when the power is switched off. Provision has also been made for attachment of any dot matrix printer with centronics interface so that any of the stored setupsresults can be printed.the unit is provided with dissolution vessel with cover, having necessary arrangement to hold temperature sensor and the same is placed in the sturdy, acrylic water bath. The large spread out stainless steel heater ensures perfectly uniform heating. The instrument has dual channel temperature system with sensors to monitor the test temperature of dissolution vessel as well as that of the water bath. The motorized platform's (stirrer unit ) updown movement of the instrument improves the accessibility for sampling. Stirrer speed is accurately controlled and maintained at +1 rpm by microcontroller as per ip, usp. Specifications:- stations- 68 stations display- 20 x 4 line alphanumeric lcd display with backlit keyboard -19 soft touch membrane keys led'- 6 led's, 3 led's for test status like run, alarm, end and 2 led's for platform updown status and one for heater onoff status. Prog. Mode- routine, sustain and control mode. Facility for 20 different test setups available in routine and sustain mode. Printer - provision for the attachment of dot-matrix printer with centronics parallel port interface available. Stirrer speed- 25 - 200 rpm, + 1 rpm resolution - 1 rpm accuracy - + 1 rpm temp. Range - 30 - 50° c accuracy - + 1°c temp. Control- microprocessor based using pt100semiconductor sensor

Features:The Dissolution Test Apparatus VDA-1D consists of constant temperature acrylic bath with an immersed dissolution sampling vesselAn in-built advanced microprocessor based circuitry accurately controls the Stirrer speed as well as maintains temperature for water bath and the sampling vesselIncorporated with a reliable maintenance free stepper motor drive for stirrers systemSpeed of stirrers can be controlled and maintained by advanced microcontroller based systemAll the critical test parameters such as constant stirring speed, temperature of sampling vessel, dimension of the vessel, Stirrer blade and baskets etc., are critically maintained as per IP/USP standardsApparatus is equipped with wide informative two line LCD display which displays all the test parametersIncorporated with an inbuilt audio alarm indicator, which sends audio signals at regular intervals to draw the test samplesAccessorized with unbreakable transparent dissolution polycarbonate vesselWobble and vibration free instrument.

Our payment procedures are hassle free, safe, and legal. We do not impose hidden charges while creating the invoice and ensure your money is transferred securely from you to us. To maintain optimum product environment, we use superior grade packaging material that is nontoxic. The labels on packs provide products details clearly and are smudge-proof.   Features : Precision engineered Advanced technology Easy to maintain
