Flash Point Apparatus Dealers

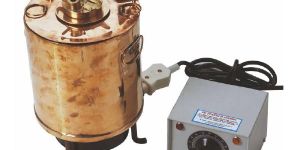

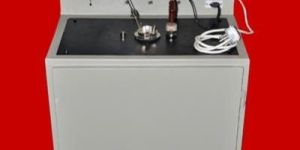

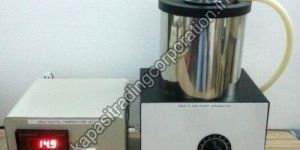

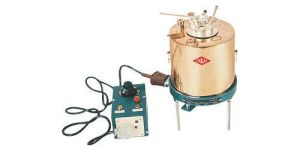

ABELS Flash Point App. with Digital   This apparatus is suitable for determining the close cup flash point of petroleum and mixtures according to IP 33 and IP 170 and also IS 1448 (Part I) 1985 (P:20). It is suitable for oils whose flashes below 70° C. It is supplied with oil cup, cover fitted with stirrer, thermometer socket S.S. Water Bath, Stand. An electric heater is fitted at bottom for operation on 220 Volts AC Circuits. RAP 120 : Abets Flash Point Apparatus, Elect. Heating with Energy Regulator Control - Oil Test Jet RAP 121 : Abels Flash Point App. with Regulator and Digital Temp. Indicator Oil Test Jet RAP 122 : -Same as Above- with Geared FHR Elect. Driven Stirrer (120 R.P.M.) RAP 123 : Fully Automatic Abel Flash Point apparatus Temp. Range + 5°C to 85°C Micro Processor Controlled with Key Borad for Programming. Gas dst) Prices on Jet System Complete Unit RAP 124 : Abel Flash Point Apparatus Temp range -18°C to + 70°C with REFREGERATION SYSTEM asper IP-170 with oil Test Jet System with Digital Temp. Indicator and FHP Motor Stirrer Optional Accessories: RAP 120 a : Abel Oil Cup Thermometer (-35/70°C x 0°5C) IP 74C RAP 120 b : Abel Water Bath Thermometer (-30/80°C x 0°5C) IP75C RAP 120 c : Polish Wooden case RAP 120 d : Spare cup for above Apparatus RAP 120 e : Spare top (Cover Assemble) with Shutter mechanism RAP 120 f : Spare Nichrome Heating element

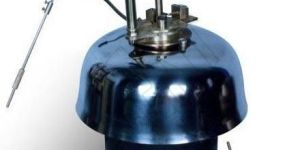

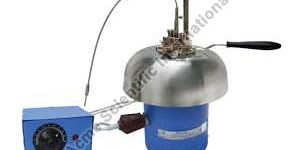

‘INDIAN SCIENTIFIC INSTRUMENTS COMPANY’ is proud to offer superior quality Pensky Martin Flash Point Apparatus that is designed as per international standards and norms which make it the best option available in the market. Uses : For determination of close cup flash points of fuel, oils, other viscous material and suspension of solids.Useful for both low range as well as high range flash points of samples using different thermometers IP-15C or IP-16C respectively. Main Components : Cover with Spring Operated Rotating ShutterOil Test Jet Flame DeviceStirrer with Flexible ShaftDome shape Metal TopInsulated HandleCup Flange Power Consumption : 220 volts AC Complies to Following Standards : IP-34ASTMD-93IS 1448 (Part i)IS 1209-1953 method B Optional Accessories : Electrically driver stirrer with a FHP motor having flexible shaft.Spare IR-15C thermometer LOW RANGE (-70°C to 110°C)Spare IP-16C thermometer HIGH RANGE (-90°C to 370°C)

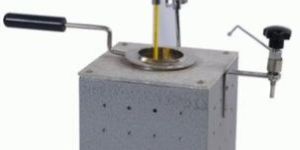

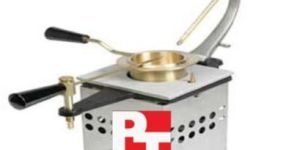

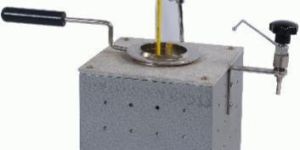

This apparatus is used for determination of flash point and fire point of petroleum products except fuel Oil with open cup flash below 80°C as per specification IP 36 and IS: 1448 ( P: 69) 1969. The apparatus consists of a cup, heating plate to specific dimension thermometer clip and test flame attachment with swivel joint for passing over test liquid surface in the prescribed manner, Heating is controlled by means of energy regulator fitted to the apparatus. Suitable for operation on 220 Volts 50 cycles AC Circuits. - Cleaveland flash point & fire point Apparatus, Electrical Heating with Energy Regulator Gas Test Jet - Cleaveland flash point & fire point Apparatus, Electrical Heating with Energy Regulator with oil wick Arrangement. - Cleaveland flash point & fire point Apparatus, Electrical Heating with Energy Regulator with Gas Jet & oil wick Arrangement – combined model - Cleaveland flash & fire point Apparatus voltage Varrier (Copper Coil) combine model - Cleaveland flash & fire point Apparatus voltage Varrier (Copper Coil) combine model with Digital Temp. Indicator - Thermometer IP 28C (-5°C to 400°C ) - Spare Cup with Handle - Spare Nichrome element - L.P.G. Test flame container with valve

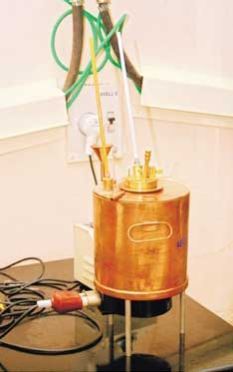

‘Naugra Export’, is one of the leading manufacturers and suppliers of Abel's Flash Point Apparatus. We manufacture our Abel's Flash Point Apparatus in accordance with IP 33, 170, IS-1448 standards. Used For :- Determining of the closed cup Flash point of Petroleum Products, their mixtures, others liquids & Paints having Flash Point below 700 C Main components :- One brass cup and coverShutter mechanism test flame arrangement (oil test jet or gas test jet)StirrerWater bath made of copper sheet double walledOuter jacket fitted with standElectrical heated apparatusTemperature regulation system Power Consumption :- Operates on 220 Volts AC mains Optional Accessories :- IMC-475 Abel's Flash Point Apparatus temperature range-200C+700C with refrigeration system as per IP 170 with oil test jetGas test jet device.IMC-552 Gas heated with oil test jet or Gas test jet without burner.IMC-436 Electric heated with oil test jet or Gas test jet without any control.IMC-436A Electric heated with oil test jet or Gas test jet with separate energy regulator control.IMC-436B -do -do- concealed Hot Plate.IMC-437A Electric heated with voltage varric copper coil type.IMC-437AA Electric heated by concealed Hot Plate with voltage varric copper coil type as per IMC-437A.IMC-476 Same as IMC-437A. Temp. is controlled by digital temperature controller cum indicator.

This apparatus is used for determination of Flash Point & Fire Point of Petroleum products except fuel oil with open flash 800C as per specification IP 36/57, IS 1448 (P:69) 1969 and ASTM-D-92-67. The apparatus consists of a cup, heating plate, and thermometer clip and test flame attachment with swivel joint for passing over liquid surface in the prescribed manner; heater is controlled by means of Energy Regulator for operation on 230 volts, 50Hz, AC single phase. Cleveland Flash Point Apparatus electric heated with voltage carriac copper coil type. Thermometer IP 28C Range -6 to +400C Polished carrying wood case. Spare cup with handle only.

Suitable for determination of close cup flash point of petroleum production. It is designed as per IP-33 and IS-1448( part -1) 1985 (P:20).  It is suitable for oils whose flashes below 70 °c.Supplied with oil cup cover assembly fitted with stirrer,thermometer socket, S.S Water Bath,stand & electric heater is fitted at bottom for operation on 220 volts.

BS 476 Fire Testing Systems – British Standard Compliant | KDM Global Product Overview Comprehensive range of fire testing equipment designed to comply with BS 476 standards Used for assessing fire resistance, flame spread, and combustibility of building materials and components Essential for quality control, regulatory compliance, and certification under UK and international fire safety codes Suitable for testing structural elements, walls, doors, partitions, insulation, and coatings Applicable Standards BS 476 Part 4: Fire resistance tests for loadbearing elements BS 476 Part 6: Method of test for fire propagation for products BS 476 Part 7: Surface spread of flame test Additional parts covering fire classification and insulation testing Compliant with UK Building Regulations and often referenced in European fire safety norms Key Features Robust test furnaces capable of maintaining standardized temperature-time curves Flame spread testing apparatus with controlled ignition sources and measurement sensors Heat flux meters, thermocouples, and data acquisition systems for precise monitoring Modular design to support multiple test methods in one system User-friendly software interface for real-time data logging, analysis, and report generation Fully enclosed test chambers with safety interlocks and exhaust ventilation Calibration and validation kits included for test accuracy and repeatability Technical Specifications Furnace temperature range: up to 1100°C with programmable curves Sample dimensions: variable, depending on test type (e.g., up to 3 m for large element testing) Data acquisition: multi-channel thermocouple input with 0.1°C resolution Flame spread sensor range: adjustable sensitivity for different materials Power supply: 230 V / 415 V, 50 Hz, three-phase options available Test duration: customizable according to BS 476 part requirements Applications Fire resistance evaluation of walls, floors, ceilings, doors, and partitions in commercial and residential buildings Surface spread of flame testing for paints, coatings, and claddings Fire propagation testing of construction products and insulation materials Used by fire safety labs, building material manufacturers, and certification bodies Ensures compliance with UK Building Regulations and insurance requirements Industries Served Building materials manufacturers and construction firms Fire testing laboratories and certification agencies Architectural firms and design consultants Insulation and cladding product manufacturers Regulatory authorities and government agencies Why Choose KDM Global Experienced manufacturer of BS 476-compliant fire testing systems in India Equipment designed for accuracy, durability, and ease of operation Complete solutions including installation, calibration, and maintenance support Integrated software for automated data capture and reporting Global client base with proven track record in fire safety testing Customizable configurations tailored to specific laboratory needs Explore Related Equipment Fire Resistance Testing Equipment – BS 476 & EN 1363 Railway Fire Testing Equipment – EN 45545-2 Fire Flammability Testing Machines – EN ISO 11925-2 Complete Product Range

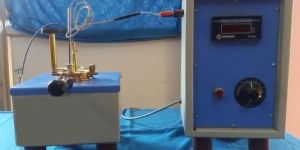

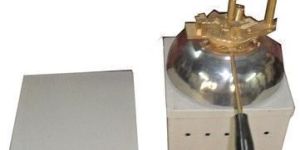

This apparatus is made as per IP 34, ASTMD-93 and IS 1448 (Part I) 1270 (P.21) and IS 1209-1953 method B. Used for finding out Flash Point above 70 °C and below 300° C. The Instrument having Oil Test Jet/Gas Test Jet Flame Device, stirrer with flexible shaft. The Assembly rests in Air Bath which is covered with Dome shape metal top. The cup is fitted with insulated Handle and locking arrangement near Cup flange. The assemble is kept on round shape electric heater with Seperate temp.regulator. Suitable for operation on 220 Volts 50 cycles AC Circuits P. M. Flash Point App. Elect. With energy Regulator, Geared Motor Stirrer (120 R.P.M.) Oil Test Jet

This apparatus is used for determination of flash points of 0 samples, whose flash points are below +49 C. The apparatus Made of Copper, and consists of a brass cup and cover fitted with shutter mechanism, Test Flame arrangement, Hand operated stirrer, Thermometer socket, Water jacket electrically heated.11012-01 Basic with Energy regulator control attachment

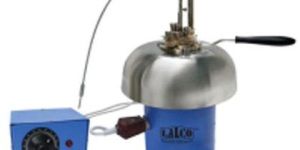

For determination of closed Flash Point of Fuel Oils, Lubricating Oils having a flash point above 49°C (120°F). The apparatus consists of a brass test cup with handle removable cup cover with spring operated rotating shutter having pilot jet, stirrer with flexible shaft. The complete assembly rests in an air bath which is covered with dome shaped metal top. The cup is fitted with insulated handle and locking arrangement near cup flange. The whole arrangement rests on a round shaped heater body with temperature regulator. The Instrument is suitable to work on 220 V AC, 50Hz.Also available with digital temperature controller and indicator.

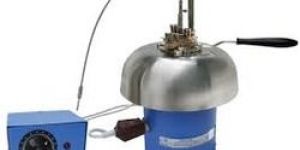

Avail from us a wide range of peerless Abel Flash Point Apparatus that is highly appreciated in the national as well as international quality standards. We are counted among the supreme abel flash point testing apparatus exporters and suppliers in India. These apparatus are procured from the well reckoned vendors, who manufacture these appetites under high precision. Usage of high technology machines in the manufacturing of these apparatus enhances their durability and reliability. Specification Outer Chamber : Made of Copper Inner Chambe : Made of Copper Voltage : 230 Volt A.C. supply Wattage : 750 Watts Optional Test Flame : Gas (or) Oil Jet Type Heater : Electrically Heated with Energy Regulator Cup Made : Brass Test Usage : For Testing oil temprature of flash range of ambient temprature to 700C Availabe Optional Spares Gas RegulatorDigital Temprature controllerThermometer JRM make I P 74 C, JRM make IP 75 C.

Advanced technocracy inc. Is manufacturer, exporter & supplier of pensky martens apparatus. The apparatus consists of brass test cup with handle, removable cup cover with spring operated rotating shutter having oil test jetgas test jet flame device. Stirrer with flexible shaft. The assembly rests in air bath, which is covered, with dome shape metal top. The cup is fitted with insulated handle and locking arrangement near cup flange. The assembly is kept on round shaped electric heater with energy regulator temperature control. Suitable for operation on 220 volts 50 cycles ac.
