Flash Point Apparatus Dealers in Delhi

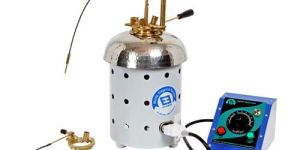

Useful for determination of close sup flash points above 49º C. of fuels, oils, other viscous materials and suspension of solid. It consists of a brass test jet with handle removable, cover with spring operated rotating shutter having pilot test jet flame device, stirrer with flexible shaft. The assembly is rested on a air bath which is covered with Dome Shape metal top. The unit comes with a round shaped heater with a suitable energy regulator and operates on 230 V Mains AC supply.

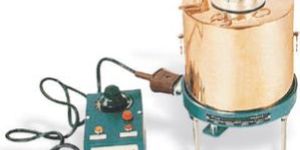

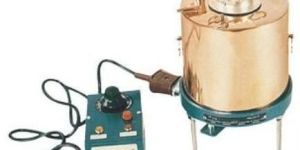

Abel Flash Point Apparatus is suitable for determining the close cup flash point of Petroleum and mixtures according to IP 33 & IP 170 and also IS 1448 (Part I) 1985 (P:20). It is suitable for oils whose flashes below 70°C. It is supplied with oil cup, cover fitted with stirrer, thermometer socket S.S. Water Bath, Stand. An electric heater is fitted at bottom for operation on 220 Volts AC Circuits. Following Models are available:- Abels Flash Point Apparatus electrical heating with Energy Regulator Control – Oil Test Jet. Abels Flash Point Apparatus electrical heating with Energy Regulator Control & Concealed Hot Plate – Oil Test Jet Abel Flash Point Apparatus with Regulator DIGITAL TEMP. INDICATOR Abel Flash Point Apparatus with Regulator, DIGITAL TEMP. INDICATOR with geared FHP. Elect. Driven Stirrer (120 R.P.M) Abel Flash Point Apparatus Temp. Range -18°C to +70°C with REFRIGERATION SYSTEM as per IP-70 with Oil Test Jet system. With digital temperature. Indicator and FHP motor stirrer. Salient Features OPTIONAL ACCESSORIES:- Abel Oil Cup Thermometer (-35 / 70 C x 0.5°C) IP 74 C Abel Water Bath Thermometer (-30 / 80 C x 0.5°C) IP 75 C Polish Wooden case Spare cup for above Apparatus Spare top (Cover Assemble) with Shutter mechanism Spare Nichrome Heating element Pendulum for Measuring Time in Strokes Concealed Hot Plate with housing

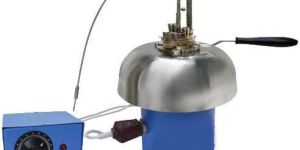

For determination of closed Flash Point of Fuel Oils, Lubricating Oils having a flash point above 49°C (120°F). The apparatus consists of a brass test cup with handle removable cup cover with spring operated rotating shutter having pilot jet, stirrer with flexible shaft. The complete assembly rests in an air bath which is covered with dome shaped metal top. The cup is fitted with insulated handle and locking arrangement near cup flange. The whole arrangement rests on a round shaped heater body with temperature regulator. The Instrument is suitable to work on 220 V AC, 50Hz.Also available with digital temperature controller and indicator.

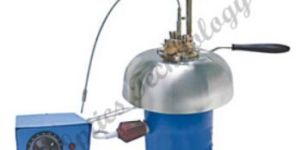

We are known to provide durable and efficient Pensky Martens Flash Point Apparatus. We manufacture the Pensky Martens Flash Point Apparatus using special quality process. The Pensky Martens Flash Point Apparatus provided by us is of low cost and adheres to industrial norms. For liquids having high flash points above 49 C upto 400 C under closed test conditions. Accessories Sample cupGas test jetElectrical heating system and control Industrial Standards 1448ASTM D93D3934D3941IP304IP404BS3900BS6664ISO-1516,1523,2719DIN51 758

For determination of flash point of petroleum products and mixture having a flash pointbelow 49c (120 F) the apparatus consists of one brass cup fitted with test flamearrangement. Stirrer placed on a water bath made a cooper.The outer jacket of the water bath is fitted with a stand.for electricity heated apparatus a 500 watt heater is fitted to the stand which can becontrolled by an energy regulator

This apparatus is used for determination of Flash Point & Fire Point of Petroleum products except fuel oil with open flash 800C as per specification IP 36/57, IS 1448 (P:69) 1969 and ASTM-D-92-67. The apparatus consists of a cup, heating plate, and thermometer clip and test flame attachment with swivel joint for passing over liquid surface in the prescribed manner; heater is controlled by means of Energy Regulator for operation on 230 volts, 50Hz, AC single phase. Cleveland Flash Point Apparatus electric heated with voltage carriac copper coil type. Thermometer IP 28C Range -6 to +400C Polished carrying wood case. Spare cup with handle only.

‘INDIAN SCIENTIFIC INSTRUMENTS COMPANY’ is proud to offer superior quality Pensky Martin Flash Point Apparatus that is designed as per international standards and norms which make it the best option available in the market. Uses : For determination of close cup flash points of fuel, oils, other viscous material and suspension of solids.Useful for both low range as well as high range flash points of samples using different thermometers IP-15C or IP-16C respectively. Main Components : Cover with Spring Operated Rotating ShutterOil Test Jet Flame DeviceStirrer with Flexible ShaftDome shape Metal TopInsulated HandleCup Flange Power Consumption : 220 volts AC Complies to Following Standards : IP-34ASTMD-93IS 1448 (Part i)IS 1209-1953 method B Optional Accessories : Electrically driver stirrer with a FHP motor having flexible shaft.Spare IR-15C thermometer LOW RANGE (-70°C to 110°C)Spare IP-16C thermometer HIGH RANGE (-90°C to 370°C)

For determining the flash point of fuels oil and lubricating oil, bitumen other than cutback bitumen and suspension of solids in liquids, having a flash point above 49ºc.

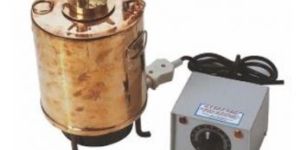

Suitable for determination of close cup flash point of petroleum production. It is designed as per IP-33 and IS-1448( part -1) 1985 (P:20).  It is suitable for oils whose flashes below 70 °c.Supplied with oil cup cover assembly fitted with stirrer,thermometer socket, S.S Water Bath,stand & electric heater is fitted at bottom for operation on 220 volts.

Product Code: EKE 506Standrad: EKE 50601   EKE 50603 Heating ElementEKE 50610 Abel oil cup thermometer, IP 74, Range: -35º C to +70º CEKE 50611 Abel water bath thermometer, IP 75, Range: -30º C to +80º C   Electrical Heating, with gas test jet and electric heater with EKE50603 Energy regulator. Suitable tor operation on 220V, single phase, 50Hz, AC Supply.For determining closed cup flash point of petroleum products, their mixtures, other liquid and paints, having flash points between 19º C and 49º C. Each apparatus is supplied complete with an oil cup, cover fitted with gas test jet assembly, water bath and tripod stand, but without thermometer, in a wooden carrying case.   For determining the flash point of fuel oils and lubricating oil, bitumen other than cutback bitumen and suspension of solids in liquids, having a flash point above 49ºC. The oil cup is made of brass, fitted with a thermally insulated lifting handle. The cup lid, with insulated handle, is fitted with two opposite wedge cams, which engage under pillars secured to the cup flange. This feature facilitates easy removal of the lid by rotating the handle afew degrees to disengage the cams. The shutter opening mechanism is designed for smooth operation and is operated by a spring handle with a knurled knob. A flame exposure device (Gas test jet assembly)    is mounted over the lid. The manually operated stirrer has a flexible shaft. The cup assembly is positioned in a cast iron air bath, fitted with a chrome plated brass top. The air bath is mounted on an upright which serves as a gas manifold. Valve controlled supply lines for adjustable flames are provided with pilot and test flames.

With the aid of our sophisticated packaging system, our skilled personnel are able to meet the standard as well as customized packaging requirements of the clients. Moreover, we check the entire lot before dispatch. Supported by an industrious network, our organization is able to serve to patrons all over Delhi(India) and other marketplaces without problem.   Note : BHI-OPT-014 ABELS FLASH POINT APPARATUS

BS 476 Fire Testing Systems – British Standard Compliant | KDM Global Product Overview Comprehensive range of fire testing equipment designed to comply with BS 476 standards Used for assessing fire resistance, flame spread, and combustibility of building materials and components Essential for quality control, regulatory compliance, and certification under UK and international fire safety codes Suitable for testing structural elements, walls, doors, partitions, insulation, and coatings Applicable Standards BS 476 Part 4: Fire resistance tests for loadbearing elements BS 476 Part 6: Method of test for fire propagation for products BS 476 Part 7: Surface spread of flame test Additional parts covering fire classification and insulation testing Compliant with UK Building Regulations and often referenced in European fire safety norms Key Features Robust test furnaces capable of maintaining standardized temperature-time curves Flame spread testing apparatus with controlled ignition sources and measurement sensors Heat flux meters, thermocouples, and data acquisition systems for precise monitoring Modular design to support multiple test methods in one system User-friendly software interface for real-time data logging, analysis, and report generation Fully enclosed test chambers with safety interlocks and exhaust ventilation Calibration and validation kits included for test accuracy and repeatability Technical Specifications Furnace temperature range: up to 1100°C with programmable curves Sample dimensions: variable, depending on test type (e.g., up to 3 m for large element testing) Data acquisition: multi-channel thermocouple input with 0.1°C resolution Flame spread sensor range: adjustable sensitivity for different materials Power supply: 230 V / 415 V, 50 Hz, three-phase options available Test duration: customizable according to BS 476 part requirements Applications Fire resistance evaluation of walls, floors, ceilings, doors, and partitions in commercial and residential buildings Surface spread of flame testing for paints, coatings, and claddings Fire propagation testing of construction products and insulation materials Used by fire safety labs, building material manufacturers, and certification bodies Ensures compliance with UK Building Regulations and insurance requirements Industries Served Building materials manufacturers and construction firms Fire testing laboratories and certification agencies Architectural firms and design consultants Insulation and cladding product manufacturers Regulatory authorities and government agencies Why Choose KDM Global Experienced manufacturer of BS 476-compliant fire testing systems in India Equipment designed for accuracy, durability, and ease of operation Complete solutions including installation, calibration, and maintenance support Integrated software for automated data capture and reporting Global client base with proven track record in fire safety testing Customizable configurations tailored to specific laboratory needs Explore Related Equipment Fire Resistance Testing Equipment – BS 476 & EN 1363 Railway Fire Testing Equipment – EN 45545-2 Fire Flammability Testing Machines – EN ISO 11925-2 Complete Product Range

For determination of closed Flash Point of Fuel Oils, Lubricating Oils having a flash point above 49°C (120°F). The apparatus consists of a brass test cup with handle removable cup cover with spring operated rotating shutter having pilot jet, stirrer with flexible shaft. The complete assembly rests in an air bath which is covered with dome shaped metal top. The cup is fitted with insulated handle and locking arrangement near cup flange. The whole arrangement rests on a round shaped heater body with temperature regulator. The Instrument is suitable to work on 220 V AC, 50Hz.Also available with digital temperature controller and indicator.

Flash Point Apparatus, Magnetic Stirrer with Hotplat

Flash Point Apparatus, Viscometer, Soil Testing Equipment

Abels Flash Point Apparatus, Almond Oil, Black Pepper Oil, Wheat Germ Oi

Flash Fire Point Apparatus, Subsonic Wind Tunnel, Colour Matching Cabine

Used for determining of the closed cup Flash point of Petroleum Products,their mixtures,others liquids & Paints having Flash Point below 700C. The apparatus consists of one brass cup and cover fitted with shutter mechanism test flame arrangement(Oil test jet or Gas test jet) and stirrer, placed on a water bath made of copper sheet double walled. The outer jecket of the water bath is fitted with a stand. For electrically heated apparatus, heater is fitted to the stand the heat of which may be controlled different temperature regulation system of operated on 220 Volts AC mains. For Gas heated model the drum is heated by a burner. (without burner).

Abels Flash Point Apparatus, Humidifier, Dehumidifier, Moisture Analyze

Flash Point Apparatus, Rotary Vacuum Evaporato

Pensky Marten Flash & Fire Point Apparatus, Beam Moulds, Briquette Moul
