Electronic Universal Testing Machine Dealers

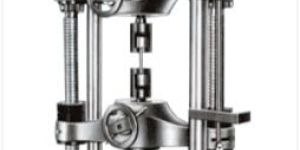

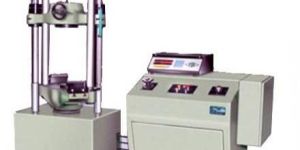

Large display for load and is placement. RS - 232 Corn port for Computer interface Centronic Parallel port for printer plotter interface Result Include : Load vs Displacement Max Load Max. Displacement. UTS Value Proof Stress (with extensometer ) Accuracy And Calibration

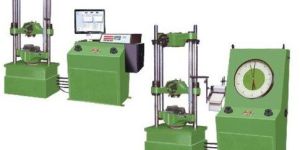

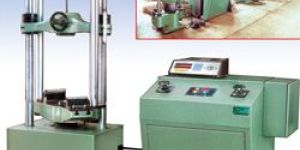

Straining at variable speeds to suit a wide range of materials. Printer & PC graphs enable study the behavior of the materials. Motor driven threaded columns for quick effortless adjustment of middle crosshead to facilitate rapid fixing of test specimen. Continuous roll autographic recorder supplied as standard to enable study of the behavior of materials Simplicity in reading because of digital readouts. Wide range of standard and special accessories, including load stabilizer. Easy change from plain to threaded and screwed specimens. Large effective clearance between columns enables testing of standard specimens as well as structures. Simple controls for easy of operation. Robust straining frame of an extremely rigid construction. Safe operation ensured be means of safety devices. Fully enclosed and protected pressure transducer.

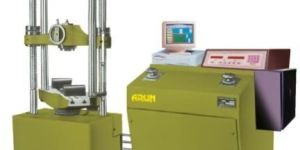

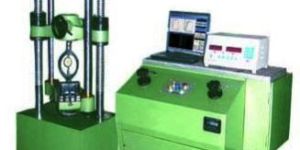

Loading accuracy as high as ± 1% • Straining at variable sppeds to suit awide range of material • Printer supplied as option to study the behavior of the material. • Motor driven threaded Columns for quick effortless adjustment of middle cross-head to facilitable rapid fixing of test specimen • Simplicity in reading because of digital readouts • Wide ragne of stadard and special accessories, Including load stabilizer • Easy change from plain to threaded adn screwed specimens • Large effective clearance between Columns enables testing of standard specimens as well as structures • Simple controls for ease of operat on. • Robust straining frame of an extremely rigid construction • Safe operation ensured by means of safety devices • Fully enclosed and protected pressure transducer • Optional to transfer data to computer for analysisstorage evaluation on etc. • Confirms to IS 1828

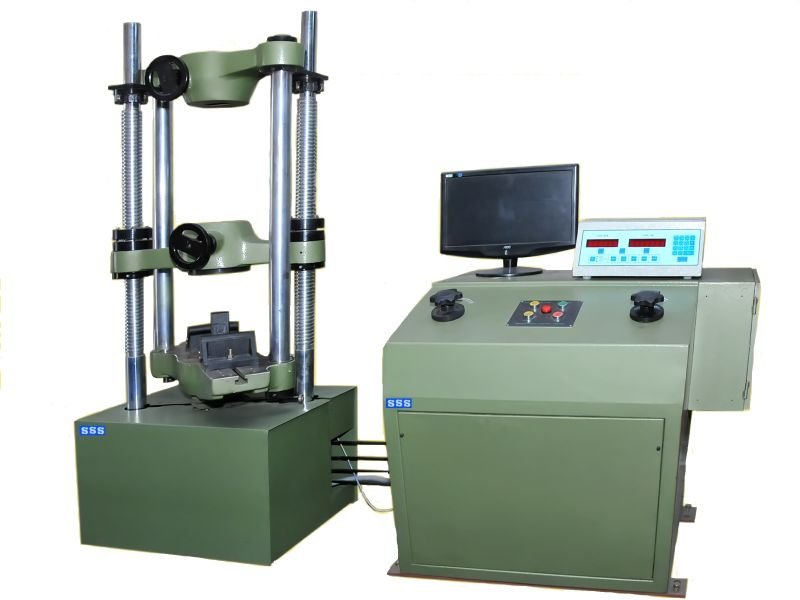

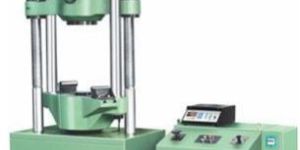

• Motorised Control Valve.• Load accuracy as high + 1%.• Straining at variable speeds to suit a wide range of materials.• Printer & PC graphs enable study the behavior of the material.• Motor driven threaded columns for quick effortless adjustment of middle crosshead to    facilitate rapid fixing of test specimen.• Simplicity in reading because of digital readouts.• Wide range of standard and special accessories.• Easy change from plain to threaded and screwed specimens.• Large effective clearance between columns enable testing of standard specimens as well    structures.• Simple controls for ease of operation.• Robust straining frame of an extremely rigid construction.• Fully enclosed and protected pressure transducer.• RS 232 serial port for PC control of m/c.      Application : Electronic Universal Testing Machine is designed for testing metals and other materials under tension, compression bending, transverse and shear loads. Hardness test on metals can also conducted.    Principal of Operation : Here UTM Right Control Valve is Servo Controlled in close loop mode as per mode selection. Following control modes available :1) Standard Manual Control2) Potentiometric Control3) Load Rate Control4) Elongation Rate Control5) Load Hold Mode6) Strain Rate Control  Also Auto Start, Potentiometric start & Initial Valve open start options are available for test to take care of slippage & different specimen types. Load is applied by hydrostatically lubricated ram. Main cylinder pressure is transmitted to the pressure transducer housed in the control panel. The transducer gives the signal to the electronic display unit, corresponding to the load exerted by the main ram. Simulteniously the digital encoder fitted on the straining unit gives the mechanical displacement.   Machine consists of :  Straining Unit : This consists of a cylinder motor with chain and sprocket drive and a table coupled with the ram of the hydraulic cylinder, mounted on to a robust base. The cylinder and the ram are individually lapped to eliminate friction. The upper cross-head is rigidly fixed to the table by two strenthened columns.The lower cross - head is connected to two screwed columns which are driven by a motor. Axial loading of the ram is ensured by relieving the cylinder and ram of any possible side loading by the provision of ball seating.An displacement scale with a minimum graduation of 1mm, is provided to measure the deformation of the specimen.Tension test is conducted by gripping the test specimen between the upper and lower cross-heads.Compression, transverse , bending, shear & hardness tests are conducted between the lower cross-head and the table.The lower cross-head can be raised or lowered rapidly by operating the screwed columns, thus facilitating ease of fixing of the test specimen.    Control Panel : The control Panel consists of a power pack complete with drive motor and an oil tank, control valves and electronic display unit.    Power Pack : The power pack generates the maximum pressure of 200 kgf/cm2. The hydraulic pump provides continuously non-pulsating oil flow. Hence the load application is very smooth.    Hydraulic Controls : Hand operated Release Valve & motorised control valve are used to control the flow to and from the hydraulic cylinder. The regulation of the oil flow is infinitely variable. Incorporated in the hydraulic system is a regulating valve, which maintains a practically constant rate of piston movement. Control by this valve allows extensometer reading to be taken.    Electronic Control Unit : (FIE- SERVO) - In Electronic panel 8085 microprocessor is used for basic UTM operation & an 8 bit dedicated   microcontroller is used for close loop & Servo Control.- Panel is having parallel printer port, RS 232 C serial port for PC interface.- 2 lines x 8 digits 7 segment display & membrane keyboard for data entry.- 20 data sets and 50 results storage.    Software : Windows based basic software for Servo Control is in standard scope of supply. • Real Time graph, User friendly software. • Extensive graphics on screen for curve plotting, magnification and zooming.• Software features include Graph comparison, point tracing facility. Different units selection    for load & displacement.• Statistical evaluation with water fall dig., Mean deviation, frequency distribution, Skew    dig., Histogram. Also calculates max. value, min.value, Mean Value, Variance, Standard    Deviation. (Other statistical parameters on request). Selectable batch &    statistical printouts.• Evaluation of wide range of user selectable parameters such as %    elongation, % reduction   in area, young's modulus, yield stress, proof stress etc.• Optional Software packages for Extensometer, Shear Bend, Torsion, Rubber, Textile    testing etc.            Accuracy and Calibration : Electronic Universal Testing Machines are closely controlled for sensitivity, accuracy and calibartion during every stage of manufacture. Every machine is then calibrated over each of its measuring ranges in accordance with the procedure laid down in British standards. 1610 : Part1 : 1992 and IS : 1828 : Part1 : 1991.Electronic Universal Testing Machine comply with Grade "A" of BS : 1610 : Part1 : 1992 and class 1 of IS-1828 - Part - 1:1991. An accuracy of +1% is guaranted from 2% to 100% of the capacity of the machine. Below 20% of the selected range, the maximum permissible error is 0.2% of the full load reading.

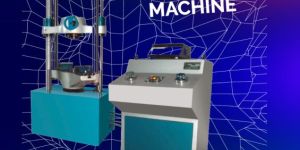

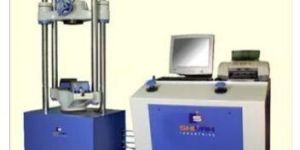

We are a reputed organization engaged in exporting and supplying of Electronic Universal Testing Machines. Electronic Universal Testing Machines made available by us are manufactured employing advanced technology following standards and norms of the industry. Moreover, we offer these machines to clients at industry-leading rates.Features Straining at variable speeds to suit a wide range of materials Printer & PC graphs enable study the behavior of the material Motor driven threaded columns for quick effortless adjustment of middle crosshead to facilitate rapid fixing of test specimen Specifications Load accuracy : high + 1% RS 232 serial port for PC control of m/c

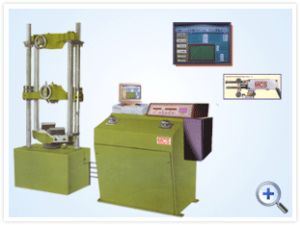

Our product range includes a wide range of Universal Testing Machines(UTM) such as FIE Universal Testing Machines, Industrial Universal Testing Machines, Electronic Universal Testing Machines, Computer Controlled Universal Testing Machines and Digital Universal Testing Machine. Variety of tests - Tension, Compression & Transverse.Continous roll autographic 'Load Elongation' recorder.Various Models-Max. capacity reading from 100kN to 1000kN.Optional accessiories include load- stablizer, attachments for Brinell Test, Bend Test & Shear test.

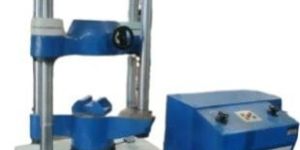

We are known for providing only flawless range of products as we store the entire lot under safe environment in our spacious warehouse. Moreover, the lot is regularly checked by our experts. We assure you to deliver goods to the desired place, as we have strong distribution network and shipping facilities. Electronic Universal Testing Machine is made of the finest quality material with high precision and durability.

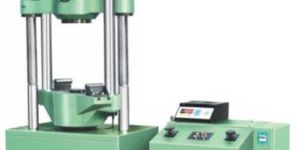

The company is a distinguished Manufacturer, Exporter & Supplier of Electronic Universal Testing Machines. The Electronic Universal Testing Machine come with the model 'TUTE' series and can be used for several applications. The Control Panel of the Electronic Universal Testing Machines can be hooked to any PC that uses RS-232 communication ports. The software packages of the Electronic Universal Testing Machine are Windows-based with real time graph on the PC and this helps in the proper evaluation of different parameters. Salient Features Real time graphSoftware features include graph comparison and point tracing facilityDifferent unit selection for load & displacement, mean deviation, frequency distribution, skew dig and histogramUser friendly softwareExtensive graphics on screen for curve plotting, magnification and zoomingSelectable batch & statistical printouts Calculates maximum value, minimum value, mean value, variance and standard deviation (Other statistical parameters on request)

• Tensile Test on Metal, Synthetic Materials etc. • Compression Tests on Springs, Rubber etc. • Bending Transverse Test on Beams, Synthetic Materials etc. • Shear Test on Metals, Polymers etc.

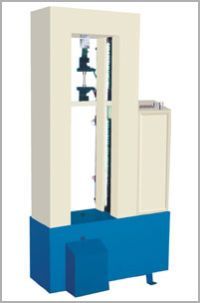

Panel/PC Controlled. Digital display for load and elongation. Variety of Tests - Tensile, Compression, Cyclic, Bending, Shear, Low cycle Fatigue, Fracture. Printer Interface with results & load displacement curve. Various models - Capacity ranging from 100N to 100 kN. Loading accuracy well within ± 1%.

In order to fulfill the ever changing demands of our clients, we have engaged in offering a quality range of Compression Testing Machines. These machines are manufactured using superior quality raw material, procured from reliable vendors of the market. All these compression testing machines are widely acclaimed in the industry for its excellent load stabilizer. To meet the diverse needs of our clients, all compression testing machines are offered with analogue, digital and computerized versions. Further, the loading accuracy of these machines is within ±1% in accordance with IS: 1828 /BS: 1610 as per international standards. Capacity - 200 KN

Loading Accuracy as high as + 1% Straining at variable speeds to suit a wide range of materials. Continuous roll autographic recorder supplied as standard to enable study of the behavior of  materials Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen. High reading accuracy due to large size and design of dial. Wide range of standard and special accessories, including load stabilizer. Easy change from plain to threaded and screwed specimens.  Large effective clearance between columns enables testing of standards specimens as well as structures. Simple controls for easy of operation. Robust staining frame of an extremely rigid construction. Safe operation ensured be means of safety devices.   Fully enclosed and protected pendulum.   Application :       FIE Universal Testing Machine is designed for testing metals and other materials under tension, compression bending, transverse and shear loads. Hardness test on metals can also be conducted.     Principal of Operation :   Operation of the machines is by hydraulic transmission of load from the test specimen to a separately housed load indicator. The hydraulic system is ideal since it replaces transmission of load through levers and knife edges, which are prone to wear and damage due to shock on rupture of test pieces.     Load is applied by a hydrostatically lubricated ram. Main cylinder pressure is transmitted to the cylinder of the pendulum dynamometer system housed in the control panel. The cylinder of the dynamometer is also of self-lubricating design. The load transmitted to the cylinder of the dynamometer is transferred through a lever system to a pendulum. Displacement of the pendulum actuates the rack and pinion mechanism which operates the load indicator pointer and the autographic recorder. The deflection of the pendulum represent the absolute load applied on the test specimen.     Return movement of the pendulum is effectively damped to absorb energy in the event of sudden breakage of a specimen.     Machine consists of :       Straining Unit        This consists of a hydraulic cylinder motor with chain and sprocket drive and a table coupled with the ram of the hydraulic cylinder, mounted on to a robust base. The cylinder and the ram are individually lapped to eliminate friction. The upper cross-head is connected to two screwed columns which are driven by a motor. Axial loading of the ram is ensured be reveling the cylinder and ram of of any possible side loading by the provision of ball seatings.     An elongation scale with a minimum graduation of 1 mm, is provided to measure the deformation of the specimen.     Tension test is conducted by gripping the test specimen between the upper and lower cross-heads.     Compression, transverse, bending, shear and hardness tests are conducted between the lower cross head and the table.     The lower cross-head can be raised or lowered rapidly by operating the screwed columns thus facilitating ease of fixing of the test specimen.         Control Panel :    The control Panel consists of a power pack complete with drive motor and an oil tank, control valves a pendulum dynamometer a load indicator system and an autographic recorder. Power Pack :   The power pack generates the maximum pressure of 200 kgf/cm2 the hydraulic pump provides continuously non-pulsating oil flow. Hence the load application is very smooth. Hydraulic Controls :   Hand operates wheels are used to control the flow to and from the hydraulic cylinder. The regulation of oil flow is infinitely variable incorporated in the hydraulic system is a regulating valve which maintains a practically constant rate of piston movement. Control by this valve allows extensometer readings to be taken.     Load Indicator System :   This system consists of a large dial and a pointer. A dummy pointer is provided to register the maximum load reached during the test. Different measuring ranges can be selected by operating the range selection knob. An overload trip switch is incorporated which automatically cuts out the pump motor when the load range in use is exceeded.     Pendulum Dynamometer :    This unit permits selection of favorable hydraulic ratios producing relatively small frictional forces. Pressurised oil in the loading cylinder pushes up the measuring piston proportionately and actuates the special dynamometer  system. The piston is constantly rotated to eliminate friction. The dynamometer system is also provided with an integral damper and ensures high reliability of operation. The load transmitted to the dynamometer is transferred through a pendulum to the load indicator.     Autographic Continuous Roll Load-Elongation Recorder :       This unit is of the pen and drum type and is supplied as standard. The horizontal motion of the pen produces the load ordinate of the diagram and the drum rotation produces the extension ordinates in the ration of either 1:5 or 1:10.     Accuracy & Calibration :    AII FIE Universal Testing Machines are closely controlled for sensitivity, accuracy and calibration during  every stage of manufacture. Every machine is then calibrated over each of its measuring ranges in  accordance with the procedure laid down in BS : 1610 : Part 1 :1992 and IS 1828 : (Part 1) : 1991.     FIE Universal Testing Machines comply with Grade "A" of BS : 1610 : Part 1:1992 and class 1 of IS 1828 : (Part1) : 1991 An accuracy of + 1.0% is guaranteed from 20% from 20% of the load range selected to full load. Below 20% of the selected range, the maximum permissible error is 0.2% of the full load reading.    Special Accessories : • Load Stabilizer• Printer• Plotter• Brinell Test Attachment• Electronic Extensometer • Piston Movement Resolution of 0.01 mm • Electronic Load Pacer• Shear Test Attachment • Software Packages• Mechanical Extensometer     A wide range accessories offered on request at additional cost.   Installation :   It is recommended that machines be erected on a foundation. Details on foundation can be given on request
