Computerized Universal Testing Machine
Get Price Quote
1 Piece (MOQ)
Universal Testing Machine
Get Price Quote
1 Set(s) (MOQ)
We are offering universal testing machine, big shear test attachment & small shear test attachment. sss instruments is a dependable manufacturer and exporter of universal testing machine shear test attachments. The shear test attachments manufactured by us are used for all makes and types of universal testing machines. Shear test attachments widely used in industries , foundries and laboratories during specimen testing to get exact load on machine and other readings this attachment hold the specimen very accurately during testing for getting accurate result it is suitable for all makes and types universal testing machines present in market. It is available in following range. Single shear test attachment small shear test attachment big shear test attachment.
Best Deals from Tensile Testing Machine
Servo Computerised Universal Testing Machine
700,000 - 3,600,000 Per piece
Pull-Off Adhesion Tester -PosiTest
Get Price Quote
Portable, hand-operated instrument requires no external power source – ideal for lab and field use. New! Pull Rate Indicator – allows operator to easily monitor and adjust the rate of pull in accordance with international test methods.New! Conversion charts not required – tester automatically calculates pressure based on dolly size. . Every PosiTest Adhesion Tester pressure system is calibrated and certified to ± 1% accuracy using an NIST traceable load cell
STM-300-C Computerized Spring Testing Machine
Get Price Quote
Digital Mild Steel ASTM E-8 Tensile Strength Testing Machine
Get Price Quote
Other details Tensile Strength Tester is a way of determining how something will react when it is pulled a part-when a force is applied to it in tension Tensile testing is one of the simplest and most widely used mechanical tests By measuring the force required to elongate a specimen to breaking point, material properties can be determined that will allow designers and quality managers to predict how materials and products will behave in their intende applications
Vertical Tensile Testing Machine
300,000 Per Piece
Digital Tensile Strength Tester
Get Price Quote
We, being a prime Manufacturer, Exporter & Supplier in the industry, offer Digital Tensile Strength Tester. Tensile Strength Tester is applied in a number of industrial purposes. The quality is ensured to be in compliance with the standards and parameters set by the industry. We make it available in a number of specifications. The durability, corrosion resistance and dimensional accuracy of Digital Tensile Testing Machine make it a popular choice for varied purposes. Specifications Vgotech Tensile Strength Testing Machine – Digital with Floor Model Capacity of M/c – 5000N/500Kgf with Load Cell for display of Breaking Strength and Elongation. Least Count - 1N / 0.1Kgf Speed - 300 & 100mm/min. Grips for Lea and fabric – 100mm. Maximum Grip Separation –1000mm and Minimum Grip Separation – 100mm Load Cell - S Type Power - 440V. Drive – 1H.P. Geared Motor – 3 Phase. Safety Device : Limit Switch for over travel protection & overload Indication in Load Monitor.

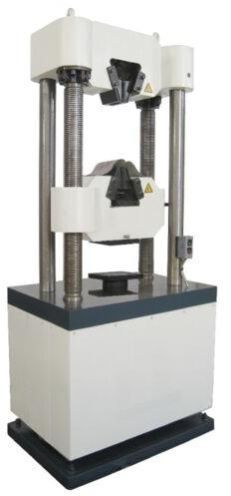

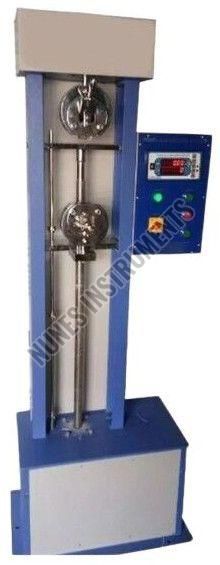

Tensile Testing Machine
55,000 Per Piece
1 Piece (MOQ)
Hydraulic Tensile Tester
Get Price Quote
1 Piece (MOQ)
Electronic Tensile Strength Tester
150,000 Per piece
1 Piece (MOQ)
Computerized Universal Testing Machine
480,000 Per Piece
1 Piece (MOQ)
Electronic Universal Testing Machine
Get Price Quote
We hold expertise in offering Electronic Universal Testing Machine in the global market. This Electronic Universal Testing Machine is widely trusted for reliable performance. The Electronic Universal Testing Machine, provided by us, is in great demand at several industries to conduct several tests like test tensile, compression, bending and shear tests on metals & other materials.
Tensile Tetsing Machine
Get Price Quote
1 Piece (MOQ)
We are offering Three Types of Models Model: ME-TNE-SD: Double Ball Screw with Servo Motor Servo Drive Model: ME-TNE-DD: Acme Threaded Double Screw with AC Motor Drive Model ME-TNE: Single Screw with Induction Motor Machine Features Fully Computer Controlled Mechanism Advanced Software is compatible with Latest Windows Version. Variable Speed Drive Options available with DC / AC Servo Drive Advanced Digital Control Panel automatically identify Load Cell Capacity Various Clamping / Gripping options available as per specific Text requirement. Overload / Overtravel Safety guard installed Advanced Digital Control System with Digital Display of Load, Deflation & Extension Machine Operations like Test Speed, Direction are controlled from the Advanced Digital Control Panel. Manual Operation (Panel Control Mode) Sealed membrane keyboard with numeric keypad • Pre Determined Test Data • Load/Force Tare & Reset Deflection / Extension Buttons • Load / Force vs Deflection Graph is available on Dot-matrix Printer • Auto Scaling for Graph Plotting • Selection of Stop / Return of crosshead and direction • Results include Ultimate Load, Maximum Deflection, Ultimate Tensile Strength & Percentage Elongation Computerized Operation (Software Control Mode) Advanced Digital Control Panel is connected to the computer through RS – 232 port & Latest Windows-based Advanced Software. The control is transferred to computers and with the help of Windows-based Software, complete testing can be performed. Software Features Supports Windows XP / 7 / 10 User-friendly Windows Software for complete test control Real-Time Graph with an online display of Load / Force, Deflection & Extension Wide range of input test data Unit interchangeability for input data and output results as per Standard Extensive Graphics, Curve Fitting, Zooming Results include Ultimate Load, Ultimate Tensile Strength, Maximum Deflection. %Elongation, Area Under the Curve, % Reduction in Area, Yield Load, Yield Strength, Proof Load, Proof Stress Multi Graphs are available Load vs Deflection, Stress vs Strain, Load vs Elongation. Extensometer MECHATRONIC ENGINEERS’ digital extensometer Model ME-EE-2 is a Strain Gauge type digital extensometer to measure material’ extension while conduction Tensile Test with a resolution of one micron (0.001 mm). It is designed to be clamped directly on the test specimen. This is used to measure strain up to elastic limits to determine important parameters like 0.1% to 1% proof stress and young’s modulus. ME-EE-2 has two fixed gauge lengths of 25 mm & 50 mm. Change of gauge length is by means of replacing button knife-edge extender. ME-EE-2 is manufactured from high strength lightweight aluminum with a durable anodized finish. The knife – edges are made from oil hardened tool steel to withstand heavy, usage. It Supports a maximum Diameter / Thickness of 40 mm & a maximum extension of 2 mm suitable for Round, Flat, Pipe & Tor Steel / TMT Steel applications. MECHATRONIC ENGINEERS’ digital Long Travel Extensometer Model ME-LT- 600 is a balanced clip-on type extensometer used to measure strain accurately. In association with the Advanced Digital Control Panel, the true extension of the sample with a 0.01 mm resolution is directly displayed. The distance between two small clamps attached to the sample can be pre-set to any desired gauge length. Cords attached to each clamp transmit the movement to two sensors mounted at the top of the extensometer column. These produce pulses which drive the digital strain display thus detecting strain accurately. This is suitable for rubber & semi-rigid plastics. The maximum extension is 600 mm & gauge length continuously variable. Optional Accessories Digital Extensometer Model ME-EE-2 Digital Long Travel Extensometer Model ME-LT- 600 Vice Type Grips Bending Fixture Special Grips as per requirement Shear Test Attachment Additional Load Cells (50N, 100N, 250N, 500N, 1kN, 2.5kN, 5kN, 10kN, 25kN, 5
Push Pull Testing Machine
82,700 Per Piece
1 Piece (MOQ)
Vertical Tensile Tester
100,000 - 200,000 Per Pcs
1 piece (MOQ)
Tensile Strength, the maximum force developed a test specimen before rupture on the tensile test carried to rupture under prescribed conditions. Tensile Strength (as used here) is the force per unit width of test specimen. Stretch, the maximum tensile strain developed in the test specimen before ruptrure in a tensile test carried to rupture under prescribed conditions. The stretch (or percentage elongation) is expressed in a percentage i.e. one hundred times the ratio of the increase in length of the test specimen to the original test span.Details : Tensile energy absorption (TEA), the work done when the specimen is stressed to rupture in tension under prescribed conditions as measured by the integral of the tensile strength over the range of tensile strain from zero to maximum strain. The TEA is expressed as energy per unit area (test sapn X width) of test specimen. Breaking Length, the calculating limiting length of strip of uniform width, beyond which, if sucha strip were suspended by one end, it would break of its own weight. Tensile Index, the tensile strength in N/m divided by grammage.
Tensile Testing Machine-Hand Operated
Get Price Quote
Machine Tensile Tester
85,000 - 850,000 Per piece
1 Piece (MOQ)
Electronic Tensile Tester
Get Price Quote
Electronic Tensile Tester (Horizontal) is available from us which are of superior quality. User-friendly software guides the operators through all steps of program selection. The parameter modification and sample test is also provided to minimize to human error during test to provide rapid and efficient determination of tensile strength, stretch, tensile energy absorption (TEA) and tensile stiffness of paper and paperboard with in-built printer, fitted with imported load cell & stepper motor from Japan. Standard model 0-50 Kg 500 N Applicable for Paper Packaging industries
50kg Gauge Pull Push Tester
65,000 - 70,000 Per piece
1 Piece (MOQ)
Mechanical Universal Testing Machine
300,000 - 1,200,000 Per Piece
1 Piece (MOQ)
SRI make Universal Testing Machine is designed for testing metals and other materials under tension, compression bending, transverse and shear loads. Hardness test on metals can also conduct. Loading accuracy well within ±1% from 2% to 100% of capacity of the machine, conforms to IS:1828 / BS:1610 TECHNICAL FEATURES: Micro Processor based electronic panel. Precision strain Gauge type pressure transducer for load measurement. Rotary Encoder with rack for crosshead displacement indication with 0.1mm resolution. Digital Load, Displacement / Extension indication. Rs-232 Com. port for PC interfaces. Window based software. Real time graph, user friendly software. Data entry for specimen dimensions, serial number, gauge length, Unit selection for load etc. Results include Load vs Displacement Curve, Maximum Load, Maximum. Displacement, U.T.S.- % Elongation. Young’s Modulus & Proof stress if Extensometer is use. Recording, storage & retrieval of results & details.
Universal Tensile Testing Machine
205,000 Per Piece
Paper Mill Vertical Tensile Strength Tester
175,000 Per Piece
1 Piece (MOQ)
Description: Vertical Tensile Strength Tester With Digital display of Tensile Strength & Stretch of Paper, Paperboard and similar materials complete with memory for retaining peak value, automatic or normal zero setting, overload and over travel protection facilities. With imported load cell & imported DC motor. The Microprocessor Based Tensile Strength Tester is used for determining the tensile strength and stretch of sheet materials. Technical - Specification : Measuring Result : Individual results of Tensile Strength, Stretch, TEA, Tensile Stiffness, Breaking Length, Breaking time mean value & Standard Deviation. Clamping Length : Selected. Accuracy : 1% of reading down to 10% of the load cell capacity. Resolutions : 0.025% of nominal load cell range and 0.1 mm in elongation measurement. Computer Output : 1. RS 232 C & Printer port Model C 2 interface with pc having a specification a Pentium & specially developed software. Application Standards: SCAN P-38 ISO 1924/4, TAPPI 494, , APPITA/ AS 1301.448, BS 4415, CPPA D 34, DIN 533112, TEILL 1
Computerized Universal Material Testing Machine
Get Price Quote
We are offering computerized universal material testing machine. the computerized universal material testing machine is closely monitored for sensitivity, accuracy and calibration during every stage of manufacture. The computerized universal material testing machine is in compliance with the british standards 1610: 1964 and is: 1828-1975. salient features grade "a" of bs- 1610 : 1964 and grade 1.0 of is -1828-1975accuracy of + 1 % is guaranteed from 20% of the load range selected to full loadbellow 20% of the selected range, the maximum permissible error is 0.2% of the full reading
Universal Testing Machine
342,000 - 866,000 Per Piece
1 Piece (MOQ)
FEATURES Loading accuracy as high as ±1%. Straining at variable speeds to suit wide range of materials. Printer & PC graphs enable study the behavior of the material. Motor Driven threaded columns for quick effortless adjustment rapid fixing of test specimen. Simply in reading because of digital readouts. Wide range of standard and special accessories, including load stabilizer. Easy change from plain to threaded and screwed specimens. Large effective clearance between columns enables testing of standard specimens as well as structures. RS 232 serial port to transfer data to computer for analysis/storage evaluation etc. Manual Control & release valve Operation. Safe operation ensured by means of safety devices. APPLICATIONS Universal Testing Machine is designed for testing metals and other materials under Tension, Compression, Bending, Transverse and shearloads. Hardness test on metals can also be conducted ACCURACY & CALIBRATION All Universal Testing Machines are closely controlled for sensitivity, accuracy and calibration during every stage of manufacture. Every Machine is then calibrated over each of its measuring ranges in accordance with the procedure laid down in British Standards 1610: 1964 and IS: 1828-1975. Universal Testing Machines Comply with grade "A" of BS: 1610: 1964 and grade 1.0 of IS -1828-1975 An accuracy of + 1 % is guaranteed from 20% of the load range selected to full load. Bellow 20% of the selected range, the Maximum permissible error is 0.2% of the full reading. PRINCIPLE OF OPERATION Operation of the machine is by hydraulic transmission of load from the test specimen to a separately housed load indicator. The system is ideal since it replaces transmission of load: through levers and knife edges, which are prone to wear and damage due to shock on rupture of test pieces. Load is applied by a hydrostatically lubricated ram. Main cylinder pressure is transmitted to the cylinder of the pendulum dynamometer system housed in the control panel. The cylinder of the dynamometer is also of self - lubricating design. The load transmitted to the cylinder of the dynamometer is transferred through leverage to the pendulum. Displacement of the pendulum actuates the rack and pinion mechanism which operates the load indicator pointer and the autographic recorder. The deflection of the pendulum represent the absolute load applied on the test specimen. Return movement of the pendulum is effectively damped to absorb energy in the event of sudden breakage of the specimen. MACHINE CONSISTS OF Straining Unit This consists of a hydraulic cylinder motor with chain and sprocket drive and a table coupled with the ram of the hydraulic cylinder, mounted on to a robust base. The cylinder and the ram are individually lapped to eliminate friction. The upper cross-head is connected to two screwed columns which are driven by a motor. Axial loading of the ram is ensured be reveling the cylinder and ram of any possible side loading by the provision of ball seating. Tension test is conducted by gripping the test specimen between the upper and lower cross-heads, Compression, transverse, bending, shear and hardness tests are conducted between the lower cross head and the table. The lower cross-head can be raised or lowered rapidly by operating the screwed columns thus facilitating ease of fixing of the test specimen Control Panel The control Panel consists of a power pack complete with drive motor and an oil tank, control valves. A pressure transducers is connected for load indicator and a rotary encoder for elongation with resolution of 0.1 mm, is provided to measure the deformation of the specimen Power Pack The power pack generates the maximum pressure of 200 kgf/cm2 the hydraulic pump Provides continuously non-pulsating oil flow. Hence the load application is very smooth. Hydraulic Controls Hand operates wheels are used to control the flow to and from the hydraulic cylinder. The regulation of oil flow is infinitely variable incorporated in the hydraulic system is a regulating valve which maintains a practically constant rate of piston movement. Control by this valve allows extensometer readings to be taken. Load Deflection Indicator It is microprocessor based electronic control panel connected with machine using Pressure Transducer, Rotary Encoder and Electronic Extensometer. Using RS-232 serial communication port our s/w communicates with machine and get real time Load, Deflection and Extension and shows on computer. Electronic digital displays Load Elongation and extension. Facility to hold peak - load and tare facility to make load zero. Elongation display can be set to zero. Optional printer facility. All other facilities maintained under Model UTN. Printer and PC interface. Electronic Control Panel The electronic control panel is built using 8085 microprocessor which incorporates state of the art technology with following features Front panel membrane type key board for test setup. Seven segment digital display of load displacement/extension. Serial Port for communication with PC. Optional add-on facility for electronic extensometer & electronic load pacer. Software Package on PC The control panel can be hooked to any PC using RS-232 communication port. Offers different exhaustive application. Widows based software packages with real time graph On PC to enable the user to effectively evaluated different parameters the features include: NEW Electronic Control Panel Real time graph, user friendly software. Extensive graphics on screen for curve plotting, magnification and zooming. Software Features includes graph comparison, point tracing facility. Different units selection for load & Displacement. Statistical evolution with water fall digs. Mean deviation, frequency distribution, Skew digs Histogram. Also calculates Max. Value, Min. value, Mean Value, variance, Standard deviation. Selectable batch & statistical printouts. Evolution of wide range of user selectable parameters such as % elongation, % reduction in area, young’s modulus, yield stress, proof stress etc. Software packages for shear, Bend, Torsion, Rubber, Tensile testing etc.
Servo Control Universal Testing Machine
Get Price Quote
Being a quality driven firm, we source the raw material from the certified vendors only who assure us for the quality and reliability of the material. As we have marked a distinct name in the market, we are recognized as the trusted organization for supplying quality Servo Control Universal Testing Machine. Features Loading accuracy as high as ±1% Straining roll autographic recorder supplied as standard to enable study at the behaviour of materials. Motor driven threaded columns for quick effortless adiustment of lower Crossthead to facilitate rapid fixing of test specimen. High reading accuracy due to large size and design of dial. Wide range at standard and special accessories, induding load stabilizer. Easy change from plain to threaded and screwed specimens. Large effective clearance between columns enables testing of standard specimens as well as structures. Simple controls for ease of operation.Robust straining frame at an extremely rigid construction. Safe operation ensured by means of safety devices. Fully enclosed and protected pendulum. AppicationsTee-sol Universal Testing Machine is designed for testing metals and other materials under tenstion, compression bending, transverse and shear loads. Hardness test on metals can also be conductedAccuracy & Calibration All Tec-sol Universal Testing Machines are closely controlled for sensitivity, accuracy and calibration during every stage of manufacture. Every Machine is then calibrated over each at its measuring ranges in accordance with the procedure laid down in British Standards 1610: 1964 and 15: 1828-1975. Tec-sol Universal Testing Machines Comply with grade "A“ of BS : 1610 : 1964 and grade 1.0 of15-1828-1975 An accuracy of + 1 % is guaranteed from 2096 of the load range selected to full load. Bellow 20% of the selected range, the maximum permissible error is 0.2% of the full reading.
Universal Testing Machine
Get Price Quote
tensile machine
Get Price Quote
Tensile Strength Tester
185,000 - 225,000 Per piece
1 Piece (MOQ)
Computerized Universal Testing Machine
Get Price Quote
Easy to maintain and user-friendliness are the highlights of the Computerized Universal Testing Machine. We are amidst the dependable Manufacturers and Suppliers of the Computerized Universal Testing Machine, located in Pune (Maharashtra). These Computerized Universal Testing Machines have long life and ensure hassle-free performance. Technical description : VMC make TNE series machines are electro mechanical screw driven machines with precision screw and column construction and variable speed drive. Tow option are available mainly VMC threaded screw with DC Motor drive & ball lead screw with servo drive. The machines are suitable for studying mechanical behavior of various materials like metals, polymers, elastomers etc. These machines are easy to operate and they offer excellent performance and flexibility to meet the needs of modern testing requirements. The machines confirm to IS, BS & ASTM standards. TNE Series TNE Series machines are available with following options Depending upon test requirements and budget, best combination can be selected. DRIVE SD : Drive dd is with DC motor with thyrister drive speed ratio As per sample std. Requirement. DRIVE SD : Drive SD is with servo motor & PWM transister drive to give speed ration As per sample std. Requirement Features Variable speed drive with DC/Servo drive options Provision for automatic identification & thereby interchangeability of load cells Provision of different clamping devices to suit specific test requirement Safety interlock by limit switches & by overload sensing Load Cells We offer universal load cells of following capacities : 50N, 100N, 250N, 500N, 1kN, 10kN, 25kN, 50kN, 100kN, Any other load cell can be offered on requirement. Grips & Clamping Devices: Wedge type grips for flat & round specimens Vise type grips Compression plate Special grip as per requirement Shear Attachment Long travel Extensometer for rubber test Extensometer VMC offers following extensometers with electronic interface & evaluation software M-2 Stain gauge type with 2mm extension and gauge length 25mm & 50mm. It measures important parameter like 0.1%, 0.2% proof stress and usable up to dia/flat 40 mm. Measuring System MP : It is microprocessor based system with digital display of load and displacement / extension it is having members keyboard for entering necessary input data and for reading results, Printout of Load v/s. Displacement or Stress v/s. Strain is available as standard feature. Feature of Measuring System MP Microprocessor based system with state of the art technology Sealed membranes type keyboard with numeric date entry Digital display for load and displacement / extension Graph of Load V/s. Displacement or Stress V/s. Strain available on printer (Printer optional supply) On line real time graph on PC with serial software. Preload selection by keyboard (0.01 % to 1%) to take care of initial slippage of specimen Unit selection by keyboard (T, kN, N). Selection of stop/return of crosshead and direction Selection of type of test like compression / tension / bending / cyclic Test results like peal load, displacement at rapture, % elongation, % reduction in area, yield stress available RS 232 C serial port with following software available as options Basic Evaluation Exhaustive evaluation with 0.2% proof stress Spring Testing Rubber Testing Special Software as per requirement Measuring System PC : Measuring System PC is PC based card system where two PCB's are directly fitted into PC slot; Load & Displacement are shown on computer screen. Input data is feed by means of computer keyboard. Test is automatically completed & test results are displayed on computer screen. Feature of System PC Use friendly 2000 / XP software. Easy to operate and meets all testing requirements. Real time graph with continuous display of load displacement extension. Input data selection. Wide range of output parameter selection Special test programs can be supplied. Unlimited storage of test result dat Unit interchangeability for input and results as per standards. Extensive graphics, Curve fitting, Zooming Batch Testing Facility (Optional) Multi graph load/displacement, stress/strain, load/elongation Software Packages VMC offers following software packages Spring Testing Rubber Testing Torsional testing Bending Testing Statistical evaluation
