Tensile Testing Machine Dealers in Ahmedabad

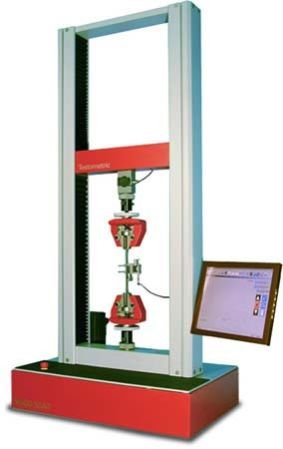

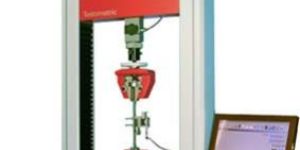

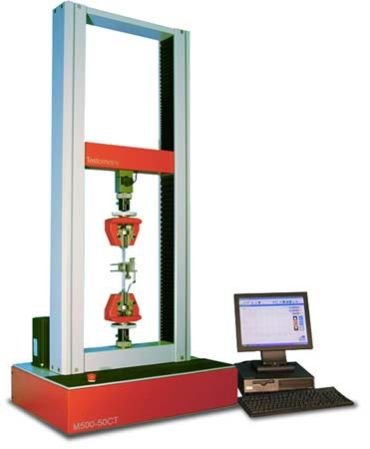

We have carved a niche as one of the leading testing machine suppliers in India. This Electronic tensile testing machine is procured from the well reckoned company Testometric. Testometric, founded in 1970, has a main product line of universal strength tensile testing machine which is used in all industries from exacting research work to routine quality control in factories worldwide. Some 80% of Testometric machines are exported worldwide through a network of over 50 offices. The AT range is the very latest expression of leadership in design and quality. They bring a new ease testing to materials and products. In stand-alone mode the machine can be programmed with up to 100 different test methods ranging from most basic to sophisticated machine control, all with full graphics and statistical display. With the addition of only a printer, hard copies of the test report including results, statistics and graphs can be generated. With the addition of a PC and printer full Windows TM control and testing can be produces using Win Test TM Software. The testers have a full color active matrix display with wide viewing angle. The full alpha numeric keypad with tactile buttons is fully sealed for industrial applications. The robust straining frames have high stiffness which can be maximized by using the K factor input facility; this effectively eliminates all deflection errors in the system. Ease of testing with digital sample break detection, auto ranging, auto calibration, quick tare and auto return facilities. 800% overload protection capability of load cells in tension and compression mode. Automatic identification of load cells. On-board 32-bit embedded controller technology for data handling.

This Instrument is in according to ASTM D 638 and can supply accordance with BS, DIN,ISO, IS (Indian Standard) or according to customer’s required specification. Mechanical Structure on Single Screw Base supported tie-bar with linear motion bearing to carry load. Machine capacity according to customer requirement. Motor & Gear Box : Motor Coupled with Gear box.(Make : Bonfiglioli). Oil Free Gear box is used to avoid maintenance problem. Speed range from 10 to 500mm/min, speed selectable directly from the computer. Microprocessor based digital display for load and extension. Load accuracy dependable of the load cell. Accuracy 1% of the full scale value of load cell. Cross head travel : up to 800mm. Extension display 0.01mm with 0.5% accuracy of travel. Live interfacing on to computer during the test. Unit conversion facility in load and extension. (i.e N-kg-lbf and in extension mm-cm-inch). Stress Vs. Strain graph also available after completion of the test.

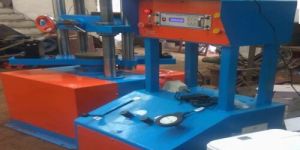

Applications Available ModelsFor testing metals and other materials under tension, compression bending, transverse and shear loads. Hardness test on metals can also be conducted. 200 kn, 400 kn, 600 kn, 1000 kn Computer Controlled Universal Testing Machine Computerized Electronic Universal Testing Machine Microprocessor based control panel Auto ranging Digital display of Load and Elongation Dedicated PC Software Electronic Extensometer (At extra cost) Export worthy colour combinations, Special sheet jaws, Hard chrome plating, Hose pipes, Reputed make Induction/AC Servo motor Standard Accessories 1) Tension test, 2) Compression test 3) Transverse test Optional Accessories At extra cost 1) Shear test attachment for bolt2) Wire rope test attachment3) Rebend test attachment4) Rebend test mandrels

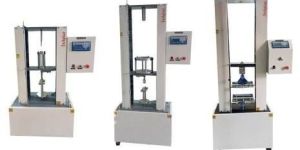

Specifications of the Basic Digital Tensile Testing machine are as below:- Tensile testing machine(Table Top Model) capacity upto 2500 kgf to 0-5000 kgf. Imported guide rods for vibrationless travell Linear Motion Bearing for friction less travell at high speed. Over Load safety Over Travell Safety Auto reverse function after complition of test Auto stop function Unit selection KG, N & KN 4 Line LCD Display Unit Last 5 samples readings will be saved in controller Single load cell & Double load cell both the facility are available as per party’s requirement.

Universal strength machine is used to test various strengths for moulding and core sands. Auto testing cycles available on just a button press. Can conduct test for compression, tensile, shear, splitting strength specimen with appropriate attachments. Computer interfacing through rs485 serial and wireless through appropriate attachments is possible. Requires pneumatic air supply of 6 kgcm2. (default: 230v ac, 50hz). Features: calibration reminder equipment life counting way faster, better and accurate result processing than its predecessor (vud) diagnosis mode for fault detection

1. Tensile Test 2. Peel, Adhesion & Bond Test 3. Compression Test 4. Stiffness Test 5. Flexural Bend Test 6. Shear Test 7. Torsion Test 8. Tear And Friction test 9. Fracture And Crack Growth test 10. Modulus of Elasticity test Material testing applications 1. Plastics (Pipes/Films/Laminations) 2. Geo synthetics/Geo Textiles material 3. Textiles Material 4. Wood and Timber 5. Paper and Paper products 6. Elastomer and rubber 7. Metal   Compliance standards of Tensile Testing Machine ASTM D638, ASTM D790, ASTM D3039, ASTM D882, ASTM D412, ASTM D429, ASTM D624, ASTM D76, ASTM E154, ASTM C836, ASTM D2240, ASTM D3039, ASTM D3786, ASTM D4533, ASTM D4595, ASTM D4632, ASTM D4833, ASTM D6241, EN 12311-1 /ISO R527, DIN 53504, EN 12310 Part 1:2000, EN ISO 12236, ISO 34, ISO 10319, ISO 527, ISO 178, ISO 2062, ISO 604, IS 13360, IS 3400, IS 15477 Mechanical structure High grade steel gives unmatched performance, accuracy and precision Rigid machine frame with high stiffness Equipped with multi-position limit detectors for best protection of operator, test sample and machine Column protection over total traverse stroke Cross head driven Cross head driven by Backlash free ball screw assembly to provide high load capacity Traveling length Maximum travel from grip to grip is 800mm at extension least count of 0.01mm. Higher length is also available on demand (optional). Controlling device PLC (Programmable Logic Controller) and Smart Touch Screen HMI Display. Economy models comprises of Microprocessor based Digital controller in place of PLC & HMI. Computer interfacing facility & software RS-232/RS-485/Ethernet based PLC controller, Profile based software to start the test quicker, Menu driven software parameters, User-friendly and easy to understand, Can provide full control of all parameters, Full test analysis with statistical and graphical print-out, User can export the generated data in Excel, PDF, Word format. Grips Choose from a wide range of grips and fixtures for tension, compression, flexural, shear, peel, puncture and bond testing Result and parameters Max Load, Max Elongation, Yield force, Yield Elongation, Break force, break elongation, GPD, etc test results and parameters can be observed on HMI Screen & In dedicated software. Mode of test Tensile as well as compression test facility available, mode selection via software. No need to change mode every times before starting the new test. Safety features Over load protection, reverse direction load protection, Maximum elongation protection for load cell, Limit switches on either end etc.

Load cell- dual loadcell of 's type' with different capacity can be connected to single controller load cell unit- kgcmâ² n mpa cross head travel- 1000mm resolution of displ- 0.01mm speed- 5 to 500mmminute speed control- through frequency controlled a.c. Drive power supply- 230v ac, 1 phase, 50 hz

We are listed amidst the emerging Suppliers of Tensile Strength Tester and have been serving markets with the premium products. As we promise to offer quality approved products to the clients, we make use of only high-grade raw materials selected from one of the best sources present in the market.

Computerized Universal Testing Machine provide a relatively inexpensive way for determining the tensile, compression, shear strength and elongation of variety of raw materials such as rubber, leather, fabric, plastics, belts, wires etcetera. They are based on constant rate of traverse principle in which one end of the test specimen is held in a stationary grip, (or place on the compression plate) while the other end is made to move at a known fixed speed with the help of motor, two gear boxes and duel screws arrangement. The load exerted on the stationary grip is sensed by a load cell and indicated by a digital load indicator and also indicated with graph on the monitor of the computer.

Tensile test is a measurement of ability of material to withstand forces that tends to pull it apart and to determine to what extent the materials stretches before breaking   Application : Tensile is the universal test applied to many polymers to check the mechanical properties and it is the most improtant property as majority of end use application involved some degree of mechanical loading & properties like Tensile Modulus, Elongation, Compression etc. are calculated using this machine.   USP : The "Surya has some unique models developed with versatility in mind. Surya UTM's can be used with our without using P.C. Universal Software capable of performing test on any type of materials. Test on high & low loads with different cross head travel speed can be performed The "Surya" tensile offers testing flexibility and ease of use via an intelligent electromechanical system data transfer. ratio of load cell to instrument is 24 bits to give instateneous readout of data during process. The Surya versatile software helps to visualize the process and behavior of materials in form of data and graphs with all the calculated results required. Units of weights "Newton" or "Kilograms" can be selected from software. Round or of any different shape materials can be prespecified on specification window for direct calculation of area.

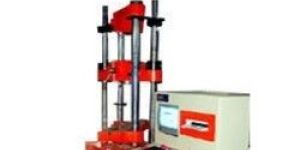

Universal Testing Machine (AIM-UT 40 C, AIM-UT 60 C & AIM-UT 100 C)   Aimil Universial Testing Machine is designed for testing metals under tension, compression, bending, transverse and shear load, both in the form of test pieces and as finished product (optional).   Industry Civil Infrastructure Cement/RMC Construction Chemicals Dams & Tunnels Fly Ash Irrigation Railways Sleepers Real Estate Refractories Roads, Highways & Bridges Education Architecture Building Technology Civil Department Geotechnical Science Colleges Metal & Material Tiles & Ceramics Special Applications Fly Ash Traffic & Transportation Railways Roads, Highways & Bridges
