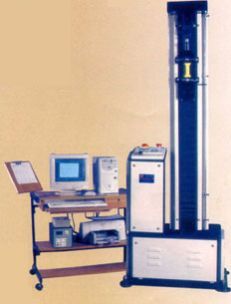

The UNIVERSAL TENSILE TESTER is used for determining the ability of the material to withstand forces that tend to pull it apart & to determine to what extent the material stretches before breaking.Different type of plastic materials are often compared on the basis of TENSILE, FLEXURAL STRENGTH, ELONGATION, & TENSILE MODULUS DATA. Many plastics are very sensitive to the rate of straining and environmental conditions. The tensile property data are more useful in preferential selection of a particular type of plastic from a large group of plastic materials.Tests for tensile strength (stress at fracture of the specimen) and elongation (extension of material under load of plastics. The first provides a measure of the breaking strength of the material but is radically affected by the rate of loading and the ambient temperatuere. Tensile strength in kgf/cm sq. = load (kgf) / a x b (cm sq.) Elongation % = (L2-L1) x 100/L1. Standard test methods : BS 2782 method 301, ASTM D 638, ISO R527.

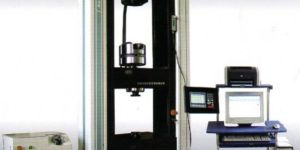

We are offering universal testing machine 600kn ■specification： 600kn ■model： auto5605 ■application：it is suitable for a variety of metallic and non-metallic materials tensile , compression , bending , shear, peel , and other mechanical properties. It is equipped with the appropriate accessories , under the high , low or normal temperature could carry out durable creep, stress relaxation materials and other material performance test.

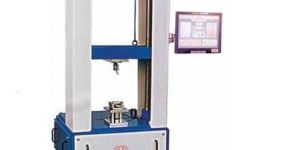

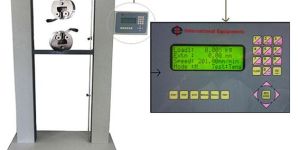

Universal Testing Machine    Highly accurate position control with high range of speed Accurate start and stop instanatly using 32 bit microcontroller Four line and 20 characters controller with multiple features Automatic calculation of modulus @different strains selectable Multi unit display in Kg, pound, Newton mm, cm, inch selectable Direct display on controller and numeric printout facility Safety norms of over load in auto as well as manual mode Safety norms of over travel in auto mode. Tests preprogramming facility for Tensile, Flexural, Peel, Bond, Compression, Cyclic endurance based on load, travel, time Data lock for calibration and master controlled parameters

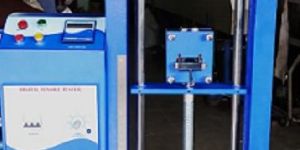

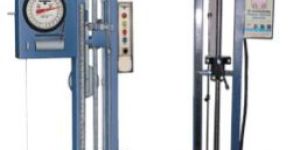

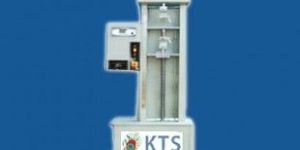

To test the tensile strength of fabrics & yarns. Ikon Industries, Mumbai, India have four different models of Digital Tensile Testers as follows, Digital tensile tester instrument is a robust motor driven floor model machine which records breaking strength and elongation at break point with graph facility. Fabric strength tester or digital tensile strength tester machine works on a dead load principle fitted with 3 phase AC motor with a reduction gear box which runs at a constant traverse speed of 300 mm/minute. A set of grips is provided free of charge with tensile strength tester instrument. Fabric strength tester or digital tensile strength tester works in forward and reverse direction as desired and also has provision for overload safety. The strength scale calibrated in ranges up to 100,250, 500, 1000, 2500, 5000 kgs.   Technical Data 10 kgs : 0 – 10 x 2 gms 25 kgs : 0 – 25 x 5 gms 50 kgs : 0 – 50 x 10 gms 100 kgs : 0 – 100 x 20 gms 50 kgs : 0 – 250 x 50 gms 500 kgs : 0 – 500 x 100 gms 1000 kgs : 0 – 1000 x 200 gms 2500 kgs : 0 – 2500 x 500 gms 5000 kgs : 0 – 5000 x 1000 gms SPEEDS OF TRAVERSE : For rubber and flexible plastics : 300 and 500 mm/minute For fabrics and coated fabrics : 300 and 450 mm/minute For leather : 100 and 300 mm/minute For multiple applications : 50, 75, 100, 125, 200, 300, 400 & 500 mm/minute. Minimum grip separatio : 25 mm Maximum grip separation : 1000 mm Load measurement : With the help of a load cell and a digital display having arrangement to display the maximum load exerted during the test Elongation measurement  : Measured between grips on a scale from 0 to 1000 x 1 mm. Electric controls : Push button controls for up and down movement and stopping with The help of contactors. Micro-switches for over-travel protection, over-load  protection. Automatic stopping of motor on failure of test specimen

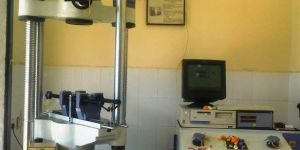

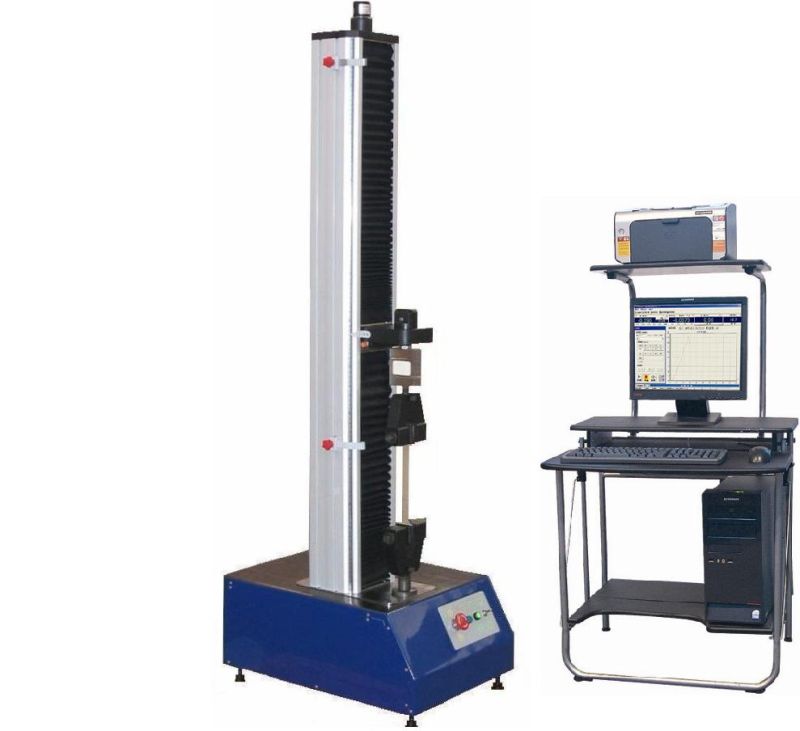

Detailed Product Description I. Main purpose LEW series microcomputer screen display hydraulic universal testing machine is mainly used in mechanical property tests of metal and non-metal materials such as tensile, compression, bending and shearing. Using the machine equipped with common testing software with simple operation and full functions, the test can be conducted very conveniently, consequently improving the test efficiency further. Curves and relevant test data can be inquired and printed from the test results. It is ideal testing equipment for industrial and mining establishments, research institutions, universities and colleges, construction quality supervision and detection stations etc.

Universal Testing Machine, with capacityfrom 100kn upto 2000kN computerized version, with software back-up, with standard accessories - Extra acessories available at extra cost.

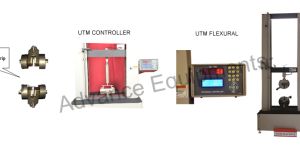

POLYPLAST Make UTM with diffent capacity from 0.1 Ton to 10 Ton acailable with diffent features and accessoreis. Normaly single screw are used for up to 0.5 Ton and 1 Ton to 10 Ton are make of Imported Ball screws and speed control ranges from from 1-100 or 5- 500 with Motor Tran and VFD or full range with Servo drive system. The software is full fledged data system of 20+ data and modulus, Peel bond, Cof  etc features and many other accessorie can be used. There are optionally graph merging software/ Extensio meter, Flexural, Compression accessoris optionaly are availble. About 15type of diffent grips and many accessoreis are available matching to diffent standard and products on diffent load and application catogery. The working heights, enviour chamber can customerise

Steel base with rigid steel frame housing the lower grippers. • Pistoncylinder assembly mounted on the top of the rigid frame. The piston incorporates the electronic load cell. • Mobile frame consisting of four high tensile strength columns, upper crosshead directly connected to the piston, intermediate crosshead with compression platen and lower crosshead housing the upper grippers. • The 70-C0807C model has a 400 mm vertical daylight adjustable in steps of 50 mm. • Hydraulically operated opening and vertical adjustment of grippers by two independent auxiliary cylinders controlled by the push button panel. This unique feature makes the machine extremely easy to operate enabling one man to perform the test in a very short time. • Crosshead displacements controlled by the use of a bi-directional encoder.

This equipment is extremely versatile for conducting a variety of tests, on different materials as per National and International Standards. Scope The Ubique Universal Testing Machine is designed to accommodate all types of Tensile and Compression based Test mentioned below as per the Various National and International Standards.To name a few test: Tensile, Flexural, Compression, Top Load, Torque,Co-efficient of Friction, Peel Strength, Seal Strength, Bending, Stiffness, Folding Endurance, Bond Strength Introduction Ubique Universal Testing Machine (UTM) is available in 2 modelsA) Microprocessor b ased ModelB) Integrated Touch Screen Control PanelModel Both Models are available in 2 variantsA) Single Pillar and B) Double Pillar UTM is useful for testing various types of Materials and packaging like plastics, paper, wood and metals… Various Compression and Tensile based tests can be performed in both - Dynamic & Constant Load or Length options   Optional at extra Cost   Depending on requirements and the tests to be carried out, any of the attachment/s shown overleaf can be selected optionally and are supplied at extra cost.   Additional Load Cells of different capacities.   Higher admit than 500 mm, between the Platens, in multiples of 100 mm.   RS 232 Port.   ** Higher Loading Speed can also be provided up to 500 mm/min.
