Tensile Testing Machine Dealers in Delhi

In order to keep the quality of the products up to the mark, we check the entire range against varied quality parameters. Ours is the noted name involved in providing excellent support in transaction ensuring complete security of the payment. We undertake both online and offline payment processing methods.   Product Code: EKE EC-60Application System Peak load along with on line load Maximum elongation with online elongation Ultimate Tensile Strength Graphical Display of load vs. time Graphical Display of elongation vs. time Graphic Display of load vs. elongation. Graphic Display of stress vs. strain Complete Statistical Analysis Data Report Management Safety FeaturesMachine stops after specimen failure Safety against Over travel of piston Safeguard against high temperature Surge Protection Auto Machine Diagnosis Safety against overloadPC Configuration Processor: i3 / i5 / latest available Processing Speed: 2.0 GHz or higher H.D. Drive: 200 GB RAM : 2 GB DVD RW : 8X Colour Monitor : 19” LCD (Latest available at the prevalent time shall be supplied) Key Board : Multimedia Printer : Inkjet Mouse Optical (Scroll type) UPS of at least 600 VA SoftwarePreloaded with window XP / Vista / Window 7 based software The software provided on CD ROM also Automatic saving and providing database for carrying outstatistical calculation of multiple test results Software application is capable of providing functions like Auto Return to home position. Also available Hydraulic Grips at extra cost

These machines are electro mechanical screw driven machines with precision screw and column construction and variable speed drive. Tow option are available mainly Acme threaded screw with DC Motor drive & ball lead screw with servo drive. The machines are suitable for studying mechanical behavior of various materials like metals, polymers, elastomers etc. These machines are easy to operate and they offer excellent performance and flexibility to meet the needs of modern testing requirements. The machines confirm to IS, BS & ASTM standards. These machines are available with following options depending upon test requirements and budget, best combination can be selected.

Avail from us, our range of horizental tensile testing machine, automatic horizental tensile testing machine. With simple construction, these testing equipment have load elongation digital display is provided wherever necessary. Our tensile testing machines are offered with digital display of load and elongation.

Tensile strength tester are the two price characteristics of most of the raw materials. Whether they are metals or non-metals such as rubber leather textiles plastic paper or finished products such as rods wires ropes, yarns, belts etceteras. These two properties often play a major role in determining the suitability of any raw materials for any specified application. It is therefore, of utmost importance to determine these characteristics accurately, conveniently, and quickly.

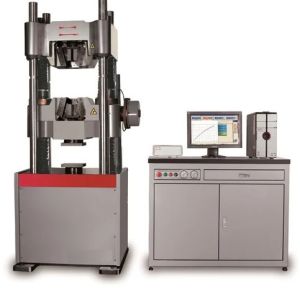

Universal Testing Machine(400KN)Specifications: Load: Maximum capacity of Load up to 40 TON/ 400 KN. Accuracy: ±1% of the applied force. Least Count: 0.04 KN Measuring Range : 0- 400 KN Resolution of piston movement: 0.1mm Clearance for tensile testing at fully: 50–700mm descended working piston Clearance for compression testing at fully: 0-700mm descended working piston Clearance between column: 500mm Ram stroke: 200 mm Straining/Piston Speed at no Load: 0-150mm Power of connected load: 2.5HP Dimensions: 2032 x 600 x 1960mm Weight: 1600 Kg (approx) Software With Process Control Unit It is multifunctional & fully customized software. It is a menu driven and window based software capable of following features.   Analysis of test result & generation of load extension curve. It displays elongation in mm with the least count of 0.1 mm. The packages provide a report generating capability that include long term statistic for all specified calculations. Save results, methods, print result, edit result, parameters & units. Over load protection. Over displacement protection. Auto stop for the break of sample Direct output to A4 printer through computer for full test report, including individual test result, statistical analysis & test curvesPower supply: 400V±10%, 50Hz±3% three phaseClamping jaws for round specimens Diameter (mm) 20-30Clamping jaws for flat specimens Thickness (mm)10-20Pair of compression plates of diameter (mm)Transverse Grip For Bending

Floor mounted, vertical type, two column construction specially manufactured for various applications.TENSILE TESTING MACHINES are designed for determining the Tensile Strength and Elongation of a host of materials like ferrous and non ferrous materials, cables & conductors, Plastic, PVC, Rubber specimens, paper, plywood etc. Our TENSILE TESTING MACHINES are also capable for conducting compression, Cross breaking and Shear tests thus making them more versatile with a few additional attachments. TENSILE TESTING MACHINES are available in various capacities depending upon the requirements right from 5 kgf to 10 Tonnes ensuring ± 1% accuracy in test results. We assure high accuracy, sensitivity, reliability, consistency, repeatability and excellent workmanship. TESTING MACHINES are backed up by prompt and effective after service by a team of factory trained technicians. Our machines are available in KGF/ kN/N as per your specific requirements.TENSILE TESTING MACHINES are also available with State of Art Electronic Microprocessor based Digital Indicator systems with PC and Printer.

Testing Equipments in india are the prominent manufacturer, Supplier and Exporter of Universal Testing Machine. A universal testing machine, also known as a universal tester, materials testing machine or materials test frame, is used to test the tensile stress and compressive strength of materials. It is named after the fact that it can perform many standard tensile and compression tests on materials, components, and structures.

IS: 10082The instrument is designed to test specimens from 50 mm dia to 100 mm dia having thickness equal to half the diameter. A pair of loading jaws, designed so as to contact a disc shaped sample at diametrically opposed surfaces over an arc of contact of about 10 degrees at failure, is supplied. The set of jaws supplied with the equipment is designed for 50 mm dia specimen and therefore it is essential to order jaws for respective sizes, if other diameter samples are to be tested. A set of plain platens are provided with the jack which enable testing of cube and circular specimens up to 50 mm size for compressive strength. The outfit consists ofLoading Frame fitted with hand operated Hydraulic Loading Jack of 200 KN capacity provided with self-retracting Piston, pair of Plane PlatensPair of Semi-Circular Jaws for 50 mm dia samplesLoad Gauge 0-200 kN x 2 kN capacity, provided with maximum Load Indicator ExtrasPair of Jaws for 60 mm dia samplesPair of Jaws for 70 mm dia samplesPair of Jaws for 80 mm dia samplesPair of Jaws for 90 mm dia samplesPair of Jaws for 100 mm dia samples. SRO-1002 Constant Pressure System: This is a Dead-Weight type constant pressure system. This system consists of an oil pump, continuously driven by an electric motor to provide the required pressure to the Triaxial Cell chamber. Capacity: 160 bar (160 kg/cm2) SRO-1004 Core Cutting and Grinding Machine Features Table Mounted Stable Construction Feed arrangement for cutting Cooling water arrangement Heavy Duty, AC, Single Phase Motor This unit is designed for cutting and grinding cylindrical rock specimen's upto NX size. The outfit includes 200 mm dia diamond impregnated cutter, a fine diamond, impregnated grinding wheel a water supply system and sample holder A V-Vice, to enable the sample upto 55 mm dia x 140 mm long to be cut parallel and square to the longitudinal axis is provided. Reversing the specimen and holding against the vice can prepare cores longer than 140 mm. A hand feed arrangement is provided to facilitate the specimen with a uniform and smooth feeding motion. This unit is operated on single phase, 2 HP, AC motor. SRO-1004 Core Drilling MachineHeavy duty, pillar type frame with continuous rated 2 HP, single phase, AC motor Varying cutting feeds provided with water-fed swivel head to connect tosuitable water supply. Provision at base for water collection/drainage Core preparation from regular and irregular samples Core size : EX to NX Clamping arrangement to hold specimens with regular/irregular shapes to the base of machine Four cutting speeds of 600, 800, 1100 and 1500 rpm Following Core Bits are available as options Core Drilling Bit 21.46 mm dia (EX size)Core Drilling Bit 30.10 mm dia (AX size)Core Drilling BitCore Drilling BitCore Drilling Bit 42.04 mm dia (BX size)Core Drilling Bit 54.74 mm dia (NX size)

The double lever tensile testing machine for cement briquette is available in different ranges. Loading is applied automatically by lead shots flow in manually operated units and by a travelling weight on the lever in electrically operated model. The loading is controlled at the rate of 226.7kg/minute and measured to 0.05kg. The machines are fitted with precision gunmetal jaws and are provided with levelling feet. It is available in two capacities
