APPLICATION SYSTEM:a). Peak Load along with on line loadb). Maximum elongation with online elongationc). Ultimate Tensile Strengthd). Graphical Display of load vs. timee). Graphical Display of elongation vs. timef). Graphic Display of load vs. elongationg). Graphic Display of stress vs. strainh). Complete Statistical Analysis a). Data report management SAFETY FEATURES:a). Machine stops after specimen failureb). Safety against over travel of pistonc). Surge protectord). Auto machine diagnosise). Safety against overload

Machine used in materials science to determine the properties of a material. Machines have been devised to measure tensile strength, strength in compression, shear, and bending (see strength of materials), ductility, hardness, impact strength (see impact test), fracture toughness, creep, and fatigue. Standardization of machines and tests is the province of the International Organization for Standardization. Materials testing, measurement of the characteristics and behavior of such substances as metals, ceramics, or plastics under various conditions. The data thus obtained can be used in specifying the suitability of materials for various applications—e.g., building or aircraft construction, machinery, or packaging. A full- or small-scale model of a proposed machine or structure may be tested. Alternatively, investigators may construct mathematical models that utilize known material characteristics and behavior to predict capabilities of the structure.  Type of Testing ü Universal test, ü Tensile Test, ü Elongation Test, ü Strain Test, ü Stress Test and Bending

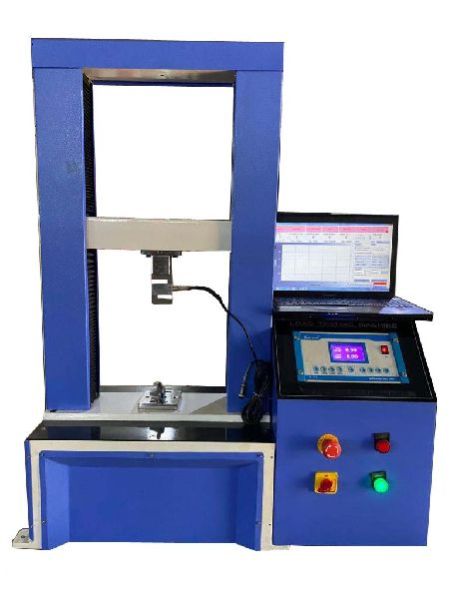

Main Application:EDW Series is a new kind of electronic universal testing machine produced by ENKAY, which adopts the most advanced and reliable load frame structure of ball screw electric mechanical universal testing machine of the world. The driving system adopts Japanese AC servo system and motor. The PC controlling system is able to realize the close-loop control of the parameters such as loading force, specimen deformation, and crosshead stroke etc. The system realizes the screen display, online diagram drawing, testing curve changing, fold curve collation and auto analysis of test results, creation of test report. Especially, the application of the control mode can be manual control or computer programming control which makes the cyclic tests become available. By switching simply of different accessories, EDW series Universal testing machine can make tests on most of materials and components to suit your needs.FeaturesComplete computer controlled: The whole measuring and controlling system adopts specific PC control card used for testing machines, which has very high reliability. Supporting multi-transducers the database management of the test data which are stored according to the standard format; facilitating other software to analyze and transfer. Perfect programming by auto program control, every control mode can smoothly shift from one to another. Fulfilling the test requirement of all kinds of materials with every test standard home and abroad. Control software has the auto-adjusting function of test hardness, which assures that the system works with every kind of specimen hardness. Perfect graphic function for the arbitrarily magnifying, decreasing, equaling, adding, indicative display and print of all kinds of test curves, the test point searching as well as the simultaneous display and print of several kinds of test curves. Data processing supposes selfdisposing and input disposing of graphic human computer interaction, which facilitates the check and contrast of the test result. The user can self -define the output of the test report, which makes the report format have very high flexibility. Modularization design facilitates the software upgrading, function spreading as well as the second development.Standard Accessory for WDW Series: Tension grip jaws (Wedge action Grips) 1 set Grips for round specimen 4pcs for each Grips for flat specimen 4pcs for each Compression test attachment 1 set Bending test attachment 1 set Tool kit 1 set Extensometer 1 set Photoelectric coder 1 pc Load cell 1 pc Data-processing system: (ENKAY plug-in ready to use controller) 1 set Software Wintest 1 set PC+Printer 1 set Servo speed adjusting system 1 set

We are offering universal testing machine. With the constant support of our dexterous workforce, we are able to come up with high quality universal testing machine. These offered machines are widely used in industrial applications and are widely appreciated for their optimum performance. The offered machine is capable to test number of materials and metals in different forms and shapes for variety of tests like tension, compression, transverse, bend, shear and brinell hardness. Special attachments are also available for testing of flat belts, chain links and wire ropes. features: cost-effective highly durable optimality high performance seamless finish competitive price wide industrial use precisely-engineered.

We own a well-maintained storage facility that helps us in meeting bulk and urgent requirements of the clients at a time. It is managed and maintained by the storekeepers. Founded in Delhi(India), our company has been successful in capturing the local and domestic markets as trader of this product Specification of 20 tonne universal testing machine It is based on the Constant hydraulic principle. The machine provide tension & compression test .load frame depend on the machine capacity. Middle slide is moving with the help of leading screw and upper slide is stile with help of two pillars. And lower slide up & down with help of hydraulic cylinder to control oil tank, pump and two wall & limit switch to auto stop. Pressure Tran juicer and sensor connected directly indicates the load & displacement (elongation) in Digital form in Newton and kg as we set and displacement show in mm. Middle slide traveling speed is 80mm _+ 5mm per min. lower slide traveling speed is 25mm _+2mm per min. measuring the load with help of hydraulic pressure

500 kN (50 Tonnes) Consists of following: FEATURE: Loading accuracy: As high as + 1 % Speeds: Straining at variable speeds to suit wide range of materialsFacilities for tests: Motor-driven threaded columns for quick and convenient adjustment of lower cross head to facilitate rapid fixing of test specimen.Autographic recorder: Simultaneous roll autographic recorder supplied as standard to enable study of the behaviors of materials.Ideal Dia: High reading accuracy due to large size ideal design of dial.Large columns: Large effective clearance between columns enables testing of standard specimen as well as structures.Easy changeability: Easy change from plain to threaded and screwed specimens Simple and Safe: Simple to operate.Robust constructionChrome planted metal componentsWide range of standard and special attachments accessories available.

INNOVATIVE  Universal Testing machines aredesigned and built to conduct tests on materials under tension, compression bending, and transverse and shear loads. The Innovative  UTMs  are used for determining the Tensile, Compression, Shear Strength and elongation of variety of raw materials such as metals, rubber, leather , fabric, plastics, Belts , wires etc. They are based on constant rate of traverse principle in which one end of the test specimen is held in a stationary grip, while the other end is made to move at a known fixed speed. The load exerted on the stationary grip indicated by a digital load indicator. The controller is microprocessor based and has the facility of over load protection, peak hold and auto calibration. The load directly indicated in kilograms or Newton or KN.   Features: -> Loading accuracy as high as ±1%. -> Training roll autographic recorder supplied as standard to enable study of the behavior of materials.

We manufacturer digital universal testing machine, digital controlled universal testing machine that ensure that have double column construction with the maximum capacity load of 100 ton used for like rubber plastic, paper, sutures, textile, adhesive, copper ring, syringe, needle, metals. These Digital Universal Testing Machines are offered with over load protection facility.

Universal Testing Machine(400KN)Specifications: Load: Maximum capacity of Load up to 40 TON/ 400 KN. Accuracy: ±1% of the applied force. Least Count: 0.04 KN Measuring Range : 0- 400 KN Resolution of piston movement: 0.1mm Clearance for tensile testing at fully: 50–700mm descended working piston Clearance for compression testing at fully: 0-700mm descended working piston Clearance between column: 500mm Ram stroke: 200 mm Straining/Piston Speed at no Load: 0-150mm Power of connected load: 2.5HP Dimensions: 2032 x 600 x 1960mm Weight: 1600 Kg (approx) Software With Process Control Unit It is multifunctional & fully customized software. It is a menu driven and window based software capable of following features.   Analysis of test result & generation of load extension curve. It displays elongation in mm with the least count of 0.1 mm. The packages provide a report generating capability that include long term statistic for all specified calculations. Save results, methods, print result, edit result, parameters & units. Over load protection. Over displacement protection. Auto stop for the break of sample Direct output to A4 printer through computer for full test report, including individual test result, statistical analysis & test curvesPower supply: 400V±10%, 50Hz±3% three phaseClamping jaws for round specimens Diameter (mm) 20-30Clamping jaws for flat specimens Thickness (mm)10-20Pair of compression plates of diameter (mm)Transverse Grip For Bending

PMT-1 Series Features and Benefits: Loading accuracy as high as ± 1%. Straining at variable speeds to suit a wide range of materials. Motor-driven threaded columns for quick and convenient adjustment of lower cross-head to facilitate rapid fixing of test specimen.

The company is a renowned Universal Testing Machine Manufacturer, Exporter and Supplier, based in New Delhi, India. Our Universal Testing Machine is used for testing metals and other materials under compression, tension, bending, transverse and shear loads. The testing of standards specimens and structure is possible with our Universal Testing Machine, due to large effective clearance between columns. Clients can avail our Universal Testing Machine at very competitive market price. Specifications Ease of operation by simple controlLoading Accuracy as high as (+) 1%Robust staining frame of an extremely rigid constructionEasy change from plain to threaded and screwed specimens Straining at variable speeds to suit a wide range of materialsHigh reading accuracy due to large size and design of dialMotor driven threaded columns for quick effortless adjustment of lowerCross-head-to facilitate rapid fixing of test specimenSafe operation ensured by means of safety devicesWide range of standard and special accessories, including load stabilizer

Used for testing the material sample for their compression, bending, shear, tensile strength, and hardness, our universal testing machine is high in demand in the global markets. The company is the well-known universal testing machine manufacturer, exporter, and supplier universal testing machine, thus offers it at reasonable prices. we offer analogue model (pendulum dynamiter) as well as digital machine having capacity from 10 tons to 100 tons

RS232C interface computer connectivity. Test details and reports are stored in database. On line display of multiple graphs of load & extension. User selectable units for load and displacement kN,N,Ibf,mm,cm & inch Auto detection of over load, over travel & specimen break, on delection of the above conditions, he machine is automatically swithed off. Load resolution: 0.01% of machine capacity for entire range. Users friendly software & all other facilities mentioned under Model :- TFUC.
