Universal Testing Machine Dealers

• Tensile Test on Metal, Synthetic Materials etc. • Compression Tests on Springs, Rubber etc. • Bending Transverse Test on Beams, Synthetic Materials etc. • Shear Test on Metals, Polymers etc.

Loading Accuracy as high as + 1% Straining at variable speeds to suit a wide range of materials. Continuous roll autographic recorder supplied as standard to enable study of the behavior of  materials Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen. High reading accuracy due to large size and design of dial. Wide range of standard and special accessories, including load stabilizer. Easy change from plain to threaded and screwed specimens.  Large effective clearance between columns enables testing of standards specimens as well as structures. Simple controls for easy of operation. Robust staining frame of an extremely rigid construction. Safe operation ensured be means of safety devices. Fully enclosed and protected pendulum.   Application :       FIE Universal Testing Machine is designed for testing metals and other materials under tension, compression bending, transverse and shear loads. Hardness test on metals can also be conducted.     Principal of Operation :       Operation of the machines is by hydraulic transmission of load from the test specimen to a separately housed load indicator. The hydraulic system is ideal since it replaces transmission of load through levers and knife edges, which are prone to wear and damage due to shock on rupture of test pieces.     Load is applied by a hydrostatically lubricated ram. Main cylinder pressure is transmitted to the cylinder of the pendulum dynamometer system housed in the control panel. The cylinder of the dynamometer is also of self-lubricating design. The load transmitted to the cylinder of the dynamometer is transferred through a lever system to a pendulum. Displacement of the pendulum actuates the rack and pinion mechanism which operates the load indicator pointer and the autographic recorder. The deflection of the pendulum represent the absolute load applied on the test specimen.     Return movement of the pendulum is effectively damped to absorb energy in the event of sudden breakage of a specimen.       Machine consists of :       Straining Unit        This consists of a hydraulic cylinder motor with chain and sprocket drive and a table coupled with the ram of the hydraulic cylinder, mounted on to a robust base. The cylinder and the ram are individually lapped to eliminate friction. The upper cross-head is connected to two screwed columns which are driven by a motor. Axial loading of the ram is ensured be reveling the cylinder and ram of of any possible side loading by the provision of ball seatings.     An elongation scale with a minimum graduation of 1 mm, is provided to measure the deformation of the specimen.     Tension test is conducted by gripping the test specimen between the upper and lower cross-heads,     Compression, transverse, bending, shear and hardness tests are conducted between the lower cross head and the table.     The lower cross-head can be raised or lowered rapidly by operating the screwed columns thus facilitating ease of fixing of the test specimen. Control Panel :        The control Panel consists of a power pack complete with drive motor and an oil tank, control valves a pendulum dynamometer a load indicator system and an autographic recorder.     Power Pack :   The power pack generates the maximum pressure of 200 kgf/cm2 the hydraulic pump provides continuously non-pulsating oil flow. Hence the load application is very smooth.     Hydraulic Controls :       Hand operates wheels are used to control the flow to and from the hydraulic cylinder. The regulation of oil flow is infinitely variable incorporated in the hydraulic system is a regulating valve which maintains a practically constant rate of piston movement. Control by this valve allows extensometer readings to be taken.     Load Indicator System :   This system consists of a large dial and a pointer. A dummy pointer is provided to register the maximum load reached during the test. Different measuring ranges can be selected by operating the range selection knob. An overload trip switch is incorporated which automatically cuts out the pump motor when the load range in use is exceeded.     Pendulum Dynamometer :    This unit permits selection of favorable hydraulic ratios producing relatively small frictional forces. Pressurised oil in the loading cylinder pushes up the measuring piston proportionately and actuates the special dynamometer  system. The piston is constantly rotated to eliminate friction. The dynamometer system is also provided with an integral damper and ensures high reliability of operation. The load transmitted to the dynamometer is transferred through a pendulum to the load indicator.     Autographic Continuous Roll Load-Elongation Recorder :   This unit is of the pen and drum type and is supplied as standard. The horizontal motion of the pen produces the load ordinate of the diagram and the drum rotation produces the extension ordinates in the ration of either 1:5 or 1:10.     Accuracy & Calibration :        AII FIE Universal Testing Machines are closely controlled for sensitivity, accuracy and calibration during  every stage of manufacture. Every machine is then calibrated over each of its measuring ranges in  accordance with the procedure laid down in BS : 1610 : Part 1 :1992 and IS 1828 : (Part 1) : 1991.     FIE Universal Testing Machines comply with Grade "A" of BS : 1610 : Part 1:1992 and class 1 of IS 1828 : (Part1) : 1991 An accuracy of + 1.0% is guaranteed from 20% from 20% of the load range selected to full load. Below 20% of the selected range, the maximum permissible error is 0.2% of the full load reading.

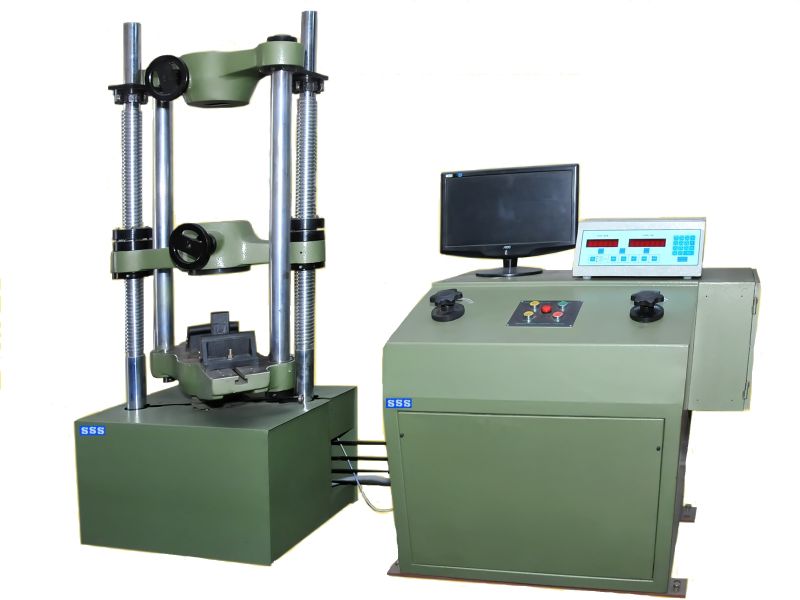

We are a major Manufacturer, Exporter & Supplier of Electrical Universal Testing Machine. The wide range of the Electrical Universal Testing Machines is precisely engineered and can be availed in customized forms as well. The Testcode Model Electrical Universal Testing Machines test metals and other materials under tension, compression bending, transverse and shear loads and are used to conduct hardness test on metals as well. Features Robust straining frame of an extremely rigid constructionRS 232 serial port to transfer data to computer for analysis, storage evaluation etcManual control & release valve operationSafe operation ensured by means of safety devicesPrinter & PC graphs for behavior analysis of materialsStandard and special accessories like load stabilizerMotor driven threaded columns for quick effortless adjustment of middle cross head to facilitate rapid fixing of test specimenLarge effective clearance between columns for standard specimens testing and structure testingLoading accuracy as high as +1%Straining at variable speeds for various materialsDigital readouts for simple reading Easy change from plain to threaded as well as screwed specimensSimple controls for ease of operationFully enclosed and protected pressure transducer

 Electro-Mechanical Universal Testing Machines UNITEK 9400 Series with PC Interface & Real Time Graph ( Panel / PC Controlled ) Technical Description : 'FIE' Universal Testing Machine series Unitek 9400 are microprocessor based electromechanical machines with Servo drive designed for testing & studying mechanical behavior of various materials like metals, polymers, elastomers etc. These machines offer good built-in features to offer excellent stand alone performance for standard tests & great flexibility for complex analysis. These machines confirm to IS, BS & ASTM standards.   Main Features : • Precision DC servo motor & Drive with ball lead screw gives an advanced drive system with 1 to 1000 standard speed range. • Provision for load cell inchargeability & thereby automatic selection of load full scale & units (kN or N). • Speed selection through Data entry or variable speed through potentiometer. • Facility for mounting different load cells & clamping devices to suit different tests & materials such as thin wires, metalsheets, fiberglass, leathers,    springs, cardboards etc.• Built-in parallel interface to connect Dot matrix printer for data & curve print-out. Safety interlock for overload & limit switch sensing to ensure protection during test. • Universal applications in R & D, education, quality control & production for test like tensile, compression, bending etc.   Electronic Control Panel (Series Universal 2001) : • Microprocessor based panel incorporating state of art technology with following features.• Front panel membrane type keyboard for machine operation with numeric keys for data entry.• 7 segment display.• Auto load cell identification.• Data entry with numeric keyboard of test parameters including speeds, rupture % peak, preload, modulus data, test data, specimen data etc.• 20 input data set storage, 50 result storage, maintains data & results during power off.• Batch test facility for generating batch & statistics result. Using same data set.• Optional remote to ease specimen loading/unloading. • RS232C serial port. Optional windows based software available for.........• On line graph on PC. Data analysis, statistics point tracing superimposing graphs to compare with standard, zooming graph etc.   Printer port for printer interface with : • Graph & result printout.• Test certificate printout.• Batch certificate printout.• Simple statistics printout.   Optional accessories : FIE offers wide range of optional accessories along with Unitek 9400 machines to cover almost every material test requirement.   Loaded Cells : FIE offers Strain gauge type Universal load cells in different capacities in the following nominal ranges :100N, 250N, 500N, 1kN, 2.5kN, 5kN, 10kN, 25kN, 50kN, 100kN Load cells of different capacity can be offered as per customers requirements.   Grip & Clamping Devices : A wide range of grips are available from FIE such as,  • Wedge type grips for flat & round specmens with different inserts.• Vise type grips.• Single threaded grips.• Pneumatic grips.• Compression plates.• Bending fixtures.• Shearing attachments.   Extenso meters : Electronic analog extensometers are offered along with interface card on the control panel to measure extension.• Model 1 : EE2 - STRAIN GAUGE (with 1 micron resolution).• Model2  : LTE800-DIGITALTYPE(with 10 micron resolution).   • Serial Communication & Software Package on PC : The Universal 2001 series control panel can be hooked to any PC using RS-232 communication port. FIE offers different window based software packages with real time graph on PC to enable the user to effectively evaluate different parameters.   The features include : • Real time graph, User friendly software.• Extensive graphics on screen for curve plotting, magnification and zooming.• Software features includes Graph comparison, point tracing facility. Different units selection for load & displacement. • Statistical evaluation with water fall dig., Mean deviation, frequency distribution, Skew dig., Histogram. Also calculates max. value, min. value, mean value,    Variance, Standard Deviation. ( Other statistical parameters on request ). Selectable batch & statistical printouts.• Evaluation of wide range of user selectable parameters such as % elongation, % reduction in area, young's modulus, yield stress, proof stress etc.• Software packages for Shear, Bend, Torsion, Rubber, Textile Testing etc.• Customer built application software to suit customer requirements.

Exceptional After-sales Services of this Hydraulic Grip Universal Testing Machine can be experienced once it is purchased from us. Also, spare parts of this Hydraulic Grip Universal Testing Machine can be purchased from us at competitive rates. This Hydraulic Grip Universal Testing Machine complies with the most stringent of standards set by IS, BS, ASTM and DIN. Details : Complete range of material testing system, Destructive testing (DT) & Non Destructive equipment (NDT)Product conforming to IS, BS, DIN and ASTM StandardsEquipment approved by NPL / NML, NABL, LLOYDS, PDIL, NTPC, BHEL, RDSO, DOI and Railways

We are Manufacturer, Supplier, Exporter of all our product range and our setup is situated in Kolhapur ( Maharashtra, India )   Features Loading Accuracy as high as + 1% Straining at variable speeds to suit a wide range of materials. Continuous roll autographic recorder supplied as standard to enable study of the behavior of materials Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen. High reading accuracy due to large size and design of dial. Wide range of standard and special accessories, including load stabilizer. Easy change from plain to threaded and screwed specimens. Large effective clearance between columns enables testing of standards specimens as well as structures. Simple controls for ease of operation. Robust staining frame of an extremely rigid construction. Safe operation ensured be means of safety devices. Fully enclosed and protected pendulum. Application ARUN Universal Testing Machine is designed for testing materials and other materials under tension, compression bending, transverse and shear loads.  Principal of Operation Operation of the machines is by hydraulic transmission of load from the test specimen to a separately housed load indicator. The hydraulic system is ideal since it replaces transmission of load through levers and knife edges, which are prone to wear and damage due to shock on rupture of test pieces.Load is applied by a hydrostatically lubricated ram. Main cylinder pressure is transmitted to the cylinder of the pendulum dynamometer system housed in the control panel. The cylinder of the dynamometer is also of self-lubricating design. The load transmitted to the cylinder of the dynamometer is transferred through a lever system to a pendulum. Displacement of the pendulum actuates the rack and pinion mechanism which operates the load indicator pointer and the autographic recorder. The deflection of the pendulum represents the absolute load applied on the test specimen. Return movement of the pendulum is effectively damped to absorb energy in the event of sudden breakage of a specimen. Machine consists of Straining Unit This consists of a hydraulic cylinder motor with chain and sprocket drive and a table coupled with the ram of the hydraulic cylinder, mounted on to a robust base. The cylinder and the ram are individually lapped to eliminate friction. The upper cross-head is rigidly fixed to the table by two straight columns. The lower cross-head is connected to two screwed columns which are driven by a motor. Axial loading of the ram is ensured be reveling the cylinder and ram of of any possible side loading by the provision of ball seating's.An elongation scale with a minimum graduation of 1 mm is provided to measure the deformation of the specimen. Tension test is conducted by gripping the test specimen between the upper and lower cross-headsCompression, transverse, bending, shear and hardness tests are conducted between the lower cross head and the table. The lower cross-head can be raised or lowered rapidly by operating the screwed columns thus facilitating ease of fixing of the test specimen. Control Panel The control Panel consists of a power pack complete with drive motor and an oil tank, control valves a pendulum dynamometer a load indicator system and an autographic recorder. Power Pack The power pack generates the maximum pressure of 200 kgf/cm2 the hydraulic pump provides continuously non-pulsating oil flow. Hence the load application is very smooth. Hydraulic Controls Hand operates wheels are used to control the flow to and from the hydraulic cylinder. The regulation of oil flow is infinitely variable incorporated in the hydraulic system is a regulating valve which maintains a practically constant rate of piston movement. Control by this valve allows extensometer readings to be taken. Load Indicator System This system consists of a large dial and a pointer. A dummy pointer is provided to register the maximum load reached during the test. Different measuring ranges can be selected by operating the range selection knob. An overload trip switch is incorporated which automatically cuts out the pump motor when the load range in use is exceeded. Pendulum Dynamometer This unit permits selection of favorable hydraulic ratios producing relatively small frictional forces. Pressurized oil in the loading cylinder pushes up the measuring piston proportionately and actuates the special dynamometer system. The piston is constantly rotated to eliminate friction. The dynamometer system is also provided with an integral damper and ensures high reliability of operation. The load transmitted to the dynamometer is transferred through a pendulum to the load indicator. Autographic Continuous Roll Load-Elongation Recorder This unit is of the pen and drums type and is supplied as standard. The horizontal motion of the pen produces the load ordinate of the diagram and the drum rotation produces the extension ordinates in the ration of either 1:5 or 1:10. Accuracy & Calibration II ARUN Universal Testing Machines are closely controlled for sensitivity, accuracy and calibration during every stage of manufacture. Every machine is then calibrated over each of its measuring ranges in accordance with the procedure laid down in BS : 1610 : Part 1 : 1992 and IS 1828 : (Part 1) : 1991. ARUN Universal Testing Machines comply with Grade "A" of BS: 1610: Part 1:1992 and class 1 of IS 1828: (Part1): 1991An accuracy of + 1.0% is guaranteed from 20% from 20% of the load range selected to full load. Below 20% of the selected range, the maximum permissible error is 0.2% of the full load reading.

Loading accuracy as high as ± 1% • Straining at variable sppeds to suit awide range of material • Printer supplied as option to study the behavior of the material. • Motor driven threaded Columns for quick effortless adjustment of middle cross-head to facilitable rapid fixing of test specimen • Simplicity in reading because of digital readouts • Wide ragne of stadard and special accessories, Including load stabilizer • Easy change from plain to threaded adn screwed specimens • Large effective clearance between Columns enables testing of standard specimens as well as structures • Simple controls for ease of operat on. • Robust straining frame of an extremely rigid construction • Safe operation ensured by means of safety devices • Fully enclosed and protected pressure transducer • Optional to transfer data to computer for analysisstorage evaluation on etc. • Confirms to IS 1828

Computerized universal testing machine, SALIENT FEATURES Windows Based Click and Go Software Package. Supports Tensile, Compression, Bending and many more Tests. Confirms BIS 1825 - 1991 and ISO - 7500 - 1986 Standard Customer defined reports Compensated for main screw clearances and frame stiffness. Extensive Database support.

Features : Loading accuracy as high as ±1 %  Straining rate to cover a wide range of materials.  Motorised loading and unloading. High reading accuracy due to large size and design diel. Simple control to facilitate ease of operation.  Fully enclosed and protected load measuring system.  Wide range of standard and special accessories including load stabilizer.  Robust straining frame.  High reading accuracy due to large size and design diel.  Motorised UP/DOWN movement of lower crosshead to enable easy and rapid fixing of test specimen.  Application :Universal Testing Machine is designed to perform Tensile, Compression, Bending and shear tests on metal & Other materials both in the form of test pieces and as finished products. Principle of operation :The test specimen is subjected to load with hydraulic system and is measured precisely with pendulum dynamometer. Load is applied by a hydrostatically lubricated ram.The oil pressure in the main cylinder is transmitted to the cylinder of the pendulum dynamometer housed in the control panel, the dynamometer piston exerts a force proportionate to the hydraulic pessure.This force is transferred through a leverage system to a pendulum. Displacement of pendulum actuates the rack and pinion mechanism which operates the load indicating pointer. Return movement of pendulum is effec- tively damped to absorb energy in the event of sudden breakage of specimen.Machine comprises ofthe following: Strainung Unit : This consists of a hydraulic cylinder & piston mounted on a robust base. The loading frame consists of an upper crosshead, middle crosshead and lower table. The upper crosshead and lower table is connected by means of two plain hard chrome plated columns. The middle cross head is fitted on two hard chrome plated threaded columns. A reduction gear motor drives the chain and sprockets fixed at the bottom of the threaded columns for height adjust- men!. The cylinder and ram is individually lapped to eliminate friction.Axial loading of the system is ensured by provision of a ball seating under the lowertable. An elongation scale with least count of 1 mm is provided for measurement of deformation on various samples. Tensile test is conducted by gripping the test specimen between the upper and middle crosshead.Compression, Transverse, Bending and Shear tests are conducted between the Shear tests are conducted between the middle crosshead and the lower table.  Control Panel : The control panel consists of the hydraulic system .complete with drive motor, oil sump, pendulum dynamometer and the load indicating system. Hydraulic System : The power pack has a directly driven pump which generates a maximum pressure of 200 kgf/cm2. he hydraulic pump producs a continuous non- pulsating oil flow. Hence the load application is very smooth. Oil filter, oil stranier, air breather, oil level indicator and drain plug is provided in the power pack. A pressure compensated flow to the main cylinder. This maintains constant rate of piston movement andhence straining rate is kept constant. This valve is hand operated and gives infinitely variable oil flow to obtain different rates of straining. Pendulum Dynamometer : The oil pressure in the main cylinder actuates the special dynamometer system. Pressurised oil in the loading cylinder pushes up the measuring piston proportionately and deflects the pendulum. The piston is constantly rotated to eliminate friction. The system has effective damping arrangement to ensure smooth return of pendulum aftersudden breakage of test piece. This unit permits selection of favourable hydraulic ratios producing relatively small frictional forces. Load Indicating System : This system consists of a large dial and a pointer. Displacement of pendulum actuates the rack and pinion mechanism, which operates the load indicating .pointer. The pointer moves over a large dial indicating the load. A dummy pointer is provided toregister the maximum load reached during the test. Window type dial is provided for easy and clear changing of load range. Load / Elongation Recording System : A continuous roll ( A strip chart) type load-elongation recorder is provided for plotting load-elongation graph. Horizontal movement of the rack produces load ordinate of the diagram and drum rotation to elonga-tion ordinate, in the ratio of either 1:5 or 1:10. Electronic Universal Testing Machine : Construction : AI make electronic Universal Testing machines comprise of a) Loading Unit b) Measuring Control Panel a) Loading Unit : This is similar to standard loading unit of analogue type universal testing machin. In addition to standard features of regular loading unit, a ROTARY ENCODER is attached to the hydraulic ram to get accurate displacement of the ram. b) Measuring Control Panel : This includes,

Electro mechanical drive system for accuracy & high reliability. Digital Display for load and elongation. Design features enables high accuracy testing with economy, speed and versatility. Simple push button controls for ease of operation. Variety of tests-tension, compression, Bending Shear, Low Cycle Fatigue, Fracture. Displacement curve & processed data as certificate. Various models - Max capacity ranging from 1KN to100KN Loading accuracy well within +- 1% PC and Printer interface

We are one of the well reckoned Universal Testing Machines Suppliers based in Maharashtra. The technologically advanced Universal Testing Machines provided by us has been termed as the best available in the market because of the following features. Attributes High Loading accuracy of ±1%Equipped with Training roll autographic recorderPrecise reading accuracy due to large design dialDifferent accessories for different applicationsLoading and unloading by motorized cycleEffective clearance between columnsSimple and easy to operateSafe operations backed by safety devices and mechanismEnclosed and protected pendulum Principle of Operations Hydraulic transmission of load from the test specimen to a separately housed load indicatorReplacement of transmission load; through levers and knife edgesLoad applications by a hydrostatically lubricated ramTransmission of Main cylinder pressure to the cylinder of the pendulum dynamometer system housed in the control panelSelf-lubricating design of Cylinder of the dynamometerThe load of the dynamometer is transferred through a leverage to the pendulumPendulum displacement actuates the rack and pinion mechanism which operates the load indicator pointer and the autographic recorderReturn Pendulum mechanism is effectively damped to absorb energy in the event of sudden breakage of the specimen Machine Consists of Straining UnitControl Panel Power PackHydraulic ControlsLoad Indicator SystemAutomatic Continuous Roll Load - Elongation RecorderMechanical Extensometer - To Measure elongation test specimen under load
