• Depending on the type of the Tensile Testing Machine, different upgradation solutions can be provided• Simple pacakage with "S" type strain gauge type load cell and peak hold indicator to store Peack load at  the end of test• Micro processor based panel with digital indication of load & displacement. Cross head displacement is  measured by using rotary encoder. Results like Peak Load, Max displacement displyed on front panel  display• Up gradation of INSTON/ZWICK or equivalent machine is done by using state of the are package and  windows base software. Controls can be offered by using DC/AC servo drive package, depending on the  requirement• Hot tensile attachment up to 1000 °CSpecial software for tensile applicationsCydic, Hysteresis, Flexural, 3/4 point bending, Shear, Sprang test, Relaxation, any other special software. Evaluating % Elongation : Long Travel ExtensometerMLT-600 is a balanced clip-on type extensometer used to measure strain accuratelly. In association with MCS's control unit, ture extension of the sample with 0.01 mm resolution is directly displayed. The distance between two small clamps attached to the sample is preset to any desired gauge length Cords attached to each clamp transmit the movement to two sensors mounted at the top of the extensometer column. These produce pulses which drive the digital strain display thus detecting strain accurately. This is suitable for rubber and semi rigid plastics. Maximum extension is 600 mm & gauge length continuously MCS make TNE series machines are electronic screw driven machines with precision screw and column construction and variable speed drive. These are high precision, high performance universal testing machines, maximum capacity up to 200 kN. With the help to computer and micro-computer, all the operations from control of load to processing of data are carried out with excellent performance, reliability, flexibility and easy operation.The machines are suitable for studying mechanical behavior of various materials like iron and metals, rubbers, plastics, ceramics, fabrics, composites, cables and wires. As a matter of fact, it is an indispensable instrument for the modern industries. Two options are available mainly acme threaded screw with AC motor drive and ball lead screw with servo drive. The machines confirm to IS, BS & ASTM standards Machine Features :• Computer controlled mechanism under windows 2000/XP• Variable speed drive with DC / AC servo drive options.• Automatic identification and interchangeability of load cells.• Different clamping devices to suit specific test requirement.• Safety interlock by end limit switches and by overload sensing.       TNE Series :Depending upon test requirements and budget, TNE series machines are available with following options.DRIVE - DD :AC motor with thyrister drive to give speed ratio of 1:20 as standardDRIVE - SD :Servo motor & PWM drive to give speed ratio of 1:1000.Economical Models :These machines are with a rigid, stable structure with high stiffness, two columns and a single screw. Machine uses three phase induction motor with fixed speed as standard. A variable speed drive is available as option.Load Cells :Universal load cells of following capacities are available.50N, 100N, 250N, 500N. 1kN, 2.5kN, 5kN, 10kN, 25kN, 50kN, 100kN. Any other load cell as per requirement.Grips and Clamping Device :• Wedge type grips for flat / round specimen.• Compression plate.• Special grips as per requirement.• Vise type grips.• Bending fixture.• Shear attachment. Model TNE-MP :Micro processor based operation Micro processor controlled system with digital display of load and disp. / Extn. Machine operations like speed, crosshead direction are controlled from the control panelControl Panel Features (Panel Control Mode) :• Sealed membrane keyboard with numeric keypad• Predetermined test data can be entered• Digital tare for Load and Reset for Disp / Extn.• Load vs Disp. graph available on Dot matrix printer• Auto scaling br graph plotting at the end of test• Selection of Stop / Return of cross heed and direction• Results include Peak Load, Max. Disp, UTS, % ElongEvaluating % Elongation : Long Travel ExtensometerMLT-600 is a balanced clip-on type extensometer used to measure strain accurately. In association with MCS's control unit, true extension of the sample with 0.01 mm resolution is directly displayed. The distance between two small clamps attached to the sample is preset to any desired gauge length. Cords attached to each clamp transmit the movement to two sensors mounted at the lop of the extensometer column. These produce pulses which drive the digital strain display thus detecting strain accurately. This is suitable for rubber and semi regid plastics. Maximum extension is 600mm & gauge length continuously variable. Model TNE-MP (PC) : Computerised OperationMCS-MP panel is connected to computer through RS-232 port the control is transferred to PC and with the help of windows based application software, complete testing can be performed. This system has two modes of operations, Panel & PC ControlSoftware features :• System is independent of the type of computer used• Supports windows XP/7• User friendly windows software for complete test control• Real time graph with online display of load, disp / extn.• Wide range of input / output data selection• Unit interchangeability for input and result as per standard• Extensive graphics, curve fitting, zooming• Results include Peak Load, UTS, Max Disp. % Elong. Area under the curve, % Red. in Area, Yield and & Proof Stress• Multi graph load vs disp. stress vs strain, load vs % ElongEvaluating Proof Stess : Electronic ExtensometerMCE-2 is strain gauge type extensometer to measure material extension with a resolution of one micron. It is designed to be clamped directly on specimen. This is used to measure strain up to elastic limits to determine important parameter like 0.1% to 1% proof stress and youngs modulus. MCE 2 has two fixed gauge length of 25mm & 50mm. Change of gauge length is by means of replacing button knife-edge extender. MCE 2 is fabricated from high strength light weight aluminium with a durable anodized finish the knife-edges are made from oil hardended tool steel to with stand heavy usage. The sample need not ne machined Supports maximum dia of 40mm & maximum extension 2mm suitable for round, flat pipe and torsteel application

Mechatronic Control System is engaged in manufacturing Tensile Testing Machines in the range of 2T, 2.5T and 5T. Tensile testing machines are available in mechanical, electronic & computerized format and are suited for studying mechanical behavior of different material such as metals, polymers and elastomers. Mechatronic Control System manufacture TNE series machines tat are electro mechanical screw driven machines with precision screw and column construction. Tensile testing machine can be availed in variable speed drives and tow options. The model most preferred by our clients is the acme-threaded screw with DC motor drive and ball lead screw with servo drive. TNE SERIES TNEseries machines are available with following options Depending upon test requirements and budget, best combination can be selected. DRIVE - SD: Drive dd is with DC motor with thyrister drive to give speed ratio As per sample std. Requirement. DRIVE - SD: Drive SD is with servo motor & PWM transister drive to give speed ratio As per sample std. Requirement.

Capacity 0.5 kN - 60 kN Mechanical, Electronic & Computerized versions available Useful for testing various materials like metals, springs, rubber, polymers, etc. Customized holding fixtures available

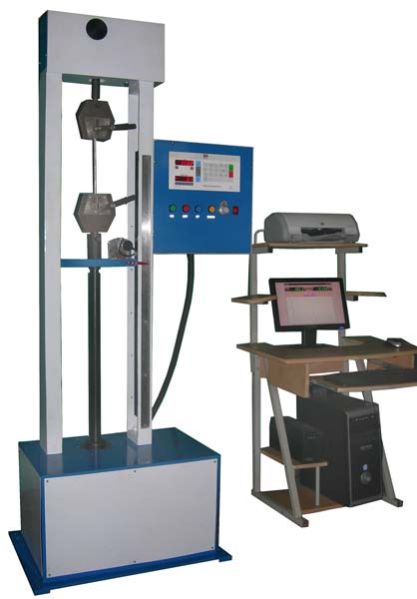

We are Manufacturer, Supplier, Exporter of all our product range and our setup is situated in Kolhapur ( Maharashtra, India )   Features These models are suitable for testing metals and iron, Plastics, Rubber, Ceramics, Fabrics, Composites, Cables and wires. Load is measured through a strain gauge based Load Cell and elongation is through rotary encoder. Depending upon the customer’s requirement a suitable type of grips are available. Extra Load cell can be offered suitable for low load samples. Software Features   Menu driven form system with color graphs to compare sample test results. Test details and reports are stored in database User programmable master test templates User can select test from master test Templates and can start similar test Load and Elongation is continuously displayed on screen Overload protection for machine by electronic control Tare Load and Reset Elongation facility available User selectable sample break detect condition Load rate and strain rate are also displayed while testing Unlimited Load rate and strain rate control steps With Load rate controller, user can hold the load on specimen for unlimited time With Load rate control, user can specify positive or negative Rate of Loading User selectable units for load and displacement (kg, kN, N, Ibf, mm, cm, inch etc.) Results and graphs are automatically displayed accordingly. On line display of Load and Displacement (Stress, Extension, Strain) etc. while test is conducted Provision of auto zeroing of Elongation at preload set by user User Programmable Reports. User can select Header, Footer, Specimen information, Dimensions, Test information, Test results, Stastical analysis as per his need. Generated reports can be exported to PDF file and can be e-mailed If electronic extensometer is used then proof stress values from 0.1% to 1% can be determined Software will give alert to user to remove extensometer when load crosses .2% of Gauge length selected then proof load value is calculated. (With extensometer) Separate graph of extensometer and encoder is displayed Provision of calculation of Load and Elongation at yield, Peak load and Load at break, Yield stress, Ultimate stress etc. Special software for tensile, compression, bend, TOR steel and other test software as per customer requirements

Electronic Universal Testing Machines - Model : UTE Features : Loading accuracy as high as + 1%. Straining at variable speeds to suit a wide range of materials. Printer & PC graphs enable study the behavior of the materials. Motor driven threaded columns for quick effortless adjustment of middle crosshead to facilitate rapid fixing of test specimen. Continuous roll autographic recorder supplied as standard to enable study of the behavior of materials Simplicity in reading because of digital readouts. Wide range of standard and special accessories, including load stabilizer. Easy change from plain to threaded and screwed specimens. Large effective clearance between columns enables testing of standard specimens as well as structures. Simple controls for easy of operation. Robust straining frame of an extremely rigid construction. Safe operation ensured be means of safety devices.
