MICA STRIP / PLATE HEATER Nichrome ribbon wound on mica former & insulated with mica sheet. which is then sheathed in MS Plated or SS sheet. CERAMIC/REFRACTORY PLATE/STRIP HEATER Heating coil supported in Fluted Refractory insulaters & sheathed in SS/MS Plated sheets. FINNED STRIP HEATERS Basically Finns are fitted tightly on the Heavy Duty Strip Heaters for fast transfer of heat to flowing air.   Application : Dies, Molds, Plastic Forming and Sealing, Tank and Kettle Heating

Spiral Finned Heaters provide the heat transfer efficiencies similar to the rectangular finned elements. We offer the Finned Heaters in various dimensions and keeping in view clients requirement. The Spiral Finned Heaters we supply are produced maintaining the quality standards and are in high demand in the market. Range Spiral finnedPlain finned

we cater to the seasonal demand to a continuous one as well. We keep records of the products to make sure that the range is kept safe in our spacious warehouse. We are trained enough to execute the packaging of the products systematically.

Ideal for forced air systems, heat pumps, tempering air in A/C systems, convection heating, incubators, drying ovens and food warming. Seamless 304 stainless steel tube provides the combination of physical strength and resistance to high temps and chemical corrosion which adds heat-dissipating fins to the outer sheath to provide efficient heating.

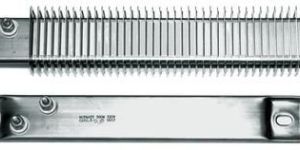

The basic element used in finned strip heaters is strip heater with locked-on fins.  This finned strip has a large surface that provides fast heat transfer to air.  The large range of finned striped heater provides a wide range of air blast and convention.  This heater is best to be used for mounting across air steam with-in forced air ducts,  blower units, ovens, dryers, principally duct and original equipment

Ceramic Refractory insulated Strip heaters are sheathed in rust-resistance steel or in stainless steel sheath as it provide physical strength and good thermal conductivity. Specially selected and designed ceramic insulator houses the resistance wire insulating it from the outer sheath. Finned strip heaters are used for both forced (mounted in ducts) and natural convection air heating (mounted at the bottom of cabinet type oven). The fins provide maximum surface contact for good heat dissipation into the finned cross section thus resulting in rapid heat transfer to the air.

DIGUQAL’S Finned Strip Heaters are made of helically wound resistance coil evenly stretched and strung through series of ceramic insulators. Resistance coil is mechanically connected to screw terminals or lead wires for positive connection. The element assembly is electrically insulated and covered by metal sheathing. Heater MOC Will be of Galvanized Iron.

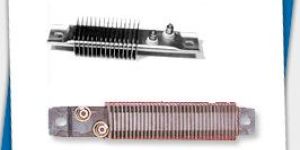

Providing improved heat dissipation, our Strip Finned Heater is suitable for heating gases, solids, and fluids through conduction. The company is the well-known Strip Finned Heater Manufacturer, Exporter, and Supplier in India. The Strip Finned Heater can be acquired from us in customized forms at affordable prices.

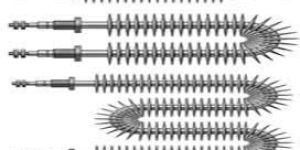

Finned tubular heating elements are of the type where the surface area is enlarged by a strip in order to heat gases. At high power the surface temperature is small and the heating element is short.MATRUSREE’s Finned Tubular Heaters are manufactured with the same rugged construction as the standard Tubular Heaters except a MILD STEEL ELECTROPLATED or a corrugated 304 STAINLESS STEEL FIN is helically wound on Heater Tube diameter (304 stainless steel) element. To insure a permanent bond, each end of the fin is fully brazed to the Heater sheath, for optimum heat dissipation and efficiency, as Brazed fins transfer heat at about double the efficiency of unbrazed designs. These heaters are ideal for heating air and select gases in forced and natural convection applications. Features: Possible Tube & Fin diameters: Heater OD: 8.2mm 11.2mmFin OD: 28mm 30mm Stainless Steel (Fin) sheath models are suitable for operating temperatures to 425 °C. Mild Steel (Fin) sheath (Electro plated) models are suitable for operating temperatures to 300 °C. Watt density: Max up to 35 w/in² High Temperature grade magnesium oxide insulation imbeds the resistance wire coil for optimum heat transfer & Dielectric Strength. Mounting fitting available with Standard Bracket or Threaded Nipple arrangement.( Standard and custom options available) Several wattage and voltage combinations are available. Application: Designed for rapid and uniform heat transfer for forced air heating. Temperature boosting. Channel air heaters for air conditioning and drying apparatus. Industrial Ovens and Cabinets. Duct Heater Assemblies. Resistive Load Banks.

We are a noteworthy name, engaged in offering qualitative lot of products that are the perfect outcome of premium material and modern work methods. Also, the material is sourced from the trusted places after complete quality checking. Dedicated towards bringing forth the finest and premium quality Finned Strip Heaters, we are a well-established Supplier in this domain.

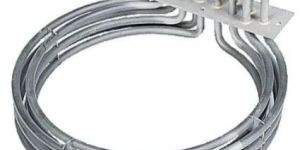

We are engaged in providing clients with superior quality Finned Tubular Heaters. Finned Tubular Heaters are designed using quality materials which are sourced from trustworthy vendors. At each stage of fabricating Finned Tubular Heaters, stringent quality checks are carried out to ensure that only flawless product is sent to the market. Avail from us Finned Tubular Heaters at cost effective prices and that too in secured packing.

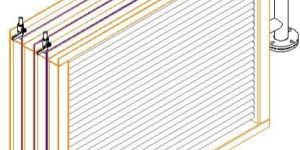

We cater finned tube heat exchangers which are designed as per the international standards and requirements of the clients. These exchangers can be employed for cooling or heating of air or other gases which flow in a duct or cooling of water and other liquids using air. Also, these units are provided with aluminum extruded finned tubes. These finned tube heat exchangers are manufactured with copper, aluminum, stainless steel, admiralty brass, carbon steel. In this type finned tubes the fin gets mechanical bond with base tube. And there will not be any air gap between the fin and the base tube. It results there is no heat loss in this type finned tubes and heat transfer will be 100%. So the performance of the heat exchanger will be increased. Finned tube heat exchangers are used in the following industries: food processing industries, textile industries, sugar industries, drier industries, cement plant industries. Following are the main features of radiator: â· higher heat transfer performance â· easy to clean with a high pressure water jet without deforming the fins â· 100% fin-to-tube bond providing exceptional efficiency and longevity â· excellent corrosion protection on the base tube

Girish Electrical Industries manufactures 'Girish Heat' brand finned strip heaters (refractory insulated). These heaters are made of Kanthal wire element supported in fluted refractory, which is sheathed in rust resisting steel.

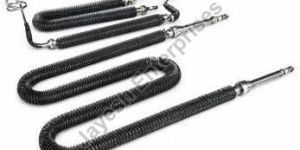

Finned heaters or finned tubular heaters are the electrical finned heating elements used in a variety of heat applications. While constructing and designing the tubular heaters, one needs to use the finest material such as stainless steel, Incoloy, Inconel, titanium alloys or steel. This material is decided based on the application of the material such as steel for alkaline cleaning solutions, incoloy for degreasing & cleaning solution, stainless steel for food processing equipment etc. These heaters can be of any size and shape based on your requirement. High-quality MgO (Magnesium Oxide) is also used for efficient heat transfer from resistive coil to your medium either it is air, liquid or solid. Specification of Finned Heaters: Superior internal electrical insulation and heat conductivity Available in a broad variety of sheath materials (corrosive or noncorrosive), heating element watt density, diameters, and ratings whereas standard diameters are 0.260 inches, 0.315 inches, 0.375 inches, 0.430 inches, 0.475 and 0.625 inches. Maximum Sheath Temperature range: 455°C (850°F) Durable Easy to maintain Precise and easy control of heat output Application of Air finned Tubular Heater: Drying Heat Treating Load banks Curing Annealing Features of Tubular heater: Versatile: ideal for comfort and industrial process air application Fins: permit quick heat transfer to the air Easy Installation: Tubular heater can be designed in such a way that it could fit as round or rectangular ducts in the appliance. Tubular air heaters are used for the heating of air (stoves), for ventilation and air conditioning devices, pipelines and annealing. Before purchasing tubular air heater, specify your use with the following details: Now a days many examples can be seen in the market for household works like electric heater which are easy to carry as well as they are small heater, as well as oven heaters or we can say electric oven heating element. All these type of gadgets are used in heating and known as heating element. The requirement of Tubular Heater: Watt density of heating element Sheath material with temperature, the degree of aeration, air velocity, the ambient temperature of the product. Custom bends Once you finalized the following things, you could ask for a quote and if it meets your need – Order It! If you want to ask something, or you have any query then please contact us to know about the product. Product Details:   Minimum Order Quantity:    6 PiecePower(Watts):                            As per requirement of applicationVoltage:                                         As per requirement of applicationSize:                                                As per requirement of application   Wattage/power:1500 watt to 30000 KW. Ambient Temperature: up to 400°C. Material: carbon steel with nickel plated. Operation Running Voltage: 220 volt, 240 volt, 480 volt, 600 Volt.

Want to obtain Finned Heaters at market's lowest prices? Deal with us. We are famous supplier of Finned Heaters We make sure the ranges of product we offer purchasers with are as per global quality management standards.

Mechanically-bonded continuous fin assures excellent heat transfer and helps prevent fin vibration at high air velocities. Several standard formations and mounting bushings available. Standard fin is high temperature painted steel with steel sheath. Optional stainless steel fins or Galvanized iron fins with sizes.Features : Mechanically-bonded continuous fin assures excellent heat transfer and helps prevent fin vibration at high air velocities. Several standard formations and mounting bushings available. Standard fin is high temperature painted steel with steel sheath. Optional stainless steel fin with stainless steel or incoloy sheath for corrosion resistance. 120v, 208v, 240v, 480v available. Maximum Sheath Temperature 750F (400C) - Steel 900F (480C) - ST.ST./Incoly
