Flange Adaptors Dealers

Design Variations Type A (unrestrained): User provides restraint to hold pipe sections together Unit provides leak-free adjustable joint Type B (integral restraint): Stanely Material and Metallurgical Testing Laboratory flange adaptor provides both pressure-rated integral restraint and leak-proof adjustable joint Accessories Stanely Material and Metallurgical Testing Laboratory can also provide gauges, hoses, manifolds, valves, regulators and control panels for all of your peripheral needs.

We cater a wide range of flawless quality Flange Adaptors that conforms to the international standards of quality. Seeking the huge popularity of our Flange Adaptors in the markets, we also design them as per the specifications of the clients. Salient Features Fabricated from the premium quality materialsDimensional accuracyEfficient performanceDurable and reliableUnmatched qualityCorrosion resistant Available in Different sizesDiameter up to 3000mm Applications Water channeling plantPetroleum industryChemical industryIron industrySteel industry

MOC : Gunmetal Stainless Steel Sizes : 1½" to 5½" Test Pressure : 21 Kgfcm² Finish : Buff Polished Guarantee : For the period of 12 months from the date of supply. Prices available on demand.

Gaskets: EPDM Compound Grade 'E' to BS EN 681-1:1996 suitable for water, sewage, many strong oxidizing chemicals & food applications or Nitrile compound Grade 'G' to BS:2494:1990 Grade G suitable for natural gas, petroleum products. Low aromatic fuels, compressed air, sewage & drainage. Stud & Nuts: Steel fastener to Grade 6.8 (SS available on request)

Introduction FAV Flange to tube adapter ensures Direct Connection from flange pipe to Tube ,with One Piece Machining and availability in variety of materials its best to buy from FAV. They are also know Tube Fittings Flange adapters or simple Tube Adapters .We offer full customization to suit exact needs for Clients. Flange End FAV Flange to tube adapter meet ASME, DIN, EN, and JIS standards depending on clients requirement.Range of flange sizes and pressure classes available.Full range of sealing faces for Flanges  including flat face, raised face,RTJ, and tongue-and-groove  .Nominal flange sizes from NPS 1/2 to 2 in.Pressure class ratings from 150 to 2500. Tube End The tube end can be Metric and fractional  from 3 to 50 mm and 1/16 to 2 in . Double Ferrule and Nuts are provided at the Tube end as per standard .Nuts are silver coated . Material FAV Flange to tube adapter is available in Stainless Steel, Brass, Steel, Monel, High Duty Bronze, Hastelloy C, Incoloy, and Inconel 600. Construction We make Flange to Tube Adapters in Single Piece Construction resulting in excellent performance and long life .   Features of Flange to Tube Adapter 1) Direct transition from flanged pipe to Tube 2) One Piece Machining for best performance 3) Flange as per ASME, DIN, EN, and JIS standards 4) Available in 316 stainless steel, 304 stainless steel, Duplex .Hastelloy C-276, Inconel, Monel 400 and Monel 500,Incoloy .5) Excellent Delivery time 6) Competitive prices with quality on par with substitute brands 7) Raw material and semi-finished components in Stock

Prv industries adapters and crossovers are available in high quality forged construction with threaded, integral & welded hammer lug union end connection.

We are engaged in manufacturing and exporting an enormous array of flange adaptors which is meticulously designed and fabricated by our in-house team of quality controllers. The finest quality flange adapters are specially fabricated by industrial experts adapting innovative production process that assisted us to provide the complete satisfaction to our most valued customers. Our comprehensive range of flange adapters are complying with industrial quality standards so that we have carved a niche for ourselves. As a reputed flange adaptors manufacturer and exporter, we have gained a lot of admiration from the worldwide customers and most acknowledged due to its efficiency, durability, reliability of our most usable flange adaptors. We are rewarded by the repeated orders of our esteemed customers because of our unmatched quality products.

We are offering flange adapters are manufactured to suite plain ended steel, cast and ductile iron, pre stressed concrete, imperical and metric asbestos cement, rigid pvc pipe and glass fiber pipe. They are also suitable for stainless steel, aluminum alloys and generally all rigid plain-ended pipe materials. Manufacturing methods are sufficiently flexible to enable production to virtually all british, european and international dimensions in the size range. For steel and pvc pipes up to 1016 mm (40 in ) o.d. With flanges drilled to np 10 and 16 intermediate sizes and alternative drilling (e.g. Asa) available 355.6 m (14 in ) and above on request. For the continental market the number of holes for 80 mm nominal (88.9 mm o.d. ) to be confirmed when ordering. The flanges on these adapters are in accordance with b.s. 4504 ( flat face ) except for 550, 650 and 750 mm nom and are compatible with most continental standards.

API Weld Neck Flanges Hammer Unions Pup Joints API Blind Flanges API Adapters API Instrument Flanges API Expander Flanges Block Elbows, Tee’s & Crosses Studded Blocks Double Studded Adapters Stand Pipe Manifolds Wireline Adapters Pumping Spools

Stub shaft adaptors for use with SO and SX sprag clutches providing a mounting stub shaft for mechanical elements such as chainwheels, couplings, gears, pulleys, cams, levers, etc, when the size or configuration of these parts does not allow bolting holes to be drilled to match the existing tapped holes in the clutch. Features Extended stub shaft used to fit couplings, chain pinions, gears, cams and index lever arms to standard sprag clutches giving extra design flexibility Can reduce the overall dimensions of the combination drive package, thus allowing a more compact size. Applications Fan drives Paper machinery Pump drives Textiles

The flange adaptor is the most basic type of dismantling joint. On one side, it has a flange connection in accordance with the required flange standard, on the other an insertion socket for the pipe. A variety of standard pipe types can be connected. flange adaptors are available for a variety of pipe types. The anti-torque bolts also make the flange adaptor suitable for a fast “one-man installation”. There are two types of Flange Adapters 1) Weldable Type Flange Adapter 2) Flange Type Flange Adapter The ANANT is equipped with two flanges and one follower end-ring. This design offers optimal gasket control with the separate stud bolts applying pressure to the gasket independently of the tie-rods making the flange connections. This allows a reduction in the number of tie-rods required as their function is restraining only. The AEF - WFA comes equipped with 25 % tie-rods for PN 10 and PN 16 and 50 % tie-rods for PN 25 and PN 40 applications.The AEF - WFA also makes an unrestrained set-up possible. Here no threaded tie-rods are used allowing the dismantling joint to act as a limited expansion joint absorbing noises and vibrations in the pipeline. This variant requires a fixed point in the pipeline. Anchoring is required if the pipe end can be pulled out of the dismantling jointBoth versions of the AEF - WFA are available in the pressure ratings PN 10, PN 16, PN 25 & PN 40 and in nominal sizes of DN 50 to DN 1600, with a standard longitudinal adjustment of ± 25 mm. Connection flanges to any standard are available upon customer request. Larger nominal sizes, higher pressure ratings and non-standard build lengths are also available on request. The AEF - WFA with four flanges and 100 % tie-rods is the ultimate solution for challenging installations. The additional flange results in an increased construction length which makes it possible to slide the threaded tie-rod between end flanges during installation and removal. The AEF - WFA is also suitable in situations where the overall space only just corresponds to the construction length. This allows sideways insertion making the AEF - WFA ideal for cases where the connection flanges are fixed e.g. where pipes protrude out of the wall.The additional flange also makes a time-saving preliminary installation of valves possible. The valve and dismantling joint can be fitted together in the pipeline assembly which are then fitted and clamped together (and removed again) together with the dismantling joint. A further advantage is the continuous threaded tie-rods on one side which makes it possible to remove the valve only.The AEF - WFA can be locked at the required length with adjustability of± 25 mm when installed in pipelines. Connection flanges can also be delivered according to different standards.

We are engaged in manufacturing and exporting an enormous array of flange adaptors which is meticulously designed and fabricated by our in-house team of quality controllers. The finest quality flange adapters are specially fabricated by industrial experts adapting innovative production process that assisted us to provide the complete satisfaction to our most valued customers. Our comprehensive range of flange adapters are complying with industrial quality standards so that we have carved a niche for ourselves. As a reputed flange adaptors manufacturer and exporter, we have gained a lot of admiration from the worldwide customers and most acknowledged due to its efficiency, durability, reliability of our most usable flange adaptors. We are rewarded by the repeated orders of our esteemed customers because of our unmatched quality products.Flange adaptors allow flanged fittings and valves/meters/pumps to be installed in plain ended pipe systems.This flange adaptor offers the same advantages as the LEELA sleeve pipe couplings — and more. The flange adaptor is the ideal solution for connecting valves and pumps in your piping system, absorbing damaging stresses that are transmitted along the pipeline and eliminating costly downtime for repair. Also the flange adaptors can be installed quickly and easily.Adaptors are supplied standard flat faced (Fig. A). Raised face flanges are supplied upon request. Flange drilling can be made according to all international flange specifications.STANDARD FLANGE ADAPTORSThese are available in three basic styles with different sleeve designsA. Straight Sleeve The standard flange adaptor has a straight sleeve and a flat face. The PCD for the flange drilling varies according to the pressure rating of the flange as well as it’s nominal size.B. Expanded Sleeve Generally for use with very thick walled pipe such as asbestos cemen or concrete. The expanded sleeve can also be used when the nominal sizes of the flange and the pipe are different ( e.g. connecting 250NB/12" nom. pipe to a 200NB/8” nom. valve)C. Tapped flange As an alternative to the expanded sleeve, mismatched components may be joined using a tapped flange (Fig. D ). It has a straight sleeve giving a greater pipe insertion length, especially important when the system is subject to excessive movement or temperature fluctuations. Studs, instead of bolts, are used to make the connection to the mating flange. Dimensions B on Fig.D varies with the flange thickness‘t’, relative to the tapping diameter.LEELA flange adaptorsMATERIAL SPECIFICATION Flange adaptor - Rolled steel section - Mild steel plate, BS-436D, IS- 2062 GR-A 1992. OR graded grey cast iron IS- 210 FG- 260 grade 20/25, OR SG Ductile iron To BS- 2789, grade 420/12. End flange - Rolled steel section - Mild steel plate, BS-4360, IS-2062 GR-A 1992. OR graded grey cast iron lS-210 FG-260 Grade 20/25, OR SG Ductile iron to BS-2789. grade 420/12. Bolt & Nut - BS-970, IS-1367-1980. Rubber - Nitrile as standard. EPDM/Natural/Silicon/Viton are also available. Coating - Flange adaptor body, middlering, endrings are coated epoxy. Bolts & nuts are zinc plated. If coating reqd. Other than this please specify.

We offer a comprehensive range of Flanged Adaptors that are specially designed as per the clients’ specifications. Our product is unmatched in terms of quality and functionality. We dispatch our product only after stringent tests has been conducted on it on various parameters of quality. This is to ensure that our clients get a flawless range. We ensure proper packing of our products as well as its safe delivery. The durability of the adaptors is per the international standards. Available in different sizes & diameter up to 3000mm as per relevant Indian Standard Specifications or equivalent British Standards or American Standards Delivery Conditions: Epoxy paint as per customer requiremnt.

We are one of the most sought-after Manufacturers and Suppliers of Flange Adaptor, in India. They have high tensile strength as these are manufactured using the quality tested metals and alloys. Our Flange Adaptor is extensively used in pipeline flow, pressure and temperature control of activities like petrifaction, metallurgy, environmental protection, energy management, etc. It is also used in water cooling systems as well as fire-fighting systems.

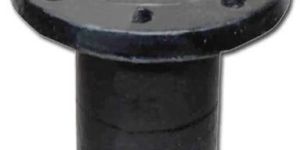

Product description: Design: As per registered Copyright Designs. Copyright design no. : A - 101798 / 2013 dt: 05.07.2013 Material of Construction: In DI (Ductile Iron) as incorporated in ISO & Indian Standards. Material of Sealing Rubber Gaskets: EPDM Polymer - Type 3 of IS: 5382/1985. Hydraulic Testing: As incorporated in Indian Standards / as required by the client.
