Gasifier Dealers

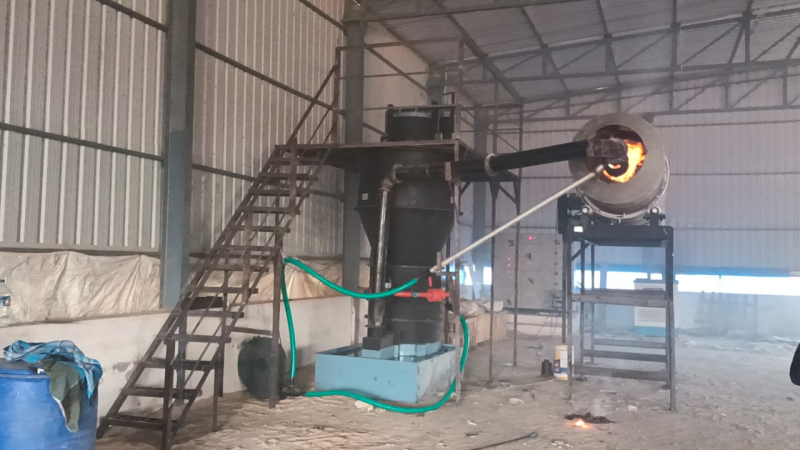

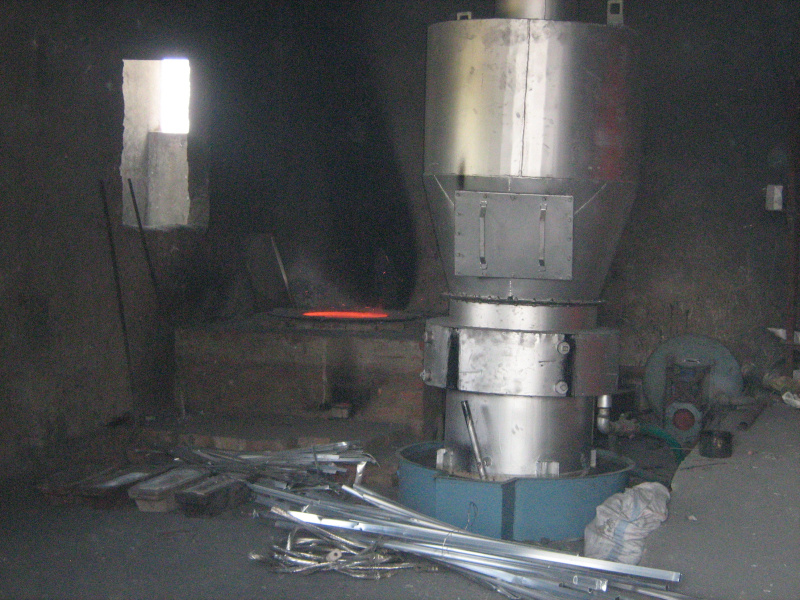

Thermal gasifier is a green energy device to replace oil or lpg burning using biomass as fuel. gasifiers save huge fuel cost compared to oil or lpg burning. These can be operated 24 hours suiting furnace applications.

It is a product which is used for drying any type of Biomass Dryer material, such as, wood, wood-waste, corn wastes, coconut shell, rice husks, agriculture residue, etc. The purpose of this dryer is to reduce moisture content of the biomass material to a minimum level, so as enable the cleaner, efficient and controlled combustion of the biomass with high calorific value, when fed into the Gasifier for the gasification process.

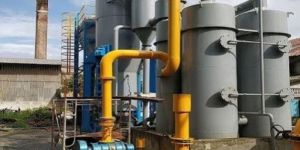

Agricultural activities generate large amounts of biomass residues. Crop residue, traditionally considered as “ trash’or agricultural waste, is increasingly being viewd as a valuable resources. Corn stalks, corn cobs, wheat staw, and other leftovers from grain production can be used as feedstock in our biomass gasifier system.

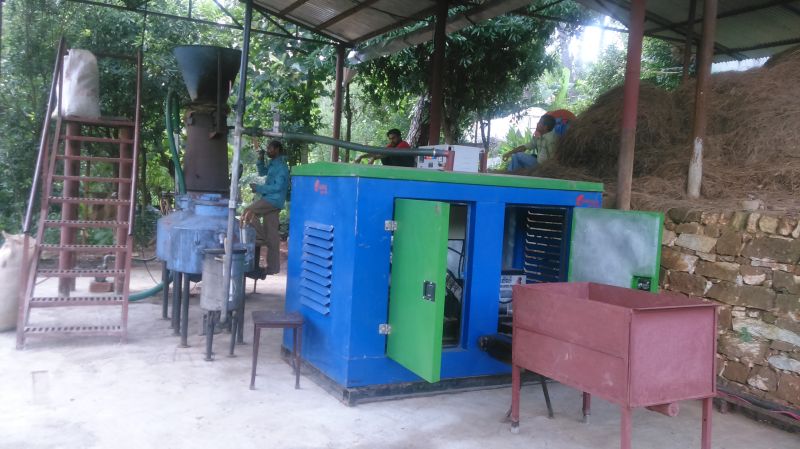

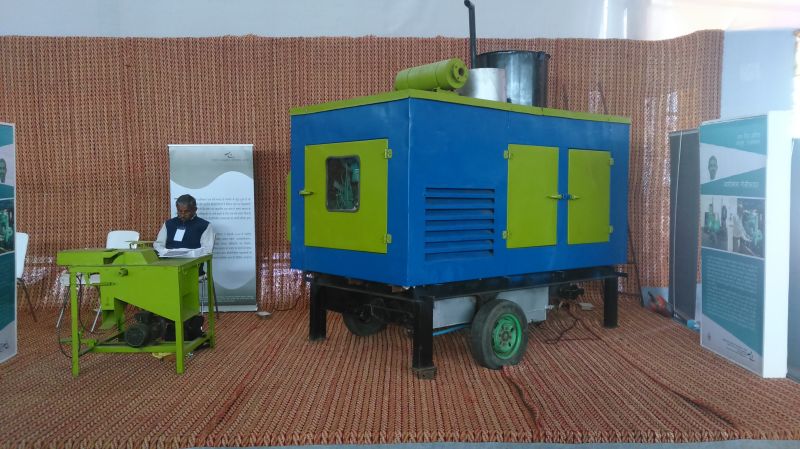

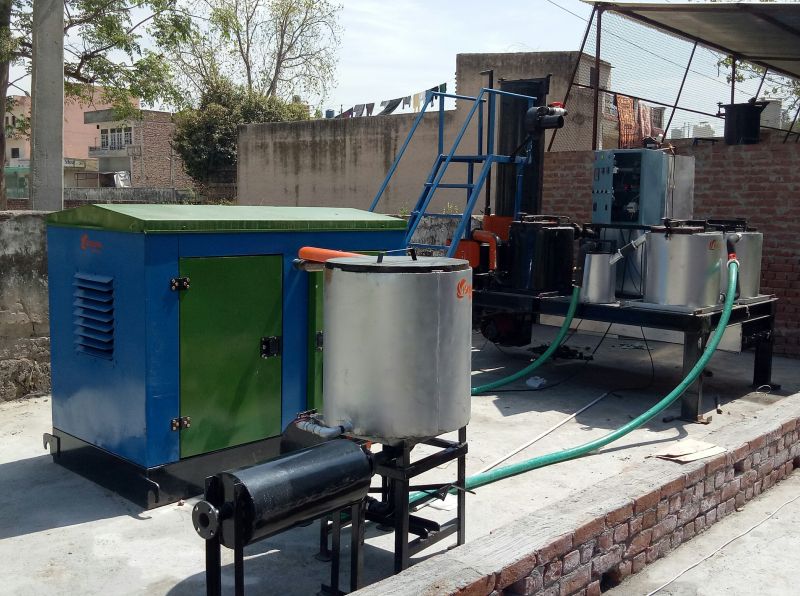

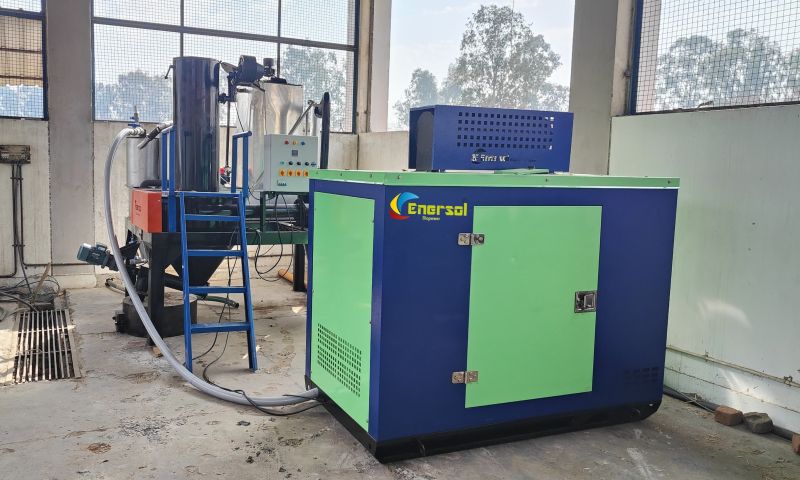

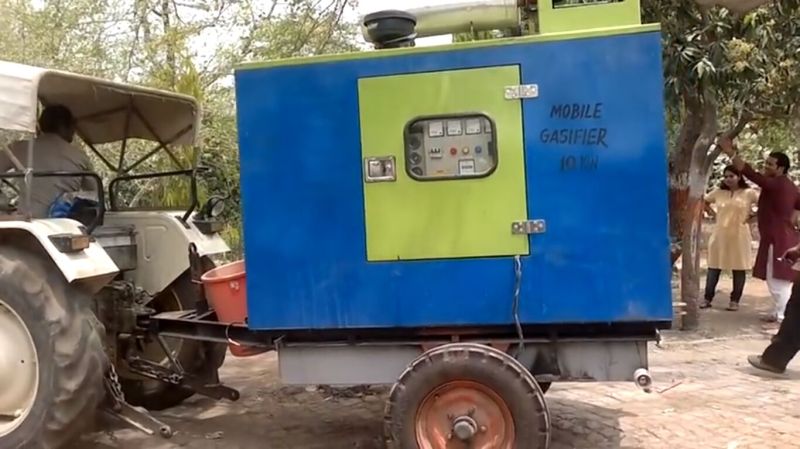

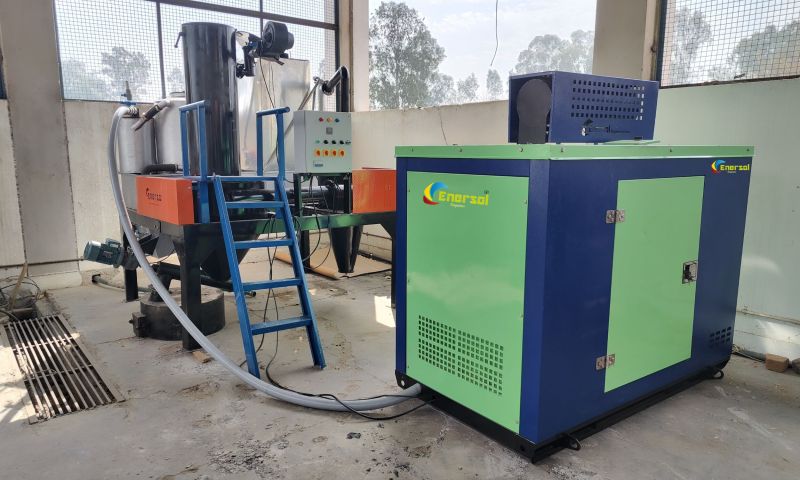

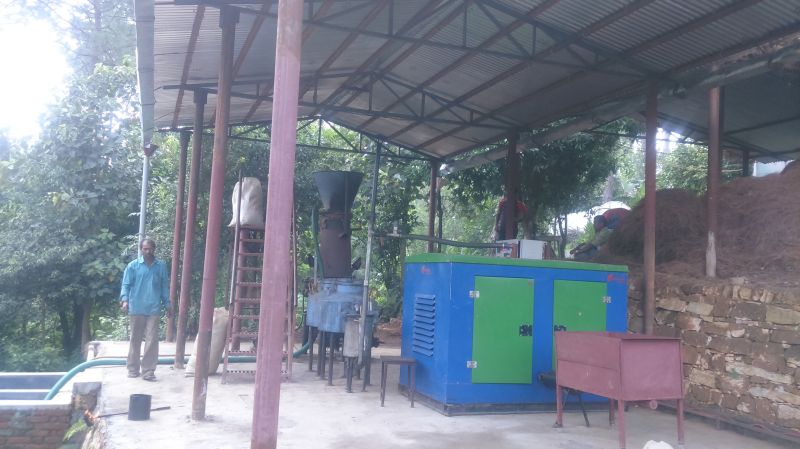

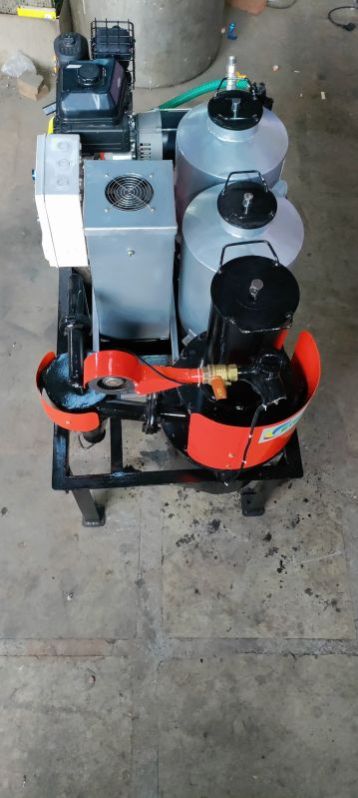

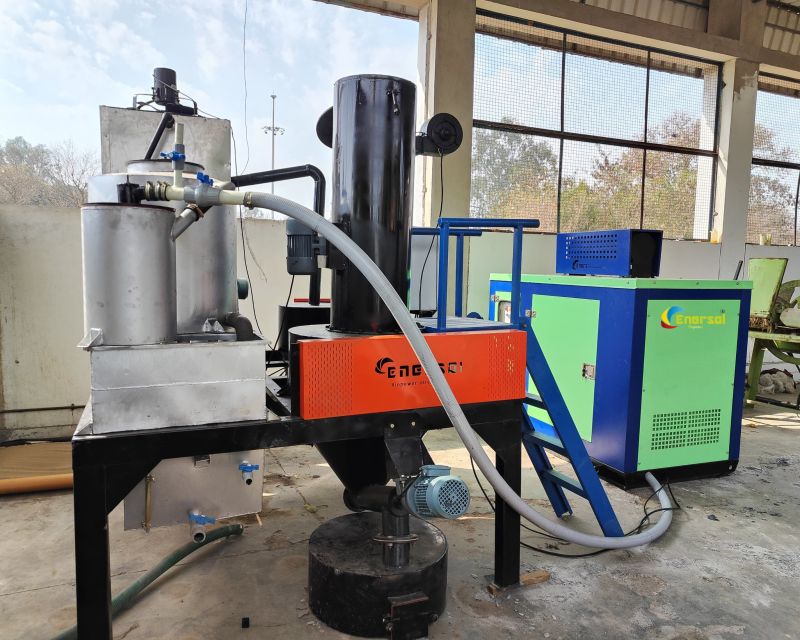

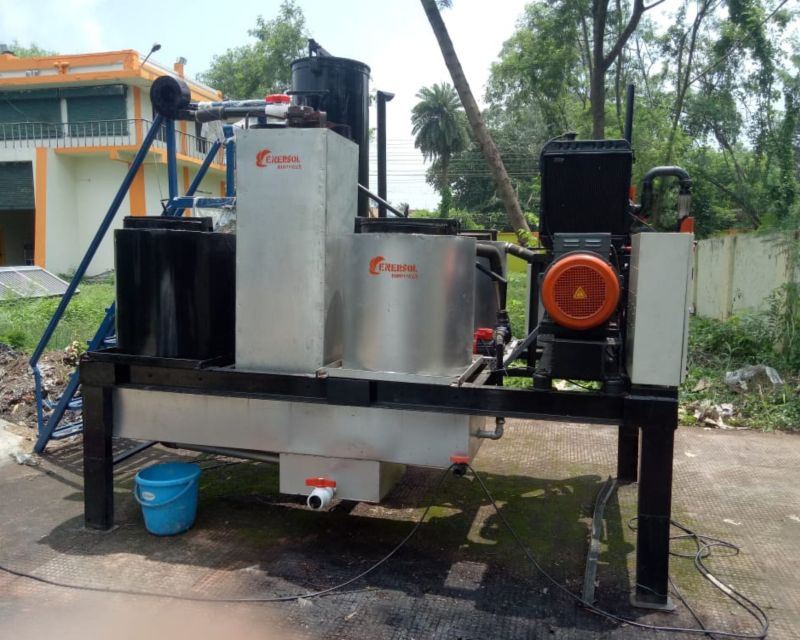

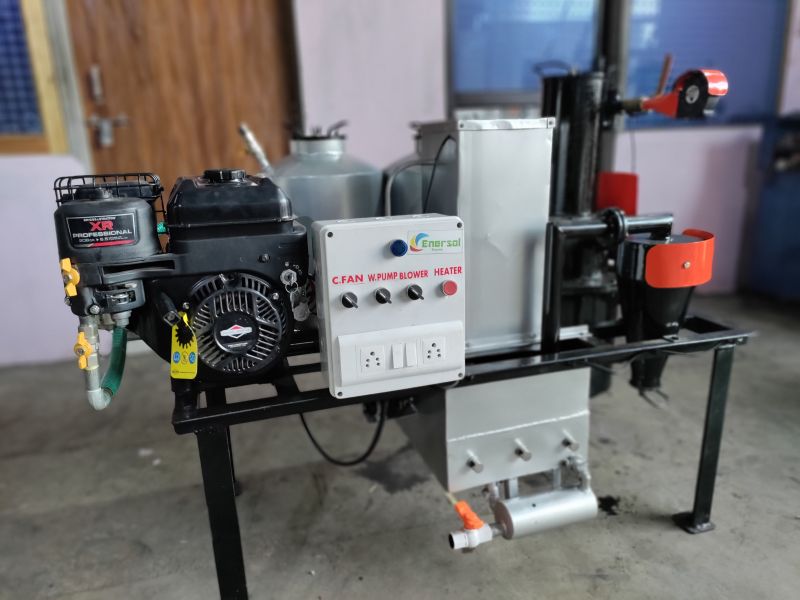

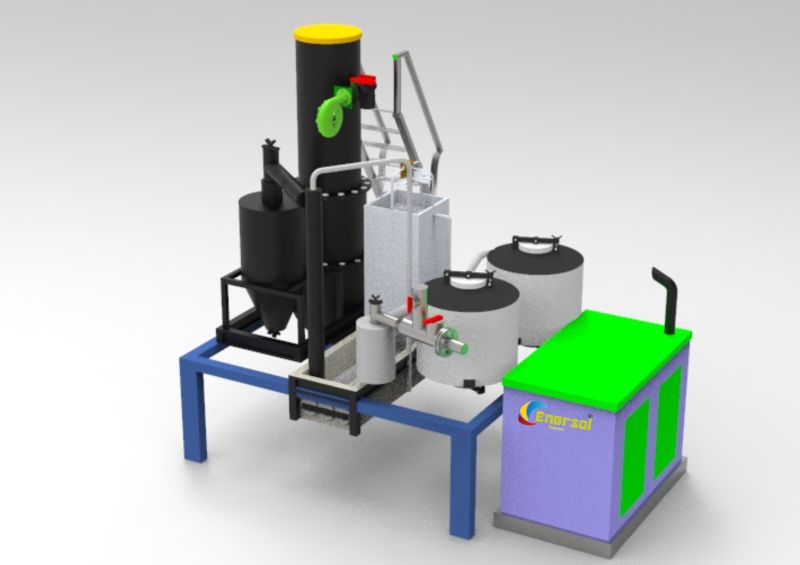

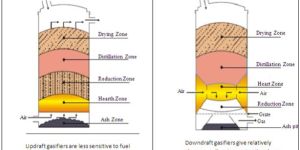

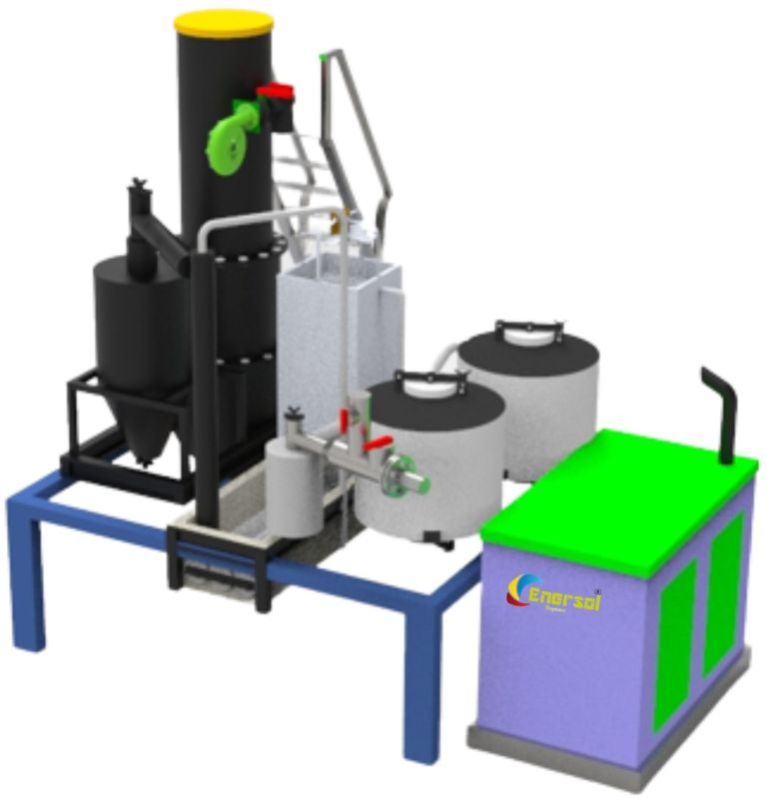

Specifications Gas after filteration is feed to engine. Problem addressed: There are lots of villages in the country which are still not electrified or are receiving power erratically. Given the limited global supply of fossil fuels, search for renewable energy has been on the top of the sustainability agenda.  Biomass gasification, a century old technology, is viewed today as an alternative to conventional fuel. In gasification process, wood, charcoal and other biomass materials are gasified to produce so called producer gas for power or electricity generation. Mr Rai Singh Dahiya observed that the users of biomass gas (producer gas) as a fuel generally complain about choking in the engine after running for a certain period of time. He solved this problem     Product:  The innovator has changed the conventional design of gasifiers specially the filters and cooling units to get clean gas and ensure smooth operation of engineat low operational cost. It is a down draft typebio mass gasifier, compact and efficient system for converting Bio Mass into producer gas which is used as a fuel in running Diesel Engine by making  little modification on engine.  The Biomass is burnt  in a furnace packed from all the sides and having one outlet to pass the gases to other chamber where these gases are cooled and then passed through the filter for filtration. This filtered gas is then feed to the engine, as a substitute to diesel or like  other fuel, for its running.    Technical specifications :  Capacity-5kw to 50 Kw, Three Phase, P.F. 0.8, water cooled, Two Cylinder, four cylinder, six cylinder and eight cylinder Self Start, Alternator with complete standard accessories (without Battery).

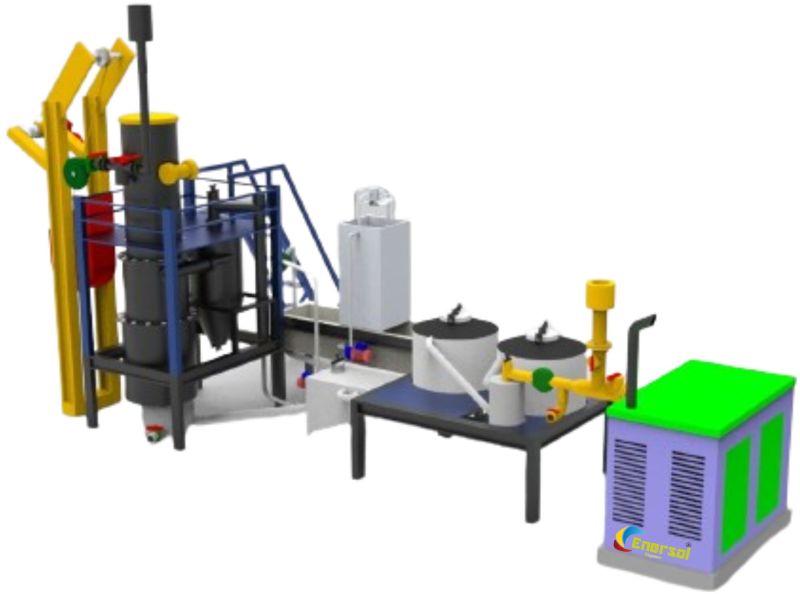

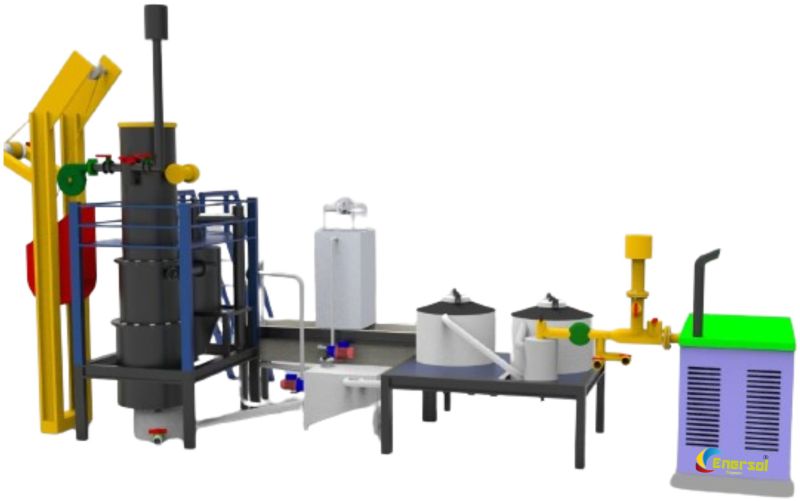

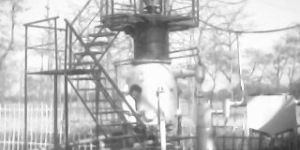

Fixed bed updraft gasifier when supported with cyclone separator, wet scrubbers, bag filters, electrostatic precipitator etc. can deliver clean producer gas which can be used to fire I C Engines which in turn can generate electric power when coupled with generator.

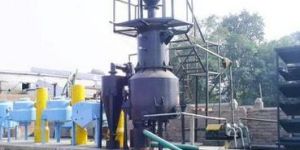

Biomass gasifier Biomass materials are used since millennia for meeting myriad human needs including energy. Main sources of biomass energy are trees, crops and animal waste. Among the biomass energy sources, wood fuels are the most prominent. Presently, the biomass sources contribute 14% of global energy and 38% of energy in developing countries. Biomass gasification has some better advantages over other alternative energy sources. The technology's conversion efficiency is high. It can be applied over a wide range of output metrics with only a small variation in overall efficiency and investment.

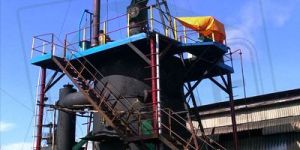

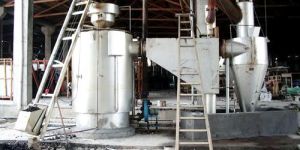

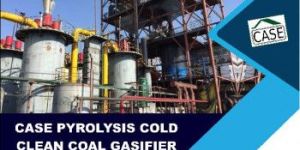

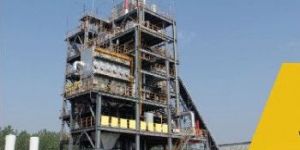

We are reckoned as a prominent coal gasifier exporter in india. The coal gasifier, offered by us, is high in performance and thus highly demanded amidst the global customers. Our coal gasifier is designed as per the set industrial standards. Our coal gasifier is available at the most competitive prices. known for efficiencylonger working lifenew technologylower maintenance

Biomass gasification is a process of converting solid biomass fuel into a gaseous combustible gas (called producer gas) through a sequence of thermo-chemical reactions. The gas is a low-heating value fuel, with a calorific value between 1000- 1200 kcal/Nm3 (kilo calorie per normal cubic metre).

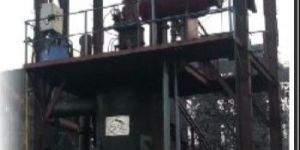

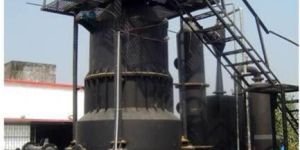

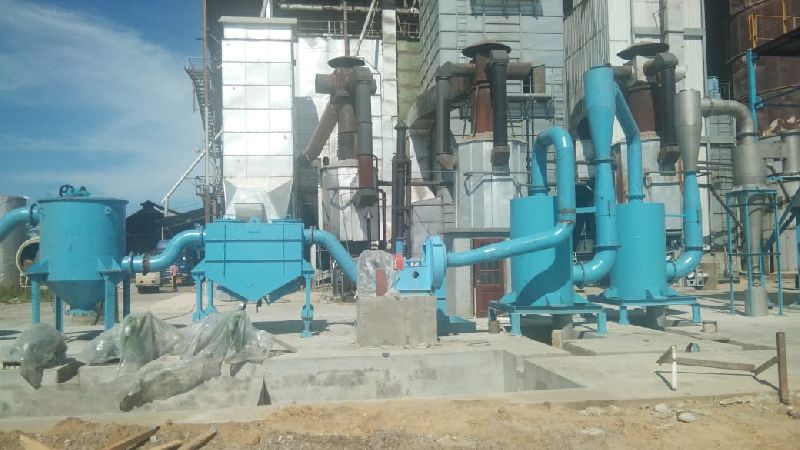

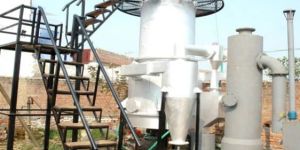

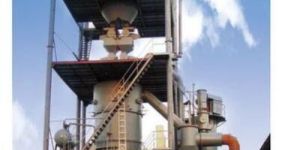

Gasifier structure: wholly water-jacketed structure, self-produced steam with a pressure of 49 Kpa can be used as gasifying agent and steam seal for probing fire. Feeding mechanism: bucket hoisting and manual double bell jar feeding mechanism is adopted which is easy to operate and can prevent gas leakage efficiently. Slag discharge mechanism: wet slag discharge is made from both sides with ratchet wheel and detent of hydraulic drive. This gasifier has advanges of easy operation, steady production, convenient adjustment and reliable running.

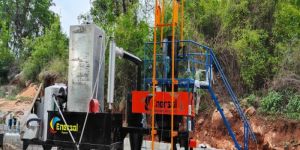

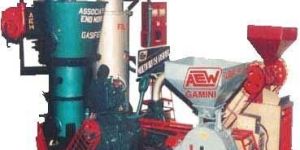

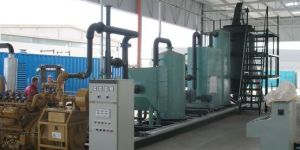

  GASIFICATION SYSTEM- Multi-Fuel, non-conventional,Co-Generation, Renewable Green energy source, receiving backing from the Governments of various countries all over the World.  Municipal Solid Waste (viz.- Paper waste, Plastic, Polythene, Rubber, Tires, Leather, Thermocol), Biomass (viz.- Wood chips, Saw dust, Rice Husk, Corn Cobs, Sugar Cane Bagasse, Coconut Shells), Coal. Max.Output of a single Unit with single Generating set - 04 Mega Watts. For higher requirements multiple Units can be commissioned larger unit can be made but Gasifier above 4 MW are larger in size for transportation.        GASIFICATION Output of a Single Unit- Up to 4 Mega Watts, the largest, single transportable unit in the World, innovated & developed by us. For higher requirements multiple Units can be commissioned.                                                                  Gasification is a thermo-chemical process of cracking that converts solid waste, Biomass or coal to a gaseous fuel called “Producer Gas”. This producer gas is fuel for many different applications of shaft power or electricity in the equipment like, Internal Combustion Engines.  For thermal power in-  furnaces, kilns, dryers, Rolling mills and Heat treatment equipment. The equipment to be utilized is the new generation Fluidised Circulating Bed Updraft with direct & indirect oxidation Technology Gasification System developed by consistent R&D at Bijendra to obtain clean, rich and consistent supply of Producer Gas which has calorific values close to1400K.Cal/NM3, with higher gasification efficiency and low fuel consumption.  At high gasification temp. of 11oo◦ C, Carbon combines with Steam & CO2 to form CO, CH4, H2 & increases the Calorific Value of Gas & also the overall efficiency of gasification. Steam is co-generated in the Steam Jacket & injected with the air into the Reactor,   which dissociates at high temp. & forms more of CO & H2, resulting in further increase of the calorific value of the Gas. It is then subjected to washing & cooling by multiple shower washers & passed through the specially designed Tar, Sulphur & Dust separators & demoisturizer to be ultra clean for injecting directly into the I.C. Engines modified by us for Syn-Gas /Producer Gas mode of operation. We have Modified HFO based Engine to largest Producer Gas/Syn-Gas based Engine of 4 MW in the World. For higher capacities, multiple units in parallel would be used.   There are No Effluents & no environmental Gas emissions in the process apart from the Emission of Flue Gases & that also well under the Pollution control norms from the Exhaust pipe of the Generating set. The exhaust emissions of the Engine, can be used for a Waste Heat Recovery Boiler & close to 1000 Kg Steam at 7 Bar. pressure per MW per hr. can be obtained & also it can be put to use for other thermal applications.

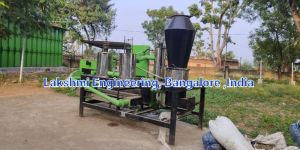

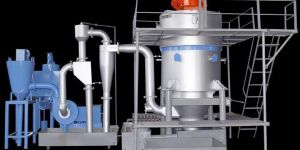

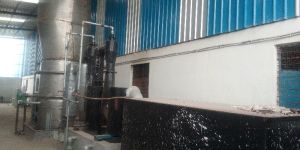

We provide our clients with good quality Biomass Gasifier. It undertakes the process of converting solid biomass fuel into combustible gas through thermo-chemical reactions. It is efficient for biomass gasification process and is highly reliable for their working. Use The gas produced is low heating value fuel; possessing calorific value of 1000-1200 Kcal/Nm3. 1 kg of air-dried biomass produces 2.5-3 Nm3 of gas through gasification. Gas Composition Carbon monoxide -20-22%Hydrogen (H2O)-15-20%Methane(CH4)-2-3%Carbon dioxide (CO2)-9-11%Nitrogen(N2)-45-54%Water vapor (H2O)-10-15%Heavy hydrocarbon-0.2-0.4%  Used In OvensBoilersKilnsHot air generatorThermic fluid heaters for thermal applications Features Appropriate designGood conversion efficiencyBetter control on burningProduction of clean flue gases in the exhaustLow investmentReduction in deforestationReduction in Diesel/Kerosene/Furnace Oil/ LDO costCapable of withstanding high temperatures up to 1860 degree centigradeNet zero CO2 emission

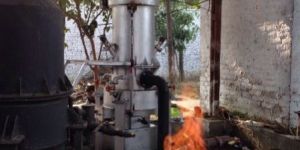

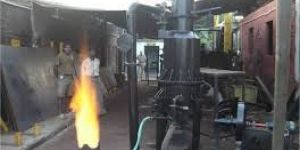

Most biomass materials like Wood , Charcoal , Rice Husk etc can be converted into a gaseous fuel known as producer gas, which comprises carbon monoxide, hydrogen, carbon dioxide, methane, and nitrogen. This gas has a lower calorific value (1000–1200 kcalnm3) compared to natural gas or liquefied petroleum gas, but can be burnt directly with high efficiency and good degree of control without emitting smoke. The producer gas flame temperature can be as high as 1100 oC. Each kilogram of air-dry biomass (10% moisture content) yields about 2.5 nm3 of producer gas. In energy terms, the conversion efficiency of the biomass gasifier process is in the range of 80%–90%.

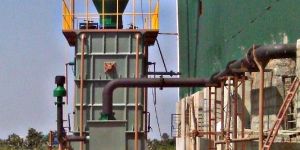

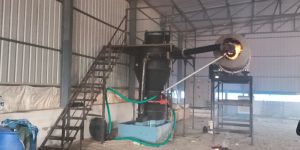

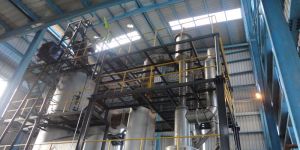

We are offering thermal gasifiers. Biomass gasification technology is an eco-friendly alternate energy source that can help organizations gain a competitive advantage. In fact, gasification is the cleanest, most efficient combustion method known. Biomass gasification is the process of conversion of solid biomass into gaseous form. In simple terms, this uses the easily available biomass and converts it into energy.

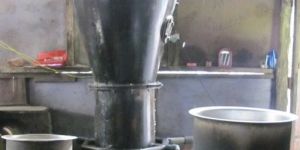

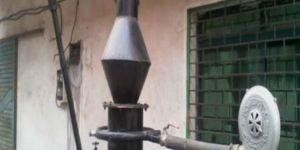

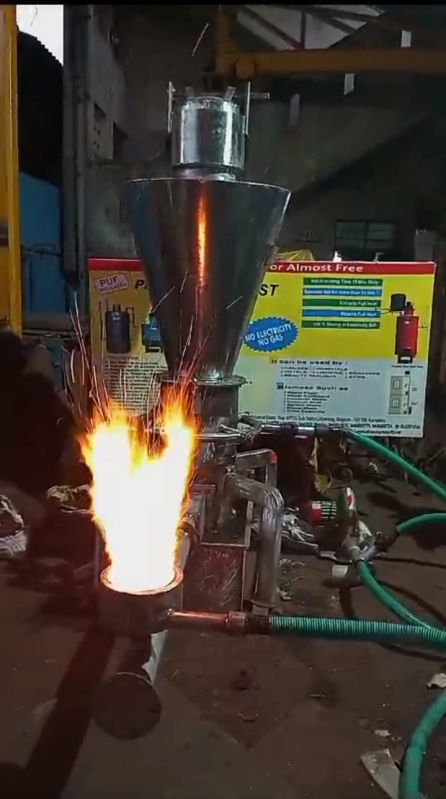

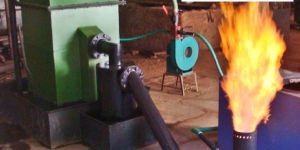

We are offering Biomass Gasifier. Biomass Gasifier is an excellen Solution for Community Cooking. It Works on firewood and Briquettes with thermal Efficiency in the range of 40-50 %. Smoke only at start, just for 5-10 minutes. Once clean flame is achieved, it can be run for any number of hours without constant attention, so more time for other activities. It can be used for Roti making, Boiling, Frying etc. Minimum Maintenance i.e cleaning of tar from gas pipe once in 2-3 months. Available in two burners design also. Payback period is approx.500 hours(2-6 months). Life is approximately 10 years. As Briquettes are made from waste biomass; hence it helps for waste management too. Thermal Efficiency in the range of 40-50 % Smoke only at start, just for 5-10 minutes Used for Roti making, Boiling, Frying etc. Minimum Maintenance Payback period is approx.500 hours(2-6 months) Life is approximately 10 years
