Helical Geared Motor Dealers

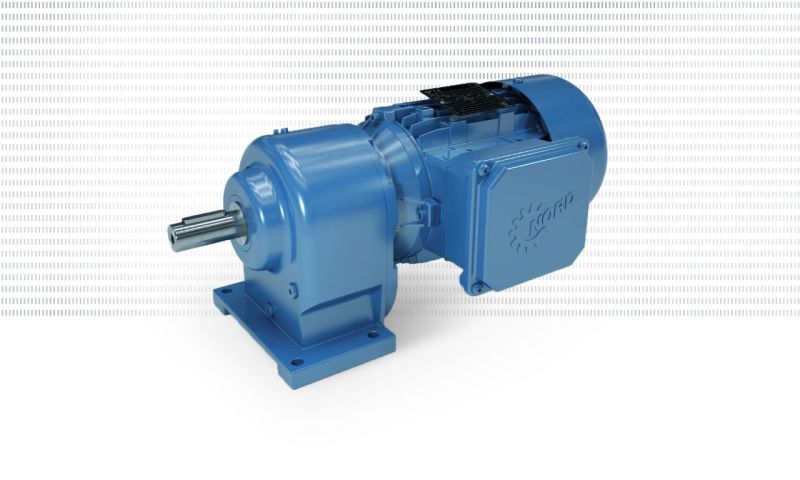

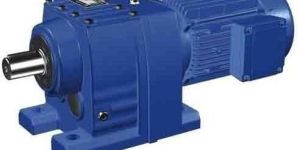

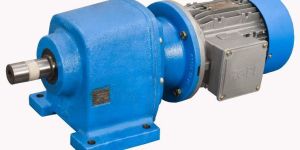

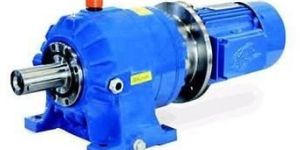

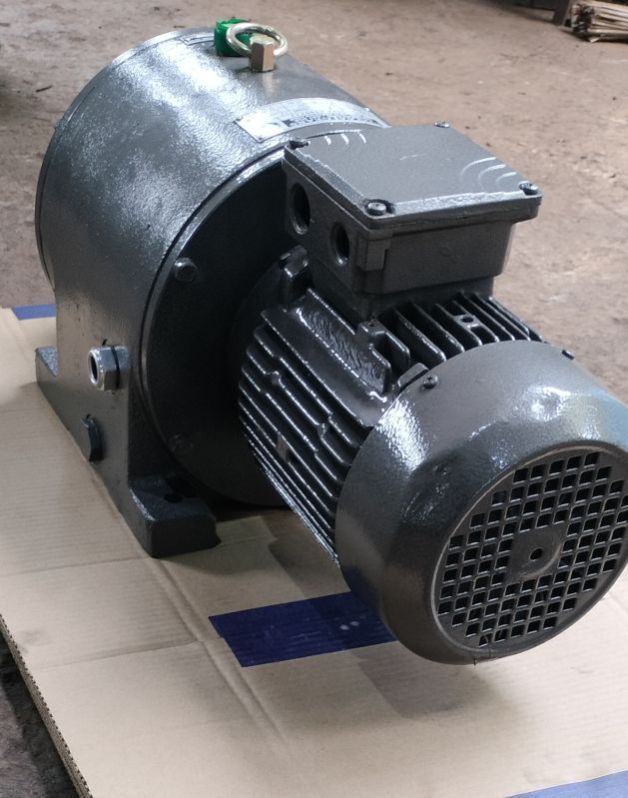

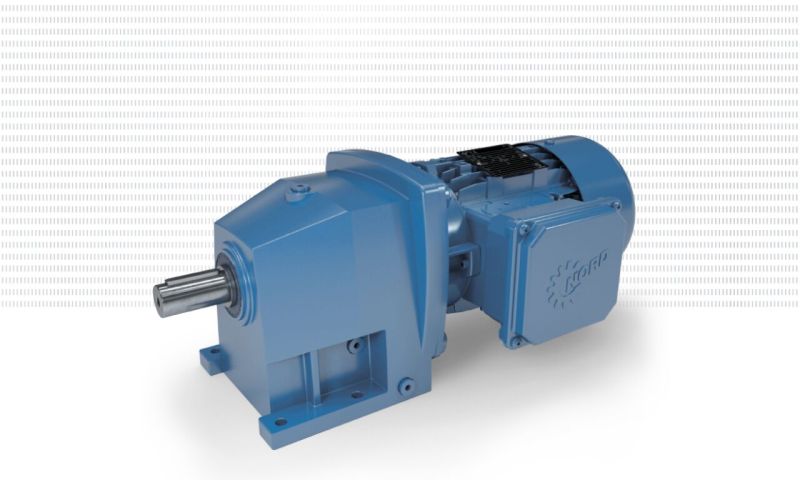

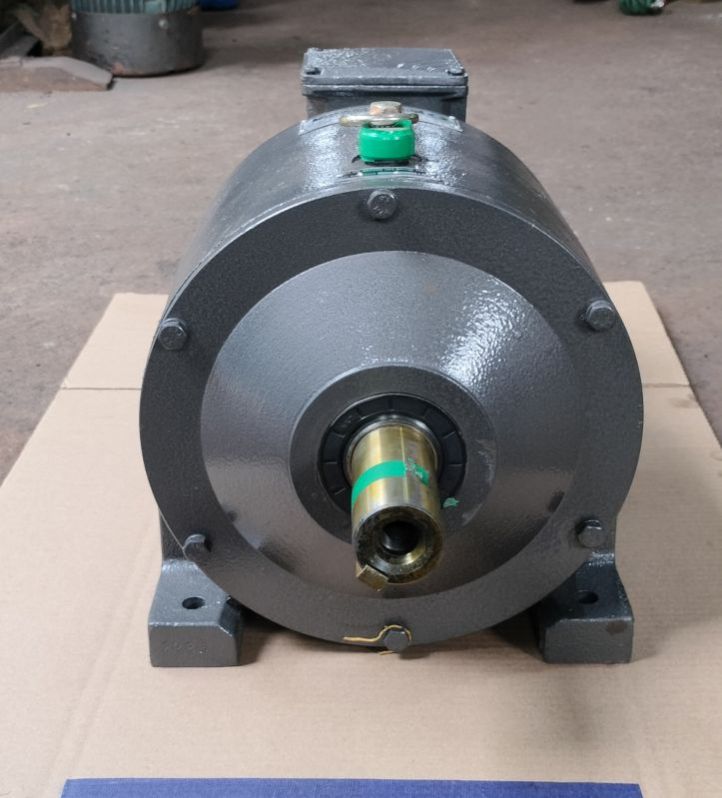

AGNEE ‘M-Series’ Inline Helical Geared motors in Double / Triple reduction models having motorised /solid inputs are intended to satisfy all the requirements of a reliable drive for slow-speed high-torque application. Standard range of AGNEE Inline helical geared motors, available in foot-mounted and flange-mounted versions, offer un-parallel performance covering output speed graduated from 9 to 1230 rpm with motor power ratings ranging from 0.18 kW to 90 kW. The gearbox and motor built as a single unit looks stylishly compact which ultimately results smooth and silent operation in an efficient fashion. The solid input version incorporates an input solid shaft mounted on a bearing housing having dual bearings of ample capacity.   Features of Inline/Coaxial Helical Geared Motor ·  Helical Gear Units are designed for continuous duty under difficult operating conditions. ·  Gears are case carburized to a hardness of 58 - 62 HRC for durability. ·  Gear case and flanges of high strength gray cast iron. ·  Available in Foot mounted or flange mounted options Technical Data for Inline/Coaxial Helical Geared Motor ·  Input power: 0.18KW-90KW ·  Transmission ratio: 1.4-250 ·  Mounting structure: Foot-Mounted, Flange-Mounted ·  Model: M-03 to M-14

Geared Motors with Standard Electric Motors, TEFC,3Phase, 440,+Volt, 50Hz +,Flange Mounted, with IP55 Protection With F class Insulation With Continuous Duty S1. Geared Motors can supply with Non-Standard Electric fetchers, Like Non Standard Voltage, Non Standard Frequency, Dual Speed Electric Motors, With Brake. Geared Motors Can Supply with Non Standard Mechanical Fetchers, Like Geared Motors With Holdback (Backstop), Non Standard Shaft Dia, Non Standard Length, Hollow Shaft Geared Motors with Shrink Disc. With Spline Shaft.

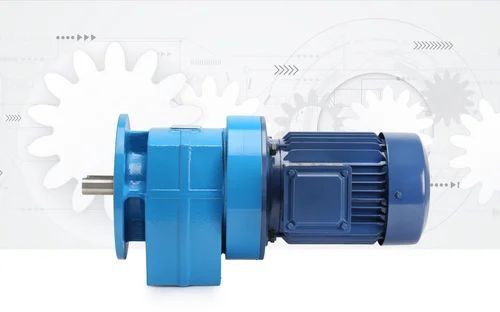

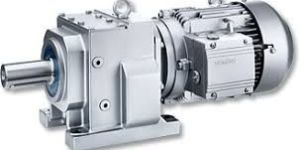

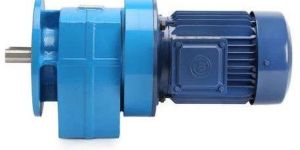

Our Helical Geared Motors have compact, co-axial and sturdy built due to the construction as a single unit. These Helical Geared Motors give high torque power transmission and slow speed. There are gear ratios for different speed reduction range. Our Helical Geared Motors are available at economic prices. AttributesHighly powerfulEfficientDurableLow maintenance Used inConveyorsAgitatorsCranesCrushers and elevatorsOther industries

Helibevel Geared motors & reducers are compact & highly efficient units, which are comparable with helical gear units. First stage reduction is by helical gear, a secondary spiral bevel gear set & third stage by helical gear.   This type of gear combination results in very low noice level.   The helibevel gear units are available in foot mounted constru with single or double output shaft. Helibevel gear units are als available in shaft mounted design with hollow output shaft. All are case handened & the tooth profiles are ground for helicasets & lapped for bevel set.   Manufacturing rang - 0.33 to 40 HP   Output speed - 0.4 to 176 RPM   Reduction ratio - upto 3451   Helibevel solid shaft / hollow shaft geared motors / reducers a available in flange mount construction.

Range Power range from 0. 35 kw to 70 kwOutput speed from 3. 2 rpm to 233 rpm Sizes ---- Type Helical / bevel helical Applications Conveyors, agitators, pumps, mixers, ball mills, cranes, crushers Industries Chemicals, pharma, packaging, food processing, plastic, paper etc. Approx Rs 1 Lakh / No(s)

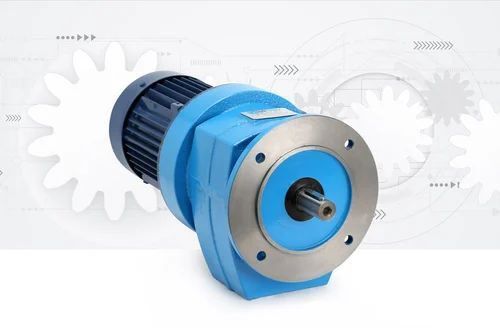

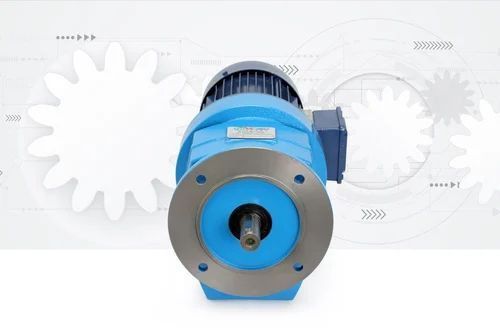

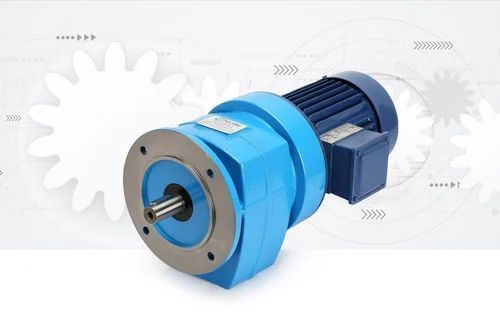

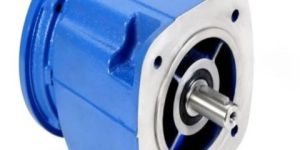

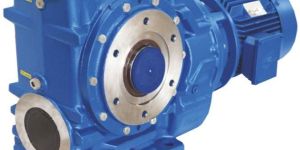

We are putting forth our customer an incredible quality scope of Flange Mounted Helical Gear Motor. These are made using best quality parts to guarantee ideal execution and long functional life. The effectiveness is essentially superior to anything that of immaculateworm equipped engines because of the execution of helical-worm outfitted engines. This Flange Mounted Helical Worm Gear Motor is outfitted with a standard flange motor and has a strong output shaft.

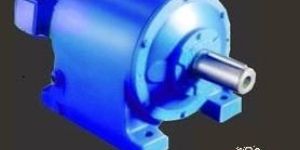

We are offering helical geared dc motor. Helical geared motor we are offring helical geared motor. Manufactured using world class raw material & advanced technology.our range of helical geared motor is widely demanded by our clients it's noise-less operations, hassle- free performance, easier maintenace, longer serving life & robust structure. Helical geared motor offred in various models & specification. Gear box body castings are made from high grade cast iron & desigened for maximum heat dissipation. Gear & pinions are made from special type alloy steels & specially heat treated. Helical geared motor product range :- 1. Range : 0.16 hp - 10 hp 2. Output rpm:- 5 to 300 rpm 3. Electric motor: 415v, 50hz, 3 phase a.c. Supply 4. Type :- foot mounted, flange mounted & inline model available helical geared motor features:- 1. Light weight 2. Economic, efficient & trouble free method for speed reduction 3. Available in various mounting positio

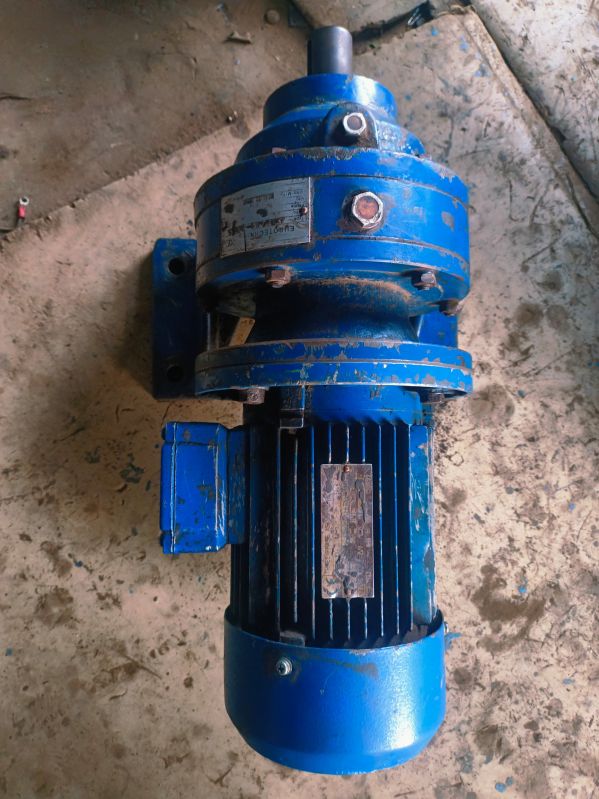

Combination Gear Drives, Planetary Helical Gear Motors, Planetary Helical Gear Motor, Planetary Helical Gear Motors Manufacturers, Planetary Helical Gear Motors Exporters, Planetary Helical Gear Motors Suppliers, Mumbai, India Manufacturers of High Quality Planetary Helical Geared MotorsHelical Planetary Gear Boxes Helical Planetary Gear Box connected to 50 HP Motor working in Sugar Inustry. Special Features All shafts are made of special alloy steel and are hardened and tempered. Sun and Planet gears are made of case carburizing alloy steel & are case carburized and ground. The Ring Gear is made of forged alloy steel. Full complimentary roller bearing for planets. (except for Model 019) Accurate positioning of planets and hence, best load sharing. Good quality bearings for input and output shafts.

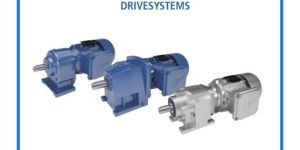

When customers benefit from the know-how developed over the years Top torque density, product variety, extremely wide speed choice, great compactness and price effectiveness make the C series the unparalleled line of helical gearmotors and speed reducers.

We are manufacturing AK Series bevel helical geared motors which offer ratios from 8:1 to 160:1 in three stages or up to 10000:1 in five stages. Motors are available up to 90kW and output torque capacity up to 12,300 Nm. The AK Series Helical Bevel Geared Motor is designed with integral cast feet for base or end mounting and can be offered with single or double extended output shafts. Bevel Helical Geared Motor Units are also available shaft mounted or with output flanges and are available for mounting horizontally or vertically. The units can also be offered with a bolt on torque reaction bracket and all variants are available either motorised or with an input shaft assembly. Adding to the new range of AGNEE geared motors this product takes advantage of our many years of accumulated design expertise together with the use of high quality materials and components. The end result is a series of speed reducing geared motors offering high load carrying capacities, increased efficiency, quiet running and reliability. AK Series Bevel helical geared motor are available in 9 sizes: AK03, AK04, AK05, AK06, AK07, AK08, AK09, AK10 and AK12 Features of Bevel Helical Geared Motor Standard motor connection (IEC Frame). Ability to fit double oil seals, on input and output shaft as required. All units are dimensionally interchangeable with other major manufacturers. Units are manufactured and assembled from a family of modular kits for distributor friendliness minimising inventory and maximising availability. Motorised units can be fitted with a backstop module and reducer Units can be fitted with a backstop and fan. Applications: Our Bevel Helical Geared Motors are widely used inConveyors, Agitators, Elevators, Cranes, Crushers and other industrial applications. Bevel Helical Geared Motors are used as Travel drives, mixer drives and cable drum drives.     Industries covered: Cement industry Chemical industry Pharma Industry Coal industry Salt industry Ceramic industry Sugar industry Paper and pulp industry Packaging Industry Plastic Industry Automation Industry Iron and steel industry Pharmaceuticals industry Textile industry Leather and plastic industry Food processing industry Other industries
