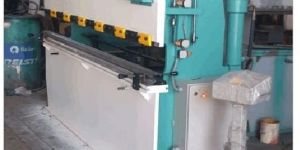

Hydraulic Press Brakes Dealers

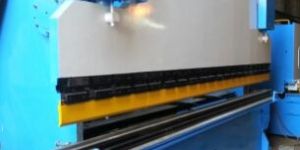

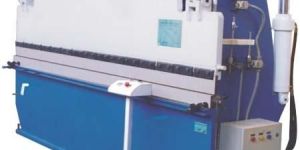

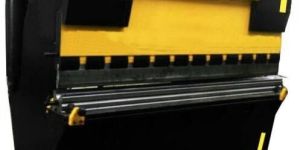

STANDARD FEATURE ACCESSORIES Main drive standard make motor Electrical control panel with three speed inch,single cycle,Auto mode of operation Manual back gauge fine stroke adjustment rod with limit switches One suitable 5 way die and blade (segmented of full length,EN-8 not covered under warranty) movable console with emergency stop FEATURE steel plates rigid to provide Accurate bending All pivots have hardened of ground pin bushes of five piece guide slide lubricated by central hand pump Repetitive accuracy is within +0.03mm Ram travel parallelism with out using sensitive & complex servo Hydraulics Most reliable Hydraulic components Three cycles operation inch,Single cycle&Auto for grater operator convenience Three speed operation reduces ideal travel time which improves productivity Bending force easily adjustable From front for forgue tool of bending material

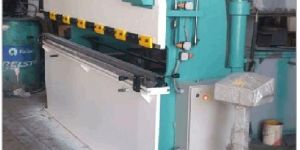

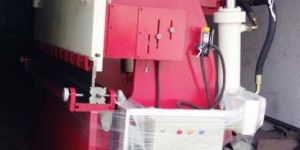

We provide CNC Hydraulic Press Brake that actually has double axles device but it can have more optional axles as well. The CNC Hydraulic Press Brake supplied by our company is delivered within the stipulated time frame for offering convenience to the clients. Attributes High precisionDriven by digital AC servo motorHigh speedPrecise fix position Components Sophisticated ball screwBack gauge Double axles device »Specifications Model (PB01-CNC)40/200063/250063/320080/3200100/3200100/4000125/3200160/3200160/4000200/4000200/6000250/4000300/6000320/4000Nominal Pressure of Machine(KN)4006306308001000100012501600160020002000250030003200Length of Working Table(mm)20002500320032003200400032003200400040006000400060004000Distance between uprights(mm)16402050271024002600330026002600330033005100330051003300Throat Depth(mm)200250250320320320320320320320400320400400Stroke of Ram(mm)100100100100150150150200200200200200190250Max Open Height between Working Table and Ram(mm)360360360340410415415465465465465465490560Main Motor(KW)45.57.57.57.57.57.511111515152222Overall Dimensions(L×W×H)(mm)L20602600326032603260406032803260406040606100406061004060W16601735173514301735134013001930193019301950234023002570H22342350234722502500250026002800280028002900320031003560Weight of Machine (Kg)33004220555059008000100001900010500140001500025000210002400024500

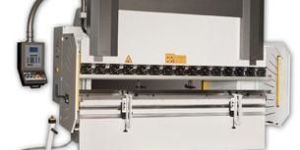

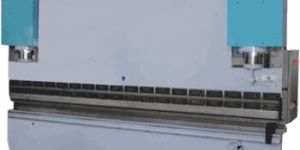

If your aim is to provide important developments in quality, productivity, esthetic and security aspects, ERMAK CNC HAP is what you looking for. CNC HAP series is developed for works with wide variety and where production speed is important. Syncro system is provided by synchronized cylinders with proportional valve technology like in CNC AP machines. And this means bending angle with maximum precision. CYBELEC DNC 60PS is used in CNC HAP. This controllers' easy usage, high capacity and fast processing power, durability and service network all around the world provides your machine high performance.

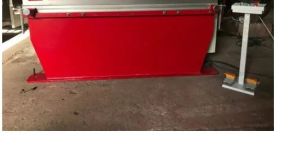

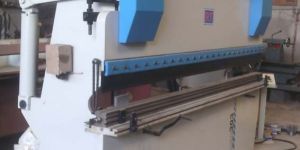

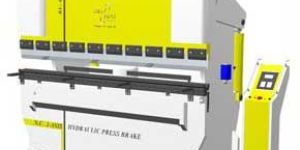

We are offering hydraulic press brake. Press brake machine capacity 80 ton bending capacity. (length x thick 2540 x 4 mm dist. Between housing 1700 stroke length 75 stroke per minute 30 ram adjustment 75 shut height ram stroke down 220 table height 800 depth of throat 300 main moter hp 10 ram adjustment moter hp 1.5 die-space (length x width) 2540 x 200 machine diamensions (l x w x h) 2900 x 1500 x 2850 approx weight kg 5500

Trustworthy shipping facilities, competent workforce and prompt delivery of the products make us stand out in the industry. We are staffed with a team of deft professionals who diligently furnish varied requirements of the clients and ensure qualitative packaging of the placed orders.

We are offering hydraulic press brake for better solution of sheet bending, ` hydraulic press break ' purchase & further information contact us :- simran industries muktsar ( pb ) india.

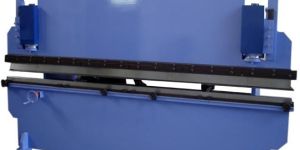

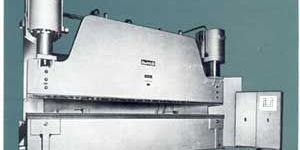

Capacities from 200 T to 1000 T.Conventional CNC controls can be offered.Fabricated steel structure fully stress relieved.Hydraulic elements of reputed make.

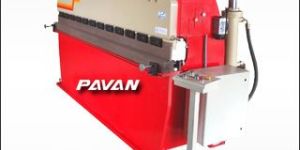

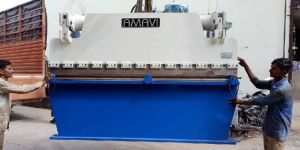

Hydraulic Press Brakes are designed and developed through years of experience in Sheet Metal Working Machineries. Milap Hydraulic Press Brakes are developed by keeping latest technology in mind. Booth cylinders are mounted at back side of Press Brake and are synchronizes for parallelicm between ram & table, by providing mechanical links connected with cylinder. The Heavy duty steel construction frame is so designed to absorb heavy shocks of overload All welding edges are properly machined for weld joint. The electric control panel is fixed on side wall at conveenient place for easy reach of operator. It includes push buttom pendant and foot switch. Standard “V” Block & “V” Punch and manually operated back guage system which is front operated are supplied as standared accessorits. Hydraulic components are of reputed are supplied as standared accessorits. Hydraulic components are of reputed make like Vedekers, Rexroth, Dowty, Yiken, Polyhydron etc.

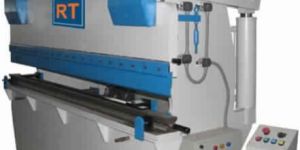

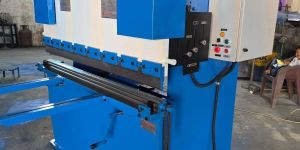

The Stable robust welded steel frame made of ultrasonically tested IS 2062 Plates as per guidelines of lMTMA Standards. Fast approach & fast return speed to save cycle time, slow pressing speed for better stroke control & bending accuracy, ensures high productivity. Compact Cylinders & low pressure system due to rear cylinders. Better rigidity & load carrying capacity against fatigue failure. Positive synchronisation of cylinders with welded torque tube. Moving work station with ON/OFF Controls, Emergency push button & selector for Manual, Semi-Auto & Automatic mode for easy operation & Safety. Better Safety for operator & machine. Low power consumption. NC upgradation available. Low Noise & Smooth Operation give higher efficiency of operator.

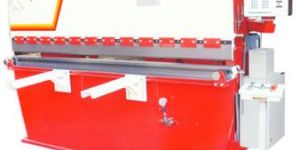

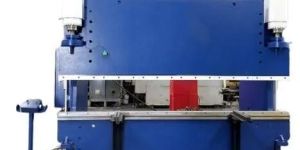

Range : 20 MT to 600 MT Length : 1250 mm to 6000 mm   International quality hydraulics components. Specially designed compact manifolds gives smooth, silent & jerk less operation       STANDARD ACCESSORIES Main Drive motor. Electric Control Panel with selection of 'AUTO', 'INCH' & 'SINGLE CYCLE AUTO' mode operation. Movable Work Station with pair of foot switch. Pair of lifting links. Pair of sheet support. Fine stroke adjustment rod with limit switch. Manual back gauge with micro setting. One suitable five way Die & Punch of EN-9. Centralised lubrication system with flow control valve for proper lubrication. RAM tilting arrangement.   OPTIONAL ACCESSORIES N.C. Operated Stroke control. N.C. Operated back gauge & stroke control. Sliding sheet support with Swing away stoppers. Hardened tools & special toolings Anti-deflection unit. Hydraulic tool clamping. Motorised back gauge with DRO. Higher throat depth. Anti Deflection Unit. Multiple depth setting arrangement. First fill of hydraulic oil

Robust steel frame from ultrasonically tested IS 2062 plates and rigid as per guideline of standards. Hydraulic cylinder with twin type sealing low & high pressure and hard chrome plated rod with special type     guide for long life without leakage. Repetitive accuracy is within ±0.04 mm  International quality Hydraulics component rated for 310 bar (Working Pressure is less than 160 bar) which ensure trouble-free operation.  Adjustable five piece guides, provided with special nonmetalic liners for long life. Quickly adjustable stroke length. Front operated back gauge with micro setting arrangement. Ram tilting arrangement to maintain bending accuracy over a period. Moving work station with ON/OFF buttons, Selector switches for inch, Single cycle & Auto cycle and Emergency Stop buttons for easy operation and better safety. Rear Cylinder design using mechanical advantage through lever, reduces the cylinder size which enable to use medium pressure hydraulic component and also improves stroke accuracy. Fast Approach and fast Return speed for reducing cycle time, Slow pressing speed for better stroke control and bend accuracy

Standard Supply:   Main Drive Motors Standard 'v' Block Pair of Foot Swishers Electric Control Panel "INCH" & "SINGLE CYCLE", "DOUBLE CYCLE","AUTO" mode of Operation Fine Stroke adjustments Rod with Limit Switches.   Machine Capacity (MS)   1 mm to 1.6 mm 3.25 mm 5 mm 6 mm 8 mm 10 mm   Machine Length   1500mm to 3050mm Length

We are a renowned Manufacturer of Hydraulic Press Brake with high performance and efficiency. Our Hydraulic Press Brakes are demanded in various industries because of their long-lasting service with low maintenance needs. These Hydraulic Press Brakes are precision engineered for smooth and flawless working, and are available in specifications given by the clients. Standard Equipment Main motor drive Standard slip squirrel cage induction motor to suit 400 / 400 V, 3 phase, 50 cycle AC AC supply with mounting and driving elements for machines up to 80 tonnes Standard bolster assembly Die block lifting links Medium slip high torque squirrel cage induction motor to suit 400 / 440V, 3 phase, 50 cycle AC supply with mounting and driving elements (on 120 ton series and above) Motorized ram adjustments with 'up' and down inching push buttons and an arrangement to cut off the motor at extreme limits Manual shot lubricator Flywheel guard Air counter balance ( above 80 tones) Optional Equipment Horn extension on bed and ram for box forming and similar operations Permanently wide bed and removable angle brackets on the ram Built up bed with through opening for slug fall-out and the like Flywheel Brake Stroke Counter Motorized Lubrication System Adjustable Bolster Foundation Bolts
