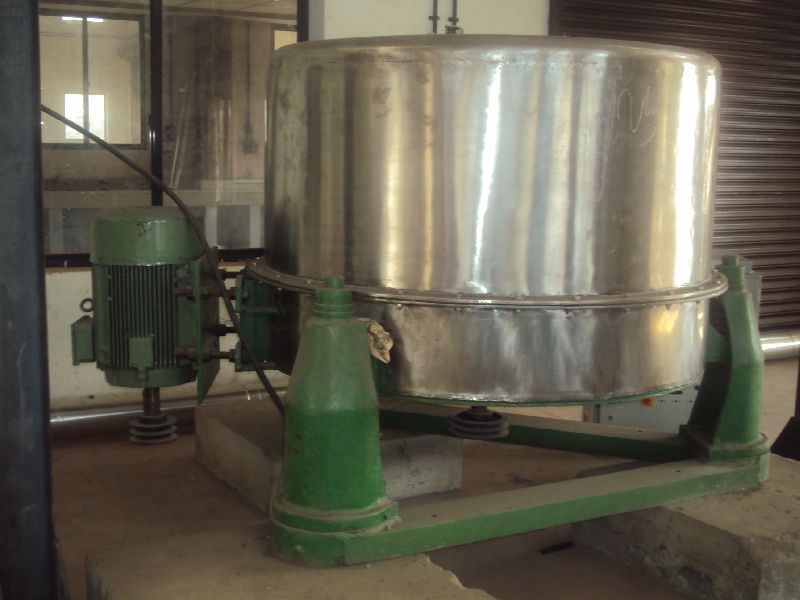

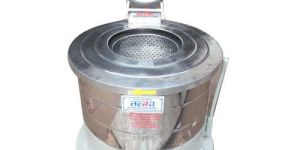

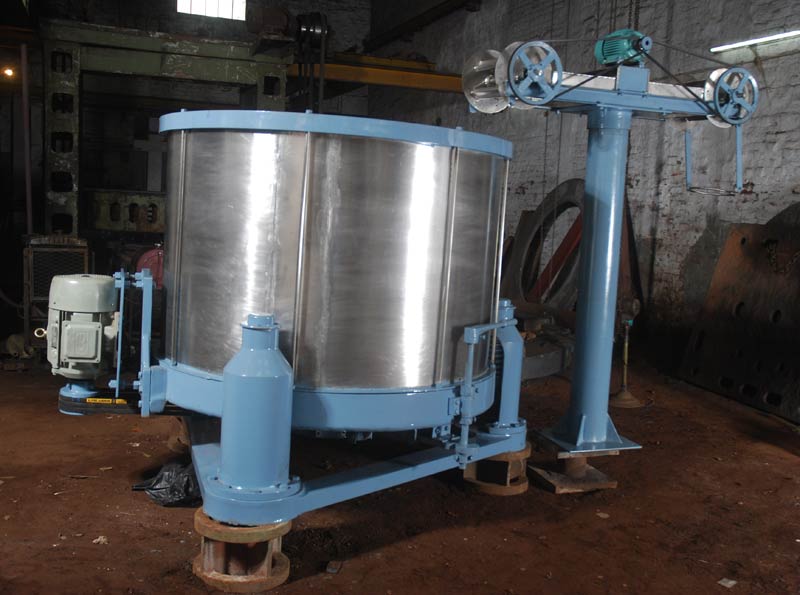

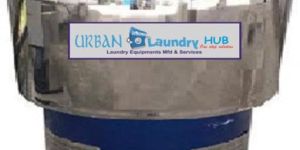

Hydro Extractor Machine For Textile Dealers

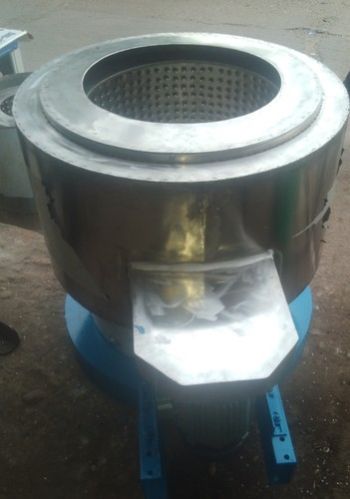

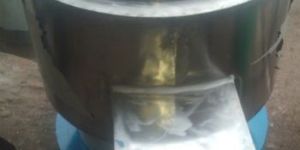

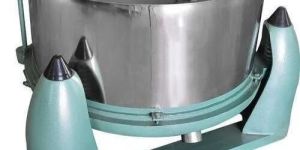

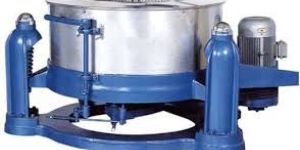

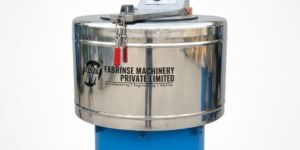

We offer Hydro Extractor Machine that have excellent production capacity. the machines are well suited for commercial use and the advantage of using them lies in their low power consumption which adds value to your business. the durability and performance of these machines is unmatched and as a result they find use in various industries. features : durableswift and less noisyhigh speed rotatoreconomicaloptimum qualityhigh performancehigh precision main components : main bedrevolving cagev beltssuspensionelectric motordrivebrakelubrication unitsafety cover widely used in : cotton processing unitshosiery industrywoolen industrychemical industriesbig laundries material of construction : brasscast ironstainless steelaluminum specificationsmain bodythe main bed is made of cast iron. the base plate is triangular shaped and is made of sturdy cast iron. the suspension columns made of cast iron are fitted on the base plate.revolving cagethe perforated basket is made of stainless steel in standard sizes and in different gauges according to size of the machine. it consists of top flange made of stainless steel sheet and bottom flanges of heavy cast iron plate-lined with stainless steel sheet and is dynamically balanced. the outer cage side wall is also made of stainless steel sheet according to size of the machine.suspensionthe whole unit is supported on three c.i. suspension columns which are heavy to avoid vibrations. the steel pins with spring and speceial bushes are mounted with suspension columns. the whole arrangement is made to remove the vibration while the machine is running.drivethe revolving cage is driven by electric motor fixed on a support on the side of the cast iron base. electric motor is fitted with special dead load proof clutch pulley with brake lining arranged for the progressive starting of the unit. the drive from the motor to the centre pulley is through v-belts.brakethe brake is controlled by hand lever with ferodo lined linner.lubricationlubrication is dealt with by grease gun, through the main shaft provided with a small bolt on brass nut to reach the bearing housing.safety coverthe machine is supplied with solid aluminium cover interlocked with it. the machine cannot be started unless the cover is closed; the cover cannot be opened until the machine is stopped.general descriptionthis is very sturdy machine for treatment of heavy loads of cotton, woollen, hosiery, chemical industries and big laundries. water is drained out by centrifugal force. imported taper and roller bearings of heavy duty capable of withstanding heavy loads are used in the machine.

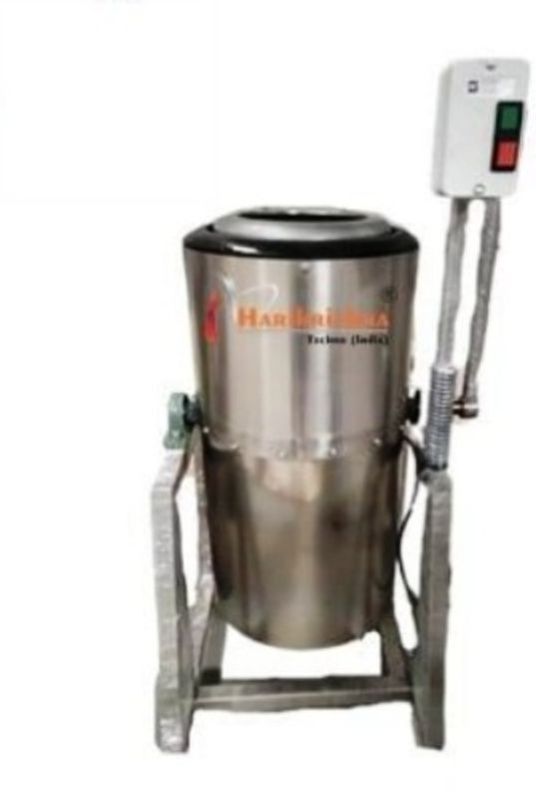

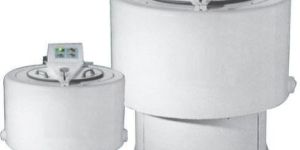

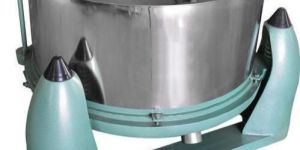

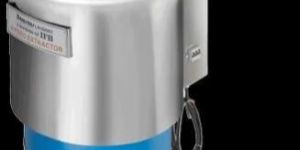

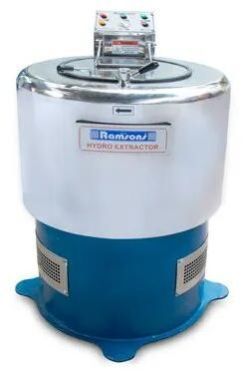

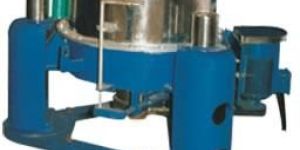

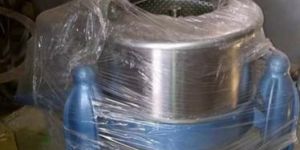

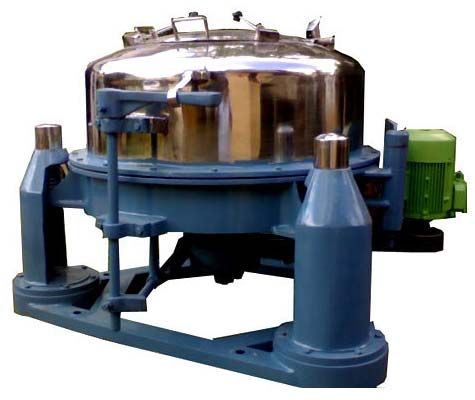

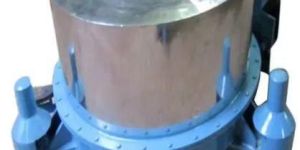

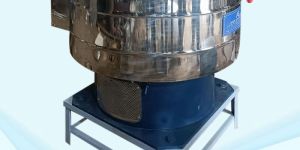

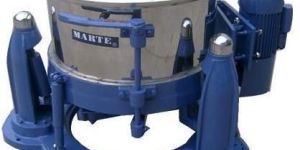

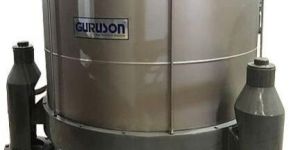

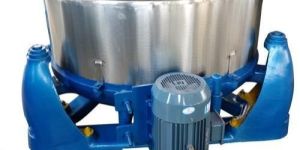

Hydro Extractor is designed for extracting moisture by centrifugal action at high speed. Om Sai Hydro Extractor is designed for high production capacity at very low power consumption that makes this machine must for every yarn dye house. Hydro Extractor is robust in structure and compact in size and occupies very less floor space compare to other textile processing machines   Features • Quick and maximum hydro extraction at high speed & High productivity AC Inverter drive is used for soft start and dynamic braking. • For vibration free running it is provided with unique three point shock absorption system. • Compact design, less floor space required. • The machine is sturdily built and dynamically balanced to high accuracy.

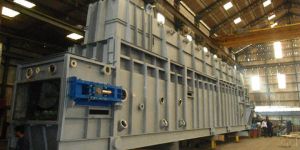

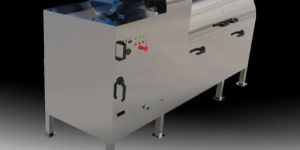

Extractor is a horizontal model compromising articulated belt conveyor assembly, which transports the feed with a slow pre-determined speed, with an adjustable damper screw to maintain the bed height. Series of solvent sprays through a distributor, sprays evenly throughout the bed height.

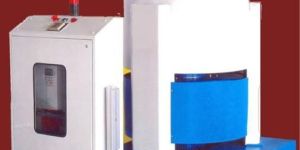

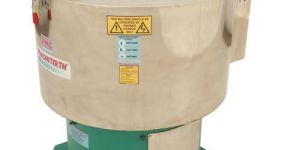

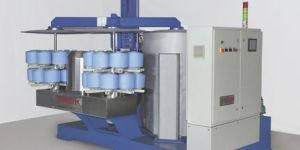

Offers swastik centrifugal hydro-extractors are available in four models, in various capacities. 1. standard execution, with stainless steel basket, suitable for fabrics, yarnetc. 2. special execution cake plate type machine suitable for fibre industry and towels. 3. double lid model 4. special execution suitable for yarn in package form.

Assistance of warehouse management software helps in minimizing the efforts of the personnel and ensures the safe storage of the lot. Moreover, our experts keep a stringent check over the same. Whether it is a bulk or retail order, we can deliver it on time. We have transportation resources on standby all year round to ensure hassle free distribution of our product. Features : Low running cost Continuous production machine Stable temperature

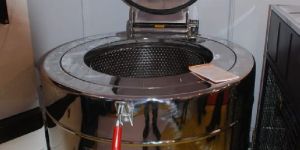

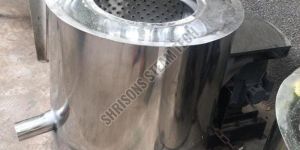

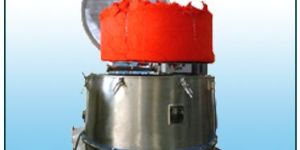

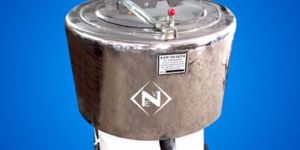

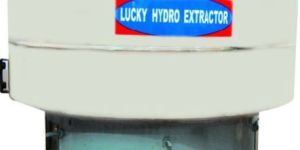

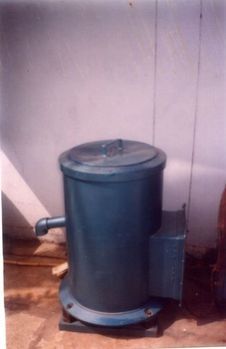

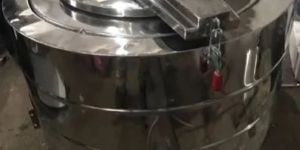

We are offering chemical hydro extractor machine, hydro extractor machines of superior quality are manufactured and exported by us to various industries. We utilize high grade materials obtained from reliable vendors to design and develop these machines. The hydro extractors are easy to maintain and clean, highly effective, reasonably priced and durable. They are custom made as per the specifications and requirements of the customers. construction: our hydro extractors contains a combination of filter bag and basket with removable top ring. The baskets are fabricated using stainless steel and are balanced dynamically to avoid vibrations and noise. They are utilized for high speed centrifuging process. Outer layer of the drum is fabricated using mild steel sheet. In order to increase safety of the device, we have added an interlocking device and a limit switch. Working: our wide range of hydro extractors are used to dry fabrics and also isolate particles from solutions based on size, density, rotor speed and shape. When the substance or material is placed inside the extractor, the drum revolves at the set speed and extracts the excess water or separates the particles. This device decreases the time and energy spent on the manual tasks. The various types of hydro extractor machines manufactured and supplied by us are hydro extractor machine for garment hydro extractor machine for oil extraction cheese hydro extractor or bobini hydro extractor technical specifications: capacity of the centrifuge- 300 mm to 2000 mm structure- mild steelstainless steel features: easy to clean reasonably priced durable corrosion resistant excellent quality applications areas: oil industry food industry pharmaceutical industry textile industry chemical industry.

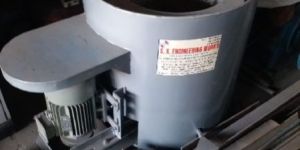

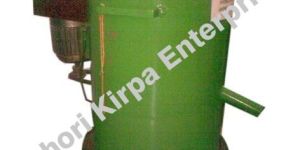

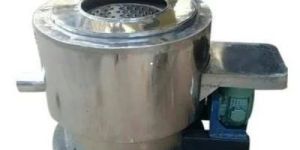

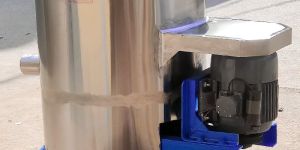

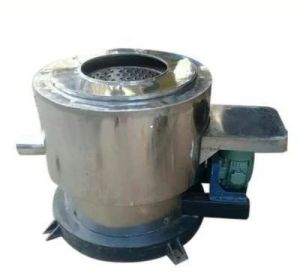

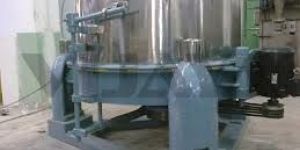

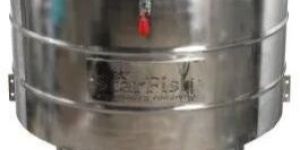

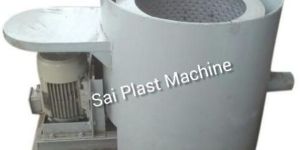

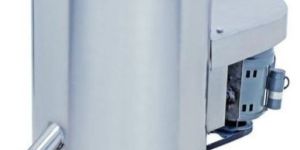

With the aid of our well-qualified professionals, we have been able to offer a range of Hydro Machines. The offered machines are specially designed by our highly experienced professionals for commercial use. Moreover, our offered machines are widely used in various types of slurries, textiles, dyes,food industries and hydro extraction for drying yarns, fabrics, clothes and silk, with the help of a centrifugal force. Customers can avail the machines from us at competitive prices.

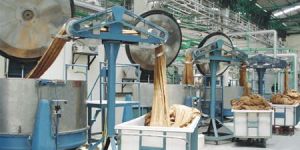

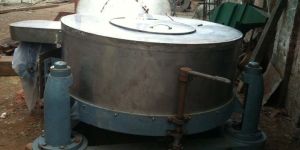

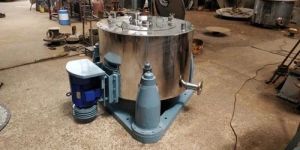

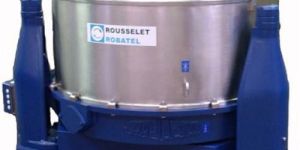

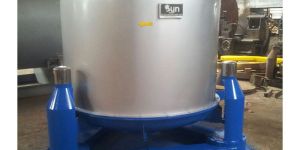

Hydro-Extractors are also called Centrifuges. Centrifuges are for water extraction (dewatering, pre-drying) of textile materials. Values of approx. 15% for residual moisture content can be achieved depending on the type of textile fiber. Centrifuges with perforated drums or baskets (Ø up to approx. 2000 mm) which oscillate vertically in ball-and-socket joints suspended on three points are produced in various designs as pendulating, suspension, cage and vertical centrifuges, also with so called gliding support bearings as gliding support centrifuges or in horizontal resp.vertical arrangements as open-width, horizontal and warp-beam centrifuges, etc. Most centrifuges have electric drives for speeds of approx. 750-1200 rpm and are generally provided with automatic control over various ranges.For safety reasons, an interlocking lid is essential on a centrifuge so that the motor cannot be started until the lid is locked, nor the lid rose until the basket is stationary again after the machine has been stopped.

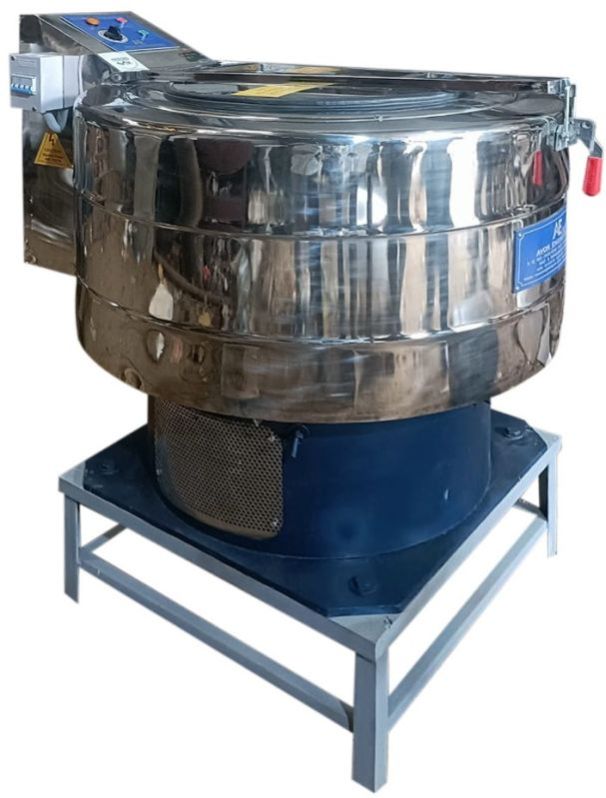

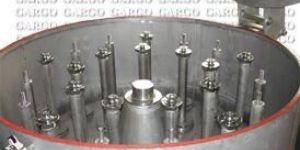

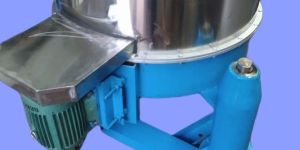

  1. Standard Execution, with Stainless Steel Basket, Suitable for fabrics, yarnetc. 2. Special Execution Cake Plate Type machine suitable for Fibre industry and Towels. 3. Double Lid Model 4. Special Execution suitable for Yarn in package form.     SWASTIK Centrifugal Hydro-Extractors are equipped with:   1. Stainless steel Basket with Stainless Steel outer housing and cover. 2. Heavy Duty Cast-Iron bearing housing. 3. Carbon Steel Shaft. 4. Spring Steel Springs. 5. 3 Bearings – 2 Roller Bearings and a Thrust Bearing. 6. Variable Frequency Drive. 7. Loading and Unloading Device (optional).     Salient Features of Hydro Extractor   1. Easy and Economical Operation. 2. Fully Automatic Operatuonal Cycle. 3. Practicaly Maintenance Free. 4. No brake and clutch and the operator is only supposed to load the machine, close the fid and start. All other operations up to coming to a dead stop are automated. 5. Low Power Consumption.

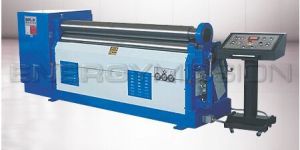

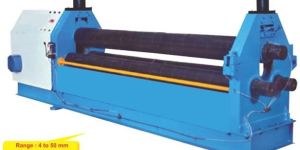

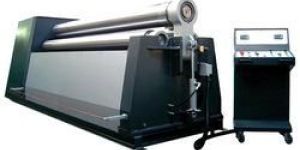

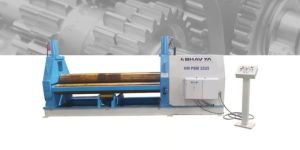

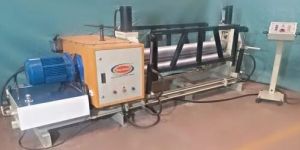

The PBM Series 3 Roll Pyramid Type Hydro Mechanical Plate Bending Machines are designed with top roll UP & DOWN movement by hydraulic cylinder. This saves time & labor to adjust top roll. This feature makes the machine more productive and suitable for handling heavy jobs. Dropper end movement is done by hydraulic cylinder.

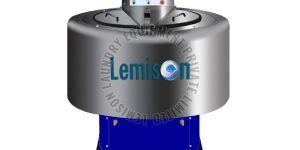

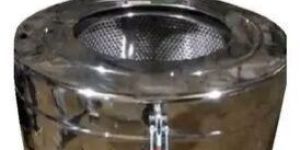

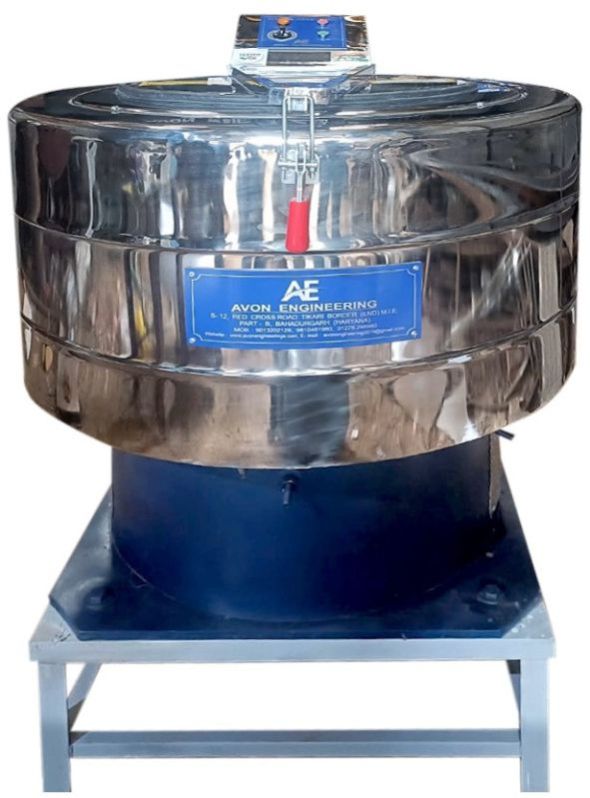

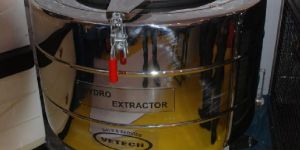

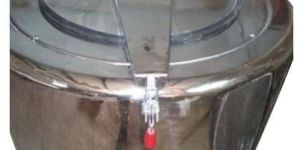

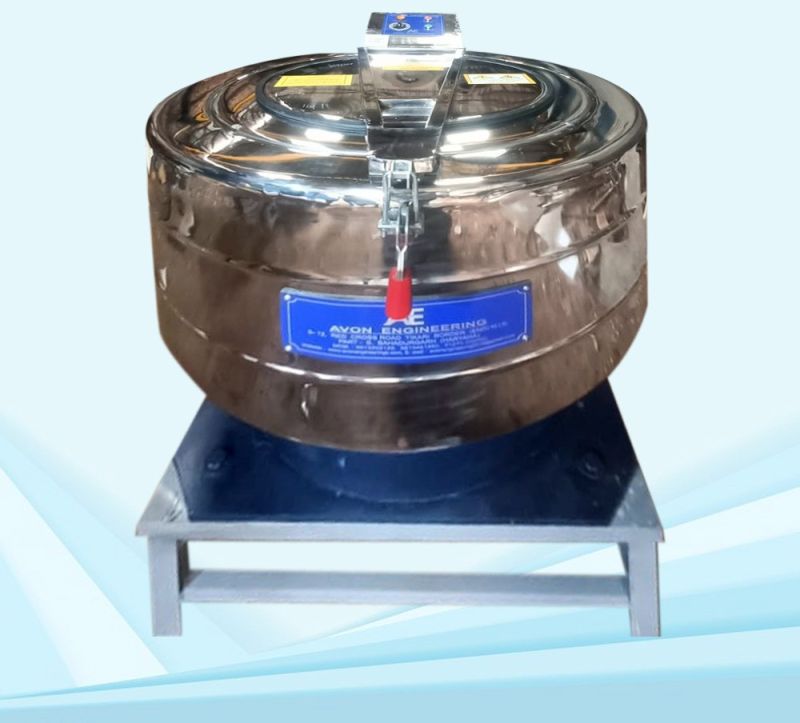

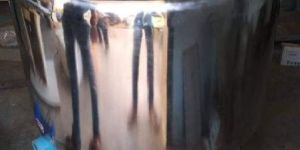

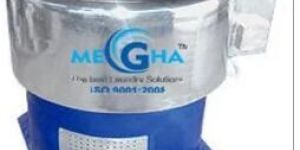

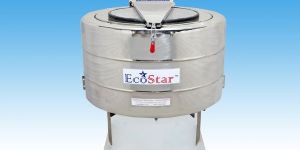

DIRECT DRIVE, SELF BALANCING WITH AUTOMATIC D.C. INJECTION BRAKE.All Stainless Steel, Inner & Outer, Silent Vibration Less Operation, Auto Times, Auto stop through DC Injection brake, Self Balancing, Fitted with single phase preventer & motor protection relay, Least maintenance. SAFETY COUPLED WITH CONVENIENCE.
