Induction Heaters Dealers

Stead fast Engineers is a pioneer in manufacturing world class Induction heating machines under the brand name ‘STEFEN’. STEFEN induction heating machines are sophisticated yet user friendly. Using state of the art technology these machines are designed to increase the customer’s profitability and improve his market credibility by minimizing down time. Following are the benefits of STEFEN induction heating machines.     Series Inverter Design Power factor above 0.98 at all Loads Single Digital module in entire power supply Digital module with 5 years warranty Capacity 50 KW to 1200 KW Maximum guaranteed output efficiency No Breakdowns Automatic Temperature Control Automatic frequency control Rugged Construction

We are offering induction heater. Model ehs series induction heaters are designed for mounting of bearings or any other ring shape part like pinion, bearing races, lybringth, gears, couplings, etc by expanding through induction heating and shrunk fit on the axles.many bearings are pre-lubricated and protected by shields or rubber seals. Others have brass or copper cages. Some have unusually small clearance. All types can be heated by easy~heat (s) induction heaters. Made from impact resistant strong, scratch resistant body of fibre glass coated with special heat resistant pu harel coating. The horizontal yoke and bearing to be heated are placed across vertical supports are ground machined to keep energy losses very low. The entire magnetic conductors made from crgo laminations. Ehs series models incorporate the latest microprocessor controller with memory backup and its unique feature is the recipe programming. The user can store different recipe programs for operating parameters like heating time & temperature for the frequently shrunk fitting jobs like bearings, races, pinions, couplings etc. The heater can operate in two different modes ie, temperature mode or time mode ,this control give digital readout of the bearing temperature in temperature mode or time mode shows heating time in countdown manner. Both temperature and timer readouts simultaneously displayed. Ehs series models incorporates an auto ramping cycle to avoid current surges due to sudden switching of full power and built in demagnetizing unit, to solve the problems of attracting microscopic iron particles caused by residual magnetism. This cycle is automatically performed at the end of each heating cycle. Also an audio alarm after heating and demagnetizing cycle is completely over with auto cutoff facility. The induction heater equipped with height adjustable type bearing resting devices which is capable to control the heating of bearings uniformly.

The Induction heater consists of a transformer with primary connected to the 230 V AC supply and in the secondary there are no windings but a BEARING, PULLEY, COUPLING , GEAR ETC.

Induction Heater Model PIH 2004 V (25 - 40 KVA) specialy designed for mounting of bearings gears pinions and other components in horizontal position and suitable for job bore dia 150 mm to 600 mm and outer dia. 1000 mm width 600 mm weight max. 1600 kg

Induction heater design have utilized the eddy current induction principle like a transformers - its core and windings can be seen as the primary side, but the work piece acts as a short-circuited secondary winding, which heats up rapidly due to its great electrical resistance. This phenomenon allows the induction heater to control the heating by continuously monitoring the work piece temperature and adjusting its own heating power during the process. Hence results in even heating of only the inner bearing ring but the heater itself remains cool and safe to handle

Minitronix, a partnership company established in 1975 became Minitronix Machines Pvt. Ltd. in 2009. We specialise in manufacturing Mains & Medium Frequency Induction Heating Machines for shrink fitting applications. We design and implement each machine to suit customer’s exact requirement which includes automation required for these machines. We have supplied 100 plus custom made machines in last 12 years. We provide efficient after sales service which is seldom required. It is an attribute to our design that one service engineer suffices to attend all service calls.

nline induction wire preheater is used to heat the wire prior to extrusion coating processing etc. ideally suitable for Cable and Wire Industry. It improves the adhesive coating of Insulating material on conductor as the temperature of the conductor remains same throughput the run and the heat flow is even through out the wire to assure that no cold patches occur at the any line speed hence avoid the wastage of costly raw material gives high quality and product and higher product speed. It works on electrical inductive resistance heating principle assure no current flow to other wire line equipment. The heat on the wire is applied evenly at all the operating should regardless of wire diameter. A sold state thyristorised control with line speed Encoder feedback provides correct secondary voltage as per desired setting. It also eliminates wire burn out during stoppage. Line Voltmeter Power ON Heating on indication is provided with Auto Manual selection and heating potentiometer for easy operation and quicker setting. Current limit circuit protects the Preheated Coil from overloading. The entire unit is self-contented Powder coated with glass window cabinet and doesn't require any foundation footing

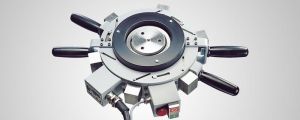

For frequent dismounting of cylindrical roller bearings The adjustable induction heaters EAZ 80/130 and EAZ 130/170 are used for frequent dismounting of cylindrical bearing inner rings. Where inner rings are removed infrequently, aluminium heating rings, TMBR series, are also available. For larger cylindrical inner rings normally found in steel mill applications, SKF can supply special EAZ induction heaters. Features and benefits Covers most cylindrical bearings 65 to 130 mm (2.5 to 5.1 in.) bore diameter Wide range of power supplies Avoids shaft and bearing inner ring damage Fast and reliable bearing removal Up to n6 interference fit

We are offering a wide range of Induction Bearing Heaters to our clients. These heaters are based on the principle of heating an electrically conductive material without directly being in contact with it. While heating any material by these heaters the fear of contamination is almost lost. Due to its unique heating abilities, these heaters are used in some specific types of heating purposes in the industry.

Specifications: Product Data UIH-2001 UIH-2002 UIH-2003 UIH-2004 1 Power 3.54.0 KVA 68 KVA 11.012.0 KVA 25.0 KVA 2 Voltage 2Øx230 V 2Øx440 V 2Øx440 V 2..

Using ZKL’s Induction Heater , you can install bearings with high precision into shafts without any risk of damage. Heating of the bearing prior to installation to a particular temperature is necessary in order to retain the micro structure essential for getting the maximum efficiency from the bearing, without which bearings are at risk of damage. ZKL ensures that you don’t face this problem with the specially designed Induction Heater. Digital read – out panel Automatic de-magnetization 80 % savings in power Induction Coil and electronics protected from thermal overheating Contemporary, Sleek , compact and rugged design Light weight for easy carriage of operation Standard Yoke sizes Auto timer Auto temperature alert

We are offering induction bar heater. Stead fast engineers is a pioneer in manufacturing world class induction heating machines under the brand name ‘stefen’. Stefen induction heating machines are sophisticated yet user friendly. Using state of the art technology these machines are designed to increase the customer’s profitability and improve his market credibility by minimizing down time. Following are the benefits of stefen induction heating machines.

PRECISION Induction Heater - Series PIH - is designed to heat the Bearings and other shrink-fit components prior to mounting using latest technology intelligent microcontroller based electronic controls.The life of Bearings and other torque transmitting steel components, which are shrunk-fit on shaft, may get cut short due to rough handling and faulty installation or mounting methods. This can be avoided by expanding them by induction heating for the purpose of mounting of the component. PRECISION Induction Heaters - Series PIH - are available in 5 different models for mounting, range of bearings having bore size from 14 mm and above. Fast, safe and economical heating of bearings is best features of PIH Induction heaters.PIH series is light weight and portable for better performance. It has power capacity of 3.5 / 4.0 KVA. The controls are intelligent microcontroller based programmable electronic controls. It has two operating modes, Temperature mode and Time mode. Both are controlled through feather touch key Board. Both modes can be seen at the time of operation. It can also be used to heat bearings of larger diameter using a pair of Raiser Blocks size 55 x 55 x 125 mm. The unit can also be used to heat a plate of any magnetic material by placing the plate in place of the horizontal yoke across the vertical supports.

induction heater for fast, safe & economical heating of beatings. Available in 4 models pih- 2001 power 3.5/4.0 kva controls micro -controller bassed pih- 2001 power 6.0/8.0 kva controls micro -controller bassed pih- 2001 power 11/12 kva controls micro -controller bassed pih- 2001 power 25.0 kva controls micro -controller bassed

Many rolling bearings and other rotationally symmetric steel parts are tightly fitted onto the shaft. Larger parts in particular, can be fitted more easily if they are pre-heated (rolling bearings up to a maximum of 120 °C). Energy efficient, clean and environmentally friendly (no oil, and therefore no disposal cost),Demagnetised and stress-relieved work pieces,Highly adaptable as several different ledges can be used with the apparatus.
