Rajnikant Bros. Udit Nagar, Rourkela, Odisha

Detect hot spots before they cause trouble Using an SKF Thermal Camera is a proactive way to help you detect problems before they occur, increasing uptime and improving safety. They allow you to be able to visualise potential problems, invisible to the naked eye, by presenting a picture of the heat distribution of an asset. The thermal image, presented on a large LCD screen, shows you where the temperature is either too hot or too cold allowing you to pinpoint potential problems fast.

SKF sprockets come in a wide range of sizes. With a comprehensive selection available, you will never have to worry about finding the perfect sprocket size for your application.SKF sprockets are available in various hub configurations such as plate, single hub and double hub. They also come with optional taper bushes for ease of installation and removal. Sizes under 25 teeth are standard with hardened teeth for optimum sprocket life.To conduct a search, start by selecting a product from the drop-down menu. Alternatively, contact your local SKF office or local SKF Authorised Distributor for more details.

High heating capacity of up to 40 kg bearing     The SKF small induction heater TIH 030m combines high heating capacity with portability. The compact lightweight design makes the TIH 030m portable. Placing the induction coil outside the heater's housing allows the heating of bearings weighing up to 40 kg (88 lb). The induction heater is equipped with thermal overheating protection to reduce the risk of damage to the induction coil and the electronics. In addition to temperature mode, the TIH 030m is equipped with a time mode for heating components other than bearings. The induction heating system is supplied standard with three yokes and is available in two executions: 230V/50-60Hz and 100-110V/50-60Hz.

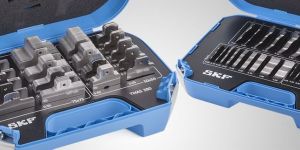

Each kit of SKF single slot pre–cut shims offers a combination of popular shim dimensions and/or thicknesses.

Shaft alignment tool TKSA 11 New technology makes shaft alignment easier and more affordable The SKF TKSA 11 is an innovative shaft alignment tool that uses smartphones and tablets and intuitively guides the user through the shaft alignment process.. With a focus on the core alignment tasks, the TKSA 11 is designed to be a very easy-to-use instrument is especially suitable for alignment learners and compact applications. The SKF TKSA 11 is the first instrument on the market that uses inductive proximity sensors, enabling accurate and reliable shaft alignment to be affordable for every budget.   Live view of the instrument and motor position makes the measurement and horizontal alignment intuitive and easy The TKSA 11 app offers a fully functional demonstration mode allowing the complete alignment process to be experienced without the need to purchase the TKSA 11 The TKSA 11 is designed to give a fast return on its investment and is also affordable for almost every budget Mobile devices allow high resolution graphics, intuitive usage, automatic software updates and display unit choice By using inductive proximity sensors, the measurement is no longer affected by bright sunlight, the influence of backlash is reduced and the instrument becomes more robust. All enabling the TKSA 11 to deliver accurate and reliable shaft alignments Automatic alignment reports give a complete overview of the alignment process and results. Reports can easily be shared via email or cloud services  Also available as TKSA 11D2 with rugged, industrial display device and pre-installed apps included. Shaft alignment is recommended for almost every industry, as it enables machine uptime to be significantly improved and maintenance costs to be reduced.  The TKSA 11 focuses on industries where these shaft alignment benefits have not yet been realised and helps customers profit from correctly aligned shafts. The TKSA 11 App is available for free in the Apple App Store and the Google Play Store. Just search for “SKF TKSA 11” or follow the QR code and try the alignment process with the fully functional demonstration mode.

Availability : 155 g (0.34 lb)

Belt performance is highly dependant on pulley performance. High quality pulleys significantly increase belt life and reduce the total cost of ownership of your machinery.At SKF, we offer a range of pulleys which are: Manufactured according to relevant ISO or RMA standards to ensure optimum performance Statically-balanced to G6.3 balancing quality Equipped with taper bushes for quick and accurate installation Phosphate-coated for corrosion resistance SKF also offers a range of pulleys in all belt profiles, with plain, taper bush or “QD” configuration. Friction type locking assemblies are also available on request.To conduct a search, start by selecting a product from the drop-down menu. Alternatively, contact your local SKF office or local SKF Authorised Distributor for more details.

A portable bearing heater weighing only 4,5 kg (10 lb)   The SKF bearing heater TMBH 1 is a portable lightweight heater for heating bearings with an inner diameter ranging from 20 to 100 mm (0.8 to 4 in) and a maximum corresponding weight of 4,5 kg (10 lb). The heater uses a patented method of heating based on high frequency induction, which provides optimised efficiency. This method is very quiet and creates no magnetisation at all. In addition to bearings, the heater can also be used for heating ferrous components such as gears, pulleys, bushings and shrink rings. Lightweight and portable (4,5 kg – 10 lbs) Heating efficiency better than 85% Components are not magnetised Equipped with temperature and time control Supplied with a heating clamp, temperature probe, power cable, heat resistant gloves and a carrying case

Country of Origin : 100 - 240 V, 50 - 60 Hz

A flexible heating solution for very large bearings and workpieces   The patent pending, SKF Multi-core Induction Heaters TIH MC series are energy efficient custom-made heating solutions, that can save heating time and potentially reduce CO2 emissions. Flexible design, consisting of a number of induction heating cores and coils controlled by a single control and power cabinet Suitable for heating large thin section workpieces, such as railway tyres Depending on workpiece, heating capacities of several tonnes can be realised For components sensitive to uneven induction heating, they allow for a more even temperature gradient across the whole circumference Ergonomically designed sliding yoke, for larger TIH MC series, reduces lifting time Remote control panel, detachable from the power cabinet, helps improve ease of use and user safety Temperature mode allows the desired heating temperature to be specified, helping prevent component overheating Time mode for heating components other than bearings, allows flexibility in application Automatic demagnetisation at the end of heating cycle helps reduce the risk of ferrous contamination of the bearing Unique design allows for custom-made solutions to be quickly and economically produced The type of TIH MC series heater required depends on the application. Based on your application details, SKF can configure a solution to meet your needs. To select the right solution, we need application information such as: Bearings to be heated: Bearing designation If new bearing: main dimension and weight (kg) Required temperature (˚C) Mounting frequency (once a day / week / month) Heater data: Power supply available (V, A and Hz) Present or considered heating method (oven, oil bath, ...) Workpiece other than bearing, e.g. housing, gear, bushing, etc.: Drawing of workpiece with dimensions (mm) Weight (kg) Material of workpiece (steel, cast iron, etc.) Required temperature (˚C) Mounting frequency (once a day / week / month) For more information on the suitability of SKF TIH MC series heaters for your application or for a quotation, contact you local authorised SKF distributor or SKF office.

High heating capacity of up to 300 kg bearing   The SKF large induction heater TIH 220m is a reliable and robust induction heater from the SKF TIH...m range suitable for heating bearings up to a maximum weight of 300 kg (660 lbs) and solid components up to a maximum weight of 150 kg (330 lbs). Advanced design of the power electronics including current and overheating control, combined with user friendly features such as sliding arms and remote control are standard to the TIH...m range. Maximum efficiency is achieved by placing the induction coil outside the heater’s housing, in the centre of the bearing, resulting in shorter heating time and lower energy consumption. The LED operating display and control panel are integrated in a remote control, which makes the heater easy to use. To suit different operating voltages worldwide, the TIH 220m is available in different voltage variants.

The induction heaters TIH L MB are specially designed to heat solid work pieces. These include rings, sleeves, gears, couplings, bushings and pulleys, as well as train wheels, tires or similar components. Featuring one magnetic coil in the center, these powerful and durable heaters localize the heating in the workpiece bore for superior performance on solid components.   The TIH L MB series provides the following advantages for quick and effective heating of solid workpieces: Simple and safe operation with remote-control and power level selection Superior heating performance for solid workpieces with low energy consumption Quick and easy placement of solid components with sliding yoke Automatic demagnetization reduces risk of ferrous debris contamination Easy handling and transport with standard forklift Advice: The TIH L MB series heaters are designed for induction heating of solid, non-bearing components. For bearing-heating applications, we recommend the use of equivalent TIH L series heaters.

Move induction heaters from one job to another   The SKF TIH T1 trolley is designed to improve mobility when using SKF induction heaters, especially the larger ones. The trolley has a high carrying capacity of up to 900 kg (1 934 lb) and is fitted with a drawer with an oil resistant mat and two adjustable dividers.

Hydraulic tools for mounting and dismounting SKF has pioneered the use of hydraulic techniques, which have helped to simplify bearing arrangements and facilitate correct and easy mounting. SKF has also developed a comprehensive range of tools and equipment to put these hydraulic techniques into effect. The SKF hydraulic techniques are often the preferred method for dismounting larger bearings as well as other components. These techniques, which employ hydraulic pumps, nuts and oil injectors, allow the application of substantial forces to dismount bearings or other components.

Incorrect mounting methods account for 16% of premature bearing failures To reduce the risk of incorrect mounting, SKF helped pioneer the use of portable induction heaters for bearing mounting applications in the 1970’s. Since that time, there have been many advances in technology and SKF has been at the forefront in developing safer, more efficient and user-friendly bearing induction heaters. SKF Induction heaters utilise advanced power electronics with application specific designs for high performance. As a result, by using an SKF induction heater, the total cost of ownership is often significantly lower. Ergonomics and safety are also an important consideration for operators. SKF induction heaters are equipped with design features that make them easy to use and safe. Bearing support arms reduce the risk of the bearing toppling during heating, and ergonomically designed yokes help reduce operator fatigue. In addition, the unique remote control enables the operator to control the heater at a safe distance from the hot bearing, enhancing operator safety.

Safe handling of components up to 150 °C (302 °F)   The SKF heat resistant gloves TMBA G11 are specially designed for the handling of heated bearings. They are made of special fabric to obtain the following combination of features: Lint free Heat resistant up to 150 °C/302 °F Cut resistant Contains no asbestos Tested and certified for mechanical hazards (EN 388) and thermal hazards (EN 407)

Oily and heated components up to 250 °C (482 °F)   The SKF heat and oil resistant gloves TMBA G11H are specially designed for the handling of hot and oily bearings. They are made of multiple layers of different kinds of fabric to obtain an important combination of features: A unique combination of heat, cut, oil and water resistance KEVLAR® gloves Melt and burn proof Maximum temperature: 250 °C/482 °F Suitable for submerging in liquids of a temperature up to 120 °C (248 °F)(e.g. hot oil bath) Remains heat resistant when wet Cut resistant Lint free Tested and certified for mechanical hazards (EN 388) and thermal hazards (EN 407)

For safe handling up to 500 °C (932 °F)   The TMBA G11ET gloves are especially designed for allowing the safe handling of heated bearings or other components for prolonged periods. They can withstand extreme temperatures of up to 500 °C (932 °F), without the presence of hot liquid or steam, with a high degree of non-flammability. Heat-resistance to extreme temperatures allows the safe and prolonged handling heated components High-degree of non-flammability reduces the risk of burning Extremely tough KEVLAR® gloves with high cut, abrasion, puncture and tear resistance for increased safety Lint-free design safeguards against bearing contamination Comfortable to wear, as they are knitted from flexible high performance materials in one piece without seams Tested and certified for mechanical risks (EN 388) and thermal risks (EN 407)

A comprehensive range for bearings and other workpieces The SKF TIH L series heaters are designed for induction heating of large size rolling bearings. With advanced power electronics and an effective dual coil design, the TIH L series can heat large bearings weighing up to 1 200 kg (2 600 lb), using just 20 kVA of electrical power. This represents a power saving of almost 50% compared to similar induction heaters and highlights how SKF Induction Heaters are simultaneously powerful and efficient. Unusually for a bearing heater for large bearings, the TIH L series can be supplied in medium and low voltage versions. Advanced power electronics, with accurate electric current control, help control the temperature rate increase. Using just 20 kVA of electrical power, the TIH L series can heat large bearings weighing up to 1 200 kg (2 600 lb). Automatic demagnetisation reduces the risk of ferrous debris contamination after heating. Thermal overheating protection reduces the risk of damage to the induction coil and the electronics, enhancing reliability and safety. Available with three different operating areas. Available in three voltage variants to suit most operating voltages worldwide. Bearings can be heated vertically or horizontally.

Electro-mechanical single point automatic lubricant dispenser   Automatic lubricant dispenser TLMR series         A special bracket makes TLMR easy to mount onto a surface     The cartridges are easily replaceable The SKF Automatic Lubricant Dispenser is a single point automatic lubricator designed to supply grease to a single lubrication point. With a relatively high pressure of 30 bars, this lubricator can operate at long distances providing optimum results with difficult-to-reach and unsafe lubrication locations. With a wide temperature range and robust design, the TLMR lubricator is suitable for operating conditions with various levels of temperature and vibration. Filled with high quality SKF greases Temperature independent dispense rate Maximum discharge pressure of 30 bar over the whole dispensing period Dispense rate available in various settings Available in two versions: TLMR 101 powered by batteries (standard Lithium AA type) and TLMR 201 powered by 12-24 volt DC Available with non-refillable cartridges in two sizes: 120ml and 380ml Easy to install and use High water and dust protection (IP=67) Extensive range of accessories Typical applications Remote mounting for lubrication in hazardous and restrictive locations Applications requiring high lubricant consumption Applications experiencing high vibration in operation Excellent water and dust protection (IP=67) makes TLMR suitable for General machinery applications and Food processing machinery Excellent high temperature performance makes TLMR suitable for engine rooms and hot fan applications Excellent low temperature performance makes TLMR suitable for wind turbine applications SKF DialSet software helps to calculate the correct dispense rate.

Thermostat controlled bearing heating   The SKF Electric Hot Plate 729659 C, is a professional heating device especially designed for pre-heating small bearings prior to mounting. The temperature of the plate can be adjusted at the turn of a knob to provide a temperature range of between 50 and 200 °C (120 and 390 °F). Adjustable temperature range of 50 - 200 °C (120 - 390 °F) Protective cover to avoid contamination during heating

Country of Origin : 729659 C

Power : 1.000 W

Availability : 4,7 kg (10 lb)

Dual laser infrared and contact video thermometer     fig. 1   An infrared and contact temperature thermometer with video and data logging capabilities   Built-in camera allows pictures and videos, with all measurement information to be taken, stored, recalled and exported to PC Environmental properties such as ambient, dew point and wet-bulb temperatures, as well as relative humidity, can be displayed and stored Dual laser sighting defines the temperature measurement area Supplied with temperature probe TMDT 2-30 (max. 900 °C (1 652 °F))for direct contact applications.  Can also be used with any other SKF temperature probe User selectable, multiple temperature measurement modes including: maximum, minimum, average, differential and probe/infrared dual display Data logging function can be used to visualise temperature changes over time User selectable high and low alarm levels with audible warning signal User selectable auto shut off feature optimises the rechargeable battery life Temperature range using infrared: –50 to +1 000 °C (–58 to +1 832 °F) Temperature range using probe: –50 to +1 370 °C (–58 to +2 498 °F) Distance to spot size: 50:1 Emissivity pre-set: 0,1–1,0 Supplied in a sturdy carrying case

Display : 2.2", 320 x 240 colour LCD with backlight

SKF offers a wide range of standard and customised coupling products. SKF Couplings cover a wide range of coupling types, sizes and capacity ratings for many applications and factory environments.For example, SKF Grid Couplings are an excellent choice for high output (kW) and high torque applications where vibration, shock loads and misalignment occur. SKF Gear Couplings are heavy duty couplings with incredibled design flexibility and are an economical choice for many applications. Very high torque ratings, along with large bore capacities, give this coupling a great advantage over other types of couplings.For demanding heavy duty applications, SKF has large size couplings. These couplings, can accommodate high torque values, while minimising power loss, and the effects of misalignment.To conduct a search, start by selecting a product from the drop-down menu. Alternatively, contact your local SKF office or local SKF Authorised Distributor for more details.

A well-designed chain drive transmits mechanical power from one shaft to another efficiently. SKF Chains are manufactured in state of the art facilities with tight quality controls. All products conform to ISO standards and other industrial standards such as ANSI, BS, DIN and JIS. While conforming to the standard ANSI standards for sprocket fitment, the H, SH, SPH and SHH series of chains offer excellent strength and load capacity for demanding applications, and shock loading. This has been achieved by the use of thicker plates, greater plate profile and the use of through hardened pins, providing improved service life To conduct a search, start by selecting a product from the drop-down menu. Alternatively, contact your local SKF office or local SKF Authorised Distributor for more details.

Material : Mild Steel

Thickness : 10-15mm

Application : Motorcycle Use

Finishing : Polished

Feature : Corrosion Proof, Vibration Free

SKF Bushings and hubs are made of high quality steel, with most phosphate coated or blackened for improved corrosion resistance. All SKF Bushings can be easily installed and removed with basic tools, which results in minimal downtime each time they are fitted.For example, SKF FX Keyless Bushings are designed with a 360 degree interference fit that enable components to be easily positioned and mounted without the necessity of a keyway.In addition, with a comprehensive range of metric and imperial bore sizes of taper and QD Bushings available, no additional machining is needed. At the same time, customers can conveniently make “off-the-shelf” purchases anytime.SKF Bushings are available in the following variants: Taper Bushings QD Bushings FX Keyless Bushings Weld-on Hubs Bolt-on Hubs
