Jumper Wire Dealers

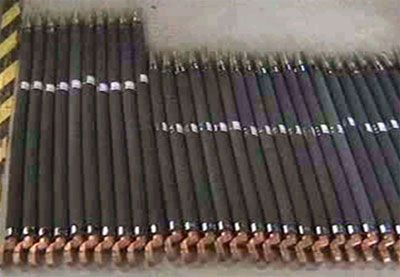

Specification of Water Cooled Jumper / Sub Cable : 1. Design of Cable as per Customers Specification with very less tolerance. 2. Special type of rubber hose with the High flexibility, more than 10 Kg/cm2Capacity and to protect to high temperature water for safe operation. Excellent cooling effect even in continued welding operation. 3. Copper wire size is 33 Gauge for 300 MCM & 400 MCM as per standard of RWMA. 4. Accurate copper straight lugs or copper bend lug with 99% conductivity of Electrolytic Copper. Little Impedance & little Reactance drop. 5. Fantastic water testing units with Pressure 10 to 12 Kg/cm2, each and every Cable are tested. 6. Good Quality product with Long Life and very competitive rate. Long cable life reduces cable cost per weld - the true measure of cost cable. 7. We have good team of engineers with more than 10 Years experience in same field. 8. Strict Quality Control during production, delivery as per schedule. 9. Easy for check & replacement & maintenance. 10. We have own Quality Assurance Plan of our products.

The fine stranded copper wires are made of high-grade electrolytic copper and are structured and positioned to increase flexibility and to reduce abrasion factors. The copper strands are crimped to the lugs ensuring the best electrical contact without altering or overheating the copper. Different standards of lugs are already available, new types can be developed according to customers specification.

These cables are used as supplementary cable to connect kickless cable and gun are of the single conductor only. To meet the connector needs in the resistance welding operation. Electromech offer a broad variety of secondary cable. Each cable is design and built to perform with maximum efficiency and economy in its in depended application. Electromech water-cooled jumper (Aid)cable to electrically connect distant points which move in relation to each other such as, The movable gun-arm of the certain types of welding guns to the electromech cable.   On a multiple spot welding machines.Electromech water cooled jumper & sub cables are flexible rope types secondary connectors, assembling with high conductivity terminals. There are sheathed with reinforced abrasion & oil resistant hose. Free water passage is insured by means of an open spring core progressing the entire length of the cable. Thus permitting the cable to operate under the condition of acute bending without obstructing the water flow.   TERMINALSStraight lugs are machined from high conductivity electrolytic Copper bar stock.Bends lugs are forged and machine from high conductivity electrolytic copper.WIRE CONSTRUCTIONThis is a made from 0.05mm2 electrolytic grade Copper wire. Each bunch or herringbone construction to reduce the rate of wire facture by providing lateral surfaces wears areas. The total sectional area shall not be less than the sectional area as per MCM/mm2 rating. WIRE CONNECTION TO TERMINALWater is terminated in a crimped in soft electrolytic tube and the soldered to the terminals. Wire cannot melt out during brief overloadsFLEXIBLE HOSE COVERThe outer rubber hose made of heat resistant on its inner Surfaces & abrasion resident on its outer surfaces.WATER FLOWCoiling water is passed at the rate of 3 lit/ min at the pressure of the 6kgf/ cm2 and the pressure drop does not exceed 0.7kg/ cm2WATER PRESSUREThe cable is tested at a pressure of 6 kgf/ cm2 (kcs) to ensure then there is no leakage or hose damage. OPTIONAL FEATUREROTECTION SLEEVES : - In order to eliminate breakage of strands due to frequent acute bending operation, projection sleeves are provided on the area of both the terminal joints.

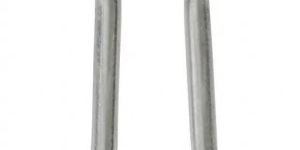

We offer to the clients Jumper Wire, which is high on demand in the national and international markets. Jumper Wire is actually a tinned copper conductor with 0.5 mm diameter PVC Insulation Cover. Obtainable in safe packaging and reasonable prices, clients have been Jumper Wire. Attributes : Long functional lifeChemical resistantDurableResistance to heatAbility to withstand high temperatureEasy to install Used As : Signal distributors

We are listed among the most reliable Jumper Cables Manufacturers in India. The unmatched quality and inexplicable performance in respective applications has attracted various national as well as international clients to place huge and repeated orders for Connector Jumper Cables. In addition to this, notable features like high flexibility, durability and resistivity to various odd conditions have also played a vital role in the enhancement of the demand. Customers are also facilitated with the availability of the Coaxial Jumper Cables in varied sizes and dimensions to meet the specific requirements.

Kay Vybin water cooled jumpers or sub cables are flexible rope type secondary connectors, assembled with high conductivity terminals. They are sheathed with reinforced abrasion and oil resistant hose. Free water passage is insured by means of an open spring core progressing the entire length of the cable, thus permitting the cable to operate under conditions of acute bending without obstructing the water flow.

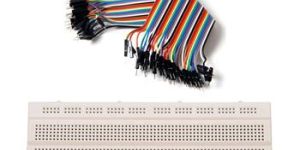

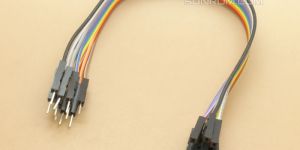

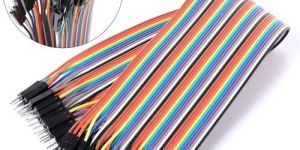

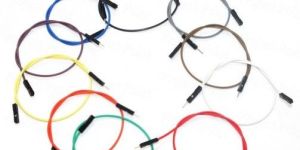

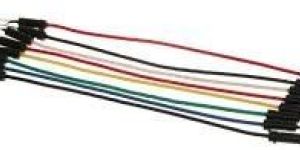

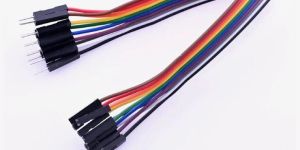

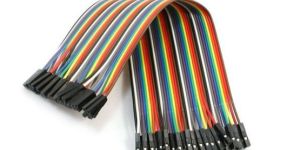

Handy for making wire harnesses or. jumpering between headers on PCB's. These premium jumper wires are 6" (150mm) long and come in a 'strip' of 40 (4 pieces of each of ten rainbow colors). They have 0.1" male header contacts on one end and 0.1" female header contacts on the other. They fit cleanly next to each other on standard-pitch 0.1" (2.54mm) header. The best part is they come in a 40-, pin ribbon cable. You can always pull the ribbon wires off to make individual jumpers, or keep them together to make neatly organized wire harnesses.This male to female jumper wires are used robotics and embedded projects for interfacing devices.

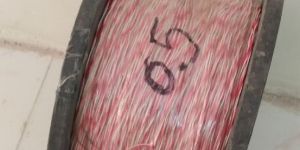

Conductor : annealed high conductive electrolytic grade bare tinned solid copper of 0.5 0.6 mm diameter generally conforming to is:8130-1984 insulation : hard grade specially designed pvc as per type 2 of is:13176:1991 suitable for a conductor temperature upto 70ºc ref specs: gwir-1003 sep 2006, cw-1257 cw-1423cw-1109 colour code : as per standard standard packing : 100 m 500 m high conductivity solid annealed bare copper industrial telephone.

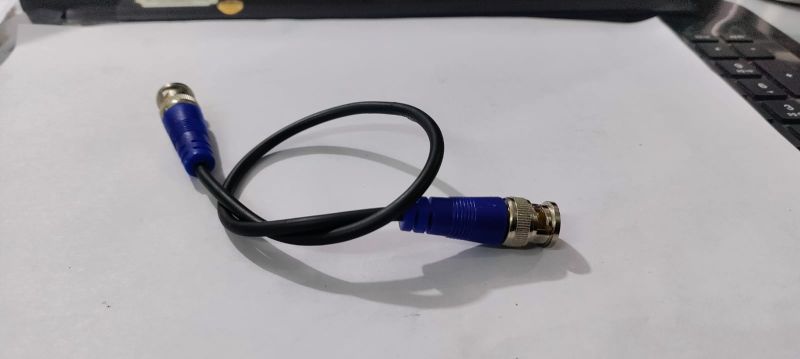

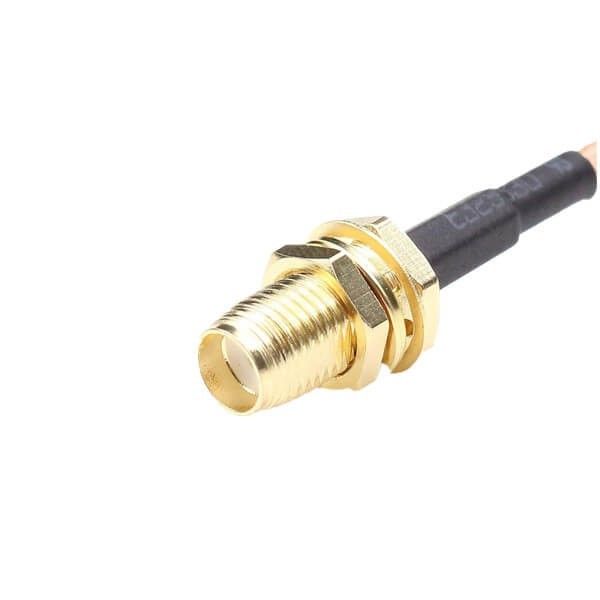

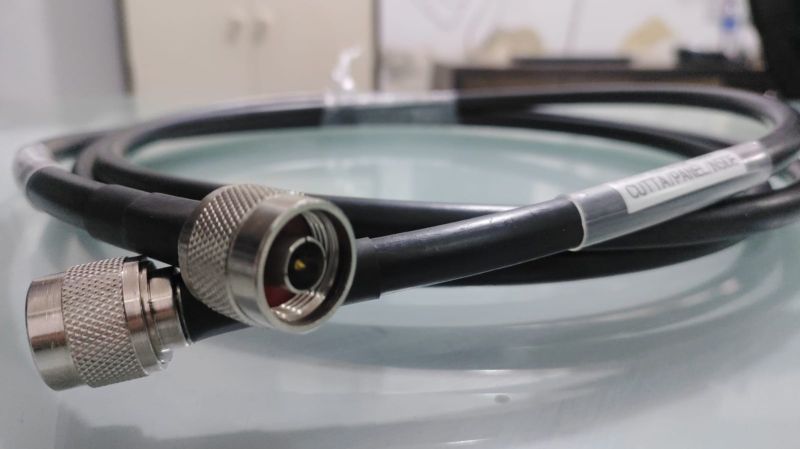

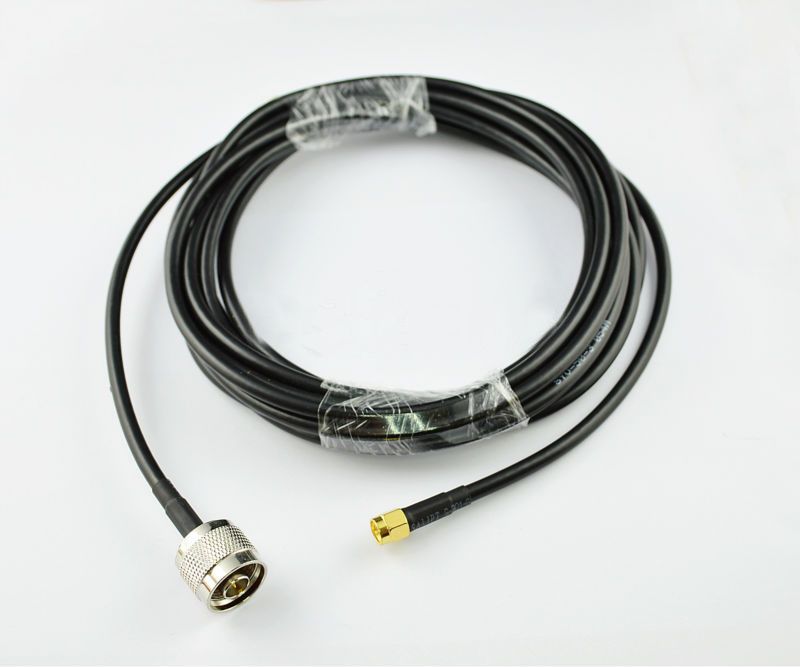

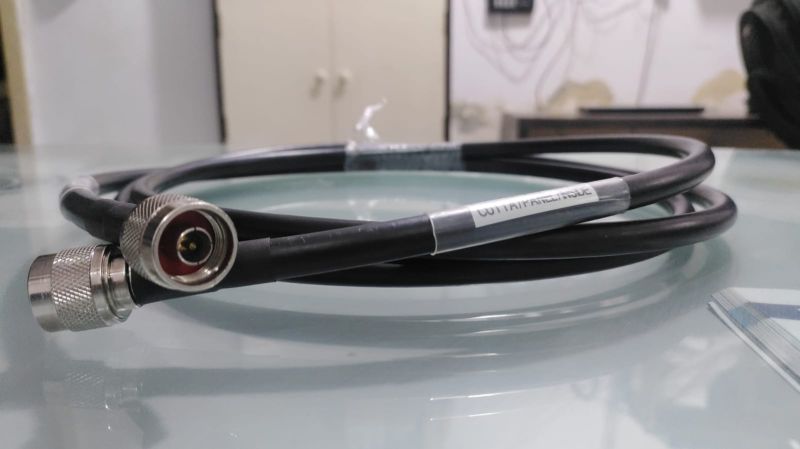

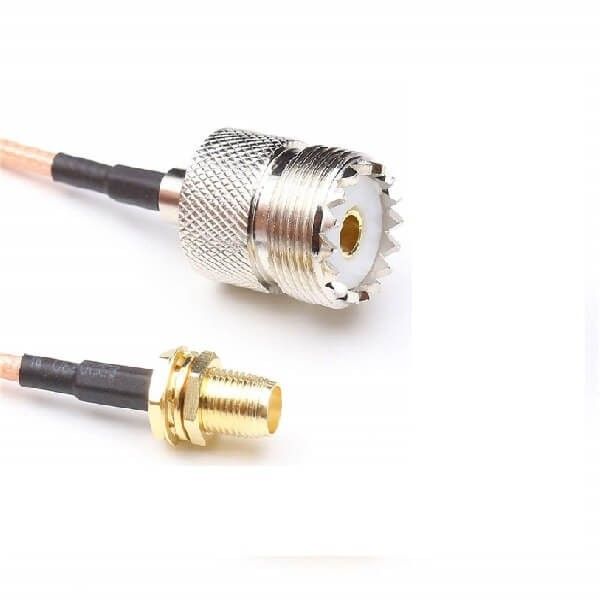

Specially developed connectors by using advanced technology that guarantees superior electrical characteristics Injection moulded sealing on the cable jacket Used cable jackets of flame retardant, halogen-free material (FRNC) Low intermodulation product IM3 > 160 dBc Excellent return loss up to 2.7 GHz > 28 dB (VSWR < 1,08)

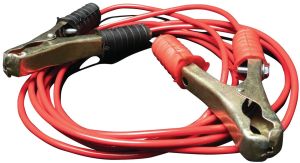

Pranjal Polymers is a leading Earthing Jumpers manufacturers, suppliers & exporters from India. These are widely used in the chemical industry along with the flange joints to ensure smooth flow of electricity. We are offering these in different lengths and diameters in order to meet the challenging demands of the industry.
