Limpet Coil Reactor Dealers

We offer specially designed storage tank for chemical, pharmaceutical and food processing industries. These tanks are used for various purposes including storage , mixing , sedimentation and separation of raw materials.

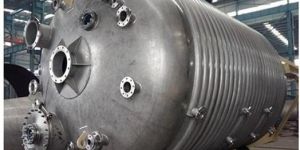

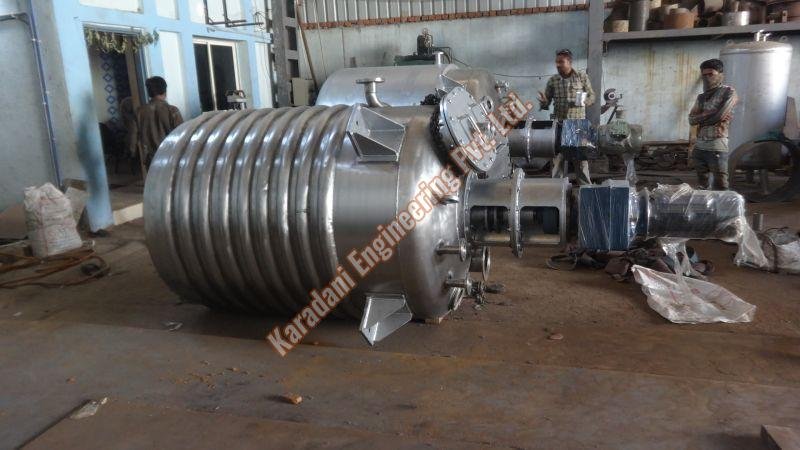

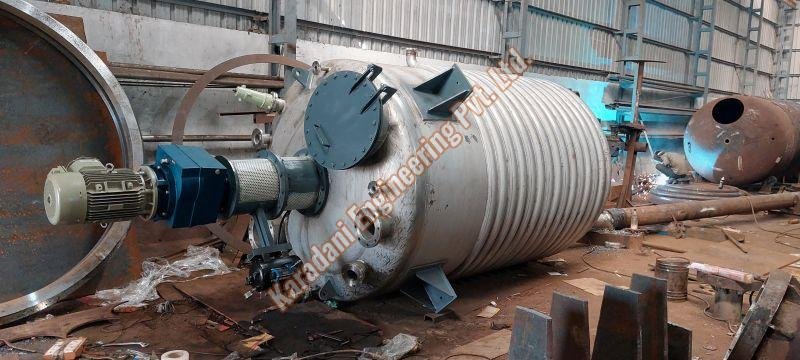

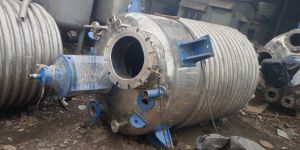

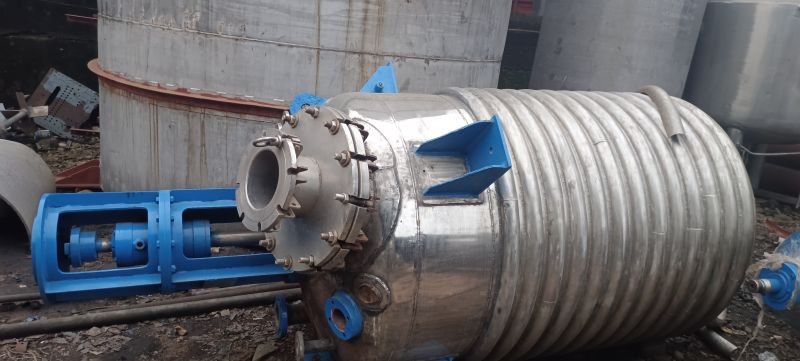

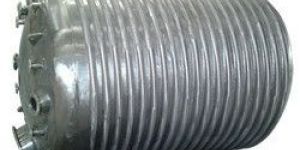

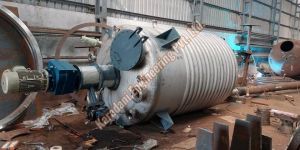

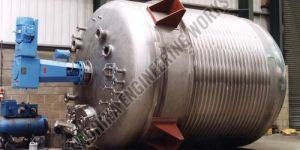

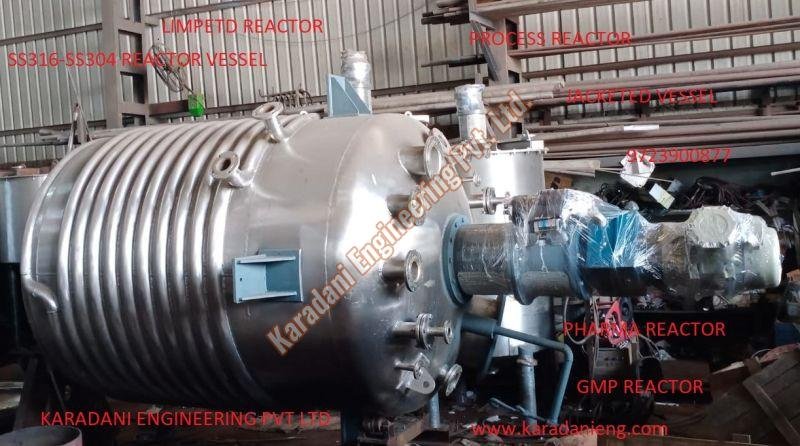

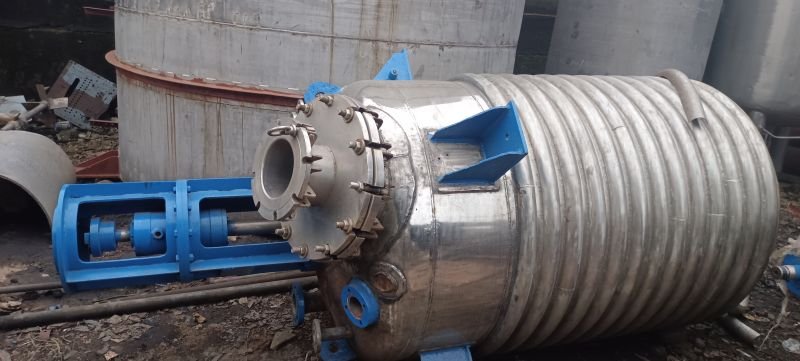

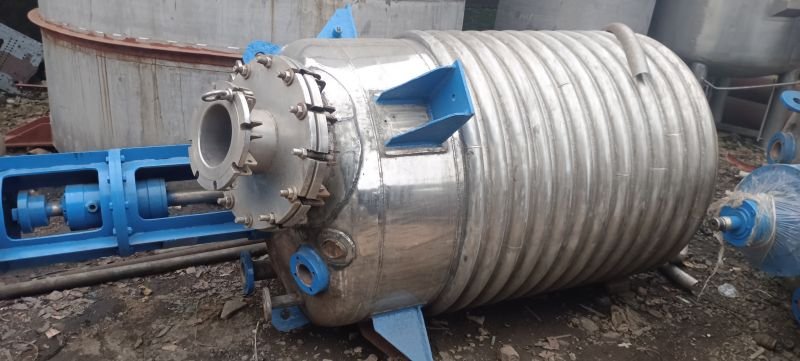

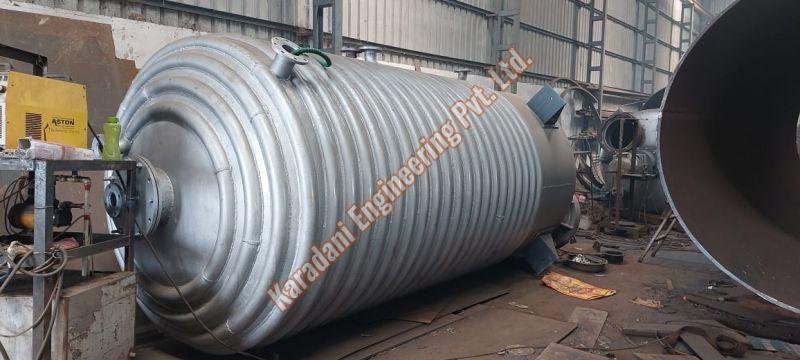

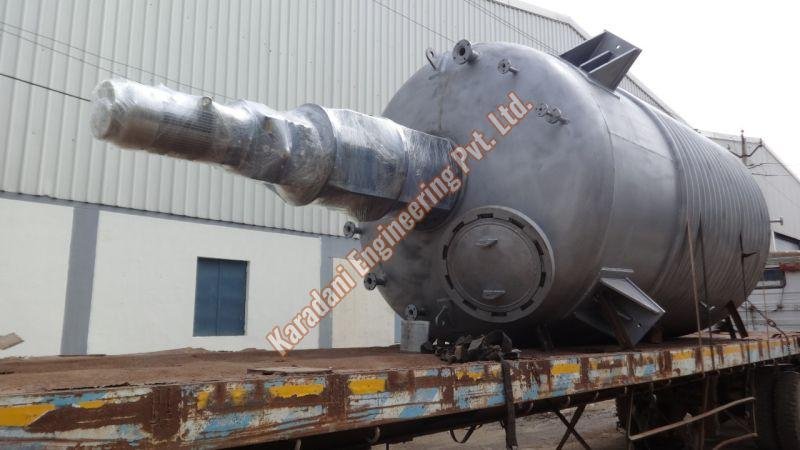

The construction of Limpet Coil Reactor is same as that of Jacketed Reactor except instead of Jacket on the Shell of Reactor Limpet Coil is welded on it. LimpetCoil Reaction Vessel consist of a Cylindrical vertical shell with standard torospherical dish on both ends.Limpet Coil is Half round Pipes welded on the outer surface of the shell and also on the bottom dish of the Reactor. Limpet coil is made of either Mild Steel Or Stainless Steel. It is either Double end double start for both heating and cooling through limpet coil or Normal Single coil for either heating or cooling. Limpet Coil Welding is performed by using high grade filler rods depending on MOC of the Limpet Coil to withstand design pressure. The drive is designed to give maintenance and trouble free performance. The Agitator Shaft is coupled to the Reduction Gear Box with Flexible coupling. The Reduction Gear Box is mounted on the Top of the Lantern Assembly and is driven by Motor using V belt pulley. Variator or AC drive can by used to get variable speed of the Agitator if desired. Four lugs support are provided on the Shell of the reactor to mount it on the Platform of the Factory. Platform can also be prefabricated and assembled at site. Welding work is performed by Argon Arc process using Good Characteristic Filler rods on all S. S. Parts. M.S. Parts welding is performed by D. C Arc welding process using suitable electrodes of Advani Oerlikon make. All weld joints will be finished from inside and outside, S S. Parts is cleaned from inside and outside. Two coates of primer redoxide will be given on M.S. parts from outside.

Limpet Coil Reactor is manufactured and supplied by us from Thane, Maharashtra. Limpet coil reactors are used for regulating the temperature of reactants by heating and cooling the media by circulation through half piped coils. It is used for high temperature above 150 centigrade. Capacity ranges from 500 to 60000 ltrs. They are available with 316 and 304 stainless steel. The equipments used are of GMP range. We stick to ASME standards and provide for a wide variety of value added processes like automation, valves and fittings.   Benefits of SHASHVATH Limpet Coil Reactor Limpet coil reactor can be used for heating or cooling of the reactants Suitable for high temperature ( Above 150 C) Thermic fluid oil like such as Therminol™, and Dowtherm Achieve heating and cooling in one reactor with Double coil design Available in the range of 500 Liters to 60,000 Liters Offered in Stainless Steel 316, 304 or Carbon Steel material GMP range of equipments available for Pharmaceutical industry. With mirror finish from 220 grit to 440 grit, smooth welding & flush grinding and Insulation with mirror finished S.S cladding Agitator design to suit the reactants viscosity and density Vessel design with form cutter for the process which generates forms Adheres to ASME and other standards with special attention to Argon and Arc welding procedures Save time and money with our Value added products and services like Process Automation, valves and fittings Manufactured as per your specifications Manufacturing facility approved by the renowned consultants and Third party inspection agencies

Aries Fabricators limpet reactor/coil reactor is made by welding a half pipe around the outside of the vessel to create a semi circular flow channel. The heat transfer fluid passes through the channel in a plug flow fashion. Large reactors use several coils to deliver the heat transfer fluid. Like the single jacket, the temperature in the coil/limpet reactor is regulated to control heating or cooling. The plug flow characteristics of a limpet/coil reactor permits faster displacement of the heat transfer fluid (typically less than 60 seconds). This is desirable for good temperature control. It also provides good distribution of heat transfer fluid which avoids the problems of non uniform heating or cooling between the side walls and bottom dish.

We are offering rector with limpet coils. Moc: ss-304 ss-316 with agitator system, insulated, jacketed or non jacketed. capacity: 2kl to 60kl manufactured on tailor made basis as per customer requirement.

The construction of Limpet Coil Reactor is same as that of Jacketed Reactor except instead of Jacket on the Shell of Reactor Limpet Coil is welded on it. LimpetCoil Reaction Vessel consist of a Cylindrical vertical shell with standard torospherical dish on both ends.Limpet Coil is Half round Pipes welded on the outer surface of the shell and also on the bottom dish of the Reactor. Limpet coil is made of either Mild Steel Or Stainless Steel. It is either Double end double start for both heating and cooling through limpet coil or Normal Single coil for either heating or cooling. Limpet Coil Welding is performed by using high grade filler rods depending on MOC of the Limpet Coil to withstand design pressure.

We manufacture Reaction Vessel with capacity ranging from 100 litres to 20,000 litres in Material of Construction Stainless Steel & Mild Steel and Rubber lined depending on the requirement of the Material to be processed. Limpet Coil can be made of Mild Steel or Stainless Steel as perthe application of the user.

we are offering limpet coil reactor. limpet coil reactors we put forth a wide range of reactor with limpet coil for chemical industry 3000 ltr to our clients, which is widely appreciated for its rugged construction and steady performance. it is manufactured using finest quality raw material to carry out chemical reaction of two or more chemicals in chemical industry. this range of reactors is offered in the following specifications: 1kl, 2kl, 3kl , 5kl,8kl, 10kl,20kl, 25 kl, 30 kl, 40 kl, 50 kl, up to 100 kl (ms and ss)

Aries Fabricators limpet reactor/coil reactor is made by welding a half pipe around the outside of the vessel to create a semi circular flow channel. The heat transfer fluid passes through the channel in a plug flow fashion. Large reactors use several coils to deliver the heat transfer fluid. Like the single jacket, the temperature in the coil/limpet reactor is regulated to control heating or cooling. The plug flow characteristics of a limpet/coil reactor permits faster displacement of the heat transfer fluid (typically less than 60 seconds). This is desirable for good temperature control. It also provides good distribution of heat transfer fluid which avoids the problems of non uniform heating or cooling between the side walls and bottom dish. Technical Features: Capacity Range: 450 to 15000 liters GMP and non-GMP models available Custom build – Aries Recommended or as per client drawings M.O.C = Mild Steel/Stainless steel Stirrer Types: Anchor stirrers used for high density materials moving at slow RPM (15 to 60 RPM Maximum) Propeller stirrers used for medium density materials moving at steady RPM (100 to 300 RPM Maximum) Turbine stirrers used for low density materials moving at high RPM (100 to 1000 RPM Maximum) Cutter stirrers used for particular processes moving at very high RPM General Features : Best to be heated using steam and cooled using chilled water Durable standards  Sturdy construction High mechanical strength Optimum functionality Weather proof  Temperature resistance  Application specific design  Corrosion resistant

We are offering the best quality Limpet Coil Reactor that is designed under the supervision of professional experts. Our Limpet Coil Reactor complies with high industrial standards, and therefore widely demanded throughout the market. Limpet Coil Reactor, provided by us, has robust construction and longer service life. Hence, we are regarded as credible Manufacturer of Limpet Coil Reactor in Hyderabad (Andhra Pradesh). Application Areas Sugar industryMilk & Food Handling industryChemical industrySteel industryHydel Power & Solar Energy industryli>Granite industryCement industry
