Oscilloscope Dealers

We offer wide range of Analog, Digital Storage Oscilloscopes up to 350 MHz bandwidth. At entry level , 30 MHz , Modern circuits often use high speed VLSI techniques , high speed micro controllers etc,. The entire range of oscilloscope , pass through strict quality control and performance requirements

RIGOL's DIGITAL STORAGE OSCILLOSCOPE The Rigol DS1102E oscilloscope is one of the most popular 100 Mhz oscilloscopes. This Rigol DS1102E Model is an economical digital oscilloscope with high-performance, which is designed with dual channels and 1 external trigger channel. It provides 20 types of wave parameters for automatically measuring, which contains 10 Voltage and 10 Time parameters. In cursor mode, users can easily measure by moving cursor. Besides, 3 types of cursor measurement are optional: Manual, Track and Auto. This DS1102E DSO provides powerful PC application software: UltraScope, which enables to: Capture and measure wave; Perform local or remote operation; Save waves as ".bmp" format; Save files as ".txt" or ".xls" format; Print waveforms FEATURES Built-in help menu enables information getting more convenient Multiple Language User Interface, support Chinese & English input Support U disk and local files storage Waveform intensity can be adjusted To display a signal automatically by AUTO Pop-up menu makes it easy to read and use function Fine delayed scan function Built-in FFT function, hold practical digital filters Pass/Fail detection function enables to output testing results Math operations available to multiple waves Powerful PC application software UltraScope Standard configuration interface: USB Device, USB Host , RS-232 and support U disk storage and PictBridge print standards The new function “Key Lock” can meet the needs of industrial production Support for remote command

Scientech Oscilloscopes are essential tools for anyone designing, manufacturing or repairing electronics equipments. In today's fast paced world, engineers need the best tools available to solve their measurement challenges quickly and accurately. Scientech Oscilloscopes are the key to meet today's engineer measurement challenges.

Features: 15MHz at 5mV. Component Testing Facility, Line and External Trigger Facility, 200mV Peak to Peak Calibrator lOx 8 Div, Graticule Area (1 Div = .6 cm). Completely solid state and portable model.

Features of GDS 1052 U   4k Memory Length per Channel   Peak Detect as Fast as 10ns   Save/Recall of 15 Front Panel Settings & Waveforms   5.7" TFT colour Display   19 Auto Measurements   Arithmetic Operators - Add, Subtract, FFT   USB Port for PC Connection   USB Port for PC Connection   Specifications Of GDS 1052 U   Product Range : GDS1000-U Series   Scope Channels: 2 Analogue   Bandwidth: 50MHz   Sampling Rate: 250MSPS   Display Memory Depth: 4 kpts   Calculated Rise Time/b>: 7ns

Get your products to market faster with award-winning oscilloscopes that offer the fastest update rates, the deepest memory, the industry’s only capacitive touch screen, and the most oscilloscope software options. Produce the highest-performing products with measurements you can trust thanks to oscilloscopes with industry-leading signal integrity and the largest selection of oscilloscope probes. Achieve the lowest cost of ownership with multiple instruments in one mainframe and easy upgrades.

Scientific offers wide range of analog , analog -digital , digital oscilloscopes up to 350 mhz bandwidth. At entry level , 30 mhz , sm410 is very popular model with unsurpassed price- performance ratio. Modern circuits often use high speed vlsi techniques , high speed micro controllers etc, hmo3524 is equipped with facilities and capabilities to handle these signals. The entire range of oscilloscope , pass through strict quality control and performance requirements, archives beyond it's published specifications and performance.

Features Stable Triggering up to 40 MHz Algebraic sum & difference of both channels Max. sweep speed 40 ns/cm Bright Trace & Internal Graticule CRT Alternate Triggering Line Trigger Variable Hold-Off Component & Continuity Tester Low Line and Portable X 5 magnification Z Modulation (TTL)

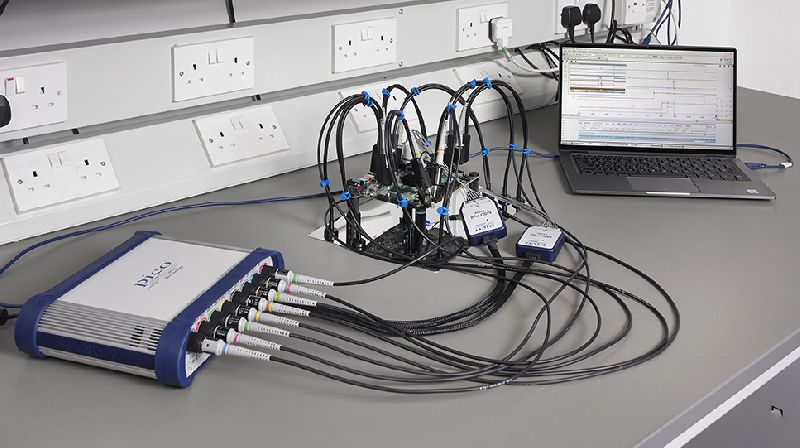

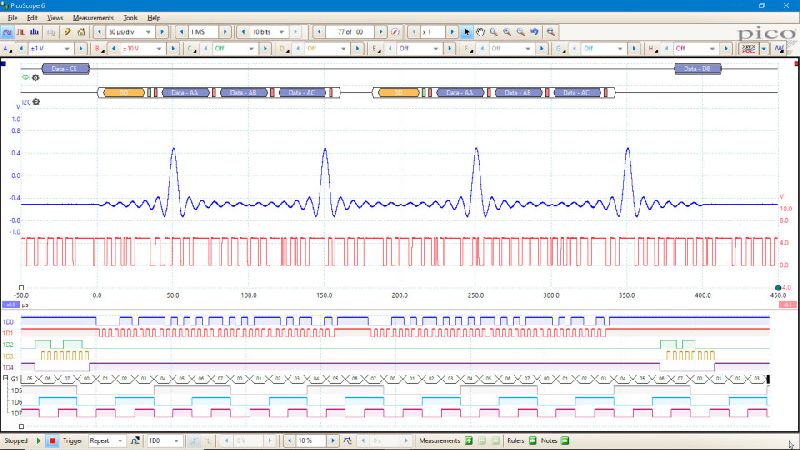

PicoScope 6000E Series-MSO upto 8ch- Analog and 16 Digital Channel (MSO)-8-bit to 12-bit FlexRes® ADC-A choice of  8 (up to 500 MHz) analog channels-Supports up to 16 digital MSO channels-200 ms capture time at 5 GS/s-Up to 4 GS capture memory-50 MHz 200 MS/s 14-bit AWG-300 000 waveforms per second update rate-PicoScope, PicoLog® and PicoSDK® software included-21 serial protocol decoder / analyzers included-Mask limit testing and user-definable alarms-High-resolution time-stamping of waveforms-Over ten million DeepMeasure™ results per acquisition-Advanced triggers: edge, window, pulse width, window pulse width,-level dropout, window dropout, interval, runt and logicTypical applicationsThese oscilloscopes, with PicoScope 6 application software, are ideal for design engineers working with high-performance embedded systems, signal processing, power electronics, mechatronics and automotive designs, and for researchers and scientists working on multichannel high-performance experiments in physics labs, particle accelerators and similar facilities.The PicoScope 6000E Application Programming Interface (API) provides programming access to the full set of advanced hardware features and can be used to develop diverse custom and OEM applications. Mixed-signal operationWhen fitted with optional 8-channel TA369 MSO pods, the PicoScope 6000E Series adds up to 16 high-performance digital channels to up to eight analog channels, enabling you to accurately time-correlate analog and digital channels. Digital channel bandwidth is 500 MHz, equivalent to 1 Gb/s, and the input capacitance of only 3.5 pF minimizes loading on the device under test.Digital channels, captured from either parallel or multiple serial buses, may be grouped and displayed as a bus, with each bus value displayed in hex, binary or decimal, or as a level (for DAC testing). You can set advanced triggers across the analog and digital channels.The digital inputs also bring extra power to the serial decoding feature. You can decode serial data on all analog and digital channels simultaneously, giving you up to 24 channels of data – for example, decoding multiple SPI, I²C, CAN bus, LIN bus and FlexRay signals all at the same time!

Oscilloscope Combination Of A True Dso And An Analog Oscilloscope One Touch Change Over. Crt Readout And Cursors For Voltage Time And Frequency Measurement, Direct Print Out Of Screen Display Using Hpgl Commands With Rs-232 Interface. Two Input Channels, Algebraic Add And Subtract With Ch2 Invt.

An oscilloscope is easily the most useful instrument available for testing circuits because it allows you to see the signals at different points in the circuit. The best way of investigating an electronic system is to monitor signals at the input and output of each system block, checking that each block is operating as expected and is correctly linked to the next. With a little practice, you will be able to find and correct faults quickly and accurately. Feature:   High luminance, internal graticule CRT Japanese electronic encoder,light,handy and reliable Fully sealed long live vertical mode switch ALT Triggering Function. Two independent signals simultaneous observation Build-in 6 Digit Frequency Counter 30MHz Dual Channel 10 times sweep magnification TV Synchronization-Y mode   Specification   Horizontal System Sweep time: 0.2uSec~0.5Sec/DIV,20steps in 1-2-5 sequence; Sweep time accuracy:±3% Vernier sweep time control:≤1/2.5 of panel-indicated ＆#118alue; Sweep magnification: 10 times; ×10MAG sweep time accuracy: ±5% (20nSec~50nSec are uncalibrated); Linearity:±5%,×10MAG: ±10% (0.2s~1us) Position shift caused by ×10MAG: within 2DIV. At CRT screen center   X-Y MODE: Frequency bandwidth: DC to at least 500KHz; X-Y phase difference:≤3°at DC~50KHz Sensitivity: Same as vertical axis. (X-axis:CH1 input signal; Y-axis:CH2 input signal.); CALIBRATION VOLTAGE Waveform: Positive-going square wave; Frequency: Approx. 1KHz; Duty ratio: Within 48:52; Output voltage: 2Vp-p±2%; Output impedance: Approx.1KΩ   CALIBRATION SIGNAL Waveform: Positive-going square wave; Frequency: Approx. 1KHz; Duty ratio: Within 48:52; Output voltage: 2Vp-p±2%; Output impedance: Approx.1KΩ   CRT Type: 6-inch rectangular type, internal graticule; Phosphor:P31; Acceleration voltage: Approx.2KV(20MHz)/Approx.12kv(40MHz); Effective screen size:8×10DIV[1DIV=10mm(0.39in)]; Graticule: Internal; Trace rotation: Provided   VERTICAL AXIS Sensitivity:5mV~5V/DIV,10 steps in 1-2-5sequence Sensitivity accuracy:≤3% Vernier vertical sensitivity: Continuously variable to 1/2.5 or less of panel-indicated ＆#118alue Frequency bandwidth: DC~30MHz(x5MAG:DC~7MHz)/DC~40MHz(x5MAG:DC~15MHz)DC~50MHz(X5MAG:DC~15MHz) AC coupling: Low limit frequency 10Hz. (With reference to 100KHz, 8DIV, Frequency response with-3dB.) Rise time: Approx.17.5ns (x5 MAG: Approx.50nS) Approx.8.75ns (x5 MAG: Approx.25nS) Approx.7ns (x5 MAG: Approx.23.3nS) Input impedance: Approx.1MΩ/Approx.25pF DC balance shift: 5mV~5V/DIV: ±0.5DIV, 1mV~2mV/DIV ±2.0DIV Linearity:1000:1 at 50KHz; >30:1 at 15MHz/>30:1 at 35MHz/>30:1 at 45MHz CH2 INV BAL: Balanced point variation:≤1DIV (Reference at center graticule)   TRIGGERING Triggering source: CH1,CH2,LINE,EXT Coupling: AC: 20Hz to full bandwidth SLOPE:+/- Sensitivity: 20Hz~2MHz:1DIV, TRIG-ALT:2DIV EXT:200mV；TRIG-ALT:3DIV,EXT:800mV; 2~30MHz:1.5DIV；30MHz~40MHz:2.5DIV；40MHz~50MHz:3DIV； TV: Sync pulse more than 1 DIV (EXT:1V) Triggering modes: AUTO; NORM: TV-V: TV-H: (Both TV-V and TV-H synchronize only when the synchronizing signal is negative) EXT triggering signal input: Input impedance/: Approx:1MΩ/approx.25pF; Max.input voltage:300V (DC+AC peak), AC: Frequency not higher than 1KHz

Features : * Two Simultaneous Sampling Channels At 20 Ms/ S * Combination Of A True Dso And An Analog Oscilloscope One Touch Change Over. * 2 Kilo Words Of Memory Storage/Channel * Crt Readout And Cursors For Voltage Time And Frequency Measurement * Direct Print Out Of Screen Display Using Hpgl Commands With Rs-232 Interface. * Ruggedised Environment Endurance. * 1mv/Div Sensitivity. * Two Input Channels, Algebraic Add And Subtract With Ch2 Invt. * A Sweep * B Sweep ( Delayed Sweep ), Triggered. * X-Y Operation * Read Out / Cursor * Menu Selection , Data Acquisition For Probe Factor, Smooth On/Off * Pre-Trigger Observation * Single Sweep Operation ( Storage Band Width 5 Mhz ) * X2 To X10 Horizontal Expansion In Digital Mode * Temporary Holding Wave Forms Displayed * Storing And Recalling A Reference Memory * Scale Illumination * Continuous Variable Hold-Off * Z- Axis Input * Large Inch Crt With Internal Graticule * Tv-V,Tv-H Triggering * Calibrator Out Put For Probe Adjustment Also Available : 10 Mhz Single Trace Oscilloscope. 25 Mhz Dual Trace Oscilloscope. 30 Mhz Dual Trace Oscilloscope. 60 Mhz Dual Trace Oscilloscope. 40 Mhz Dual Trace Triggered Oscilloscope. 60 Mhz Dual Trace Triggered Oscilloscope. 100 Mhz 2 Channel , 6 Trace Oscilloscope. 100 Mhz 4 Channel , 8 Trace Oscilloscope. .
