Proximity Switches Dealers

Long Distance Cylindrical It can detect any object without contact, Metallic, non-metallic, glass, wood, water, human, oil, plastic anything. Sensing distance would be 3mm to 25mm. Choice of operating voltage :24VDC or 110220VAC.

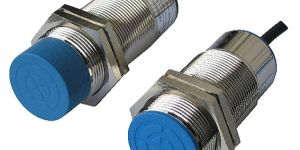

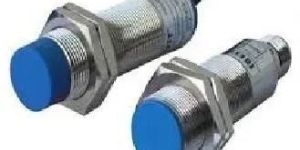

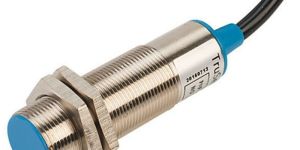

In all automated processes sensors are absolutely necessary to provide the PLC with information. They supply the necessary signals on positions, limits or serve as pulse pick-ups for counting tasks or for monitoring rotational speed. Inductive & Capacitive Proximity Switches are useful in industries for non-contact operation free from any wear & tear with high switching frequencies and accuracy. They are insensitive to vibration, dust & moisture. Inductive Sensors detect all metals without contact. Capacitive Sensors detect almost all solid and liquid media such as metal, glass, wood, plastic, water, oil etc. Inductive Proximity Switches take advantage of the physical effect of the change in the quality factor in a resonant circuit caused by eddy current losses in conductive materials. This is how it works: ALC tuned circuit generates a high frequency electromagnetic field. This field is radiated from the active face of the oscillator. This reduce the oscillation amplitude. The change is converted into a switching signal. The operating principle permits detection of all metals irrespective of whether they are moving or not. Important: the high frequency field causes no measurable heat in the object nor is there any magnetic interference. The operation of the sensors is without interaction. The distance to the active face at which an electrically conductive material causes a change of signal in the sensor is called sensing range. The sensing range of an Inductive Proximity Switch is defined by means of a target of mild steel (Fe 360). If the switch is damped by other metals, e.g. aluminium or copper, this is reduced. Using correction factors for every kind of metal the user can calculate the attainable sensing ranges.

considered as one of the renowned names, we are actively involved in providing a comprehensive range of proximity switch. In line with the standards set by the industry, these offered products are highly demanded. Moreover, their corrosion resistance and durability make these a preferred market choice. Also, these are examined before final shipment of the order.

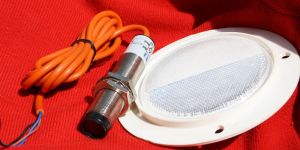

Photoelectric Sensor works on the principle of modulated Infra-Red rays. These sensors can sense any opaque, semi-transparent objects which comes in its sensing range. Photoelectric Sensors have large operating distance. These are mainly divided into : Diffused Beam Sensor, Through Beam Sensor with Amplifier Unit, Through Beam Sensor with Built in Amplifier, Retro-Reflective Sensors.

Optical Proximity switch offer non-contact sensing of almost any substance or object up to a range of 10 meters. These sensors consist of a light source (usually an LED, light emitting diode, in either infrared or visible light spectrum) and a detector (photodiode). Due to the high intensity infra-red energy beam, these sensors have major advantages over other opto-electronic systems when employed in dusty enviroments. With their focused beam and long range, opto-electronic sensors are increasingly used in applications where other sensing techniques are lacking in sensing distance or accuracy. These are available in a variety of modes including:1) Infrared Proximity (Diffuse Reflective)2) Transmitted Beam (Thru-beam)3) Retroreflective (Reflex)4) Polarized Retroreflective (Polarized Reflex)5) Fiber Optic6) Background Rejection

It senses any object;longer sensing distance; medium counting speed; high position sensing accuracy. These are infra-red type sensors incorporating advance and reliable technology. These are offered in tubular metallic, acrylic & plastic enclosures. Special models of optical switches are available with an integrated optical fibre cable for flexible mounting and for sensing miniature objects high temperature objects.

We are the most prominent manufacturers and suppliers of reliable range of Capacitive Type Sensors. In order to ensure the quality, these are fabricated using premium quality input and updated technology at our highly developed infrastructure units. Capacitive Proximity Sensors effectively detect non-metallic objects, liquid, powder & granular materials. Our offered products are quality tested on various parameters by our quality inspectors. These products facilitate hassle-free performance during service life and act as contactless sensor for the positioning, monitoring and detecting of every kind of material.Sensing Range: 10-30V DC type models Cylindrical & surface mount housing styles Dia of M18, M30, M36

It senses only ferrous objects/ magnets; High counting speed. These are available in M12, M18, M30 and above. Sensing range : 10 to 50 mm. Grade of protection is IP-68.These switches are used only for position sensing applications. These can also be used for Roto-meters, Direction sensing, Level Sensing of liquids.

Magnetic pickups (MPUs) are speed sensors that detect the speed of a prime mover, typically an engine or turbine. They are the communication link between your engine and a Woodward electronic governor control. The MPU is installed next to a drive shaft gear made of a material that reacts to a magnetic field. As each gear tooth passes the MPU, the gear interrupts the MPU's magnetic field, and an alternating voltage is developed. The frequency of this voltage is translated by the speed control into a signal that accurately depicts the speed of the prime mover. Woodward’s magnetic pickups can be used with most electronic speed controls. Models are available for hazardous location installation.

We are offering capacitive proximity sensors which is sourced from international manufacturers, providing our customers with advanced sensing equipment. Our capacitive proximity sensor is provided with these specifications : sensitivity adjustable with 14 turns trimmer.high stability with low thermal driftmetallic & non-metallic objects.are sensible, including glass.lumber, oil, water and plastic objects, etc.nc type are available models available cp18 - 30 nbcp18 - 30pbcp30 - 50 nbcp30 - 50pbcp30 - 50sb.
