Pug Cutting Machine Dealers

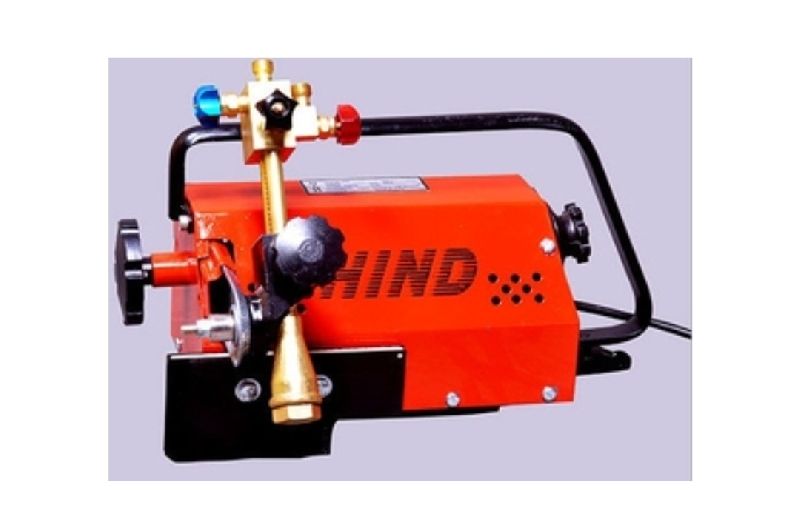

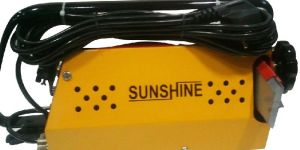

Modi Engineering Corporation’s best selling Pug Gas Cutting Machine helps a fabricator in cutting production costs and increases efficiency. It is designed for heavy duty jobs and also for precision jobs. It works on single phase supply and is operated by 1/12 H.P. single phase motor. Machine is designed to operate on magnetic effect in the roller shaft of gear box. Movement of gas cutting nozzle is directly linked with magnetic roller shaft which results in fine cutting of metal. We also carry gas regulators and torches.

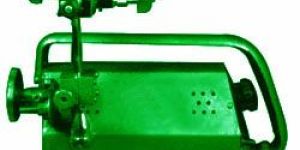

The Pug Cutting Machine, which we make available, is sourced from the most reliable manufacturers who make use of qualitative metal that is durable, non-corrosive and performance oriented. We always focus to achieve buyers’ satisfaction and to do so we offer flawless Cutting Machine. All these years, we have always been delivering even the bulk orders within the predefined timeframe. Our Pug Cutting Machine can be purchased at minimal prices.

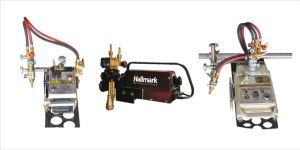

Technical Description of Pug Cutting Machine cutting Capacity : 0-300mm Thick Mild Steel (approx). Bevel Cutting 75mm Thick Up to 45 Either Side of Vertical. cutting Speed Range : 190-830 Mm/ with 220 Volts Ac, 1s Hz, 1/2 Hp Electric Power Motor with Rotary Resistant Control. cutter Pmc-3 : Vertical Adjustment 70mm Injector Type-horizental Adjustment 90 Mm. Gas Hose Connections 1/4" Bsp Lh for Fuel Gas & Rh for Oxygen. standard Acessories : A-16 Cutting Nozzle (1-16"), A-12. Cutting Nozzle (3/64"), 9 Mtrs.3 - Core Cable, Hose Nut Spanner & Head Nut Spanner. on Request : Pug Cutter Headcan also Be Supply in Nozzle Mixing Head W/o Injector.

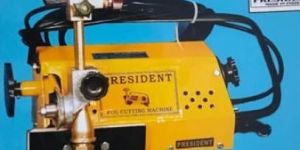

These Machines are light weight, and they have a wrap round handle for easy portability and protection. Its body made of pressed steel with wrapround handle and asbestos heat deflector. It has cutting capacity 75 mm Thick mild steel (approx), Bevel Cutting 50 mm, Thick up to 45 deg. Either side of vertical. Circle from 7 mm-1140 mm Diameter (approx.)

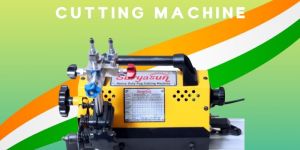

Gas Cutting Machine helps a Fabricator in cutting production costs and increases efficiency.It works on single phase supply and is operated by H.P. single phase motor. Power is fed through a Forward-Reverse toggle Switch Gas Cutting Machine helps a Fabricator in cutting production costs and increases efficiency.It works on single phase supply and is operated by H.P. single phase motor. Power is fed through a Forward-Reverse toggle Switch Specification Drive Single phase motor Speed Control Potentiometer Input Voltage 230 V single phase 50 HZ Speed 200mmmin to 1000mmmin Cutting Range 3mm to 100mm Gas type Oxygen & Acetylene Connections ¼ or 38 :LH for fuel and ¼” or 38 To be used with Aluminum Track 1.8 meters , supplied as optional extra Circle Cutting Can be done with the use of circle cutting attachments, supplied as optional extra. This can be easily attached to the machines

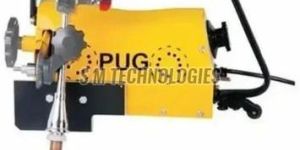

Features: Straight line or circular cuts upto 90mm thickness. Counter balancing enables larger torch machine distance. Heavy duty and low mainteanace Bevel Cuts up to 45. Technical Specifications: Cutting capacity:5mm to 90mm. Straight cuts:1.8meters and multiples Circle Cutting:75mm dia to 1200mm dia Cutting Speed:80mm/min to 800mm/min(variable) Max.Torch Adjustment:Vertical 70mm, Horizontal 85mm Voltage:220/250VoltsAC/DC,50Hz. Weight:9 Kgs.

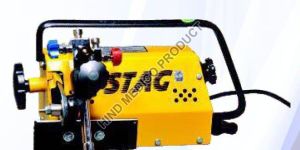

Suitable for cutting ferrous metal sheets and plates in straight direction. Can also be used for circular cutting using circular cutting attachment provided with the machine. Curved surface of the body provides ample cooling space for drive motor and also prevents spatter from sticking to the surface.

AMI-P-925Profile Gas Cutting Machine helps a Fabricator in cutting production costs and increases efficiency. It is designed for heavy duty jobs and also for precision jobs. It works on single phase supply and is operated by 1/12 H.P. single phase motor. Machine is designed to operate on magnetic effect in the roller shaft of gear box. Movement of gas cutting nozzle is directly linked with magnetic roller shaft which results in fine cutting of metal.

SALIENT FEATURES Circle cutting : Can be cut with circle cutting attachment User friendly, requires minimum operator training Straight cut : 1.8 meter rail can be multiply Easy to handle: Heavy Duty, Light Weight Bevel cutting arrangement

Profile Gas Cutting Machine helps a Fabricator in cutting production costs and increases efficiency. It is designed for heavy duty jobs and also for precision jobs. It works on single phase supply and is operated by 1/12 H.P. single phase motor. Machine is designed to operate on magnetic effect in the roller shaft of gear box. Movement of gas cutting nozzle is directly linked with magnetic roller shaft which results in fine cutting of metal.

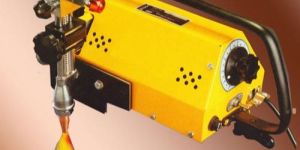

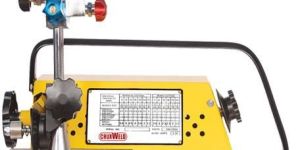

We offer high quality Pug Cutting Machine that is used for cutting steel, ferrous metal plates and sheets in uniform direction with the help of oxy-fuel gases. The quality of our Pug Cutting Machine distinguishes us from our competitors and makes us one of the prominent Manufacturers, Suppliers and Exporters of Pug Cutting Machine in the market place. We also facilitate our clients with the customization option also. Highlights : Provided with aluminum trackAdjustable speedSuperior efficiencyDimensional accuracy

Special Features : Pug Cutting : High performance universal type 1/20 HP, AC/DC motor drive 5 to 70 mm cutting capacity 0 to 45 degree bevels cutting 75 mm dia to 1200 mm dia circle cutting Torch Adjustment : 70 mm – vertical, 85 mm – horizontal Profile Cutting : Available in portable type and fix pillar type Any shape cutting upto 2000 mm depend on model Cutting speed 60 mm / minimum to 700 mm / maximum Tracer movement clockwise / stop / anticlockwise function
