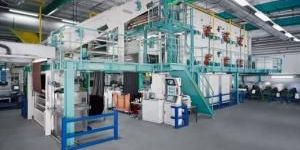

Relax Dryer Dealers

We are offering textile relax dryer. relax dryer from entema (edit post) entema_dryer relax dryer single pass relax dryerfabric passage : first-pass number of cabins : 2 to 7 from the cabin belt width : 1600mm to 3350mm to the heating system options : natural gas, lpg, steam, hot oil mechanical belt speed : continuously variable from 0 60mdak. Inter- maximum operating temperature : 170 ° c fans : special design, high efficiency, located in diagonal, two in each cabin fabric supply : multi-point, infinitely bandwidth control : electro-pneumatic double hand option 1 : specially designed, air-jet with a variable wave effect tumbler system option 2 : exhaust air humidity control system option 3 : fabric moisture control system option 4 : full automation and computer-aided process control package relax dryer double pass relax dryer double passfabric passage : 2-pass number of cabins : 2 to 7 from the cabin belt width : 1600mm to 3350mm to the heating system options : natural gas, lpg, steam, hot oil mechanical belt speed : continuously variable from 0 60mdak. Inter- maximum operating temperature : 170 ° c fans : special design, high efficiency, located in diagonal, two in each cabin fabric supply : multi-point, infinitely bandwidth control : electro-pneumatic double hand option 1 : specially designed, air-jet with a variable wave effect tumbler system option 2 : exhaust air humidity control system option 3 : fabric moisture control system option 4 : full automation and computer-aided process control package. relax dryer three pass relax dryer three pass• fabric passage : 3 pass • number of cabins : 2 to 7 from the cabin • belt width : 3350mm to 1600mm between the • heating system options : natural gas, lpg, steam, hot oil • mechanical belt speed : continuously variable from 0 60mdak. Break • maximum operating temperature : 170 ° c • fans : special design, high efficiency, located in diagonal, two in each cabin • fabric supply : multi-point, stepless • bandwidth control : electro-pneumatic double sides • option 1 : specially designed air jet with a variable wave effect tumbler system • option 2 : exhaust air humidity control system • option 3 : fabric moisture control system • option 4 : full automation and computer-aided process control package.

Working width : 600 mm - 3800 mm in step of 200 mm No. of passes : 1 2 3 Temperature : Max. 225C Evaporation capacity : Up to 230kg of water Chamber hour Machine speed : 0-30 meters min. Higher speed according to the plant requirements Fabric guidance : Single and multiple - track, according to requirement Heating system : Thermic fluid Direct Gas heating Steam No. of chambers : Up to 6 Chambers

The Relax Dryer offered is one of the most economical Dryers ever made in the history of Tubular Knitted Processing Industry. This machine has many salient features. To name a few: The insulation of the machine is designed to give minimal heat losses. The Air circulation is a unique system wherein it produces symmetrical air flow with absolutely minimal pressure drops. The re-circulated air is filtered, heated and blown back into the system by high performance blowers. The air nozzles are designed for uniform air distribution in the chamber and above all are very maintenance friendly. Further, the air vibrating cushion ensures that the fabric gets maximum relaxation and crease free character. The machine comes equipped with exhaust system with butterfly valves for controlling the moist air removal. The machine has a variable speed drive for its conveyors and all its blower motors are invertor driven. An elaborate overfeed system is available at the feed side and an invertor driven conveyor with a plaiter is available at the delivery side thereby giving the processor all the options for a total shrinkage control solution from the machine.

Our Textile Conveyor Relax Dryer is very easy to operate. Sophisticatedly designed by using high quality raw materials, our Textile Conveyor Relax Dryer is repeatedly appreciated for high efficiency. We are acknowledged among the most prominent Manufacturers, Suppliers and Exporters of Textile Conveyor Relax Dryer. We offer our Textile Conveyor Relax Dryer at very reasonable prices. Features Multi-Pass Conveyor DryerFabric movement in Relaxed ConditionEquipped with motorized TensioningCentering device for individual conveyors Specifications Overfeed up to 30 %Teflon Glass Belt for first two passesPolyester Monofilament Belt for Third passWorking width 1200 - 3000 mm

Cloth Entry: A Set of three curved bar rubber sleeve expander. A pair of mechanical cloth guider with adjusting frames to suit cloth width. Structure: M.S. Stack fabricated from M.S. Plates and flates. The Relax Dryer is provided with a possibility of overfeeding up to 40%. Our Relax dryer machinery part is specifically designed with high quality equipment for giving finishing touch to woven & knitted fabrics. Our textile drying machine designed to process which can offer continuous variable adjustment of airing intensity & fabrics dynamics. CYLINDERS: Cylinders of 22” or 30” dia face width from 48” to 120” fabricated from 16 to 10 SWG of 304 or 316 quality stainless steel Argon arc welded consisting M.S. Dished ends and Trunion, Suitable for 40 to 100 P.S.I. Working Pressure. The cylinders mounted on stack running in ball bearing pendestals. Suitable steam inlet out let connection provided. Machine speed : Up to 50mts. min. Length of chamber : 2000 mm multi layer 4000 mm single layer Number of chamber : One to three (higher on request)

Relax Dryer, Balloon Padding, Tubular Compacting Machin

We are offering relax dryer.

Relax Dryer, Textile Machinery, Stenter, Open Width Washer, Jigge

Relax Dryer, Weaving Looms, Used Textile Machine, Textile Machine

Relax Dryers, Conveyor Belt, Heating Machines, PTFE Coated Fabri
