Steam Traps Dealers

 Features Screwed Female ends with BSP Parallel Threads Tested to : 300 Psig (20 Kg/cm² ) Hyd. Suitable for : Steam upto 150 Psig (10 Kg/cm² ) Max. Working Temp : 220ºC Sizes Available (in inches)1/2, 3/4, 1 Sizes Available (in mm)15, 20, 25

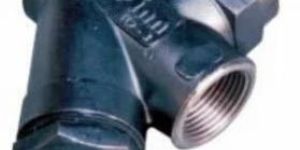

The immediate condensate discharge out of Steam Trap systems is absolutely necessary to retain the maximum possible capacity of the heat exchanger and to minimize the danger of corrosion, water-hammering & temperature fluctuations in the process. Volfram offer highly robust & maintenance free thermodynamic steam traps for the removal of condensate from the steam lines, headers etc.   They are compact & lightweight Have large condensate removal capacity in their range As disc is only moving part, maintenance can be done easily Without removing the trap from line Higher working life as material of construction is complete Stainless Steel Other Applications: Steam Trap carrying pipe lines, steam headers. Available Sizes: 15 NB, 20 NB, 25 NB.

Proper condensate removal is essential for efficient process plant operation. Rex offers a full range of established trap operating principles thermodynamic, ball float, and inverted bucket. Correctly chosen and fitted, rex traps can boost productivity, reduce spoilage, save man-hours, minimize steam consumption and cut fuel bills. HOW IT WORKS As condensate flows into the trap body, air and steam are trapped in the inverted bucket. This gives the bucket buoyancy and it rises with the condensate and quickly closes the valve. When entrapped steam condenses, bucket loses buoyancy, sinks and opens the discharge valve air. Which has accumulated in the top of the trap is immediately expelled by the pressure of the water which follows it to the trap outlet. When air or steam, again enter the inverted bucket, this cycle is repeated. THE BENEFITS Long, energy-efficient service life. Resistance to wear. Exceptional ability to handle dirt and scale. Operation against back pressure of nearly 100% Excellent purging action. Continuous air venting at steam temperature.

A steam trap is a device used to discharge condensate and non-condensable gases with a negligible consumption or loss of live steam. Most steam traps are nothing more than automatic valves. They open, close or modulate automatically. Available in Single/Double ball bearing/with brakes All Sizes and Load Capacity. Types of Steam Traps: Mechanical Steam Traps Thermodynamic Steam Traps Thermostatic Steam Traps

In order to fulfill the ever changing demands of our clients, we have been engaged in manufacturing and exporting a gamut of Steam Traps that are provided with an inbuilt strainer. Manufactured using finest quality stainless steel, this range is highly applicable for header, mainline drains and drop legs.

We have segregated our infrastructural facility into several units including packaging unit wherein we meticulously pack our products to ensuring hassle free deliveries. Established in Chandigarh(India), we are well-known name offering comprehensive range of products.Treating small traps as replaceable items makes more sense because :The cost and complication of stocking spare parts is avoided. The planning of maintenance schedules is minimised. Replacement sealed traps utilise a non-remakeable joint, eliminating the risk of leaks to atmosphere.
