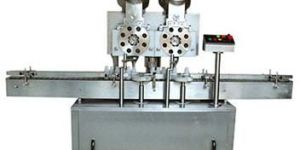

Description     Adinath introduces state-of-art Automatic Dry Syrup Powder Filling Machines for filling of large volume powder into containers. Machine is widely uses in pharmaceutical, cosmetic, veterinary, herbal & food industries. We are having two type of model, first is Automatic Single Wheel Dry Syrup Powder Filling Machine which provides output up to 3000 bottles/hour and other is Automatic Double Wheel Dry Syrup Powder Filling Machine which provides output up to 6000 bottles/hour. This robust design built from stainless steel material for long life and GMP compliance.     Salient Features       “No Container - No Filling” system eliminates wastage of costly powders     Machine can be operated in Single Stroke to Four Stroke and provide output up to 50 fills per minute with an accuracy of ± 2% depending upon powder type and fill size.     All the parts which are coming in contact with the product are made out of S.S 316 material and easily Removable for mandatory autoclaving/sterilization.     Totally enclosed heavy steel structure body to avoid any vibration.     Variable AC Frequency drive to control the speed of the conveyor.     Endless conveyor belt to prevent jamming of assembly due to spillage of powder.   Process Operation     The incoming sterilized dry bottle is fed through the in-feed turn table. Suitable guide supply bottles on to flat conveyor belt at the required speed for feeding. There is filling head mounted on machine top plate in the same line. When bottle reaches to the mechanical holder detained filling station, Bottle sensor sense the bottles and Magnetic clutch starts to rotate which is mounted on auger shaft. It fills the desired amount of powder into the bottle through auger, where rotation time is previously determined. Duly filled bottles go upward on to the sealing station with the help of SS conveyor belt.

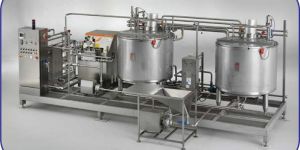

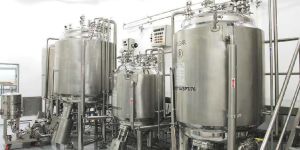

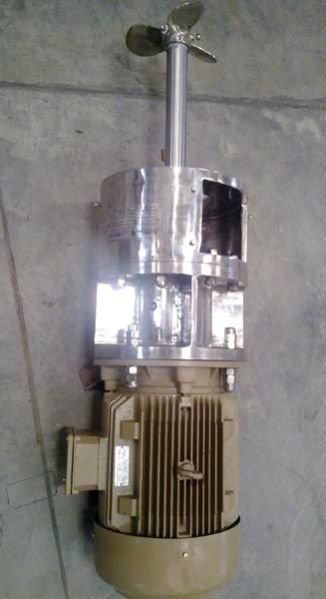

We are renowned for engineering Syrup Manufacturing Plant designed as per CGMP and other international standards. These Syrup Manufacturing Plants are fitted with all the latest machinery and equipment. Our Syrup Manufacturing Plant is also used for the automatic processing of ointments, creams, lotions or tooth pastes, etc. These Syrup Manufacturing Plants are engineered with precision to offer high efficiency. Features Manufactured under CGMP standardContact parts are made of SS316 Easy to assemble, fit and cleanPower and energy saving, as it is designed to be operated by one operator and one helperCrystal clear filtration obtained by zero hold up filter pressEntry of all propeller agitations is from bottom through a specially designed mechanical seal facePLC control panel ensures automatic operationThe sugar melting vessel is designed for internal vacuum to facilitate transfer of sugar directly from stores to sugar syrup vesselSugar syrup is transferred to manufacturing vessel through online sugar syrup pre-filter (Basket filter) by vacuum / pumpThe advantages of the bottom propeller agitator over conventional agitators � there is no vibration of shaft, no coupling in the drive assembly, leading to lower maintenance cost, to reduce the overall height of tankPipes, pipe fittings are of SS 316, seamless, internally electro-polished with silicon gaskets Availability Optionally equipped with CIP & SIP facility and load cell for online weighting Inline Homogenizer can also be optionally provided Available In Various Batch Capacities From 500 liter to 5000 liter Documentation Documentation like DQ, IQ OQ, & FAT will be provided with the Machine

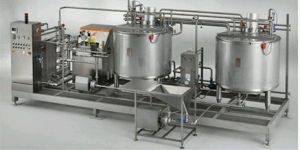

We provide complete syrup liquid line that is highly appreciated in the national and international markets. Our Syrup Manufacturing Plant is manufactured from the optimum quality raw materials to add durability and efficiency. Precisely designed by expert engineers, our Syrup Manufacturing Plant is perfect to manufacture optimum quality syrup. Today, we have firmly positioned as one of the overriding Liquid Syrup Manufacturing Plant Manufacturers and Suppliers based in India. Product Description of Syrup Manufacturing Plant The Facility Consists of Sugar Syrup VesselOnline sugar syrup prefilterManufacturing VesselStorage VesselVacuum system for transfer of sugar syrupFilter press / Inline HomogeniserProduct pipingControl panels Unique Features of the Facility The plant is designed to be operated by one operator and one helper, saving on precious man-power costs.Sugar syrup and manufacturing vessels are provided with limpet coils for heating and cooling, designed for internal vacuum to facilitate transfer of sugar directly from stores to sugar syrup vessel.Sugar syrup is transferred to manufacturing vessel through online sugar syrup prefilter by vacuum.Entry of all propeller agitators are from bottom through a specially designed cartridge mechanical seal with TC/TC seal face.The advantage of the bottom propeller agitator over the conventional agitator is that there are no vibrations of shaft, no couplings in the drive assembly, leading to lower maintenance cost.Pipes, pipe fittings and valves are of SS 316, seamless, internally electropolished with DIN standard unions and silicon Gaskets.Manhole of all the vessels are equipped with davit fitting and the cover of the manhole slides instead of being lifted. Process Control Values like current, product temperature are displayed digitally on the electrical control panel. The mechanical seal is equipped with a water circulating system and has a water detection sensor which trips the motor, if the water circulation to the seal is interrupted. Capacities Available 500 litres to 15000 litres.

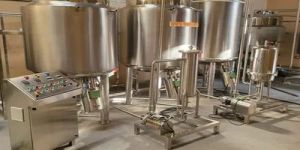

The Liquid Syrup Manufacturing Plants are ideal tools for the pharmaceutical industry for the production of Oral Liquids. It is specially designed to take care of two critical factors which directly affect the quality of the Liquids. Minimum manual handling of Liquid and effective cleanness during manufacturing. Adinth offers Syrup Manufacturing Plants capacity ranges from 50 Liters to 20,000 Liters.   Sugar Melting Vessel   It is made out of 316 sheet all welding is done by an argon are welded & all Joints are ground to smooth finish. It is mounted on S.S.304 construction legs.   Prefilter   It made out of SS 316 quality fitted inline between Sugar melting vessel and syrup Manufacturing Vessel.   Manufacturing Vessel   It is made out of SS 316 sheet & all welding is done by an argon arc and all joints are ground to smooth finish. It is mounted on S.S.304 construction legs.   Storage Vessel   It is made out of SS 316 sheet & all welding is done by an argon arc and all joints are ground to smooth finish. It is mounted on S.S.304 construction legs   Zero Hold Filter Press   It is made out of SS 316 quality sheet. Complete unit shall be mounted on Portable trolley.   Inline Homoginizer   SS. 316 Inline homogenizer with mounting & motor attached. Inlet & Outlet 25 NB with tri clover fittings   Control Panel   Made out from SS 304Q consisting fuses, voltmeter, terminal, contactor, on/off switches & wiring.

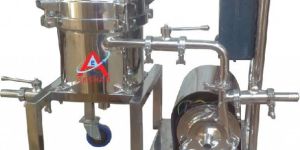

Ideal solution to the pharmaceutical industry for the production of Liquid Syrup Manufacturing Plant. The process consists of Sugar syrup preparation. Ingredient Mixing and Storage with product distribution piping. Range of plant covers from 50 L to 15000 L with various options in top and bottom entry agitators for mixing and homogenizing of syrup & suspensions. Product contact parts are SS 316 / SS 316L with option of jacketed vessels and heating system suitable for steam as well as electrical. Liquid Syrup Manufacturing Plant Consist the Following equipments and accessories : Sugar Syrup Vessel Filter Press Manufacturing Vessel Transfer Pump Storage Vessel Transfer Pump Piping To Connect All Above Equipments Working Platform Control Pump Details This system consists of a closed circuit manufacturing facility from feeding of Sugar / Water Phase to loading the Volumetric Liquid Filling Machine. The Sugar and Water, are load with vacuum system or by mechanical system or manually. The Sugar Syrup Vessel is supplied with high speed stirrer & electrical heating ( In small model ) / steam heating facility (In bigger size model ). The sugar syrup is prepared at required temperature & are transferred to Manufacturing Vessel by vacuum or by transfer pump. The product during emulsion formation is re-circulated through In-Line Homogenizer or Liquid Transfer Pump. (Optional Facility) The Pump also discharges the product in the Storage Vessel. The Storage Vessel is then taken to the filling area (if it is small capacity) and is connected to again Liquid Transfer Pump. Or Storage Vessel remains fixed (In bigger size) & pump transfer the Liquids in the float tank which is connected with filling machine. The entire Plant can be operated by centralized operating panel by one operator. The plant is equipped with an electrical control panel with digital temperature indicators / controllers and digital timers. Salient Features The Plant is designed to be operated only by one operator and one helper. All material transfers are done by vacuum or by transfer pumps. All the vessels are CGMP (Paint free construction) The gaskets used are of silicon (food grade). All contact parts are of S.S. 304 quality material (SS316 provided on demand) & finished to class 4B (Mirror) finish and are crevice free. The entry of stirrer & high speed emulsifier are from top. In-line Emulsifier ( as per customer choice ) provided on demand. (Optional) All vessels are suitable for internal pressure of 1 Kg. / Sq. cm. and hence can be sterilized. All pipes, pipe fittings and valves are of SS304 / SS316 ( as per customer requirement) seamless quality, internally electro polished, with tri-clover ended joints. The entire plant is equipped with CIP & SIP connections, so that customer can use these facility, if have CIP & SIP equipment. All values of temperature & time of the plant are indicated digitally on the control panel. Ampere indicates on Ampere meters. A micro processor based automatic operating plant can be designed as per requirement. (Optional) All the inlet & outlet connections are provided with tri clover joints, which are very easy for cleaning & replacement. Download

We keep the finished assortment of products in the highly developed and capacious storage unit. This helps us in keeping the products safe and sorted till the final dispatch. We share a forefront with the famed organizations, supplying superior quality Syrup Manufacturing Plant at affordable rates.Salient Features : Extremely hygienic processing Least manual handling. Design compliance with cGMP Capacity up to 100 ltr to 10,000 liters. Product Contact AISI 316L Atmospheric, Vacuum or Pressure Operation. Jacket for heating & cooling. Vessel Inside Pressure Heating Jacket Pressure Heating by steam or hot water circulation. Thermal Insulated. Mechanicals or Electro Polishing of internal surface Welded, flanged or hinged type cover Integrated Cleaning in Place - CIP Sterilizing In Place - SIP as an Option. Portable execution on request.

The construction of the complete system is done in a way that allows for plant to be easily handled by single operator, thus saving on man- power costs. Further, the system also comes with limpet coils for desired heating and cooling support. .

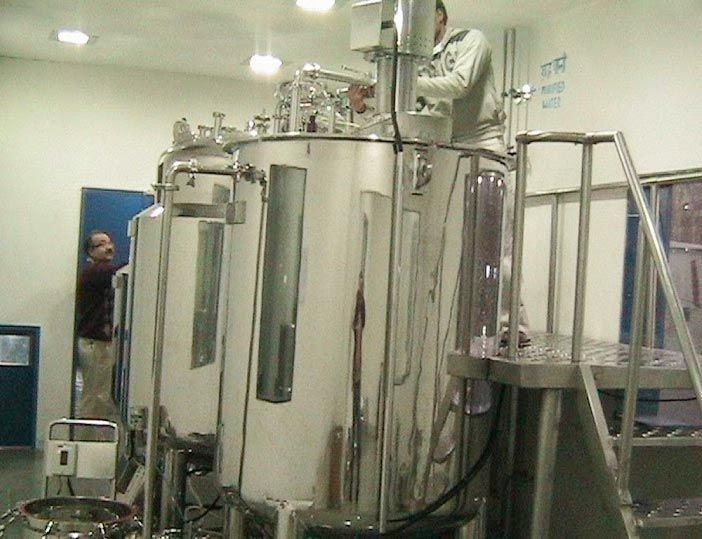

The Liquid Syrup Manufacturing Plant, offered by us, is precision engineered and intricately made. It is fabricated by our qualified and experienced team of professionals incorporating premium metal and sophisticated machines. It is provided by us with top entry stirrer. The platform is made up of top quality stainless steel for easy operations. Not only small but we can deliver even the bulk orders within the stipulated timeframe. Highlights : MOC : SS 304/SS 316 /SS 316L Capacity : 50 Ltrs to 10000 Ltrs Plant can be equipped with CIP & SIP system Fully automatic & semi automatic mode can be provided Least manual handling Ss Platform with Railing for Easy Operation

We are a manufacturer of Syrup Manufacturing Plant. Design compliance with cGMP .Details : Extremely hygienic processing. Least manual handling. Design compliance with cGMP Capacity up to 10,000 Liter. Product Contact AISI 316L Atmospheric, Vacuum or Pressure Operation. Jacket for heating & cooling. Vessel Inside Pressure Heating Jacket Pressure Heating by steam or hot water circulation. Thermal Insulated. Mechanicals or Electro polishing of internal surface. Welded, flanged or hinged type cover Integrated Cleaning in Place-CIP. Sterilizing In Place-SIP as an Option. Portable execution on request.
