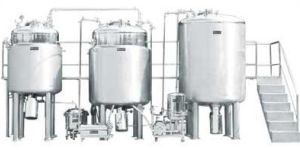

Vacuum System for Transfer of Sugar & Sugar SyrupWorking Platform
Zero holdup filtration unitPLC based control panel
Technical specifications:
Complete vessel design as per ASME guidelines and the complete plant is manufactured as per cGMP guidelines
All vessels are suitable for internal pressure of minimum 1 Kg/cm2 and hence can be sterilized
Complete closed circuit system
Charging of the sugar to the sugar melting vessel can be done under vacuum without vacuuming the sugar melting vessel (optional)
Final product transfer through Zero hold up filter press in to the storage vessel
On line homogenizer for suspension products
Bottom entry stirrer can be provided to restrict overall height
Optimized design and fully automatic PLC based control ensures minimum manual handling and low maintenance cost
Working platform and ladder with railing in AISI 304 stainless steel
All connecting pipelines, fittings, valves and contact parts are of AISI 316 stainless steel seamless quality and are electro-polished and crevice free
Available in various batch capacities from 1,000 litres to 20,000 litres
