Syrup Making Machine Dealers in Ahmedabad

Heavy duty base with robust construction off S.S. matt finished body Suitable for 5 gm to 50 gm powder filling with the help of change parts Microcontroller based system with latest technology Multiple Filling range with arrangement of different syringes and change parts No container No fill arrangement Easy and accurate adjustments of fill desired quantity with the help of change parts Various models available as per output speed requirement (1 / 2/ 4 head) Machine can be synchronized with Airjet Washing, Visual Inspection, Capping, Induction Sealing machine Suitable for Pharmaceuticals industries

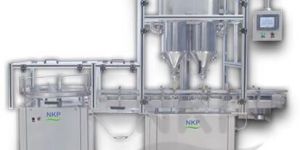

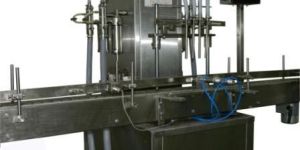

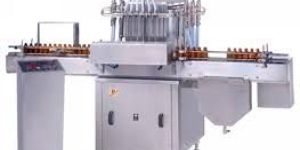

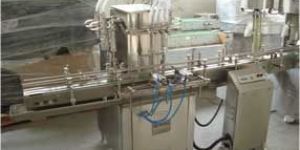

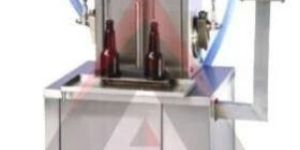

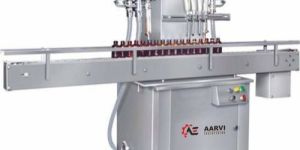

syrup filling machine is fabricated with best quality of stainless steel. It can be used for the items weighing from 1 kg to 5 kg. the machine has electronic clutch and break with digital weighing system and foot switch operated.

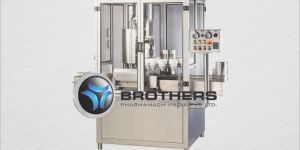

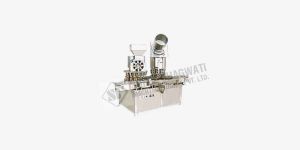

SHPF-100 Automatic Monoblock Dry Syrup Powder Filling Cap Sealing Machine is a Compact machine used for filling and sealing of Dry Syrup in bottles. The incoming dry container (sterilized and siliconised) are fed through the infeed Turn Table with suitably guided on the moving delrin flat conveyor belt at the required speed for feeding to the feed worm for correct spacing between two bottles and get enter into the infeed starwheel, which will be transferred below funnel, 16 nos. of funnel is mounted on round plate and powder filling head is mounted from centre pipe, which gives the flexibility to adjust position of wheel as per requirements and consumes less space on machine. Machine will be having a lifter assembly on base of bottom plate, when bottle come below funnel, bottom platform will lift the bottle and insert the bottle tight fit inside funnel. The sterilized powder is stored in to powder hopper is agitated by pair of mechanical agitators for maintaining consistency and uniform bulk density, powder wheel rotates at the pre-determined speed below the powder hopper with practically no clearance. Powder wheel consist of Piston in each port and behind the powder wheel and vacuum plate is provided there is no clearance between powder wheel and avacuum plate due to back spring pressure. Precise volume of powder is sucked in to the port of powder wheel during vacuum according to the piston length different fill size can be achieved. The excess powder is doctored off by a doctor blade, now doctor blades can be adjusted from outside also without removing powder hopper, when powder wheel indexes further and remain in the port due to the vacuum till it reaches just vertical position. The time dose of Compressed air, sterilized low pressure air or Nitrogen Gas sequentially flushes out powder from the port of powder wheel in to the funnel. Funnel will be equipped with square rod to break the solid slug of powder and powder will start to fill inside bottle, which is moving along with funnel. In this model Bottle is getting around 5 to 6 second filling time. Bottles further move with funnel and reaches to exit starwheel, which is infeed starwheel for eight head ROPP cap sealing machine, while rotating with startwheel bottle picks up the cap from exit end of chute, ROPP caps kept in orientation unit, automatically orient caps in right direction before entering into delivery chute. And Bottle is entering below the sealing head, consisting of total four rollers, Two rollers properly Skirts, Spins and Seals the cap and simultaneously another two roller performs perfect threading according to bottle neck diameter. After sealing operation, sealing head moves upward with help of cam and bottle enters into exit starwheel. Move further on conveyor belt for next operation.

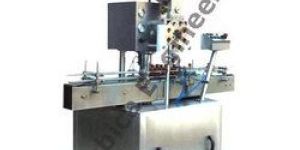

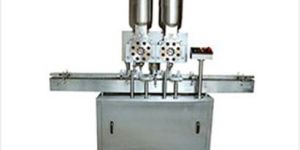

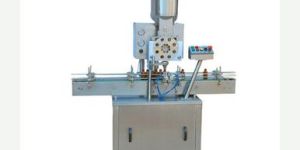

We are offering dry syrup powder filling machine. Model no. af - d - 100 direction left to right production rate 40 to 45 bottlesmin. (for 15 to 20 grms. Filling) fill capacity 5 grams to 50 grams (with different set of auger and funnel) fill range depending upon bottle opening and bulk density of powder. Accuracy ± 2% depending upon consistency and the uniformity of bulk density of powder under controlled level of humidity (i.e. 35%) electrical supply 3.0 hp

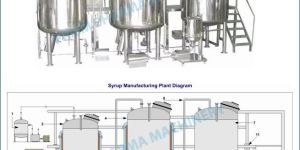

Preparation Vessel & Liquid Syrup Manufacturing Plant Liquid Syrup Manufacturing Process Application & Process : Prism has been designed & manufacturing preparation vessels and has consolidated a process knowledge concerning sterile injectable solution, dispersions, ophthalmic products, syrup and suppositories. Preparation Vessels & Tank : Extremely hygienic processing. Least manual handling. Design compliance with cGMP Capacity up to 10,000 Liter. Product Contact AISI 316L Atmospheric, Vacuum or Pressure Operation. Jacket for heating & cooling. Vessel Inside Pressure (-1 /+2 Bar) Heating Jacket Pressure (-1 /+6 bar) Heating by steam or hot water circulation. Thermal Insulated. Mechanicals or Electro polishing of internal surface. Welded, flanged or hinged type cover Integrated Cleaning in Place-CIP. Sterilizing In Place-SIP as an Option. Portable execution on request. Validation protocols & Instrumentation celebration. Variable Speed Agitation : Agitator can be top or bottom driven or magnetically driven. Propeller type, Anchor type provided with High speed disperser or rotor-stator homogenizer. Single or double mechanical seal. Fully automatic Liquid Syrup Manufacturing Plant consisting of : Sugar Charging / Transfer System. Sugar Melting Vessel with mixing stirrer. Basket Filter & Transfer Pump. Syrup Manufacturing Vessel with stirrer. Inline Homogenizer. Zero Hold up Filter press. Storage Tank with stirrer. Interconnecting pipeline. Transfer Pumps. Integrated automatic control panel. Working Platform. Turn Key Process Line : For production, filtration, transfer and storage solution. Pre reparation vessels. Inline homogenizer. Inter Connecting Pipe Solid or sugar Charging System Working Platform. Automation available, appropriate for the intended process function, including CIP and SIP : Controls of all function by PLC Controls with HMI Touch screen. Level controls by means of capacitance probe or electronic load cells. Digital indication and controls of all process parameters for Process time, agitator speed, temperature, pressure & level.

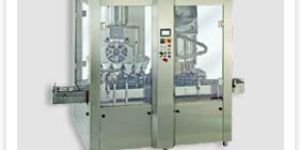

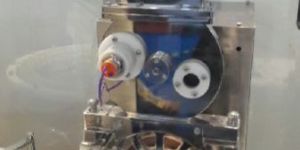

N.K Industries manufacturing the Dry Syrup Powder Filling MachineHigh Production Capacity in High Filling Quantity also. M.S. Molded structure duly powder coated to avoid any vibration with adjustable Screws to adjust conveyor height as per in feed tunnel. Total Compact Monoblock CGMP model. All parts and assemblies coming in contact with powder are made of S.S.316 “NO BOTTLE, NO FILL” System eliminates wastage of costly powder. Spring loaded Teflon top seal for powder hopper reduces the friction between and top seal and avoid chance of white particle shading during production. Doctor blade and wiper blade can be adjusted from outside also without disturbing any production, which saves lot of time, powder wastage and chances of area condition disturbance.

The output of the machine depends on powder’s inherent characteristics, ambient atmospheric conditions, fill volume and container geometry. * Specification subject to change without prior notice. Application: To fill PowderDry syrup in containers To fill PowderDry syrup in containers Container Diameter:- 30-90mm Container Height:- 50-150 mm Dose:- upto 150 gm

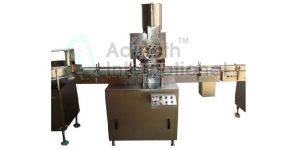

Item Code: AEDPF-60We are engaged in manufacturing and exporting of Dry Syrup Powder Filling Machine Model No. AEDPF -60, which has a Dry Syrup Powder Filling Machine capacity of 5 gms to 30 gms/ single doze with different powder wheel fill depending on neck diameter and powder characteristics. Our range is available in dimensions of 1525 mm [l] x 675 mm[w] x 1700 mm [h].approx. Technical specification:Output: Up to 60 bottles/ min. For single dose Up to 30 bottles / min. For double dose Up to 20 bottles / min. For triple dose Accuracy: +- 2% for depending upon the consistency, uniformity & bulk density of powder under the controlled level of humidity below 30%. Powder wheel piston adjustable depending to Dry Syrup Powder Filling Machine. Body makes to M.S. Angle structure all covering to SS 304 Bottle setting separate adjusting for centering to powder filling station Description: Bottles come from two ways conveyor & stopping by star wheel & fill through dozing wheel Can fill up to 30 gms can fill by double doze Setting of the dozing size is to be made by the help of dozing arrangement [dozer]

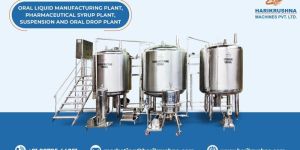

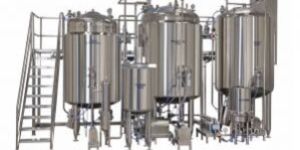

Apple Pack Manufacturing of Oral dose Liquid Manufacturing plant with different kind of Liquids Plant such like Liquid Manufacturing Plant, Cough Syrup Liquid Plant, Drop Solutions Syrup Manufacturing Plant, Suspensions Liquid Syrup Manufacturing Plants, Expectorant Liquid Syrup \ Oral manufacturing plant , Oral liquid manufacturing plant comprises of sugar syrup vessel, online sugar syrup pre-filter, manufacturing vessel storage vessel, vacuum system for transfer of sugar and sugar syrup, product piping, Working Plate form, control panels and transfer pumps for product transfer to Liquid syrup bottle filling line. The liquid Syrup Oral dose manufacturing plant is a set of equipments design for the manufacture of Oral dose syrup, liquid oral formulations and other water based pharmaceuticals product. Liquid Oral Processing Plant for Syrups & Suspensions, as per the customers’ requirement to meet GMP, cGMP, WHO, USFDA and MHRA norms. The Syrup plant equipments are manufactured as per cGMP guidelines and ASME standards.

Our company is capable of delivering consignments on time owing to an efficient trading network we have. Listed amidst the renowned Suppliers of Automatic Dry Syrup Powder Filling Machine, we successfully deliver the finest range of products the clients.   Specifications  :  Output   -  40/60 Bottle/Minute (Depending on the fill size & powered characteristics)  Fill Size   -  5 Gram to 25 grams (with two different powder wheels and depending on the neck diameter and powder characteristics)  Accuracy   -  ± 1 to 2% for uniform density and free flowing Granulated powder density free flowing below 30%.  Dimension   -  1550 mm(L)- 720 mm(W)- 1800 mm(H).  New Weight   -  360 Kgs.

The Automatic High Speed Rotary Monoblock 16x8 Head Dry Syrup Powder Filling & Capping Machine Model PF-150D, is suitable for Glass, Plastic, PET, HDPE, LDPE Bottles with maximum speed of 150 Bottles per minute depending on Powder Fill Volume, Type of Powder, Bottle Diameter and Bottle Neck Diameter.   The Machine works on proven time tested Vacuum and Air Systems to Fill powder in Bottle achieving higher speed and higher accuracy. Machine with unique Bottle Lifting and Neck Holding system avoid spillage of powder on bottle shoulder, neck and body keeps bottle clean and body keeps bottle clean and also avoid wastage of powder.   TECHNICAL SPECIFICATIONS Bottle Diameter : Upto 85 mm*, Square or Rectangular bottles can be used Bottle Height : 200 mm Maximum* Cap : Any type of ROPP or Screw Cap, Sample required for evalution Fill Range : 5 gms. to 70 gms. in single dose with the help of change parts for different fill volume* Fill Accuracy : +/- 1% to 2 % Depending upon the powder, under the controlled level of Humidity Humidity : Below 30% Rh required on machine to be arrange by customer Electrical : 415 VAC 3 Phase and 220 VAC Single phase Power supply (50 Hz) with A.C. Drive Power : 3.0 H.P. for Machine and 4.0 H.P. for Vacuum Pump Compressed Air : Filtered, Oil free 2kg/cm2 provided by Customer only Vacuum : 28" Hg. @ 300 LPM, provided by Customers only, 500 LPM recommended Conveyor Height : 815-940 mm Overall Dimensions : 2500 mm (L) x 1750 mm (W) x 2000 mm (H) Speed : Max. 100 Bottles per minuite depending on Bottle size, Bottle neck Diameter, Type of powder, Fill Volume, Type of cap and cap size.
