Ultrasonic Flaw Detector Dealers

Pulser voltage (Square wave mode) 25 … 400 V, in steps of 25 V, Pulser width (Square wave mode)30 … 1000 ns, in steps of step 0.1ns, 1.0ns, 10ns, 100ns.

Colour LCD/TFT Display Fast Scanning Speed Wide Viewing Angle Auto DAC with - 6dB and -14dB Curves Li-ion battery for long battery operation Very Low Noise

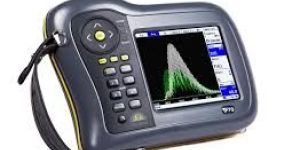

The Sonatest heritage in product design and Masterscan name has always assured the technician of robust instrument construction combined with exceptional performance. The Masterscan series carries the baton of all these desirable features, but now, thanks to innovative internal redesign, new features can be added and upgrades performed in the working environment, reducing downtime and increasing working flexibility. High levels of near surface resolution, penetrating power (450V pulser - square and spike) and excellent signal to noise ratio are key functions in the Masterscan range. Typical applications are Weld Fabrication, Corrosion Detection, Composite Inspection, Bond Testing, Forgings & Castings, Power Generation (including EMATS) and general UT inspection.

We are strongly backed by a smart logistics network owing to which we are capable to deliver the product range in safe and timely manner. Ours is a well-recognized organization based in Mumbai(India) and appreciated for offering products in the local markets.

10mmto 5 meter (0.500 in to 200 in) (in steel). In Hot Key mode it has 13 preset values. Fine mode adjustable in step of 1mm(0.2 in). Pulse echo and transmit/receive. BNCandLEMO(Size 1) both are provided. Dual gate adjustable in1%of Screen width with Positive/Negative logic, Gate Expand modes. Lithium-Ion Battery pack 14.4VDC,4AH, gives 8 hours continuous operation from fully charged battery. Input Voltage 100 to 240 VAC. Charge status indicator is provided. 0 to 55 C. (For operation) 152 x 255 x 70mm (HxWxD). 2.3 Kgs. with Battery. 1000 m/sec to 9999 m/sec (0.0400 in/μs to 0.4000 in/μs). In Hot Key mode it has 7 preset values. Fine mode adjustable in step of 1 met/sec (0.0001 in/μs). Variable from 0 to 3000mm (0 to100 in). In Hot Key mode5mm(0.2 in). Fine mode adjustable in step of 0.5mm (0.02 in). A- Scan Freeze and Peak Freeze available. In Peak freeze it holds echo dynamic pattern which is useful during angle beam probing to locate peak signal. 100 dB calibrated gain adjustable in 0.5, 1, 2, 6, 12 or 20 dB step. 0 to 100% FSH with LED indicator. Full-wave rectified with filtering. Broad Band amplifier 0.5MHz to 15 MHz. Transmission pulse Negative spike with selectable high or low power. Damping high / low is selectable. Expands Range to width of the gate. 200Trace Patterns can be stored , recalled, printed or transferred toPCvia RS-232 serial port. 50 different calibration set-ups can be Stored and Recalled. EinSoftDGSInterface software for transferringA-Scan from Einstein- toPCis supplied. IBM compatible Printer having serial port can be directly attached to main unit for printing of stored A-Scan waveform with calibration data. High brightness Colour LCD/TFT Display . Display area 320x240 pixel(122x92mm). Eleven different color scheme option. By pressing Zoom keyA-Scan can be displayed in Full Screen area. Reference A-Scan pattern of standard test object can saved and recalled in the background for easy comparision during testing. Dynamic DAC curve can be Digitally plotted on screen with -6dB and -14dB DAC curves. DAC curve can be set as flaw monitor gate. Using minimum 2 to maximum 10 pointsDACcurve can be plotted. Defect size evaluation can be performed using 18 predefined probe settings and custom probe set-ups.Defect size is directly displayed inERSvalue (Equivalent Reflector Size). Thickness/Depth can be displayed in digital readout when using a normal probe and Sound path, Surface Distance and Depth are directly displayed when angle probe is in use. 50Hz.

Portable digital （dual frequency）eddy current testing instrument Introduce: TMD-2D adopted the most advanced ARM and DSP fusion technique, in comparison with the congeneric product, TMD-2D got great improvement on the signal processing speed, detecting speed and accuracy. As an outstanding member of TMTECK testing instrument series, not only has all the functions of conventional digital dual-frequency eddy current detector, but also applicable to the conductivity and thickness measuring. It is capable of nearly all the eddy current testing application and can totally take place of import muti-functional eddy current testing equipment. With intelligent mixing frequency unit, it can effectively restrain jamming signals. TMD-2D is widely used in the industries as military, aviation, metallurgy and automobile etc, it is able to detect and access the flaw quickly and accurately in aircraft component, such as structural alloy, airframe, engine vane, wheel hubs, landing gear, rivet inner & outer crack, aluminum surface, fuselage wing joint etc.The conductivity and thickness measuring is featured with wide testing range, and high testing accuracy. Fool-style operation and no requirement of long-time training of the testing personnel. Especially good applicable for the in-service & pre-service inspection in aviation, aerospace, electricity and petro chemistry industry etc Features Big screen , high brightness colorful 5.7 inches TFT-LCD, work out the fault of the tradition single screen display. Independent dual frequency detection Intelligent and frequency mixing design Intelligent digital design, convenient operation According to user needs to provide professional testing programs It is expertly designed, reasonable design and simple to operate. Simple, real-time on-screen instructions, can be realized fool-type operation

NAUGRALABS LABORATORY PRODUCT NAME: ULTRASONIC FLAW DETECTOR FOR TESTING LAB NaugraLabs Laboratory Product Code: NLE-Export-111011 Description and Specification for Lab Tenders Ultrasonic Flaw Detector.  Technical Specifications : Frequency : 05-12 MHZ Sensitivity : 140+/-3dB Gain Control : 103 dB in 0.25, 0.5, 6 dB Steps Horizontal Linearity : £ + 1% of Test Range Vertical Linearity : £ + 3% of Screen Height Accuracy of calibration Gain : + 1 dB Test Range : 0-10 mm / 0-10 mt in Steel CRT Screen : 70 X 55 mm Delay : 0-500 mm in steel Suppression : 0-50% of Screen Height PRF : 125 Hz -2KHz coupled with test range Voltage Supply : 7.2 VDC (Ni-cd Batteries) Battery Life : 3-4 Hours Acceptable Temperature : 0-50oC Test Method : Pulse echo/ through transmission Operating Mode : Single/ Double Probe, T/R Mode Dimensions & Weight (Incl. Batteries) : 4400 MV @380x280x230mm – 7.5 Kg Pulse Energy Selection : High energy & High penetration LCD Display : 4 x 20 Alfa Numeric Memory : Calibration 10 Sets, Measured 100 sets Velocity Adjustment : 0-9999 m/s Essential Accessories: Normal Beam Hard Face Probe with side BNC Connector Dia 12.5 mm Frequency 5 MHz (KC50-5.0) With BNC-BNC Single cable & Test Block  Steel & Metal Mechanics Lab equipment manufacturers,exporters and Steel & Metal Mechanics Lab suppliers

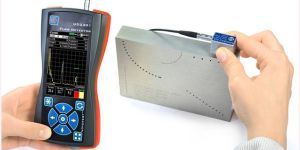

Ultrasonic flaw detector UD2301 is designed for nondestructive testing of metals, plastics, glass, composite materials, weld inspection and measurement thickness of the various products and structures.Flaw detector allows user to detect various defects such as discontinuities, cracks and heterogeneity of materials in semi-finished products and welded joints, to measure the depth and coordinates of defects, the thickness of products, the speed of propagation and attenuation of ultrasonic vibrations (UT) in the material.Ultrasonic Flaw detector is produced in small housing with optimal size for performing testing in tight spaces. Device has color display with high resolution 320*480 pixels, which significantly improves the usability of the device.AdvantagesDisplay of the device can be operated in any orientation – there are 4 options of display rotation, that allows user to customize the unit by himself, both for lefties and righties users. Instrument could be operated in both portrait and landscape orientations.Appointment of the ultrasonic flaw detector: to test the quality of welds and base metal of products; to detect corrosion, cracks, delaminations and other internal defects; to determine coordinates and parameter estimation of defects such as discontinuity, cracks and uniformity of material in products from metal, plastic, composites and other materials; to measure the thickness of products.  Flaw detector is equipped with 3 standard type AA rechargeable batteries. The device can also operate from simple batteries the same type. Using the batteries of standard type allows autonomous operation of the device in almost any conditions – if not the ability to charge batteries, it is possible to have spare batteries, or buy new batteries at any store.Flaw detector allows user to solve a wide range of tasks – from the thickness measurement of thin products to large-sized casting flaw detection.Sealed housing with rubber protective strips – Ultrasonic flaw detector UD2301 is ideal for using in workshop and field conditions with high humidity, dust, etc. Device has frost-resistant display that allows user to use the device at any season and in any climatic zone of the Earth.

We are Offering Eddy Current Flaw Detector, Eddy Current, Material Sorter, Eddy Current Thickness Gauge, Aircraft Wheel inspection-VeeScan. For Electrical Conductive Materials .
