Ajay Industrial Corporation Limited Sahibabad, Ghaziabad, Uttar Pradesh

Ajay Riser Main pipes are made of special uPVC compound for using Handpump and submersible pump installations. The ends are fitted with specially designed heavy duty moulded PVC male/female threaded fittings.With our continuous R&D efforts we have developed uPVC Riser Main pipes with Stainless Steel Coupling. The stainless steel coupling with male thread insert is fitted and crimped at both end of the pipes. This stainless steel coupling is coupled with the help of a female threaded socket. ADVANTAGES Vastly popular & Well accepted all over Western and Eastern Africa Considerably cheaper than Stainless Steel Riser Pipe Being of very light weight, can be mounted / dismounted aster without tools (like key, Lifting equipment ) No gripping problem More durable than Galvanized Iron (GI) Riser Pipe More hygenic being less corrosive

Material : UPVC

Color : Blue

Feature : Low thermal conductivity, Flexibility, Non-Toxic, Variety of Jointing Methods.

Length of Pipe : 3m

Thickness : 2 mm

Material : UPVC

Color : Blue

Shape : Round

These are flexible co-extruded hoses for domestic applications. They can be manufactured in any size and colour. Typical Sizes: � inch, 5/8 inch, � inch, 1 inch, 1 � inch. Washing Machine Hoses: Ajay Industrial is a supplier of special purpose washing machine hoses to major washing machine manufacturers in the country. These are flexible co-extruded nylon reinforced hoses.

Application : Plumbing

Size/Diameter : 2 inch

Color : White

Type : Polyethylene (HDPE)

Color : Blue

Coated Type : PE Laminated

Feature : Flame Retardant, Waterproof

Material : Polyethylene (HDPE)

Material : PVC

Color : Blue

Country of Origin : Made in India

Ajay Hose is all-purpose suction and discharge flexible hoses with rigid PVC spiral. It is a lightweight suction and delivery hose, which has a specially compounded PVC reinforcement, which is helically wound and inseparably fused to the soft inner walls. The structural composition of the walls so formed is ideal for withstanding multi-axial stress under load. APPLICATION Treadle Pump for Irrigation : Weather resistance and durability makes it perfect for withstanding the vaccum pressure and stress of irrigation use. Construction : Lightweight and flexibility combined with durability to make it ideal for all construction applications. Its ability to withstand crushing is particularly valuable. Toughness makes it suitable for conveying mixed concrete at construction site. Marine : Resistance to Sun, weather and salt water helps it withstand severe marine service. Ease of handling and lightweight are important features during foul weather. Sump Pumping : Resistance to abrasion, mild acids and alkalies results in superior service in industrial applications using sump pumps. Sanitation: Crush resistance, lightweight and flexibility result in top performance for septic tank cleaning services. PROPERTIES It is light in weight easy to handle, yet strong Economical inexpensive initial cost & maintenance Transparent possible to observe inside conditions Does not corrode or rust Simple installation and lesser fittings Superior weathering Bright and attractive Non flammable Affluent in flexibility usable anywhere Superior in chemical resistance ideal for conveyance Excellent in pressure and abrasion resistance ideal for conveyance of powder as well as fluid Cut table into any desired length.

Material : Steel

These Pipes are identified by their colour for different uses for eg. Yellow for Gas, Orange for Petrol and Blue for Water. These pipes can tailor make to meet specific requirements of individual Gas Customer

Size : 1/2 inch

Color : Blue

Material : UPVC

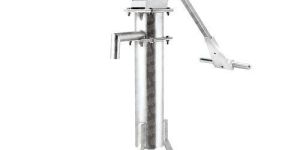

  Discharge Minimum 375 ml per stroke or 15 Ltr. / 40 stroke completed in 1 minute. Static water level depth 20 - 40 meter Stroke Length 125 mm ± 4mm Cylinder - Cast Iron or Stainless Steel or UPVC Bore well Casing Size 100 NB to 150 NB Connecting Rod - Mild Steel or Stainless Steel in 3 meter length Rising Main Size 32 NB MS GI Riser Pipe or Ø 38 mm x2mm SS Pipe or 40 NB UPVC Pipe with Coupler or 40 NB UPVC with SS Socket and Nipple in 3 meter length Above Ground Structure (Pump Stand, Head, Handle, Water Tank etc.- (Mild Steel with hot dip galvanized)

Material : Cast Iron

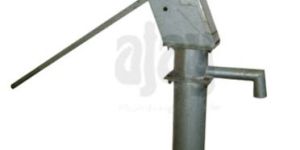

The pump body shall have a base plate with four foundation bolt holes exactly 9 inches square (i.e. 228.6mm) and a diameter of 20mm (Bore size) to conform to the CWSA Ghanaian standards. Riser Pipe with tip-stretched (not welded-on) spigot (male end) and socket (female end), for connection purposes furnished with male/female Rope Thread at pipe and to avoid wear and tear between the rods and pipes during operation a centralizer is to be provided The 10.8 mm dia stainless steel pump rods for the connection to the above mentioned GMIMKII reciprocating hand pumps shall have rolled on threads The full brass pump cylinder shall be assembled for the employment together with the above � mentioned components that are the above ground system the lightweight riser pipes and stainless steel pump rods.      PUMP CYLINDER SIZE 1 �� X 20� : The cylinder shall be of all brass construction with nitrite bucket 1 �� BSP thread at top cap and M12 mm metric rod connection, rod and lock nut of stainless steel AISI 316 quality, piston rod length 750mm. The bottom cap and top cap must be fit tight (without the use of an O-ring) that during operation, the caps will not be loosened.  PUMP CYLINDER SIZE 2� X 20� : The cylinder shall be of all brass construction with nitrite bucket 1 �� BSP thread at top cap and m12mm metric rod connection, rod and lock nut of stainless steel AISI 316 quality, piston rod length 750mm. The bottom cap and top cap must be fit tight (without the use of an o-ring) that during operation, the caps will not be loosened.  Static water level depth 20 meter - 40 meter Stroke length 125 ± 4 mm Discharge - 15 Liter per 40 stroke in one minute or 370 ml in one stroke Bore Well casing size - 100NB Cylinder - Brass body with Gun Metal Components or ss316 cylinder also all components of ss316 Riser pipe -42 mm od x1.2 mm SS 316 with Rope Thread or SS 316 with BSP Thread Above ground component, Head Assy., Water Tank and Stand Ass. Hot dip galvanized mild steel parts

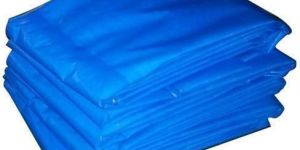

Size : 3x6 Ft.
