Ajay Industrial Corporation Ltd. Sahibabad, Ghaziabad, Uttar Pradesh

Water Tanks Onion Description: KIT, WATERTANK, flexible onion, 5 m3, storage KIT, WATERTANK, flexible onion, 10 m3, storage KIT, WATERTANK, flexible onion, 20 m3, storage General information Flexible water tank, open top, fast set-up, light-weight and small volume for transport.SpecificationsHeavy-duty, drinking-water quality, PVC-coated polyester2 x 2″ BSP threaded outlet (ICRC standard)2 x 3″ BSP threaded outlet (Federation ERU standard)Anti-chafe patches and flapsPVC cover with attachment hasps and ropesPackaging as per IATA regulation UN 1133 (for the glue) and UN 1263 (for the thinner)

Stainless Steel Water Filter:- SS Water Bucket: – 24 Liters, 2 buckets.With 2 holes, Supplied with/ without candles.Specialized lid.

Weight : 2.330 kgs with Packing

Pump Type: India Mark III Deep Well pump as per Bureau of Indian Standard Specifications with 63.5mm dia cast iron brass sleeved open top cylinder assembly. Recommended for water level setting depth (meters): 20-45Minimum ID of bore (millimeter): 125Approximate Discharge (Liters/Hour): 900GI Riser Pipe: 65 mm NB x 3 meter lengthMS/SS Connecting Rod Diameter: 12mm x 3 meter length

Pump Type: India Mark III well Hand pump as per Bureau of Indian Standard Specifications with 50 mm dia cast iron brass sleeved open cylinder assembly. Recommended for water level setting depth (metres): 20 - 45Minimum ID of bore (milimetre): 100Approximate Discharge (Litres/Hour):600GI Riser Pipe:50 mm NB x 3 Meter lengthMS/SS Connecting Rod Diameter: 12mm x 3 Meter length

Supplied with factory fitted joints. Ready to install Normally no centrliser required in this pipe but can be supplied upon specific request

The pipe is supplied with male coupler fitted at One End and other end plain. Insatllation is done at the site as follows; Clean the Plain end of the Pipe with the help of Sand Paper Insert The Pipe Centarlizer on to the Riser Pipe Apply Solvent Cement on the end of Riser Pipe and insert the pipe into fitting Rotate to 90° to ensure uniform distribution of Solvent Cement Hold the pipe for 2 minutes Wipe the excess Solvent Cement Riser Pipe is ready to be installed on borewells.

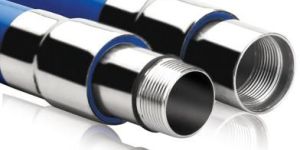

Ajay Riser Main pipes are made of special uPVC compound for using Handpump and submersible pump installations. The ends are fitted with specially designed heavy duty moulded PVC male/female threaded fittings.With our continuous R&D efforts we have developed uPVC Riser Main pipes with Stainless Steel Coupling. The stainless steel coupling with male thread insert is fitted and crimped at both end of the pipes. This stainless steel coupling is coupled with the help of a female threaded socket. ADVANTAGES Vastly popular & Well accepted all over Western and Eastern Africa Considerably cheaper than Stainless Steel Riser Pipe Being of very light weight, can be mounted / dismounted aster without tools (like key, Lifting equipment ) No gripping problem More durable than Galvanized Iron (GI) Riser Pipe More hygenic being less corrosive

These are flexible co-extruded hoses for domestic applications. They can be manufactured in any size and colour. Typical Sizes: � inch, 5/8 inch, � inch, 1 inch, 1 � inch. Washing Machine Hoses: Ajay Industrial is a supplier of special purpose washing machine hoses to major washing machine manufacturers in the country. These are flexible co-extruded nylon reinforced hoses.

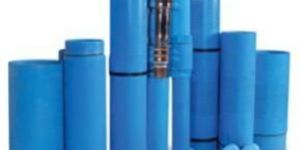

Casing & Screen Pipes for application in BorewellsTubewells, irrigation projects are manufactured by House of AICL, who are in the field of plastic Extrusion for past 5 decades. Produced with strict quality control, The plant is equipped with Cincinnati Milacron Twin Screw Extruder Machine capable of producing the complete size range from 2.5 kgfcm2 to 12 kgfcm2 pressure classes.

Pump Type : U3 modified deep well hand pump as per SKAT-HTN Switzerland specifications with 50mm dia open top, UPVC brass lined cylinder assembly with extractable plunger and foot valves assemblies.

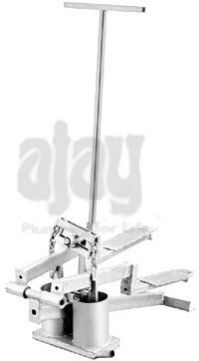

We manufacture and supply highly acclaimed Treadle Irrigation Pumps in the international market. These types of Irrigation Water Pumps have discharge capacity of approximately 2000 to 2400 Ltrs per hour. They are suitable for irrigation up to the area of 2 Acers of land. Manufactured from the best quality raw materials like steel, our Irrigation Water Pumps are highly endurable and long lasting in nature. In addition to this, we are considered as an eminent Irrigation Water Pumps Manufacturer and one of the ace Exporters of the same.Steel Treadle Irrigation Pump (Pulley & Steel Rope Arrangement)

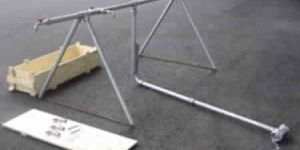

General information 6-tap stand for individual water distribution to large numbers. The stand should be installed in a safe area, where people can queue for water collection. Waste-water drainage is essential to keep the area clean.One stand can serve 1000 people with 20 litres each in 12 hours. The water pressure at the tap is determined by the head difference between the surface on which the water tank's base is resting and the tap, it may be necessary to create an elevated surface on which to install the tank.ICRC standard: tap stand with six ¼-turn taps and a 2″ Storz coupling.1.    -      ¼-turn taps are cheaper than automatic valves, and close efficiently even with very low pressure2.    -      One wooden box contains all the necessary items to assemble a complete stand, and to terminate with a Storz 2″ coupling.International Federation ERU standard: tap stand with self-closing taps (also standard for Oxfam, MSF, etc.)1.    -      Self-closing valves (Talflo, etc?) close "automatically", saving water. Sometimes leakage may occur with very low pressure (less than 1 bar). More expensive than ¼-turn valves.2.    -      One box contains all the necessary items to assemble a complete stand, and to terminate with a 1.1/4″ BSP coupling. See adaptation couplings in option list.Do local manufacturing as soon as possible.

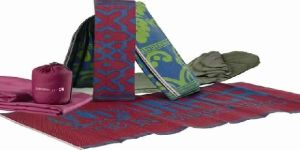

Synthetic Sleeping Mats As per UNHCR/IOM Standard UNHCR standard Waterproof, tearproof and material trim finish 90x180cm/1.62m2 Will last for +12 months of use under hard tropical conditions Suitable for one adult or two children.

the pioneer to design, develop and market uPVC RiserDropColumn that are being successfully used in the erection of submersible borehole pumps up to depth of 1000 feet. Ajay Submersible column Riser pipes are produced on modern machines and threaded on advanced fully automated precision CNC machines. Ajay adopts a stringent Quality Control Management System.

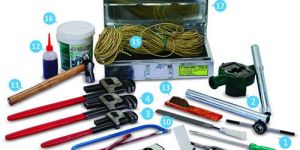

One Each Button Die Set For 12mm Threads One Each Die Set For Threads Of 32mm NB GI Riser Pipe One Each Pipe Wrench,450mm Drop Forged Carbon Steel One Each Pipe Wrench,600mm Drop Forged Carbon Steel Two Each Double Ended CV Open Jaw Spanner M17 X M19 One Each Adjustable Spanner 250mm Drop Forged With Heat TreatedInjection Hardened Polished Jaws. One Each Screw Driver 250mm X 8mm Engineering Type  One Thread Tap With Handle And M12 X M 1.75 One Each Hack Saw With 300mm Blade And Six Spare Blades One Each Flat File 250mm With A Wooden Handle One Each Ball Pein Hammer ( Approx. 1kg,Drop Forged With A Varnished Wooden Handle) One Each Pressure Type Oil Can ( ½ Pint)/Plastic Oil Can With Nozzled Outlet One Each Wire Brush With Wooden Handle Spirit Level One Each 75metres Nylon Rope 3mm Thick One Each Box Of Multipurpose Grease One Each Mild Steel Galvanized Tool Box With Locking Arrangement

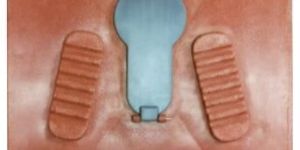

Squatting slabs:- In emergency situations the construction of latrines is the most important step towards sanitation and that needs to be done within a day using usually unskilled labour and minimal instructions. Keeping the easy installation in mind, we have designed our squatting slabs. Key Features: Good strength Self-supporting Low maintenance required Easy transportation Light weight Hygienic sanitation Technical Specifications: Dimension:  Length: 1200mm   Width: 800mm   Thickness: 54mm Weight: 8.70 Kg Material: High Density Polyethylene (HDPE) having good strength and less permeability to moisture and chemicals. Lid: The latrine slab comes with a key hole shape kick lid. For better promotion of sanitation, it comes with a ‘Wash your hands’ symbol in a standard neutral grey colour. Ground anchors and Drilling points: Four galvanized ground anchors are stored within bespoke recesses on the plate underside. These pins are designed to fit within the holes positioned around the perimeter of the squatting slab to be fixed to a supporting superstructure or the ground. Underside of the latrine slab: The squatting slab has hand shaped recesses underside, which allows the slab to be moved easily and hygienically to new locations. It also has D nut arrangement allowing for adding pour flush latrine pan and water seal trap if required.

One Each Self Locking Clamp Or Heavy Duty Clamp For 32 mm NB GI Pipe One Each Connecting Rod Vice Three Each Pipe Lifting Spanner Once Each Water Tank Lifter Two Each Crank Spanner(M17 X M 19) One Each Connecting Rod Lifter One Each Handle Axle Punch One Each Rod Coupling Spanner One Each Chain Coupler Supporting Tool One Each Bearing Pressing/Mounting Tool One Each Mild Steel Galvanized Tool Box with Locking Arrangement.(To Accommodate Items except 1 & 3)

Solar Street Light Say Goodbye to darkness in the evening and costly electricity bills. Our Solar Powered LED Lightining solutions harness the sun's energy to provide high - quality illumination for indorr and outdoor applications. This breakthrough technology delivers a convenient, sustainable way to light your space with minimal investment and maintenance. We have various types of solar light like all in one lights, Garden solar light,Integrated solar light with (Inbuilt Batteries) and IV) commercial solar street light range is form 60 watt to 250 watt.

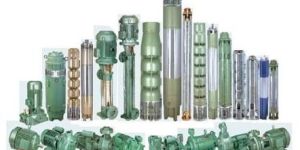

Solar Pumps Solar Pump  DC Pump hybrid pumping from 05kV to 1.4 kV Grundfos and Lorentz and in the hybrid system, ATX Pumps with a hybrid which can work with  solar and hybrid power.
