Bansal Wier Industries Mhoan Nagar Gzb Loni, Ghaziabad, Uttar Pradesh

These are shaped wires in Square, Rectangular or Trapezoidal cross section manufactured from high carbon steel generally conforming to EN-42B/En-42C. The wires are custom built for the taper required. The wires are supplied in Drawn & Annealed finish. These wires are used in the manufacture of springs, spring washers and snap rings.   Packing: The spring washer wires are supplied in 450-500mm. I.D coils with a coil weight of 50-250 kgs., depending on size of wire. The coils are oiled and packed with polythene and Hessian.  Tolerance on Thickness: ± 0.05 mm and Width : ± 0.05 mm

Spring Steel Wires: Spring Steel wires are cold drawn wires made from unalloyed high carbon steel. These wires are used for the manufacture of cold formed helical springs, spring rings and wire forms which find application in automobile, cycle and other industrial equipments. These wires are generally supplied in phosphate and oiled condition.    Packing:Spring Steel Wires are normally oiled and packed with polythene and Hessian.Usage:Industrial

Grade Standard : IS:4454(part1)-1975, Grade 1 & 2

BW1LS' wires for Ropes are cold drawn wires made from unalloyed high carbon steel. These wires find application in Construction, Mining, Shipping and various other Heavy Industries. These wires are generally supplied in phosphate and oiled condition.

Material : Metal

Pattern : Plain

Coating : Polished

Technics : Machine Made

Needle wires are bright annealed and drawn High Carbon Steel. Needle wires are used in Hand sewing and Hosiery Industries.

BWIL offers Low Carbon Steel in Wires & Bright Bars for various applications. They are known for varied industrial usages for their ductility and softness. We offer various sizes and cross sections for the same.

Bansal Wire Industries Ltd. (BWIL) manufacture High Carbon Steel Wires in various cross sections in sizes ranging from 0.30mm to 6.00mm in carbon 36 to 85. HCS wires are known for their hardness & high tensile strength  Applications: The High Carbon Steel Wires, by BWIL, are used to manufacture automotive products, Balls & Taper Roller Bearings, Braiding Hoses, Brushes, Chains, Conveyor Belts, Filters, Free Cutting Wires, Fasteners, Screws, Bolts, Needles, Spokes, Springs, Tying Wire, Wire Ropes, Shots, Wire Mesh etc. Annealed wires are used for redrawing also. All properties like hardness, tensile strength, size tolerance, coil weight etc. are maintained as per customers' specification.

We manufacture High Carbon Steel Wires in sizes ranging from 0.30mm to 6.00mm in carbon 36 to 85, in round wires.

These wires are patented galvanized drawn wires manufactured from High Carbon Steels. These wires are used for manufacture of Auto Cables, Steel Wire Ropes, Cold formed Helical Springs and Wire Forms.   Galvanized spring steel wires are normally packed with polythene & Hessian cloth.

Grade Standard : IS:4454(Part 1), Grade 1 & 2 and also as per IS:1835

Copper Coated Steel Wire, commonly abbreviated as CCS is an electrical conductor composed clan inner mild steel core wire and outer copper coating.   Features: High intensity: is 2 times than pure copper wire that is if the tensile strength. of pure copper wire is about 215 to 265, then CCS can reach 430 to 530. Light weight: lighter 13% than pure copper wire. Under the same wire size and weight, its length is 1.13 times than that of pure copper wire. So buying 1 ton. CCS wire is the same as buying 1.13 tons pure copper wire. Saving cost: CCS wire price is just 35% of that of pure copper wire and its appearance quality is the same with pure copper wire. Reducing greatly the production cost while guaranteeing the same quality as well as pure copper wire.   Main Properties: Good corrosion resistance of copper High tensile strength of steel Much lower impedance at high frequencies than that of steel wire alone   Application: Inner conductor of terminal CATV coaxial cable Conductive cord of user communication cable for double conductor telephones. Plug-ins for electronic components. Conductive cord of field wires. Overhead system for power transmission and telephone lines. Overhead-contact systems for railway and Light Rail Transit. Braided shield wire of power cable.

Copper-coated aluminiurn magnesium wire, commonly abbreviated as CCAMW or CCAM, is an electrical conductor composed of an inner aluminium core and outer copper coating.   Properties: The properties of copper-coated aluminium wire include: Lighter than pure copper Higher electrical conductivity than pure aluminium Higher strength than aluminium Better solderability than aluminium, due to the lack of the oxide layer which prevents solder adhesion when soldering bare aluminium. Less expensive than a pure copper wire   Skin Effect: The skin effect causes alternating current to concentrate on the more-conductive copper coating of the conductor, causing the resistance of the wire to approach that of a pure copper wire at high frequencies, which rnakes the copper-coated alurninium wire a good fit for such applications. The skin effect is also utilized in copper-coated steel wire such as RG-6 coax, which is also commonly used in high frequency applications with high strength requirements.

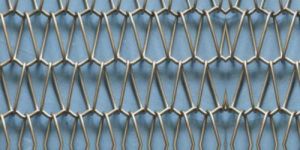

CONVEYOR BELT WIRES Wires for Conveyor Belts are bright annealed and drawn. Wires are offered in both round and flat cross sections for Conveyor Belts.

These are shaped wires in Square or Rectangular cross section manufactured from high carbon steel generally conforming to EN-42C/ EN-42J. The wires are custom built to suit customers’ actual requirements. These wires are supplied in Annealed finish. These wires are used in the manufacture of lock circlips used for locking shafts.   Packing: The circlip wires are supplied in 450-500mm. I.D coils with a coil weight of 50-200 kgs., depending on size of wire. The coils are oiled and packed with polythene and Hessian.Tolerance on Thickness:± 0.05 mm and Width : ± 0.10 mm

Magnesium is the primary constituent in this alloy. AA is moderate strength, non-heat treatable alloy that combines its Strength with excellent Formability & Corrosion Resistance. Aluminium's unique combination of properties make it a highly versatile material when alloyed with various metals. Besides light weight characteristics and corrosion resistance property it's excellent workability make it a natural choice for industrial use.AA wires are used in many products by the leaders of the industry as raw material.     Applications: Flexible cables Coaxial cables Wire used Electrical Appliances, Water-Bottle Carver/parcel grids for bicycles Mosquito Nets Foodstuff Clips, Metal Staples (example for Sausage Type foods, Tea Bags} Lightning Conductors Clips, Staples for Staplers, Paper Clips Clothes Pegs, Aluminium Clothes Hangers, usually used by Dry Cleaners Refrigerator Grilles Pipe Hose for Sanitary Fittings Pipe Hose for Low Pressure Drinking Water, for Low Pressure Oil, Air and Petrol, Anti-vibration Tubes Steel Deoxidizer In the Continuous Casting process Shots Rivets

Precision made INSECT GUARD is manufactured to the international standards and specifications.

Packaging Type : One Roll Per Cardboard
