S M INDUSTRIES group provides its customers the most modern, cost effective, efficient and fast operating lines for hot dip galvanized wire plant. We provide equipment right from drawing lines flattening mills, complete galvanizing lines with vertical drop coilers, horizontal side winder take ups or strip take ups.  By excellence in design, engineering, manufacturing and service we are able to offer most relevant technology for Galvanizing of High Carbon and Low Carbon Steel Wires.  S M INDUSTRIES has become the pioneers in supply of turnkey projects for the wire industry; we will maintain this position trough reliable equipment and service to our customers worldwide. Technical Specification Online Fumeless Pickling System with water curtains to prevent any acid fumes form exiting the pickling system. Zinc Bath furnace consisting of Structural Steel Frame which is completely lined using several layers of ceramic refractory.

The precision engineered Wire Drawing Plants fabricated by us are used for drawing straight and deflection free wire. These machines are manufactured as per the technological advancements and are appreciated for robust construction, maximum output.

Available in different Capstan Diameters and Spool Sizes, these machines have multi-spindle and multi-die combination, which suit best with oil based lubricants. We also provide complete accessories and spares parts as well as custom designing to meet clients' needs.  For drawing Mild Steel, Carbon Steel, Stainless Steel, Copper, Aluminium and their Alloys  High speed Timing Belts transmission for power saving or highly efficient Alloy Steel hardened & ground helical gear drive  Solid Tungsten Carbide drawing cones for very long service life or Alloy Steel T.C. Coated drawing cones for economy  Submerged lubrication or splash lubrication options  Support cone or all drawing cone design  Lubricant cooling system with highly efficient insulated plate type heat exchanger or through centralized lubrication system

We present Welded Wire Mesh Plants that are used for manufacturing wire mesh for fencing purposes. The plants are manufactured in accordance with set industrial standards using graded materials and components. The wire mesh plants offered by us are high on withstanding capacity and require less maintenance.

S M INDUSTRIES has pioneered to indigenously develop the Straight-Line Wire Drawing Machine Technology in India. Presently the range available is capstan diameter 900mm, 750mm, 600mm, 550mm, 500mm, 460mm, 400mm and 300mm for inlet wire diameter 16mm down to 0.5mm. Line speeds up to 25 Mtrs / Sec. These heavy Straight Line Wire Drawing Machines provide remarkable drawing performance for Low, Medium and High Carbon Steel Wire, Stainless Steel Wire and special Alloy Steel Wire and Non-Ferrous Alloy Steel Wire.  Machines are built on modular structure, in combination of Blocks and do not require any special foundation.  Better productivity due to higher drawing speeds, twist-free operation & better cooling.  Easy operation and faster threading.  High pressure Narrow gap, internal water cooling for high efficiency cooling of wire.  High degree of reliability, low downtime due to lower no. of wear parts.

We offer a wide range of Rod Breakdown Machines, which are highly effective in drawing and coiling aluminium and copper wires. Our machines are available in single or multi-cone options that are designed to fulfil varied requirements of the user. In addition, there are ring type drawing capstans for convenience and low maintenance of the machine. Besides this, all the transmission gears and bearings are enforced with lubricants. We also offer customized designing and developing Rod Breakdown Machines as per the client's requirements.  Can work with spooling machine & coiler  Energy efficient and power saving over gear driven machines  Max. Speeds up to 20 metres. /min  7 Die to 15 Die machines available  Available with or without online annealing  Online filtration and cooling system

S M INDUSTRIES offers high speed integrated Cold Ribbed Wire Plant for high-speed continuous drawing and ribbing of Mild Steel Low Carbon wire rods used for construction bars & mesh welding. Salient Features:    Standard Ribbing Cassette used  Hydraulically tilt able Dual Head Pay Off for continuous easy feeding of Wire Rod Coils by Overhead Crane or fork Lift  Hydraulically tilt able neck type Overhead Pulley for faster stinging operation and easy operator reach.  Dual plane adjustable roller type De-scaler with hardened wear resistant rollers with high service life with Inline Motorized Brushing Unit for absolute scale free rod surface  Motorized Lube Box for Better Lubricant Coating Before Pre-Drawing  Double Deck Chromium Carbide Matrix Coated Capstans internally water cooled for long service life  Suitable Operator Safety Features Built-in the System like Guards, Wire Brake Sensors, Emergency Locks, Etc  Pneumatic / Hydraulic clamping, shifting, lifting and setting of Spools for faster working at the Spooler

We provide turnkey solution for PC wire plants and LRPC wire plants. Offering tailor-made solution, the designing and fabrication of the plants are provided as per the exact requirements of our clients.

This machine offered comes supported by advanced system that provides for desired wire elongation. With the system suitable to be attached with wire drawing machine that allows for achieving uniform, properly synchronized wires, the wires drawn are of superior quality without any tarnishing possibilities.  Quality performance based Inline Annealer  System suitable to be attached with wire drawing machine that allows for achieving uniform, properly synchronized wires  Inline annealer provides for cost effective and time saving operations in industry processes requiring wire drawing and it’s annealing in a single process  System can be provided with different die combinations depending on inlet diameters of copper as well as diameters needed of finishing wire  Allows achieving optimum synchronized wires and annealing support in a single process approach

The fabrication of a Flux Cored Electrode begins by slitting steel coiled sheet into strips. The strips are passed through rollers that form it into a U-shaped cross-section. Salient Features:  In the same operation, the formed strip is filled with a measured amount of core ingredients.  The U-shaped strip is passed through closing rolls, forming it into a tube and tightly compressing the granular core material. Technical Specification: All position versatility with the right filler metals (the consumable electrode) with or without gas shielding reduces setup time and requirement of special fixtures. A high-deposition rate process because of the relatively high current density (speed at which the filler metal is applied).

The EOT cranes are cranes that traveling along a bridge between two parallel runways that supported by the structures of the factories themselves. The hoist and the trolley are placed on the bridge beam. They move the loads up and down as well traveling along the beam as right and left. Through the end trucks travels along the runway system, the EOT crane moves the load forward and backward. So, the EOT crane offers three axes of hook motion and can move the load with no limitation in a rectangular area. Same as other famous EOT cranes manufacturers, we try our best to provide the high quality cranes. Our EOT cranes are available in top running and under running, single and double girder configurations. Every variety of EOT cranes owns irreplaceable advantages. Top running EOT crane is the most common style. But when the height of the factory is limited, to get the maximized lifting height, the under running EOT is the better solution to solve this problem. Because of the more rigid structure, the load ability of double girder EOT cranes is better than single girder. Generally, EOT crane can be used at any capacities for load movement.   Salient Features  EOT crane can provide three axes of hook motion and cover a large rectangle area. The area can increase by prolong the length of end trucks  Installed in the upper part of the plant, it take little floor space. The possibility that need of forklifts and meet obstacle is reduced. This in turn improve the safety and efficient  It is typically adapted to harsh and heavy load environments, such as steel industry, the paper industry, power generation and refineries  With the favourable structure, EOT crane need less maintenance compared to other kind of lifting equipment. It is more cost effective

With the advent of robotic welding and high speed automated MIG Welding machines the need for wire in larger packaging evolved. Problem faced with larger packs on spools was to utilize a complicated system of motorized pay offs synchronized with the welding system to supply the wire in the required form and speed. Salient Features:   Allows wire to be fed at relatively high speed without entanglement and continuously.    Lower packaging cost than winding on Plastic Spools.  Lower maintenance cost for end user. Technical Specification Wire size dia. 1.60 / 1.20 / 1.00 / 0.80 mm Max line Speed up to 25 Mtrs/Sec. Feeding through driven Pay off DIN-800 / 630.

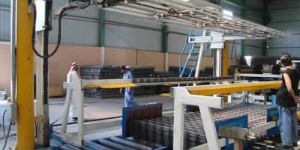

We are involved in the fabrication of Concrete Reinforcement Mesh Plant. The plant is used for making concrete reinforcement wire that is mainly used in construction industry. The plants are available in different models and specifications and are appreciated for functionality, reliability, fast operation, increased performance output and require less maintenance. Salient Features:  We offer a complete range of Concrete Reinforcement Mesh Plant to our customers which include concrete reinforcement wire, welded wire mesh concrete reinforcement, welded wire fabric line and concrete reinforcing mesh machine. These are known for their increased performance output, fast operation and low maintenance cost.
